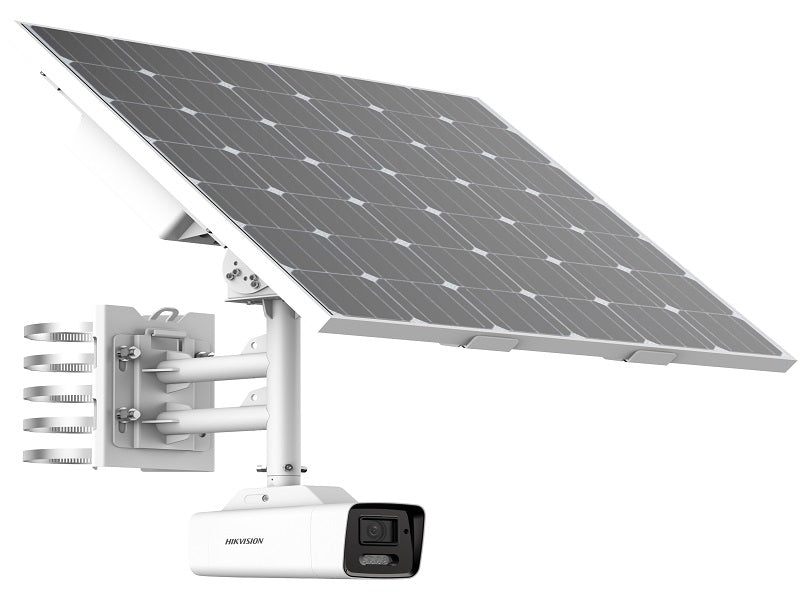

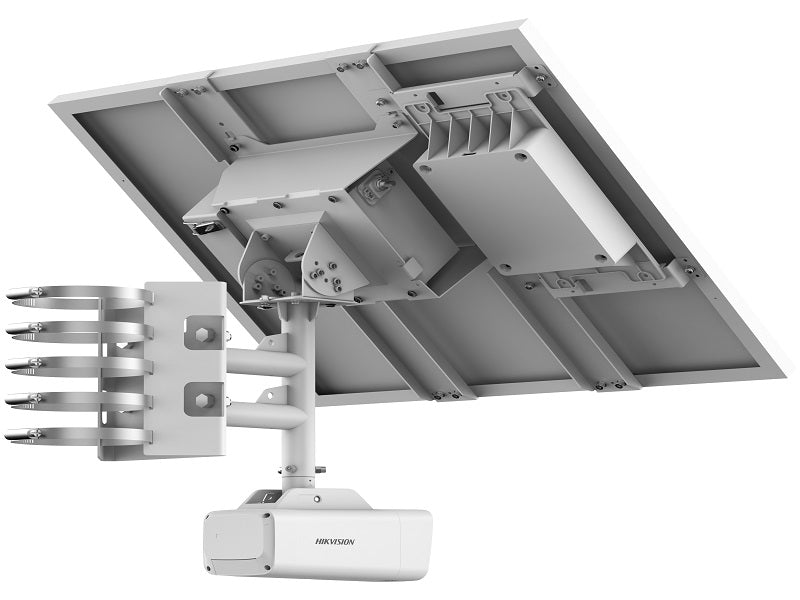

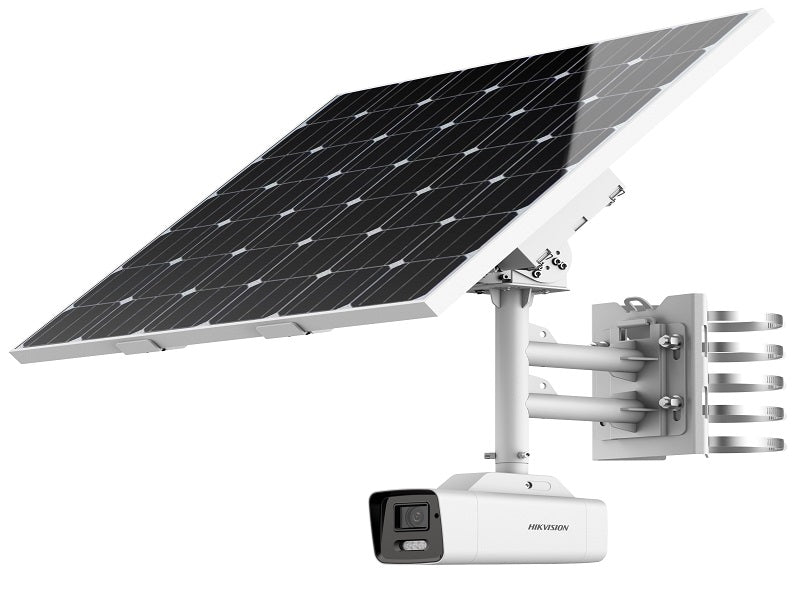

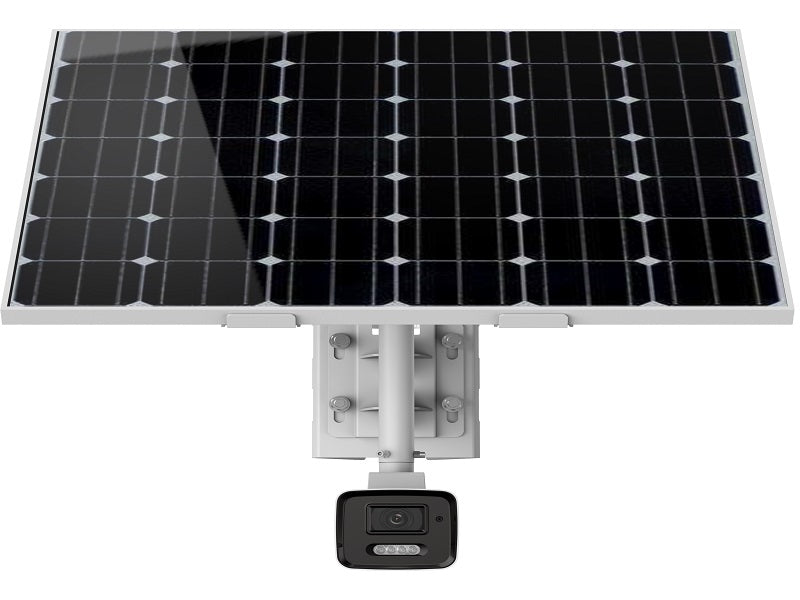

HIKVISION 4Mp-4G Solar Colorvu Camera

Clear imaging against strong back light due to 120 dB true WDR technology. Focus on human and vehicle targets classification based on deep learning.

Key features

• 4MP ANPR Bullet Solar Power 4G Network Camera Kit
• 80 W photovoltaic panel, 360 Wh chargeable lithium battery
• Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
• LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
• Shutter Time
• Focal Length & FOV
• 2.8 to 12 mm, horizontal FOV 107.4`b0 to 39.8`b0, vertical FOV 56`b0 to 22.4`b0, diagonal FOV 130.1`b0 to 45.7`b0
• 8 to 32 mm, horizontal FOV 40.3`b0 to 14.5`b0, vertical FOV 22.1`b0 to 8.2`b0, diagonal FOV 46.9`b0 to 16.5`b0
• Auto, Semi-auto, Manual
• Iris Type
• Auto-iris
• 2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
• All In One Lens
• Dori
• Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
• Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
• Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m
• Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• Main Stream
• 50 Hz: 25 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 30 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 720)
• 50 Hz: 12.5 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 15 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (640 `d7 480, 640 `d7 360)
• 50 Hz: 12.5 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 15 fps (640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 1 fps (1280 `d7 720, 640 `d7 480)
• 60 Hz: 1 fps (1280 `d7 720, 640 `d7 480)
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• User/Host
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Hik-Connect (proactive mode also supports), Hik-central Professional
• Web Browser
• Mobile Communication
• SIM Card Type
• MicroSIM
• Lte-tdd/lte-fdd/wcdma/gsm
• Image
• Wide Dynamic Range (WDR)
• Day/Night Switch
• Day, Night, Auto, Schedule, Video Trigger
• Image Enhancement
• Image Parameters Switch
• Image Settings
• Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• SNR
• Privacy Mask
• 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 K'd9, interface type: non-equilibrium,
• 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 `d9, interface type: non-equilibrium
• Alarm
• 1 input, 1 output (max. 12 VDC, 1 A)
• Built-in memory card slot, support microSD card, up to 256 GB,
• Reset Key
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Wiegand
• 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)
• Event
• Basic Event
• Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
• Smart Event
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection
• Linkage
• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
• Deep Learning Function
• Road Traffic and Vehicle Detection
• Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)

Specifications

• Ds-2xs6a46g1/p-izs/c36s80(2.8-12mm)
• Water and dust resistant (IP66)
• 1/1.8" Progressive Scan CMOS
• 2560 `d7 1440
• 1 s to 1/100,000 s
• Lens
• Lens Type
• Aperture
• Lens Mount
• 2.8 to 12 mm:
• 8 to 32 mm:
• 2.8 to 12 mm: Up to 30 m
• 8 to 32 mm: Up to 50 m
• Main stream: H.264/H.265
• Sub-stream: H.264/H.265/MJPEG
• Third Stream: H.265/H.264
• Performance mode: main stream supports H.264+, H.265+
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• 4 fixed regions for main stream
• G.711/g.722.1/g.726/mp2l2/pcm/mp3/aac-lc
• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+
• Frequency
• LTE-TDD: Band38/40/41
• LTE-FDD: Band1/3/5/7/8/20/28
• WCDMA: Band1/5/8
• GSM: 850/900/1800 MHz
• Standard
• 120 dB
• BLC, HLC, 3D DNR, Defog
• ≥ 52 dB
• 4 programmable polygon privacy masks
• Built-in 8 GB eMMC storage
• Blocklist and allowlist: up to 10,000 records
• Vehicle attribute detection: Not supported
