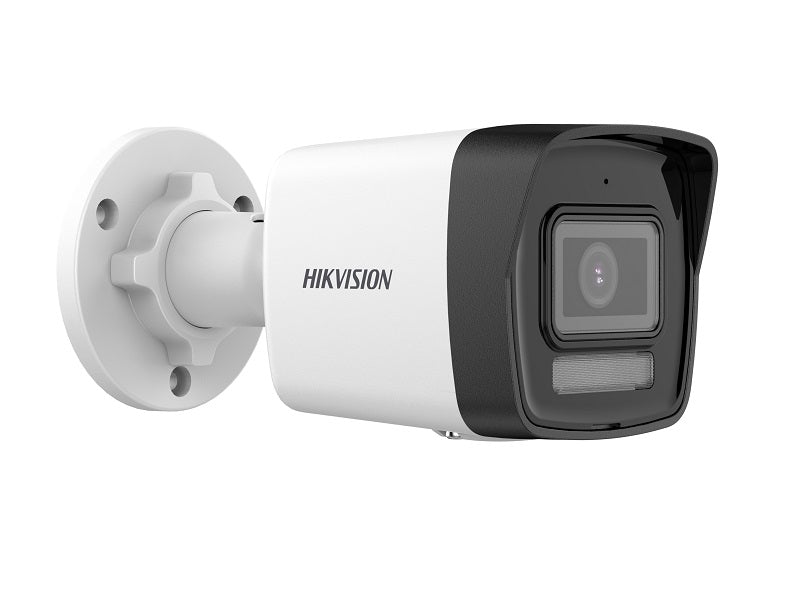

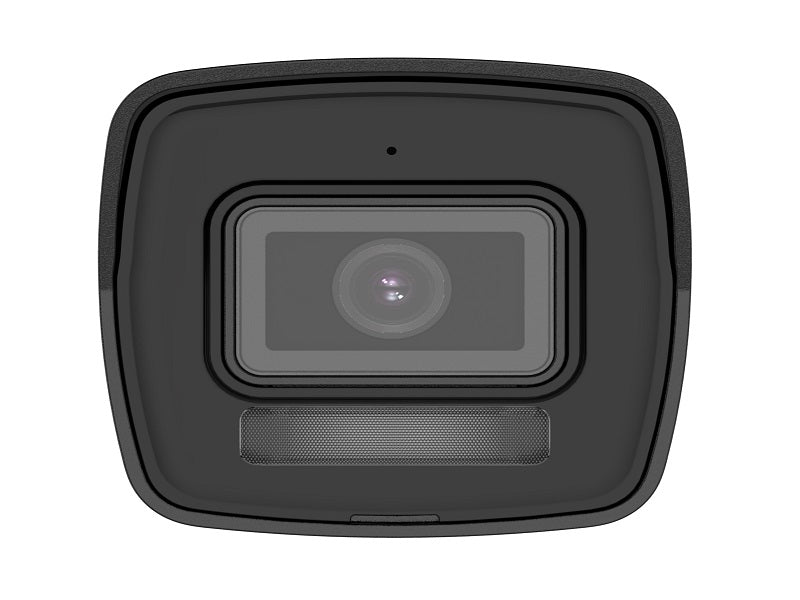

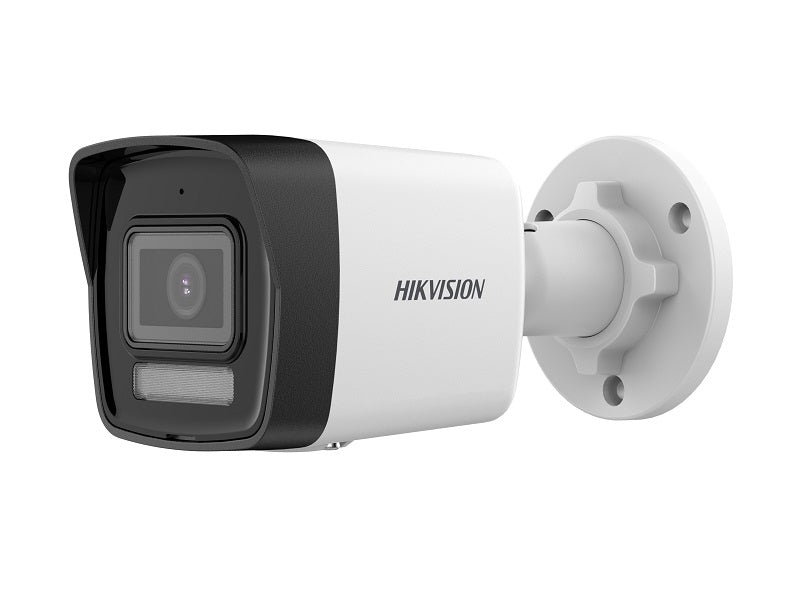

Hikvision 4Mp Ip Bullet Camera 2.8Mm

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR. Pan: 0`b0 to 360`b0,tilt: 0`b0 to 90`b0,rotate: 0`b0 to 360`b0.

Key features

• 4 MP Smart Hybrid Light Fixed Bullet Network Camera
• Built-in microphone for real-time audio security
• Image Sensor
• Max. Resolution
• Min. Illumination
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 98`b0, vertical FOV 54`b0, diagonal FOV 114`b0
• 4 mm, horizontal FOV 78`b0, vertical FOV 42`b0, diagonal FOV 93`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
• 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
• Illuminator
• Supplement Light Type
• IR,White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 25 fps (1920 `d7 1080, 1280 `d7 720)
• 24 fps (1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 24 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Region of Interest (ROI)
• Mono sound
• 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Security
• Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View
• API
• ISAPI,SDK,Open Network Video Interface (Profile S, Profile T)
• Protocols
• Tcp/ip, icmp, dhcp, DNS, http, RTP, rtsp, NTP, igmp, ipv6, UDP, qos, FTP, smtp
• User/Host
• Client
• Web Browser
• Image
• Wide Dynamic Range (WDR)
• SNR
• Day/Night Switch
• Day,Night,Auto,Schedule
• Image Enhancement
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone
• Event
• Basic Event
• Linkage
• send email,notify surveillance center,trigger capture
• 12 VDC `b1 25%, 0.4 A, max. 5 W,`d85.5 mm coaxial power plug,reverse polarity protection,
• PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Metal & Plastic
• 170.8 mm `d7 66 mm `d7 69.1 mm (6.7" `d7 2.6" `d7 2.7")
• 216 mm `d7 121 mm `d7 118 mm (8.5" `d7 4.8" `d7 4.6")
• Approx. 270 g (0.6 lb.)
• Approx. 481 g (1.1 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• Heartbeat,anti-banding,mirror,password protection,password reset via email
• Approval
• EMC
• Ce-emc: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
• Safety
• BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
• Protection

Specifications

• Ds-2cd2041g0-liu2.8mm
• High quality imaging with 4 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology
• 1/3" Progressive Scan CMOS
• 2560 `d7 1440
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M12
• Aperture
• F1.6
• Up to 30 m
• 850 nm
• 50 Hz:
• 20 fps (2560 `d7 1440)
• 60 Hz:
• Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264/MJPEG
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• 1 fixed region for main stream
• 8 kHz/16 kHz
• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,Hik-Connect
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+
• 120 dB
• ≥ 52 dB
• Blc,hlc,3d DNR
• 4 programmable polygon privacy masks
• Material
• FCC: 47 CFR Part 15, Subpart B,
• RCM: as/nzs cispr 32: 2015,
• IC: ICES-003: Issue 7
• UL: UL 62368-1,
• CB: IEC 62368-1: 2014+A11,
• Ce-lvd: EN 62368-1: 2014/A11: 2017,
• LOA: iec/en 60950-1
• Ce-rohs: 2011/65/EU,
• Weee: 2012/19/EU,
• Reach: Regulation (EC) No 1907/2006
• IP67: IEC 60529-2013
