Hikvision 8CH Dome CCTV Kit with 1 TB HDD and Zatech ready-made cable

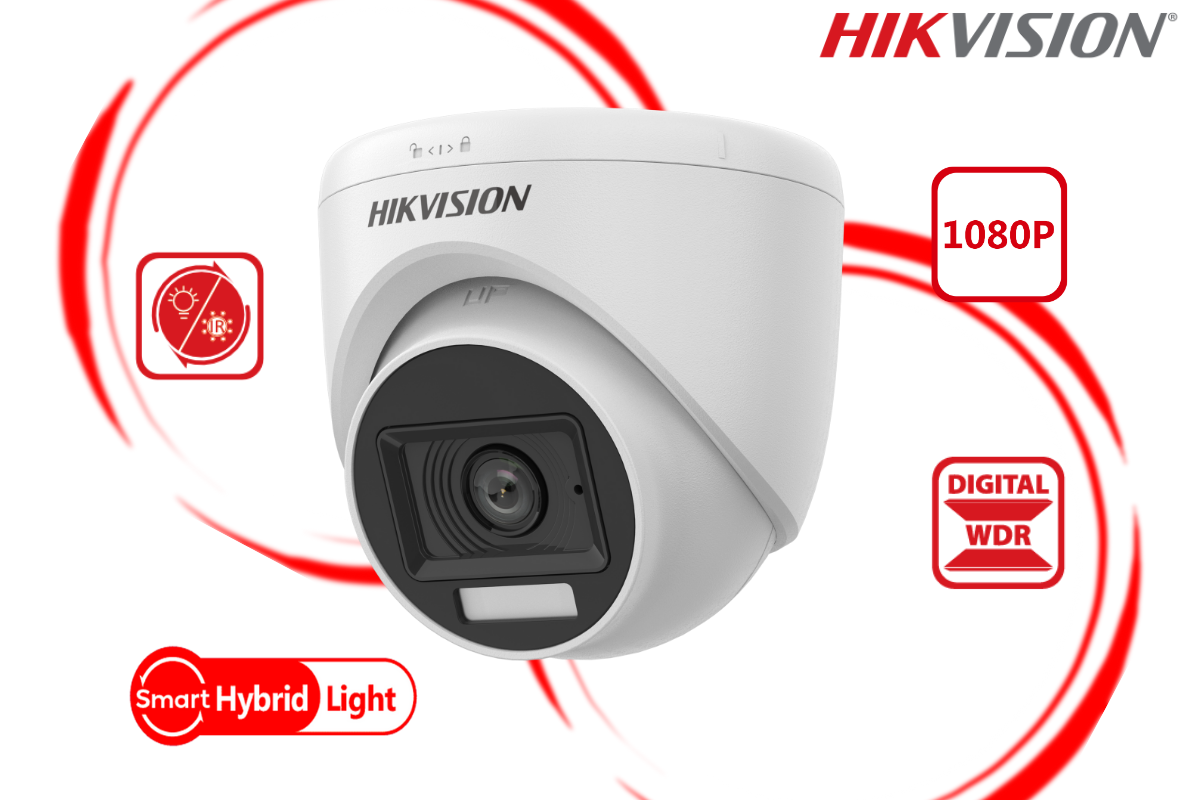

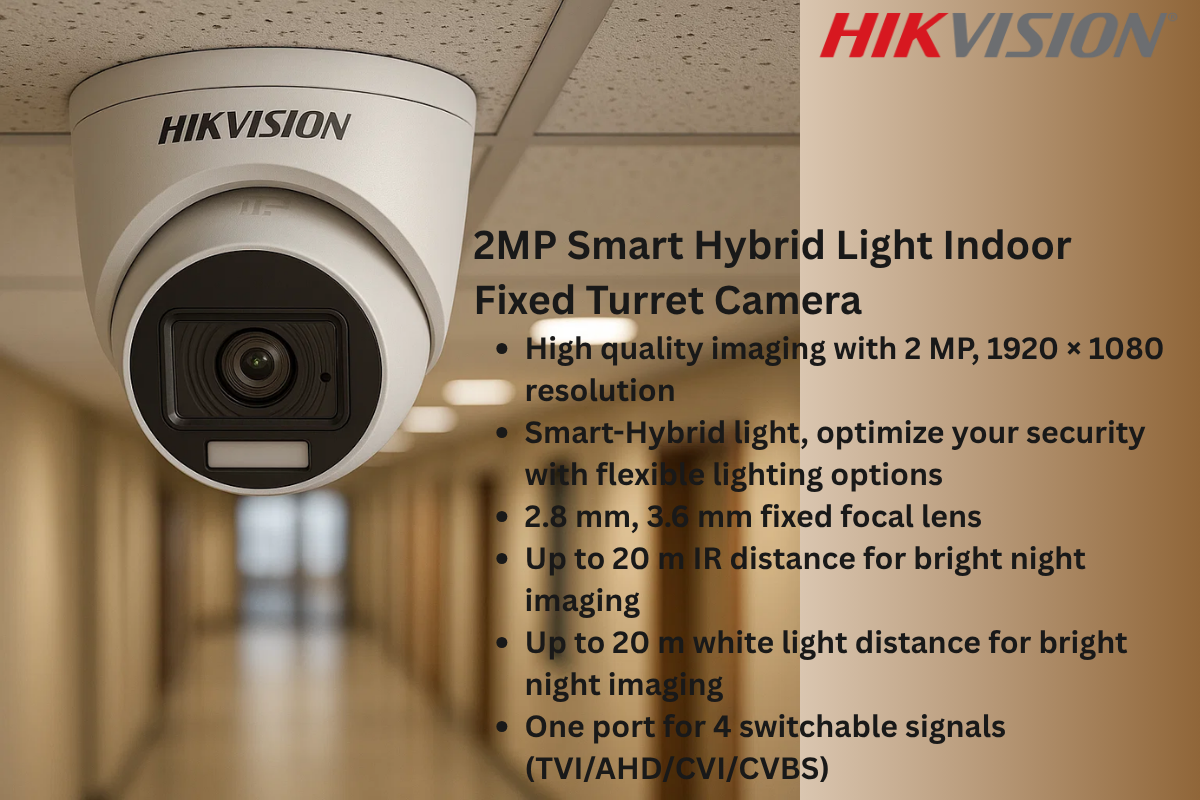

Hikvision 8CH CCTV Kit is a comprehensive surveillance system that includes 8 x 2MP Smart Hybrid Light indoor fixed turret dome cameras delivering Full HD 1080p resolutionand up to 20m IR and white light night vision for optimal clarity in all lighting conditions. It comes equipped with a Hikvision 8-channel H.265 DVR that supports multiple video input types (TVI/AHD/CVI/CVBS/IP),This complete plug-and-play kit also includes a 1TB WD hard drive for video recording, 8 x ZATECH 20m ready-made video/power cables, a ZATECH power supply, and a DCW8P power connector-making it an ideal all-in-one solution for home, office, or business security.

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 75 , Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 97 , vertical FOV: 54 , diagonal FOV: 113 3.6 mm, horizontal FOV: 77 , vertical FOV: 43 , diagonal FOV: 90
• Lens MountM12
• Illuminator
• Supplement Light RangeIR : Up to 20 mWhite Light : Up to 20 m
• Supplement Light TypeSmart, IR, White Light
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame RateTVI: 1080p @ 30 fps, 1080p @ 25 fpsAHD: 1080p @ 30 fps, 1080p @ 25 fpsCVI: 1080p @ 30 fps, 1080p @ 25 fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Day/Night ModeAuto/Color
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

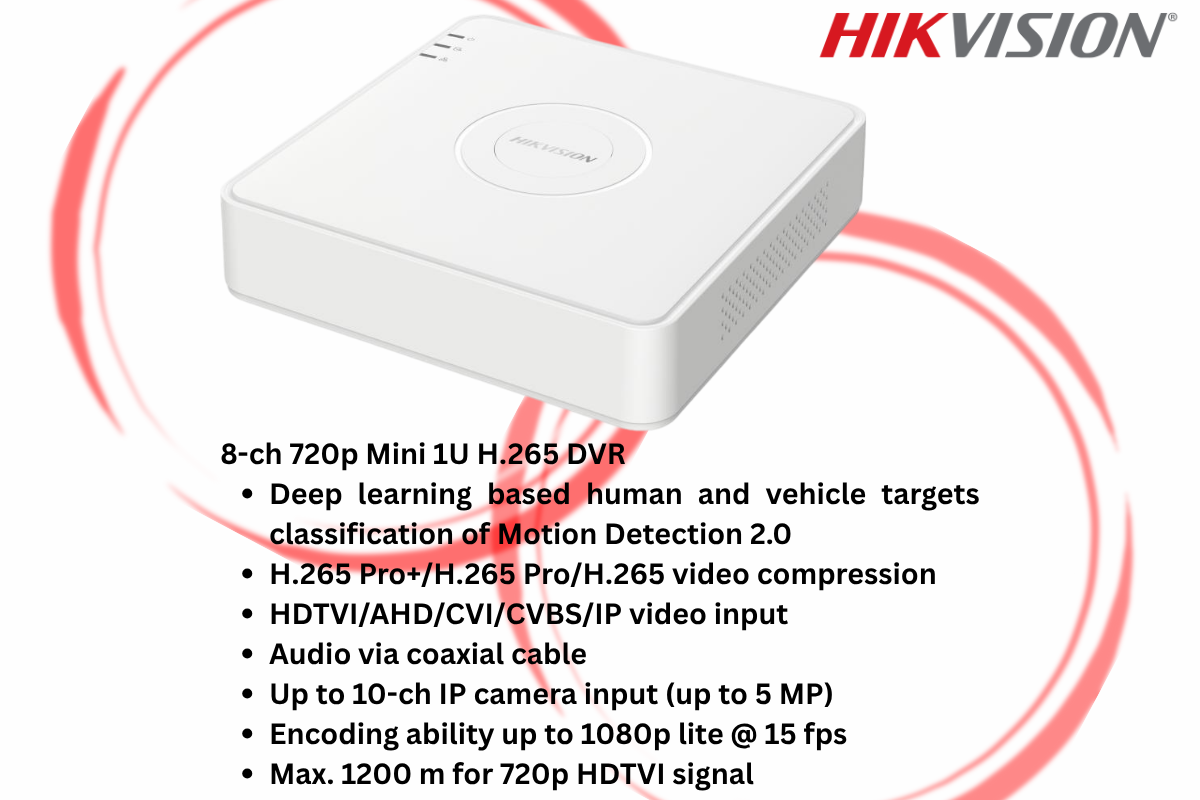

DVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported
• Video and Audio
• IP Video Input2-ch (up to 10-ch)Up to 5 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input8-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 K )8-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K )
• Two-Way AudioReuse the first audio input
• Synchronous playback8-ch
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIF
• Frame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fpsFor 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fpsFor SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:For 1080p and 720p stream access CIF/QVGA@15 fpsFor SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth72 Mbps
• Remote Connection64
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP , HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

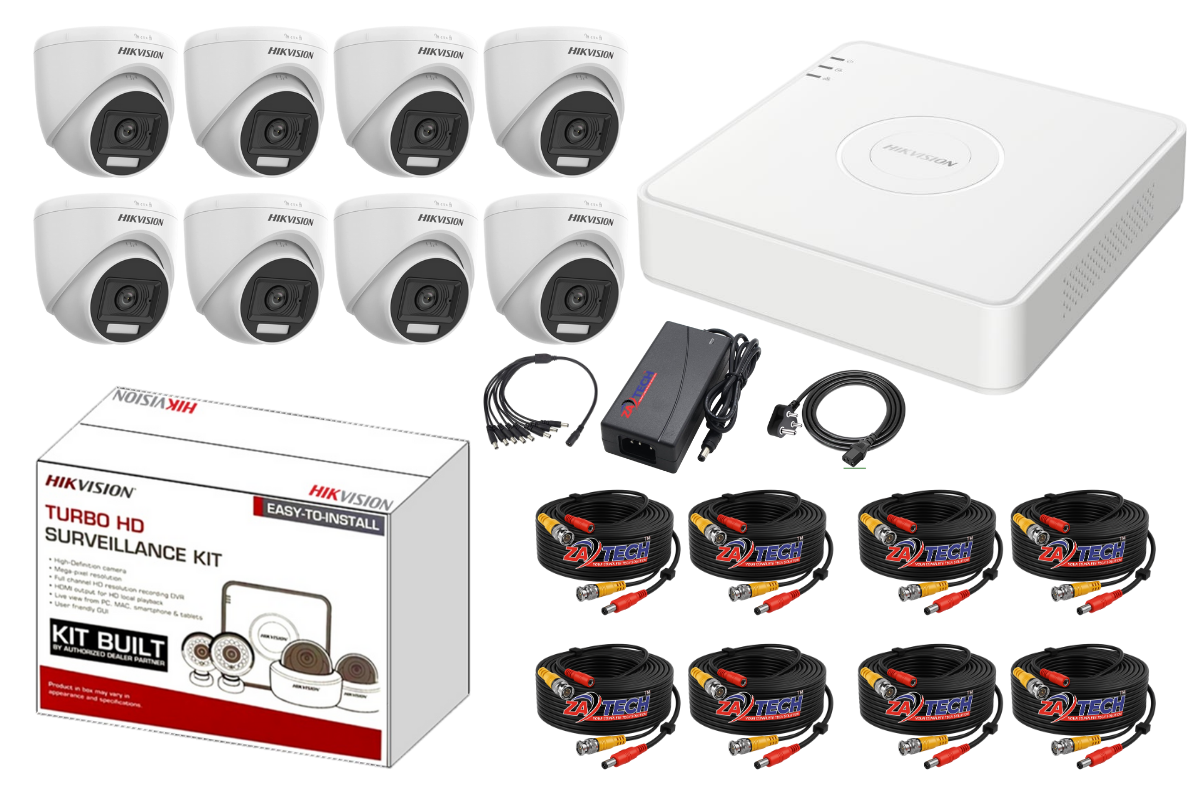

What's in the box

• 8 x Hikvision Indoor Fixed Turret Camera
• 1 x Hikvision 8-channel DVR

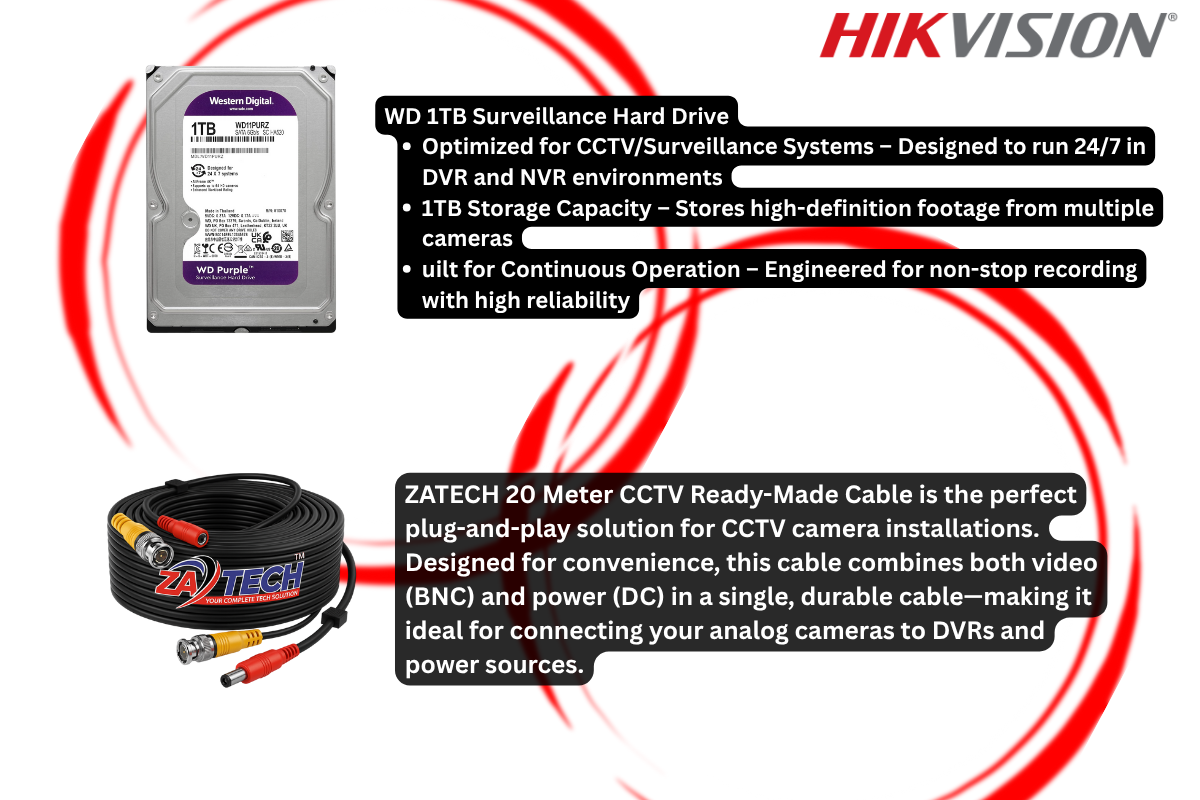

• 1 x 1 TB WD HDD
• 8 x Zatech ready-made cable
• 1 x Power supply
• 1 x DCW8p
