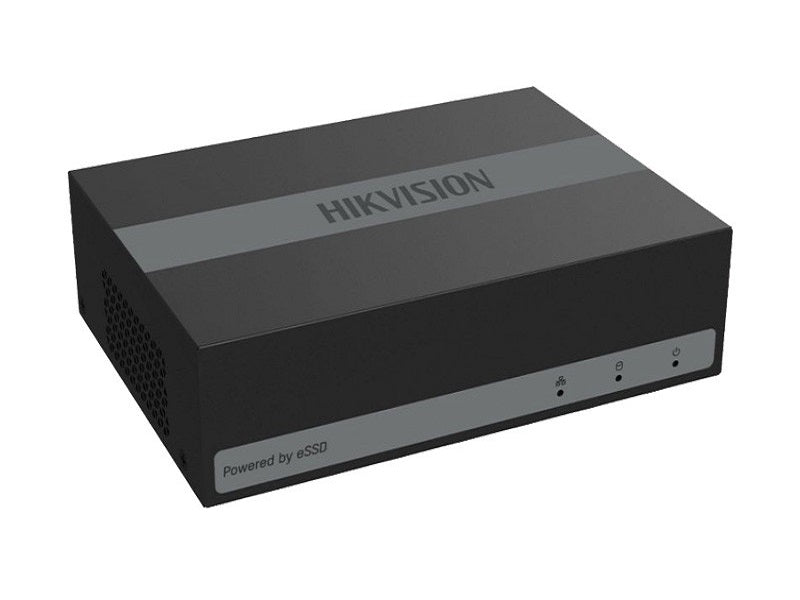

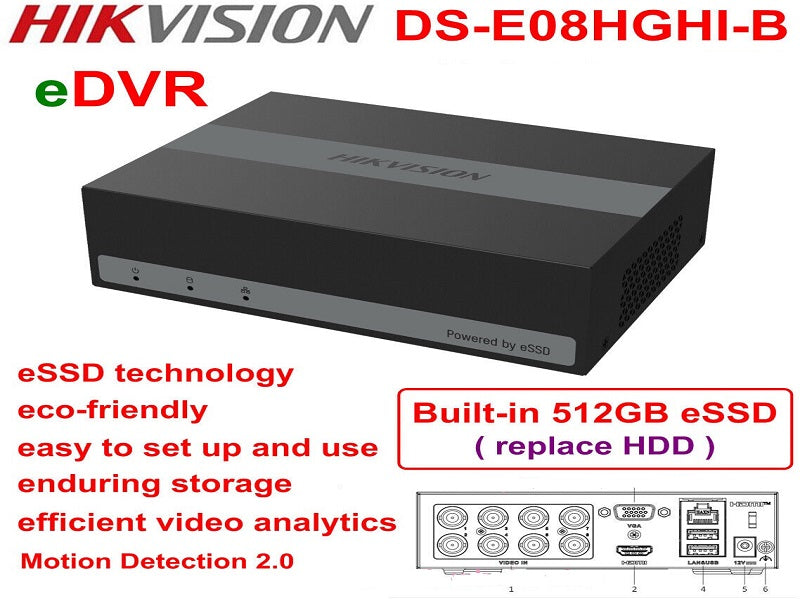

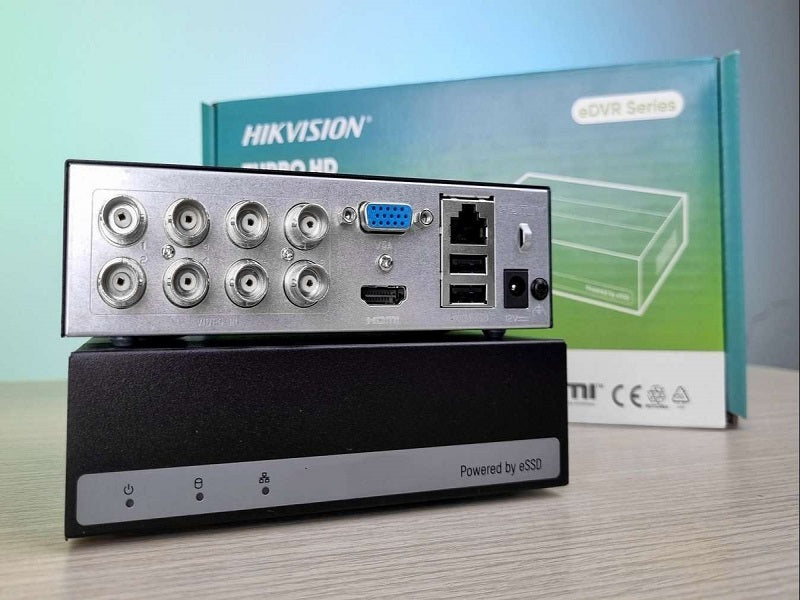

Hikvision 8Ch E-Dvr Built In 512Gb Ssd

Deep learning based human and vehicle targets classification of Motion Detection 2.0. Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;.

Key features

• Powered by eSSD technology
• Scene-adaptive bitrate control video compression
• Low power consumption
• Human/Vehicle Analysis
• Quick search by object or event type is supported;
• Recording
• Encoding Resolution
• Frame Rate
• According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream Type
• Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• Support
• 1-ch, 1920 `d7 1080/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz
• Synchronous Playback
• Total Bandwidth
• Remote Connection
• TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.
• Alarm In/Out
• N/A
• Consumption
• Working Temperature
• 10 `b0C to 45 `b0C (14 `b0F to 113 `b0F)
• Working Humidity
• 151 `d7 121 `d7 46 mm (5.94 `d7 4.76 `d7 1.81 inch)

Specifications

• Ds-e08hdhi-b
• 8-ch 1080p Lite 1U H.265 eSSD DVR
• Up to 1080p Lite@15 fps encoding capability
• Motion Detection 2.0
• H.265 Pro/H.265
• 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
• 1080p Lite/720p is 15 fps by default
• CIF/QVGA@15 fps
• G.711u
• 64 Kbps
• 2-ch
• Up to 5 MP resolution
• Support H.265+/H.265 IP cameras
• 8-ch
• 1080p25, 1080p30, 720p25, 720p30
• 8-ch via coaxial cable
• 1-ch via HDMI
• 72 Mbps
• Incoming bandwidth: 8 Mbps
• 32
• 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Capacity
• Built-in 512 GB eSSD (480 GB available)
• Rear panel: 2 `d7 USB 2.0
• 12 VDC, 1 A
• ≤ 6.2 W (with eSSD)
• 10% to 90%
• Dimension (W `d7 D `d7 H)
• ≤ 0.5 kg (with eSSD, 1.1 lb.)
