Hikvision 8CH eDVR CCTV Kit with Built-in 1TB SSD & Zatech RG59 Cable roll

Hikvision 8-channel analog CCTV kit delivers high-performance video surveillance with advanced eDVR technology and a built-in 1TB SSD for fast, reliable storage. The kit includes 4 × 2MP fixed mini bullet cameras with 1080p resolution, IR night vision up to 20m, IP67 weatherproof rating, . It also comes with a powerful 8CH Hikvision eDVR featuring H.265 compression, Motion Detection 2.0 with human and vehicle classification, low power consumption,it includes a 100m Zatech RG59 coaxial cable roll, a Hikvision 8CH power supply, and a full set of BNC and DC connectors-ideal for homes, shops, or small businesses.

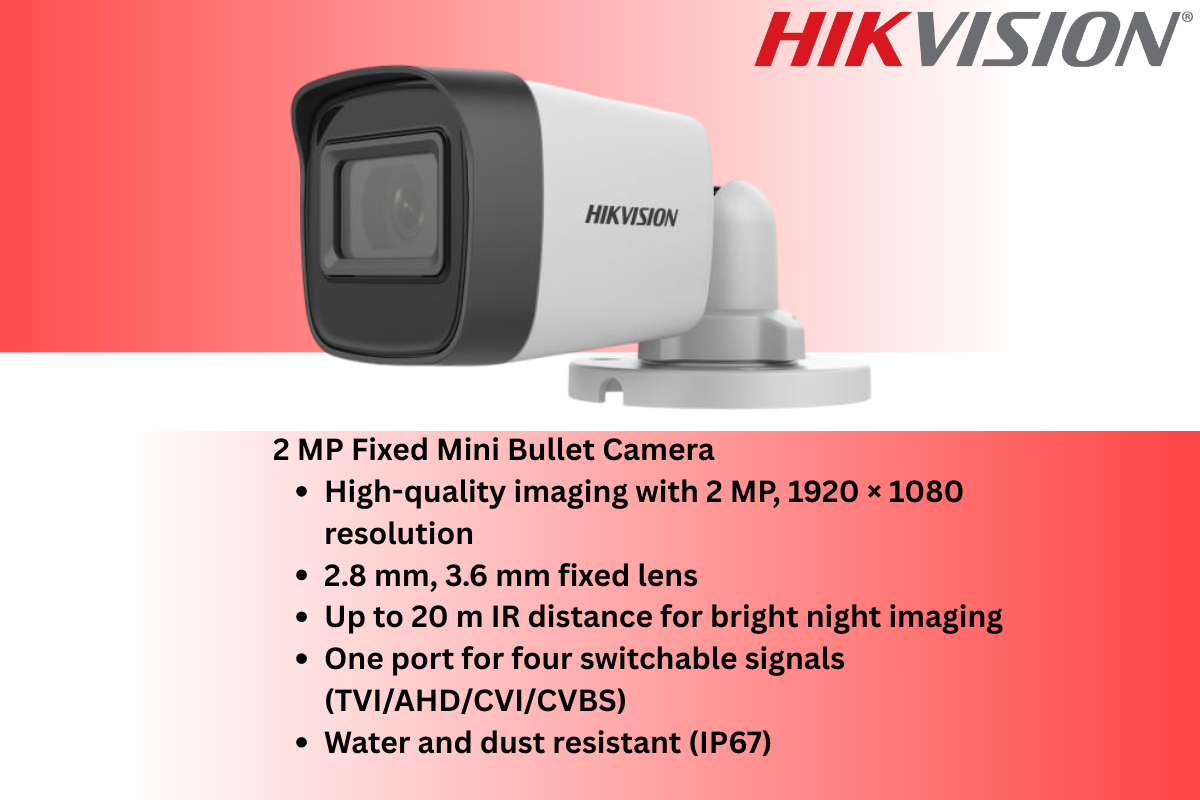

Camera

• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 90 , Rotation: 0 to 360
• Lens
• Lens Type2.8 mm, 3.6 mm Fixed Lens
• Focal Length & FOV2.8 mm, horizontal FOV: 96.5 , vertical FOV: 48.9 , diagonal FOV: 120.5 3.6 mm, horizontal FOV: 76.9 , vertical FOV: 40.6 , diagonal FOV: 92.0
• Lens MountM12
• Illuminator
• Supplement Light RangeUp to 20 m
• Supplement Light TypeSmart,IR,White Light
• Image
• Frame RateTVI: 1080p@25fps/30fpsAHD: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR)Digital WDR
• Image Parameters SwitchSTD/HIGH-SAT
• Day/Night ModeAuto/Color
• White BalanceAuto
• Image EnhancementDWDR, BLC, Global
• Noise Reduction2D DNR
• Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

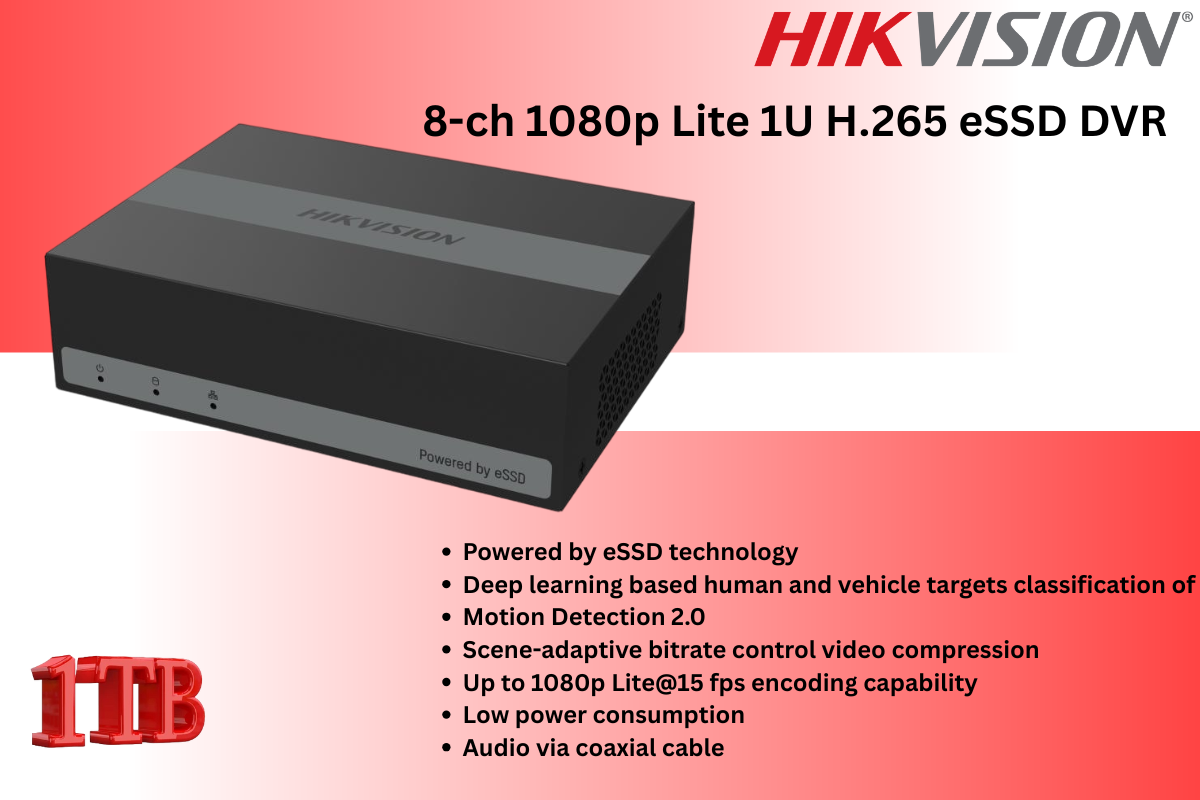

eDVR

• 8-ch 1080p Lite 1U H.265 eSSD DVR
• Built-In SSD
• Minimalist eSSD design brings low power consumption Integrated storage design provides the plug-and-play device use

Smart Function

• Deep learning-based motion detection 2.0
• Smart search for efficient playback

Recording

• Video Compression H.265 Pro/H.265
• Encoding Resolution 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame Rate
• Main stream
• 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
• Note
• 1080p Lite/720p is 15 fps by default
• Sub-stream
• CIF/QVGA@15 fps

Video and Audio

• IP Video Input
• 2-ch
• Up to 5 MP resolution
• Support H.265+/H.265 IP cameras
• Analog Video Input
• 8-ch
• BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection

Auxiliary Interface

• Capacity
• Built-in 1024 GB eSSD (960 GB available)
• Note
• The device can store about 4 weeks videos for 8-ch analog cameras (default parameters),
• this estimation is for reference only.

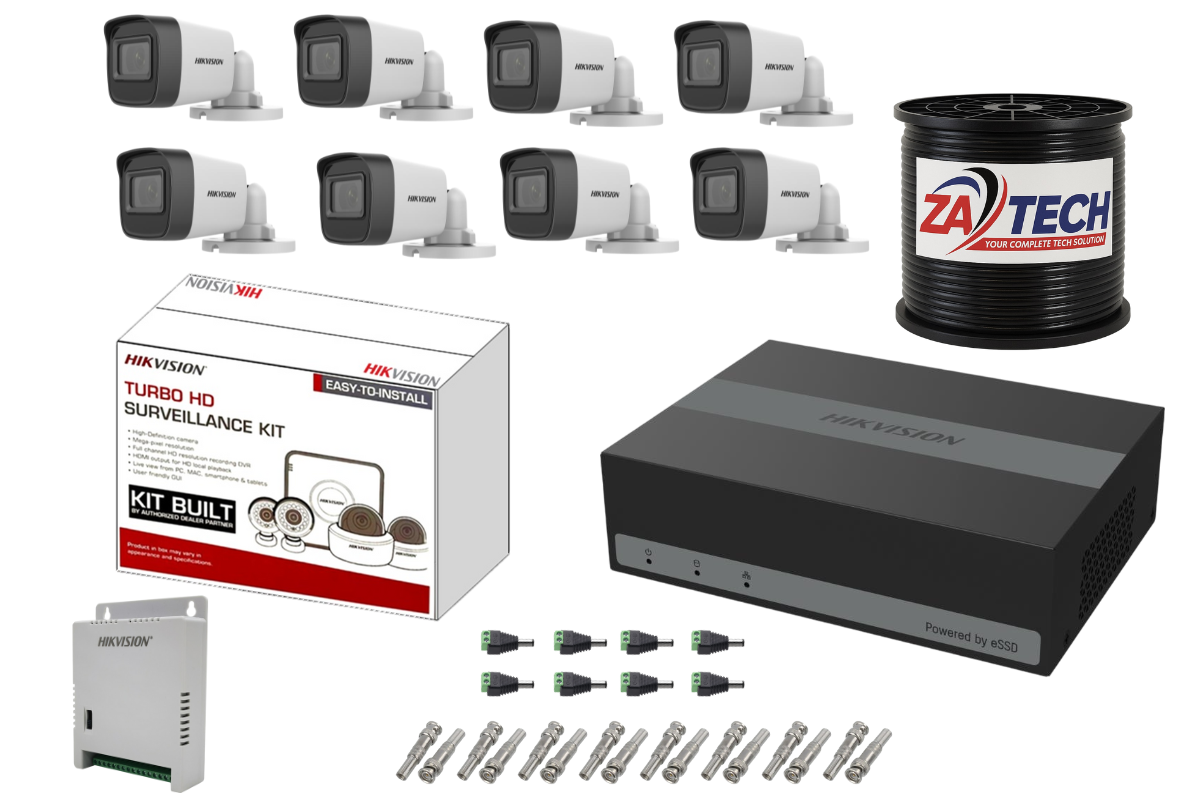

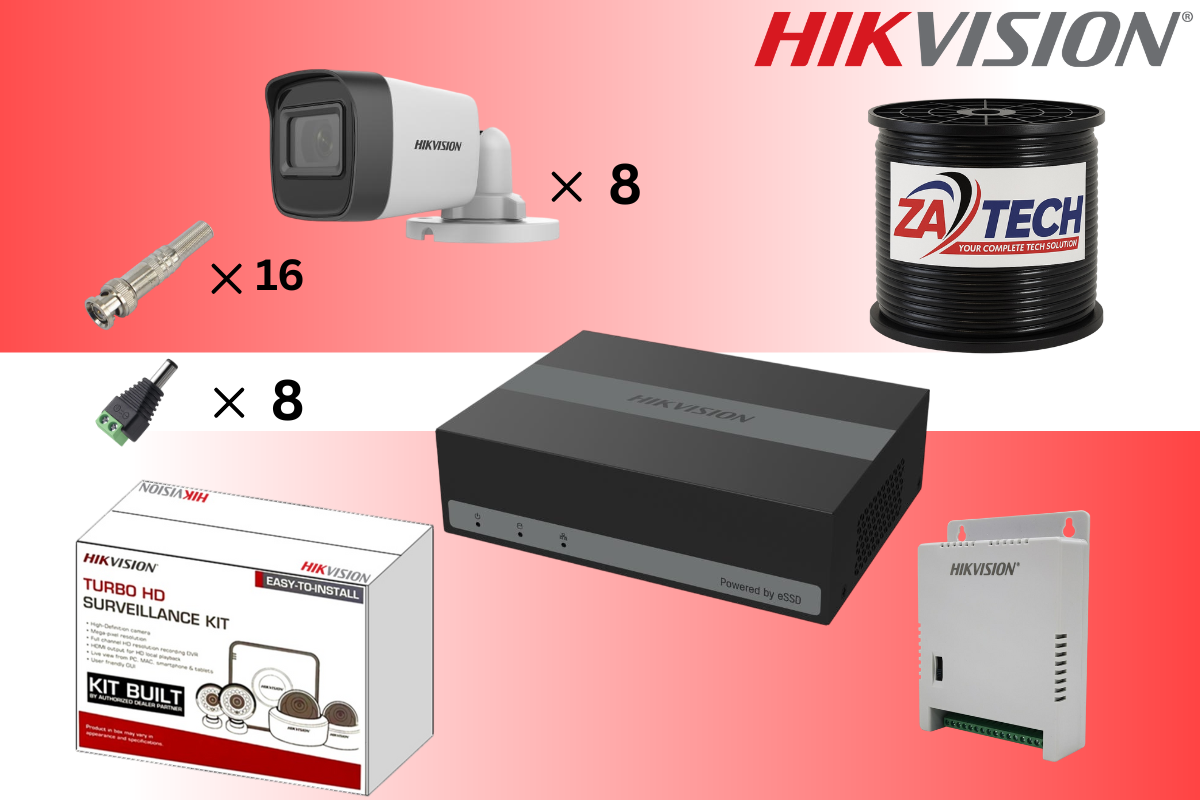

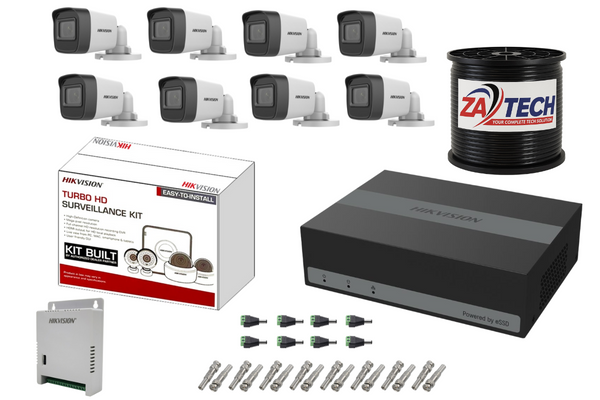

What's in the box

• 8 × 2MP Fixed Mini Bullet Cameras
• 1 × 8CH Hikvision eDVR with Built-in 1TB SSD

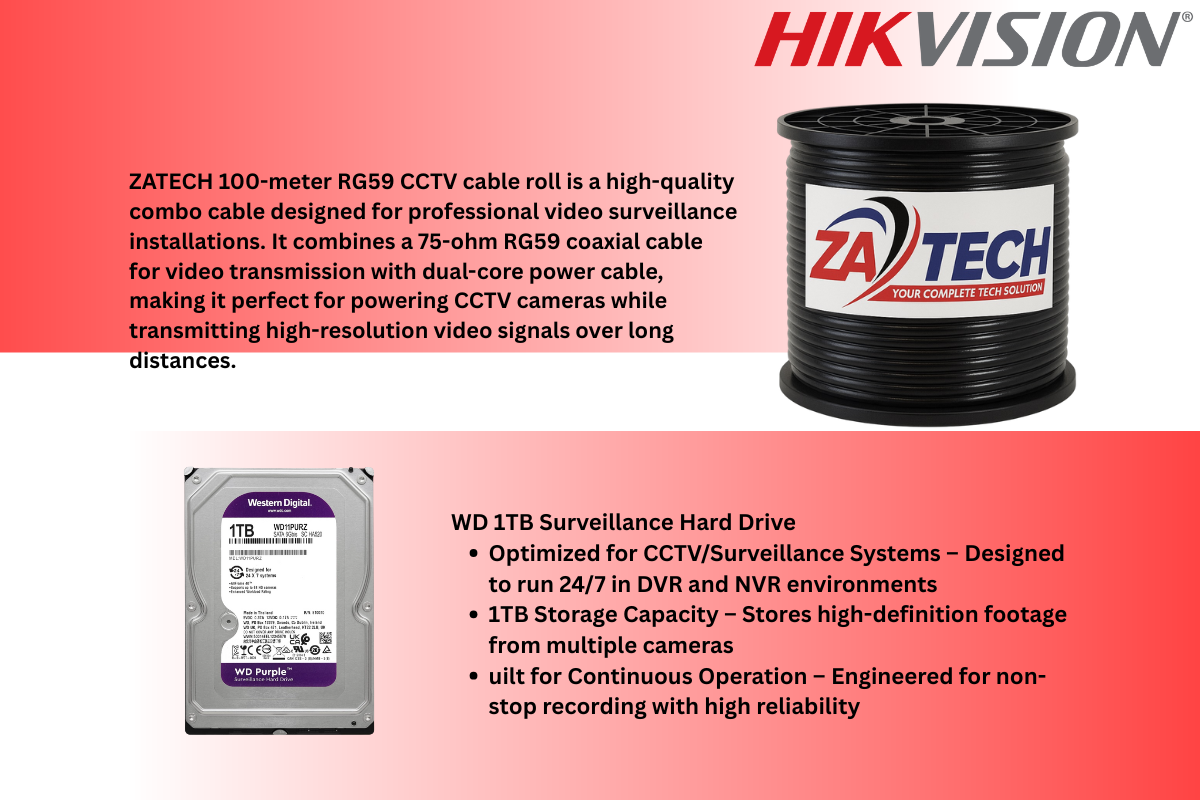

• 1 × 100m Zatech RG59 Coaxial Cable Roll

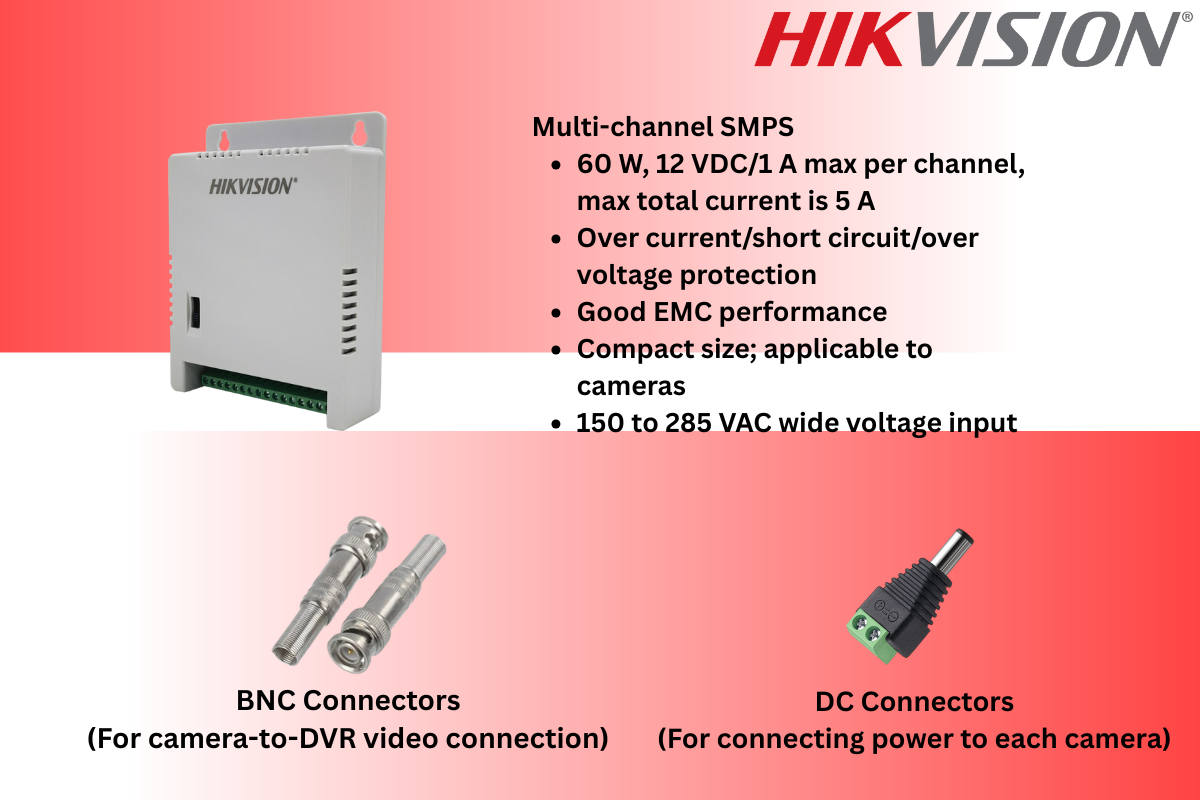

• 1 × 8CH Hikvision Power Supply
• 16 x BNC Connectors
• 8 x DC Connectors
