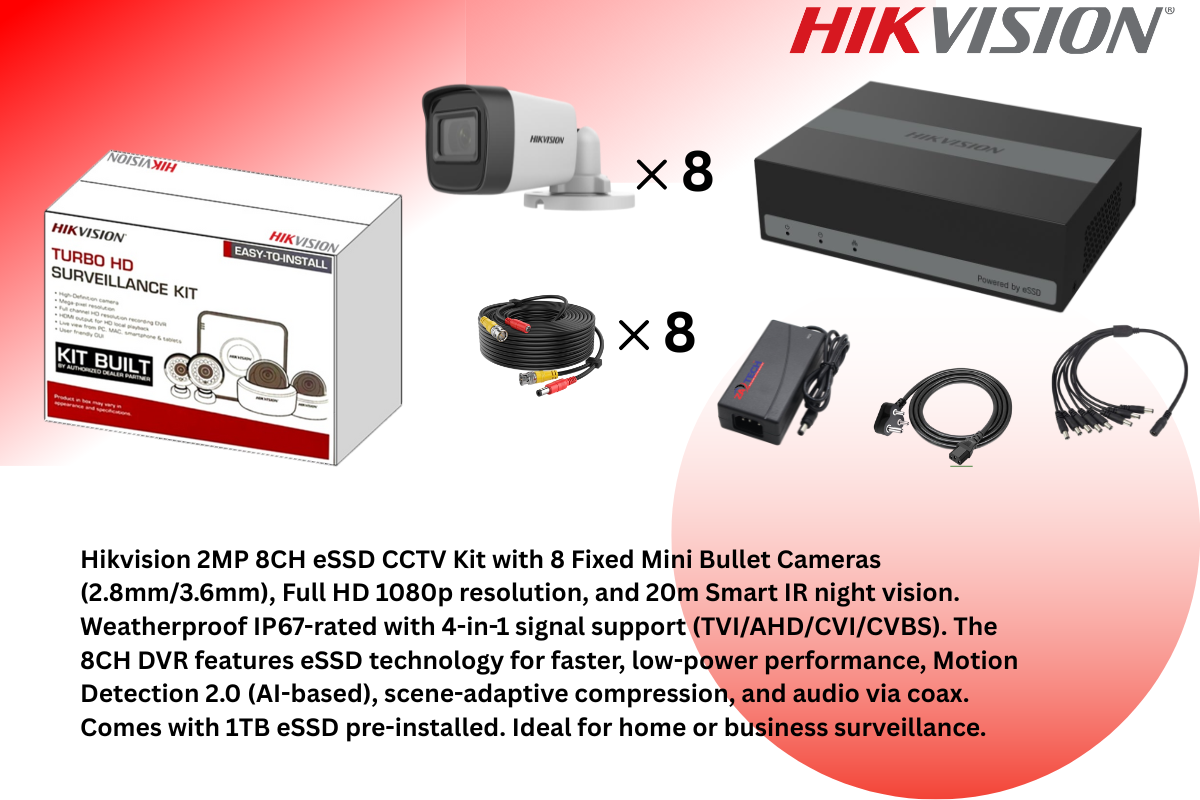

Hikvision 8CH eSSD DVR Kit with 1TB Built-in SSD & Zatech 20m Ready cables

• Hikvision 8CH eSSD DVR kit, featuring 8x high-performance 2MP Mini Bullet Cameras and everything you need to get started, including pre-made 20m Zatech cables, a Zatech power supply, and a DCW8P power splitter. The DVR comes with a built-in 1TB eSSD for faster performance, lower power consumption, and enhanced durability.

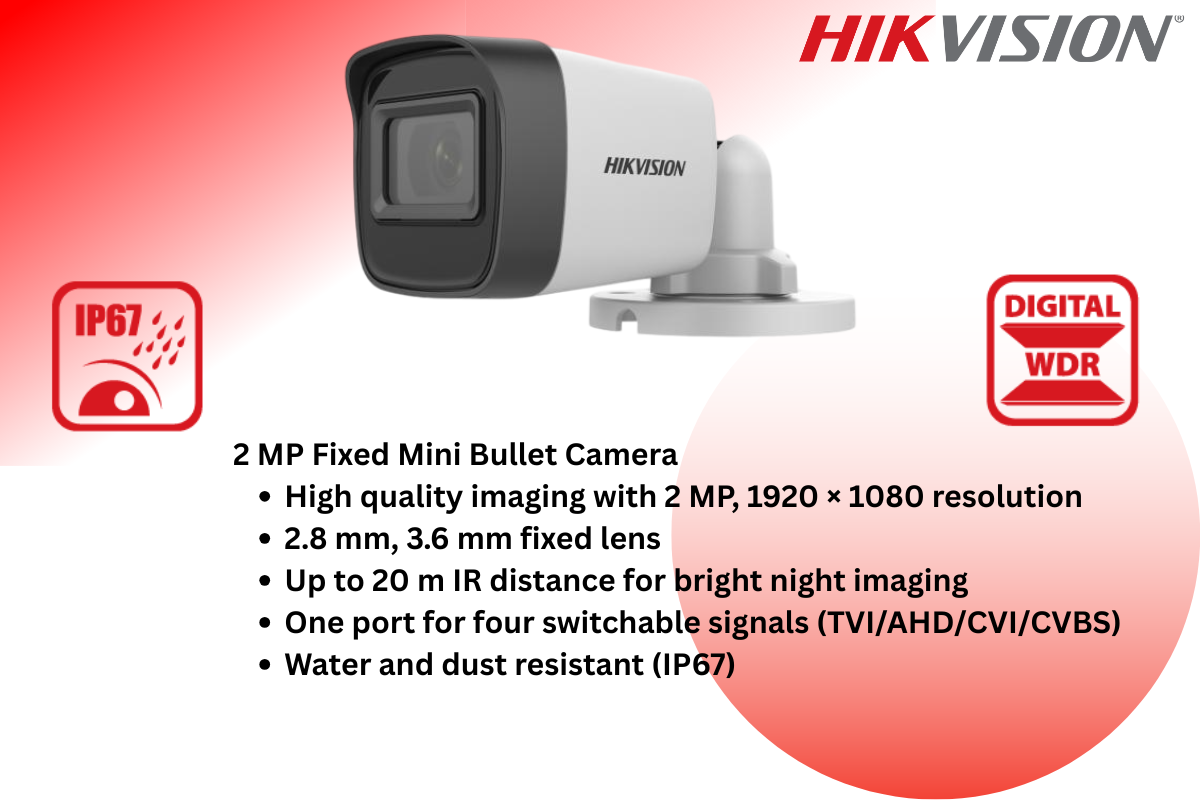

• Camera
• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 90 , Rotation: 0 to 360
• Lens
• Lens Type2.8 mm, 3.6 mm Fixed Lens
• Focal Length & FOV2.8 mm, horizontal FOV: 96.5 , vertical FOV: 48.9 , diagonal FOV: 120.5 3.6 mm, horizontal FOV: 76.9 , vertical FOV: 40.6 , diagonal FOV: 92.0
• Lens MountM12
• Illuminator
• Supplement Light RangeUp to 20 m
• Supplement Light TypeSmart,IR,White Light
• Image
• Frame RateTVI: 1080p@25fps/30fpsAHD: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR)Digital WDR
• Image Parameters SwitchSTD/HIGH-SAT
• Day/Night ModeAuto/Color
• White BalanceAuto
• Image EnhancementDWDR, BLC, Global
• Noise Reduction2D DNR
• Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• LanguageEnglish
• Operating Condition-40 C to 60 C (-40 F to 140 F), Humidity: 90% or less (non-condensing)
• MaterialPlastic
• CommunicationHIKVISION-C
• Dimension138.8 mm × 60.9 mm × 57.9 mm (5.465" × 2.389" 2.278")
• WeightApprox. 145 g (0.32 lb.)
• Power12 VDC 25%, Max. 3.3 W
• Approval
• ProtectionIP67

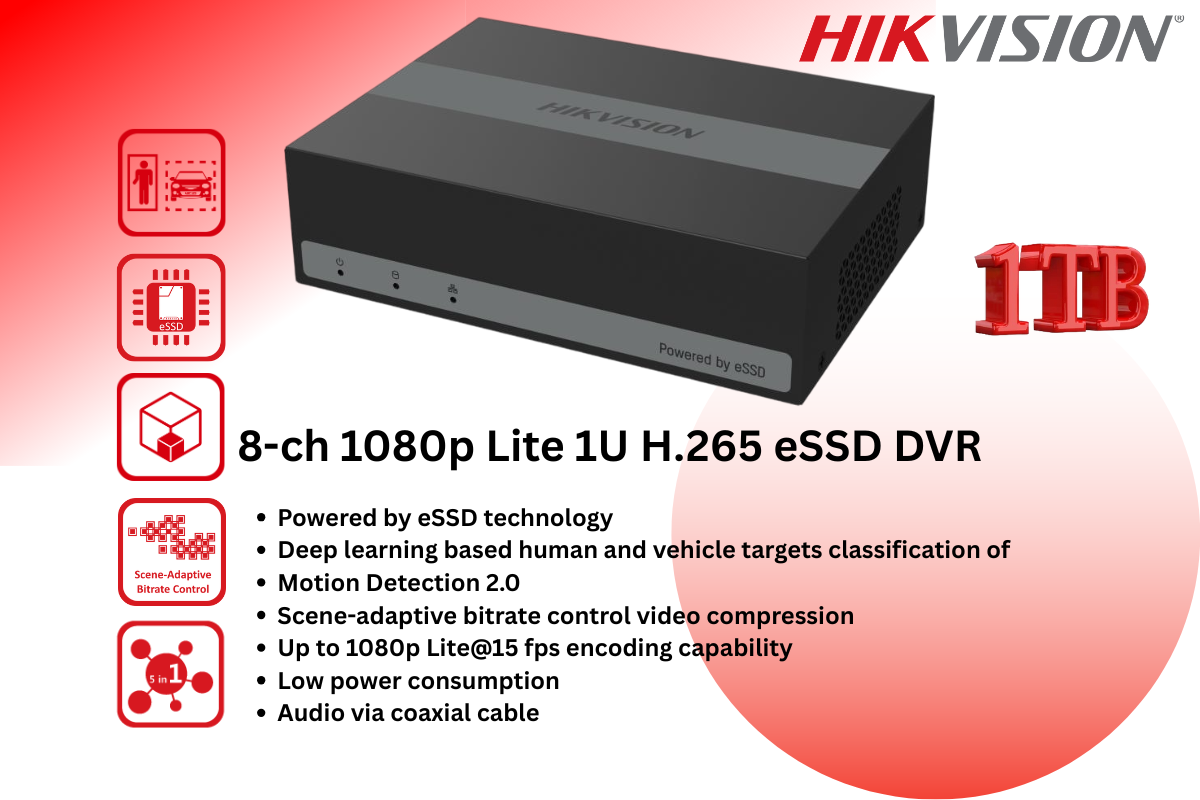

eDVR

• Built-In SSD
• Minimalist eSSD design brings low power consumption
• Integrated storage design provides the plug-and-play device use
• Easy Installation
• Mini size design saves installation space
• Anti-vibration design and light weight satisfy more installation conditions
• Compression and Recording
• Scene-adaptive bitrate control technology would precisely allocate videos in eSSD according to the actual scene
• Full channel recording at up to 2 MP Lite resolution
• Smart Function
• Deep learning-based motion detection 2.0
• Smart search for efficient playback

Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported

Recording

• Video Compression H.265 Pro/H.265
• Encoding Resolution 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame Rate
• Main stream
• 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
• Note
• 1080p Lite/720p is 15 fps by default
• Sub-stream
• CIF/QVGA@15 fps
• Video Bitrate
• According to the actual scene, scene-adaptive bitrate control technology would
• automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream Type
• Video, Video & Audio
• Note: In order to protect privacy, the device will only record video (without audio) by
• default. If you want to record audio, you shall manually enable audio recording. For
• operation details, refer to the user manual.
• Audio Compression G.711u
• Audio Bitrate 64 Kbps

Capacity

• Built-in 1024 GB eSSD (960 GB available)
• Note
• The device can store about 4 weeks videos for 8-ch analog cameras (default parameters),
• this estimation is for reference only.
• USB Interface Rear panel: 2 × USB 2.0

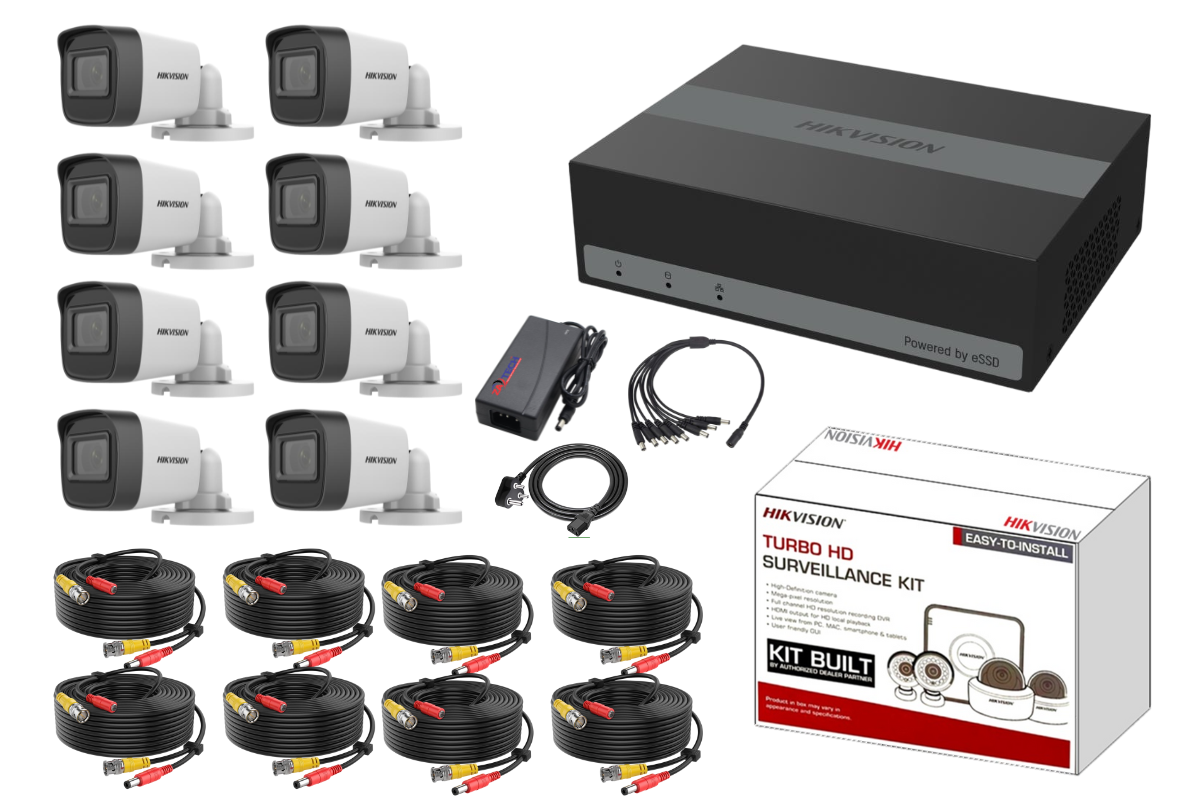

What's in the box

• 1 × Hikvision 8CH 1080p Lite eSSD DVR
• 8 × Hikvision 2MP Mini Bullet Cameras

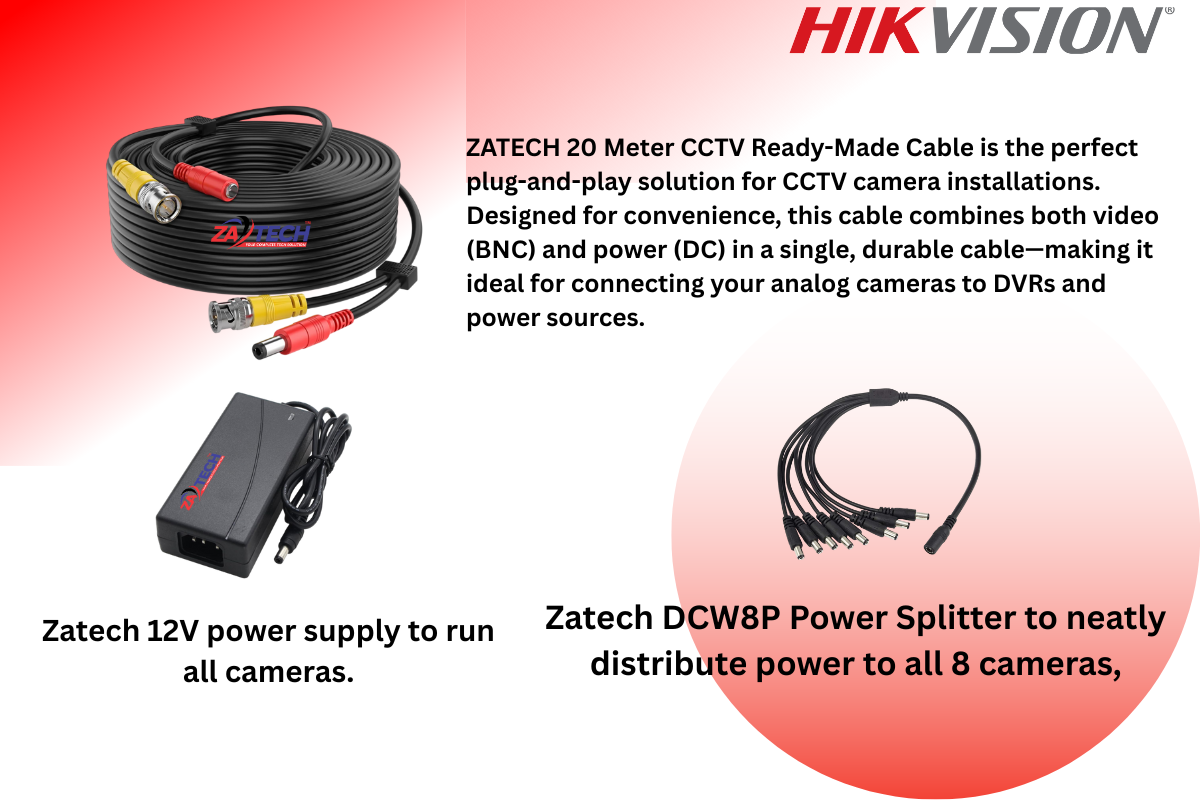

• 8 × Zatech 20m Ready-Made Cable
• 1 × Zatech DCW8P Power Splitter
• 1 × Zatech 12V Power Supply
