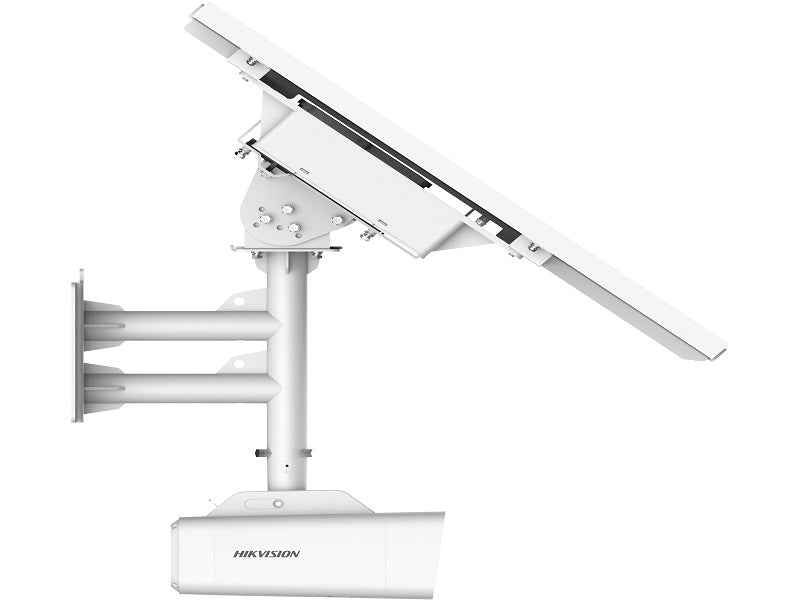

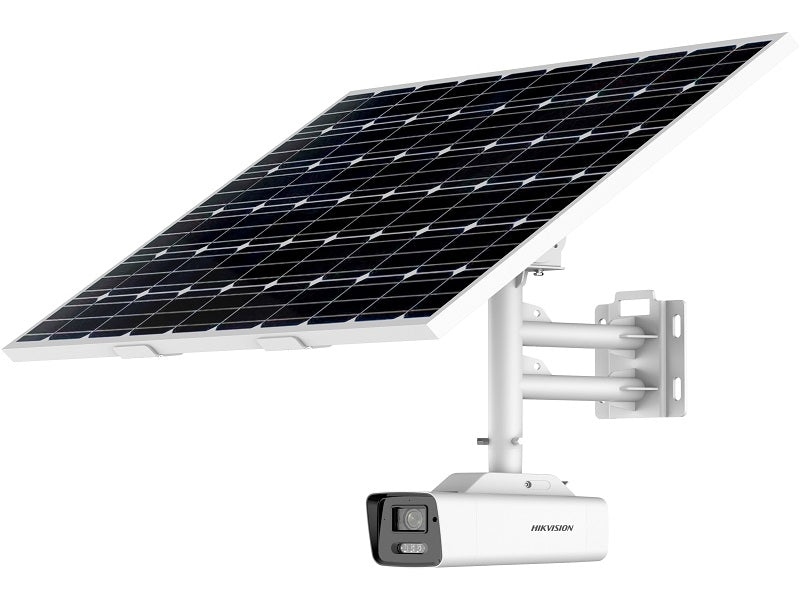

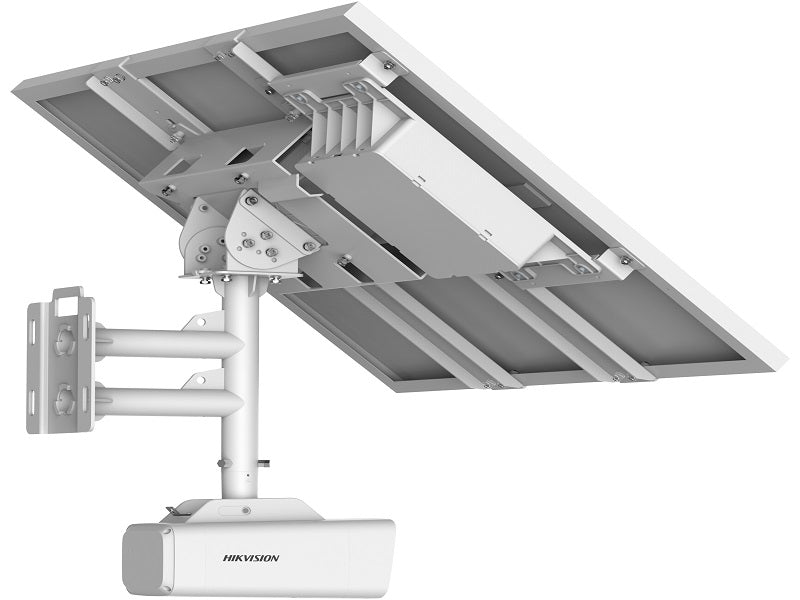

HIKVISION 8Mp-4G Solar Colorvu Camera

4K ColorVu Fixed Bullet Solar Power 4G Network Camera Kit. Clear imaging against strong back light due to 120 dB true WDR technology.

Key features

• High quality imaging with 8 MP@ 15fps resolution
• Focus on human and vehicle targets classification based on deep learning
• 80 W photovoltaic panel, 30 Ah chargeable lithium battery (The battery should be ordered separately.)
• Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
• LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
• Shutter Time
• Focal Length & FOV
• 2.8 mm, horizontal FOV: 101.6`b0, vertical FOV: 52.4`b0, diagonal FOV: 124`b0
• 4 mm, horizontal FOV: 88.2`b0, vertical FOV: 48.7`b0, diagonal FOV: 101.8`b0
• Fixed focal lens, 2.8 and 4 mm optional
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m
• 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m
• Illuminator
• Supplement Light Type
• White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• Main Stream
• 50 Hz: 12.5 fps (3840 `d7 2160, 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 15 fps (3840 `d7 2160, 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 12.5 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 15 fps (640 `d7 480, 640 `d7 360)
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Protocols
• Tcp/ip, icmp, http, https, FTP, dhcp, DNS, ddns, RTP, rtsp, rtcp, ntp,upnp, smtp, snmp, igmp, 802.1X, qos, ipv6, UDP, bonjour, ssl/tls
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Hik-Connect (low power mode also supports), Hik-central Professional
• Web Browser
• Mobile Communication
• SIM Card Type
• MicroSIM
• Image
• Wide Dynamic Range (WDR)
• Day/Night Switch
• Day, Night, Auto, Schedule
• Image Enhancement
• Image Parameters Switch
• Image Settings
• Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR
• Privacy Mask
• Built-in memory card slot, support microSD card, up to 256 GB;
• Reset Key
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Event
• Basic Event
• Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event
• Line crossing detection, up to 4 regions configurable
• Region entrance detection, up to 4 regions configurable
• Region exiting detection, up to 4 regions configurable
• Unattended baggage detection, up to 4 regions configurable
• Object removal detection, up to 4 regions configurable,
• The smart events are only supported under full power mode.
• Linkage
• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
• 12 VDC `b1 20%, `d85.5 mm coaxial power plug
• The average power consumption of 24 hours: 2 W (4G transmission is excluded).
• 829.9 `d7 696.3 `d7 760 mm (32.7" `d7 27.4" `d7 30") (Max. size of the camera after it is completely assembled)
• 862 `d7 292 `d7 765 mm (33.9" `d7 11.5" `d7 30.1")
• Approx. 25.4 kg (56.0 lb.)
• Approx. 30.1 kg (66.3 lb.)
• 20 `b0C to 60 `b0C (-4 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)

Specifications

• Ds-2xs6a87g1-l/c32s80(2.8mm)
• 24/7 Colorful imaging
• Camera: Water and dust resistant (IP67)
• Built-in 64 GB eMMC storage
• 1/1.2" Progressive Scan CMOS
• 3840 `d7 2160
• 1 s to 1/100,000 s
• Lens
• Lens Type
• Aperture
• F1.0
• Lens Mount
• M20
• Up to 30 m
• Main stream: H.265
• Sub-stream: H.265/MJPEG
• Full power mode: main stream supports H.265+
• 32 Kbps to 16 Mbps
• H.265 Type
• H.265 encoding
• 4 fixed regions for main stream
• Up to 6 channels
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+
• Frequency
• LTE-TDD: Band38/40/41
• LTE-FDD: Band1/3/5/7/8/20/28
• WCDMA: Band1/5/8
• GSM: Band3/5/8
• LTE-FDD: Band2/4/5/12/13/17/66/71
• WCDMA: Band2/4/5
• LTE-TDD: Band38/40
• LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66
• WCDMA: Band1/2/3/4/5/8
• GSM: Band2/3/5/8
• LTE-TDD: Band41
• LTE-FDD: Band1/3/8/11/18/19/21/26/28
• WCDMA: Band1/8
• Standard
• Ds-2xs6a87g1-l/c32s80: lte-tdd/lte-fdd/wcdma/gsm
• Ds-2xs6a87g1-l/c32s80 (US): lte-fdd/wcdma
• Ds-2xs6a87g1-l/c32s80 (LA): lte-tdd/lte-fdd/wcdma/gsm
• Ds-2xs6a87g1-l/c32s80 (JP): lte-tdd/lte-fdd/wcdma
• 120 dB
• BLC, HLC, 3D DNR
• ≥ 52 dB
• 4 programmable polygon privacy masks
• RS-485
• 1 RS-485 (half duplex)
• Intrusion detection, up to 4 regions configurable
• Standby power consumption: 53 mW
• The max. power consumption: 3.2 W
• Material
• Front cover: metal, body: metal, bracket: metal
