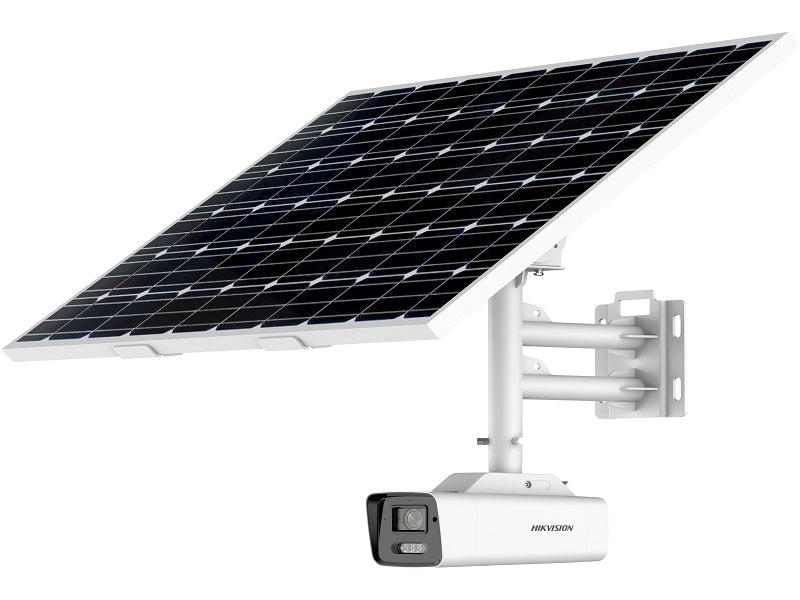

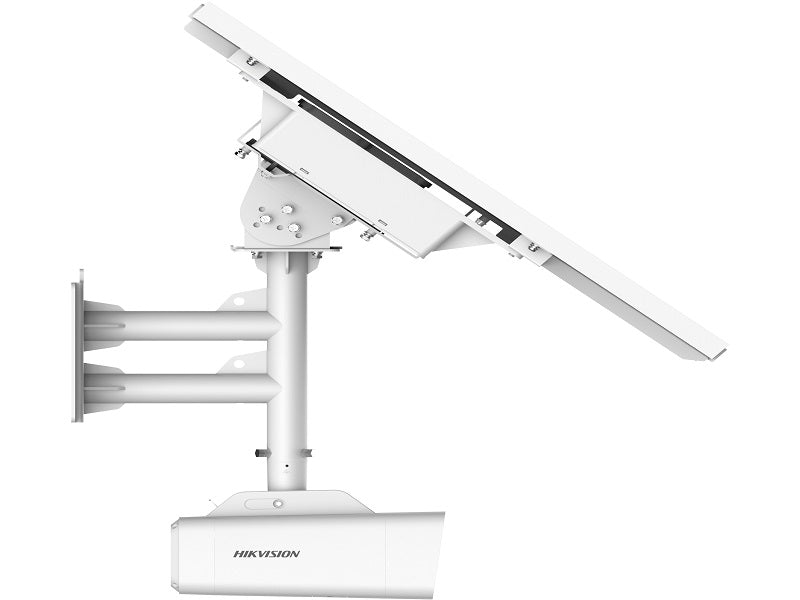

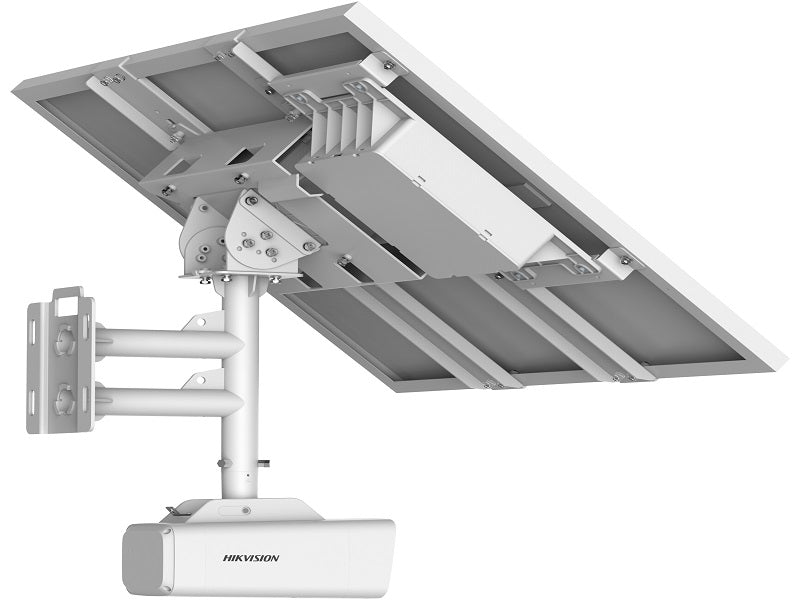

HIKVISION 8Mp 4Mm Solar Colorvu Camera

4K ColorVu Fixed Bullet Solar Power 4G Network Camera Kit. Clear imaging against strong back light due to 120 dB true WDR technology.

Key features

• High quality imaging with 8 MP@ 15fps resolution
• Focus on human and vehicle targets classification based on deep learning
• 80 W photovoltaic panel, 30 Ah chargeable lithium battery (The battery should be ordered separately.)
• Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
• LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
• Shutter Time
• Focal Length & FOV
• 2.8 mm, horizontal FOV: 101.6`b0, vertical FOV: 52.4`b0, diagonal FOV: 124`b0
• 4 mm, horizontal FOV: 88.2`b0, vertical FOV: 48.7`b0, diagonal FOV: 101.8`b0
• Fixed focal lens, 2.8 and 4 mm optional
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m
• 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m
• Illuminator
• Supplement Light Type
• White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• Main Stream
• 50 Hz: 12.5 fps (3840 `d7 2160, 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 15 fps (3840 `d7 2160, 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 12.5 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 15 fps (640 `d7 480, 640 `d7 360)
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Protocols
• Tcp/ip, icmp, http, https, FTP, dhcp, DNS, ddns, RTP, rtsp, rtcp, ntp,upnp, smtp, snmp, igmp, 802.1X, qos, ipv6, UDP, bonjour, ssl/tls
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Hik-Connect (low power mode also supports), Hik-central Professional
• Web Browser
• Mobile Communication
• SIM Card Type
• MicroSIM
• Image
• Wide Dynamic Range (WDR)
• Day/Night Switch
• Day, Night, Auto, Schedule
• Image Enhancement
• Image Parameters Switch
• Image Settings
• Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR
• Privacy Mask
• Built-in memory card slot, support microSD card, up to 256 GB;
• Reset Key
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Event
• Basic Event
• Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event
• Line crossing detection, up to 4 regions configurable
• Region entrance detection, up to 4 regions configurable
• Region exiting detection, up to 4 regions configurable
• Unattended baggage detection, up to 4 regions configurable
• Object removal detection, up to 4 regions configurable,
• The smart events are only supported under full power mode.
• Linkage
• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
• 12 VDC `b1 20%, `d85.5 mm coaxial power plug
• The average power consumption of 24 hours: 2 W (4G transmission is excluded).
• 829.9 `d7 696.3 `d7 760 mm (32.7" `d7 27.4" `d7 30") (Max. size of the camera after it is completely assembled)
• 862 `d7 292 `d7 765 mm (33.9" `d7 11.5" `d7 30.1")
• Approx. 25.4 kg (56.0 lb.)
• Approx. 30.1 kg (66.3 lb.)
• 20 `b0C to 60 `b0C (-4 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)

Specifications

• Ds-2xs6a87g1-l/c32s80(4mm)
• 24/7 Colorful imaging
• Camera: Water and dust resistant (IP67)
• Built-in 64 GB eMMC storage
• 1/1.2" Progressive Scan CMOS
• 3840 `d7 2160
• 1 s to 1/100,000 s
• Lens
• Lens Type
• Aperture
• F1.0
• Lens Mount
• M20
• Up to 30 m
• Main stream: H.265
• Sub-stream: H.265/MJPEG
• Full power mode: main stream supports H.265+
• 32 Kbps to 16 Mbps
• H.265 Type
• H.265 encoding
• 4 fixed regions for main stream
• Up to 6 channels
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+
• Frequency
• LTE-TDD: Band38/40/41
• LTE-FDD: Band1/3/5/7/8/20/28
• WCDMA: Band1/5/8
• GSM: Band3/5/8
• LTE-FDD: Band2/4/5/12/13/17/66/71
• WCDMA: Band2/4/5
• LTE-TDD: Band38/40
• LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66
• WCDMA: Band1/2/3/4/5/8
• GSM: Band2/3/5/8
• LTE-TDD: Band41
• LTE-FDD: Band1/3/8/11/18/19/21/26/28
• WCDMA: Band1/8
• Standard
• Ds-2xs6a87g1-l/c32s80: lte-tdd/lte-fdd/wcdma/gsm
• Ds-2xs6a87g1-l/c32s80 (US): lte-fdd/wcdma
• Ds-2xs6a87g1-l/c32s80 (LA): lte-tdd/lte-fdd/wcdma/gsm
• Ds-2xs6a87g1-l/c32s80 (JP): lte-tdd/lte-fdd/wcdma
• 120 dB
• BLC, HLC, 3D DNR
• ≥ 52 dB
• 4 programmable polygon privacy masks
• RS-485
• 1 RS-485 (half duplex)
• Intrusion detection, up to 4 regions configurable
• Standby power consumption: 53 mW
• The max. power consumption: 3.2 W
• Material
• Front cover: metal, body: metal, bracket: metal
