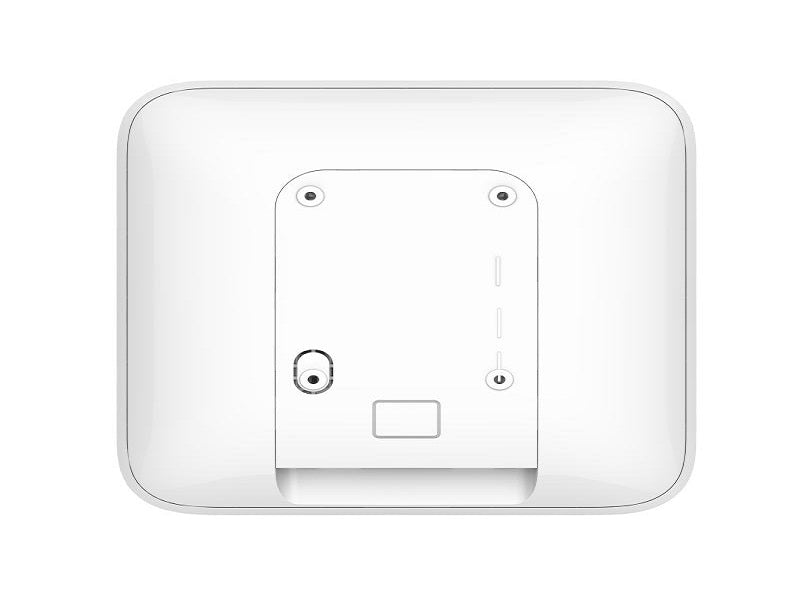

HIKVISION Ax Pro Wireless Controlpanel

Connects up to 64 wireless zones/outputs (including 48 PIRCAMs), 32 wireless keyfobs, 2 repeaters, 4 sounders(2 internal+2 external), 8 tag readers and keypads. Supports up to 32 network users, including 1 installer, 1 administrator, and 30 normal users.

Key features

• TCP/IP, Wi-Fi, and GPRS network
• Long RF transmission distance
• Voice prompt
• Configuration via Web client, mobile client, and Convergence Cloud
• Hik-Connect and Hik-ProConnect configuration depends on the user access level
• Pushes alarm notification via messages or phone calls
• Views live videos from Hik-Connect
• Alarm video clips via emails and APP
• Supports LED indicator to indicates system status
• SIA-DC09 protocol, and supports both Contact ID and SIA data format
• Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
• Diagnostics via the APP or Web
• Supported
• Installer
• Installer APP for programming
• Web server for maintenance (offline configuration)
• Arm modes
• Away/Stay
• Firmware upgrade
• APP/Web Portal
• Admin
• Programming tools
• Forced arming with open zones
• User
• Area
• Automatic arm/disarm timers
• SIM slot
• Single
• GPRS on board
• Loudspeaker built in
• Electrical characteristics
• Built in on board Battery Li
• Built in power supply
• Operation temperature
• 10 `b0C to +55 `b0C (The battery can not be charged at temperature lower than 10`b0C, please make sure the adapter is connected)
• Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
• Wireless transmission
• RF frequency
• Wireless security
• LEDs status
• Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
• 170.0 mm (6.7") `d7 170.0 (6.7") mm `d7 38.6 mm (1.5")
• Shell material
• Plastic
• White
• Device management
• Tag
• PIR cam
• Zones
• Keypad
• Wireless sounder
• Wireless repeater
• Keyfob
• Report method
• ARC protocol
• SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)
• Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
• Supports video verification and remote control

Specifications

• AX PRO 64 zone
• AX PRO (868mhz)
• New generation wireless protocol: Tri-X/Cam-X
• Two-way communication with AES-128 encryption
• 4520 mAh lithium backup battery
• 1
• Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
• 5000
• 30
• 16
• RS232 output
• Battery type
• Battery life span
• 868 Mhz
• Frequency Hoping 128 AES Encryption
• Dimension(WxHxD)
• Color
• 557.5 g (19.7 oz)
• 32
• 64 (up to 48 PIRCAMs)
• 8 (including tag reader)
• 4(2 internal+2 external)
• 2
