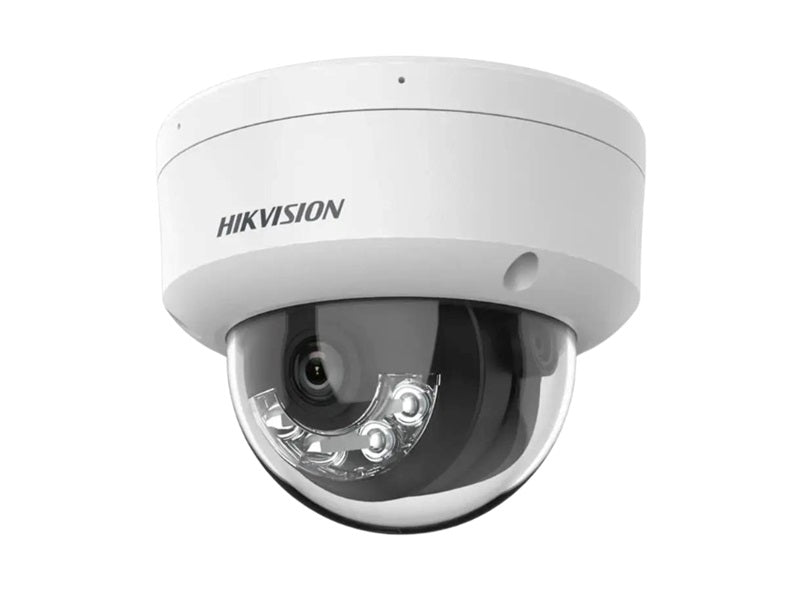

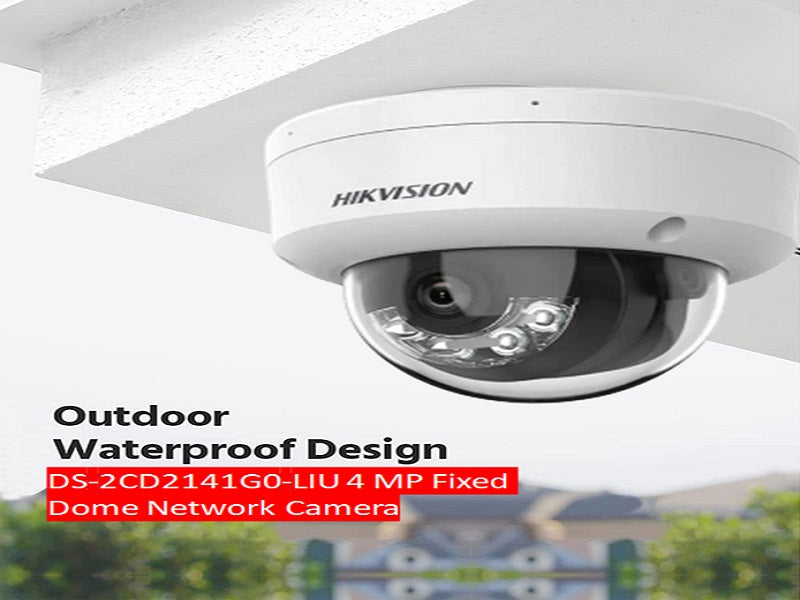

HIKVISION Ip Dome 4Mp 2.8 Mm

Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR. Angle Adjustment Pan: 0`b0 to 355`b0, tilt: 0`b0 to 75`b0, rotate: 0`b0 to 355`b0.

Key features

• Built-in microphone for real-time audio security
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Max. Resolution 2560 `d7 1440
• Day & Night IR cut filter
• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 98`b0, vertical FOV 54`b0, diagonal FOV 114`b0
• 4 mm, horizontal FOV 78`b0, vertical FOV 42`b0, diagonal FOV 93`b0
• Iris Type Fixed
• Dori
• 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
• 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
• Illuminator
• Supplement Light Type IR, White Light
• Smart Supplement Light Yes
• Main Stream
• 25 fps (1920 `d7 1080, 1280 `d7 720)
• 24 fps (1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 24 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Video Bit Rate 32 Kbps to 8 Mbps
• H.264 Type Baseline Profile, Main Profile, High Profile
• Bit Rate Control CBR, VBR
• Region of Interest (ROI) 1 fixed region for main stream
• 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
• Security
• Password protection, complicated password, watermark, basic and digest
• authentication for HTTP, WSSE and digest authentication for Open Network Video
• API
• Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),
• Isapi, SDK
• Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host
• Web Browser
• Image
• Day/Night Switch Day, Night, Auto, Schedule
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
• adjustable by client software or web browser
• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone Yes
• Event
• Basic Event Motion detection, video tampering alarm, exception
• Linkage Send email, notify surveillance center, trigger capture
• 12 VDC `b1 25%, 0.5 A, max. 6 W, `d85.5 mm coaxial power plug, reverse polarity
• protection,
• PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Package Dimension 150 mm `d7 150 mm `d7 141 mm (5.9" `d7 5.9" `d7 5.6")
• With Package Weight Approx. 800 g (1.8 lb.)
• Storage Conditions -30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Conditions
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Language English

Specifications

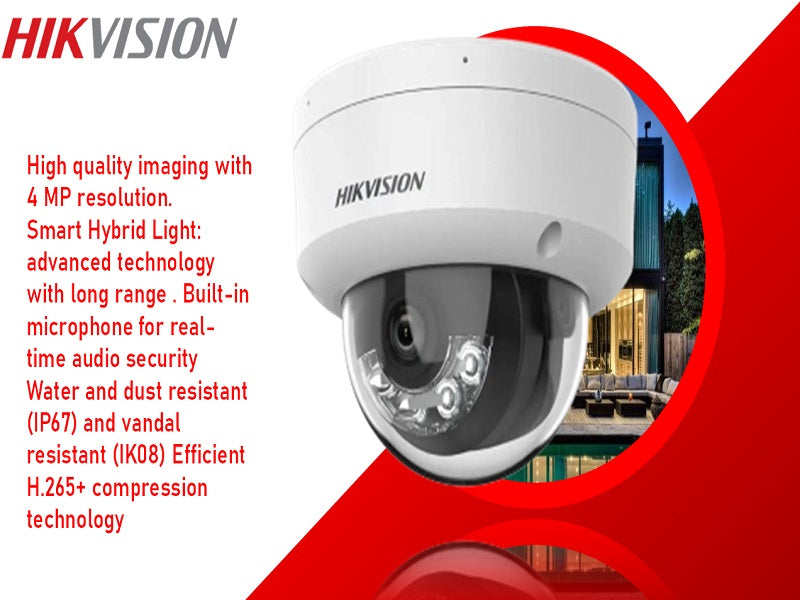

• High quality imaging with 4 MP resolution

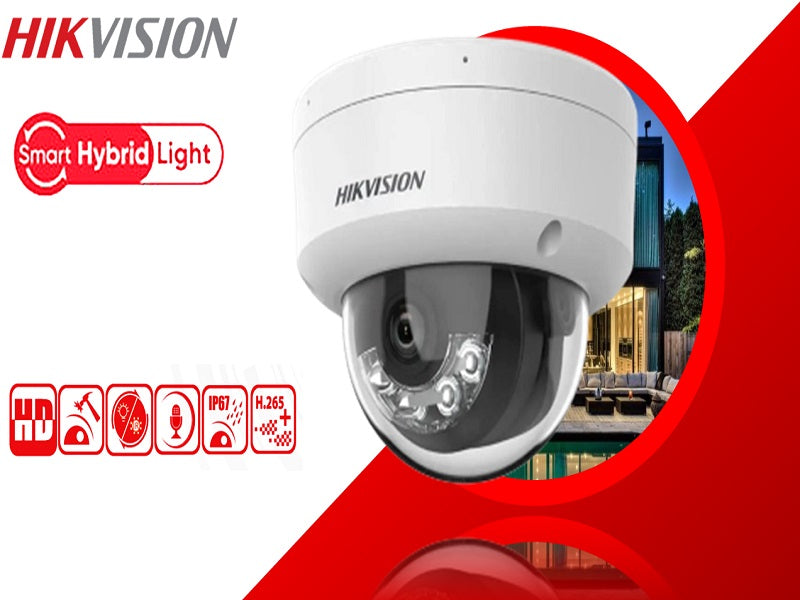

• Smart Hybrid Light: advanced technology with long range
• Efficient H.265+ compression technology
• Image Sensor 1/3" Progressive Scan CMOS
• Shutter Time 1/3 s to 1/100,000 s
• Lens
• Lens Mount M12
• Aperture F1.6
• Supplement Light Range Up to 30 m
• IR Wavelength 850 nm
• 50 Hz:
• 20 fps (2560 `d7 1440)
• 60 Hz:
• Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264/MJPEG
• H.265 Type Main Profile
• Audio Sampling Rate 8 kHz/16 kHz
• Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• Client iVMS-4200, Hik-Connect
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+
• Wide Dynamic Range (WDR) 120 dB
• SNR ≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR
• Privacy Mask 4 programmable polygon privacy masks
• Material Metal & Plastic
• Dimension `d8121.4 mm `d7 97.7 mm (`d84.8" `d7 3.8")
• Weight Approx. 550 g (1.2 lb.)
