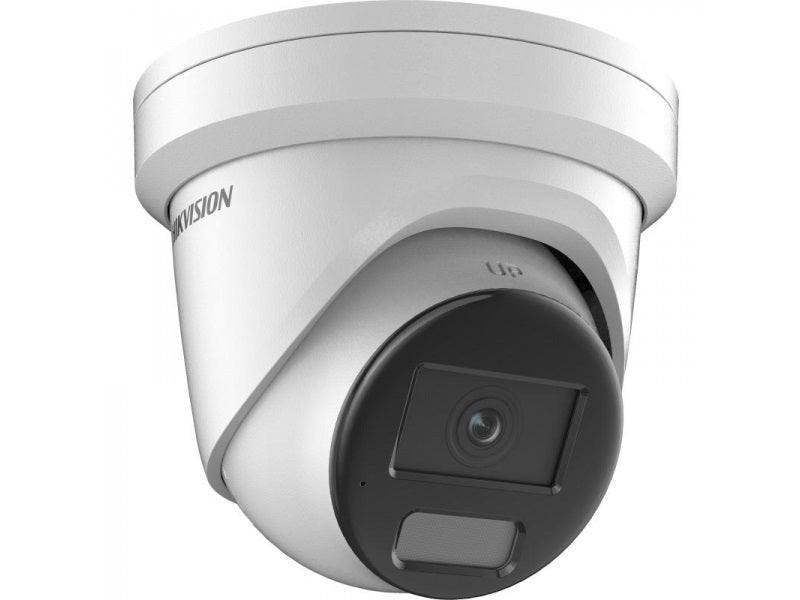

HIKVISION Ip Dome 8MP Dark Fighter Cam

8MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera. Clear imaging against strong back light due to 120 dB WDR technology.

Key features

• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Audio and alarm interface available
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 360`b0,tilt: 0`b0 to 75`b0,rotate: 0`b0 to 360`b0
• Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 105`b0, vertical FOV 56`b0, diagonal FOV 130`b0
• 4 mm, horizontal FOV 90`b0, vertical FOV 47`b0, diagonal FOV 111`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 25 fps (3840 `d7 2160, 3200 `d7 1800, 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 30 fps (3200 `d7 1800, 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third stream is supported under certain settings.
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 1 fixed region for main stream and sub-stream
• Mono sound
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View
• API
• ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
• User/Host
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch
• Day,Night,Auto,Schedule
• Image Enhancement
• SNR
• Wide Dynamic Range (WDR)
• Privacy Mask
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone
• Max. power consumption: 2 W, max. sound pressure level: 10 cm: 105 dB.
• 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K'd9, interface type: non-equilibrium,
• 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 `d9, interface type: non-equilibrium
• Alarm
• 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage
• Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
• Smart Event
• Scene change detection
• Deep Learning Function
• Face Capture
• Perimeter Protection
• Line crossing, intrusion, region entrance, region exiting
• Support alarm triggering by specified target types (human and vehicle)
• 12 VDC `b1 25%, 1.34 A, max. 16 W,`d85.5 mm coaxial power plug,reverse polarity protection,
• PoE: IEEE 802.3at, Class 4, max. 18 W
• `d8138.3 mm `d7 115.4 mm (`d85.4" `d7 4.5")
• 170 mm `d7 170 mm `d7 160 mm (6.7" `d7 6.7" `d7 6.3")
• Approx. 780 g (1.71 lb.)
• Approx. 1210 g (2.67 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)

Specifications

• Ds-2cd2386g2h-is2u/sl2.8mm
• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 1/1.8" Progressive Scan CMOS
• 3840 `d7 2160
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M16
• Aperture
• F1.0
• Depth of Field
• 2.8 mm: 3.3 m to ∞
• 4 mm: 3.8 m to ∞
• Up to 30 m
• 850 nm
• 50 Hz:
• 60 Hz:
• 24 fps (3840 `d7 2160)
• Main stream: H.265/H.264/H.264+/H.265+,
• Sub-stream: H.265/H.264/MJPEG,
• Third stream: H.265/H.264,
• 32 Kbps to 16 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• G.711/g.722.1/g.726/mp2l2/pcm/mp3/aac-lc
• 8 kHz/16 kHz/32 kHz/48 kHz
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,Hik-Connect
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• BLC,HLC,3D DNR,Defog
• ≥ 52 dB
• 120 dB
• 4 programmable polygon privacy masks
• Yes, 2 built-in microphones
• Material
• Cover: metal, main body: metal
