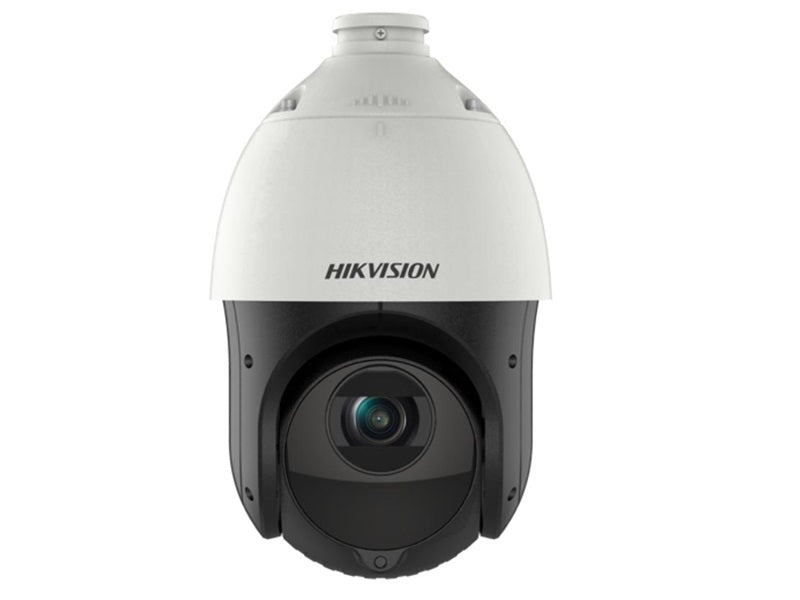

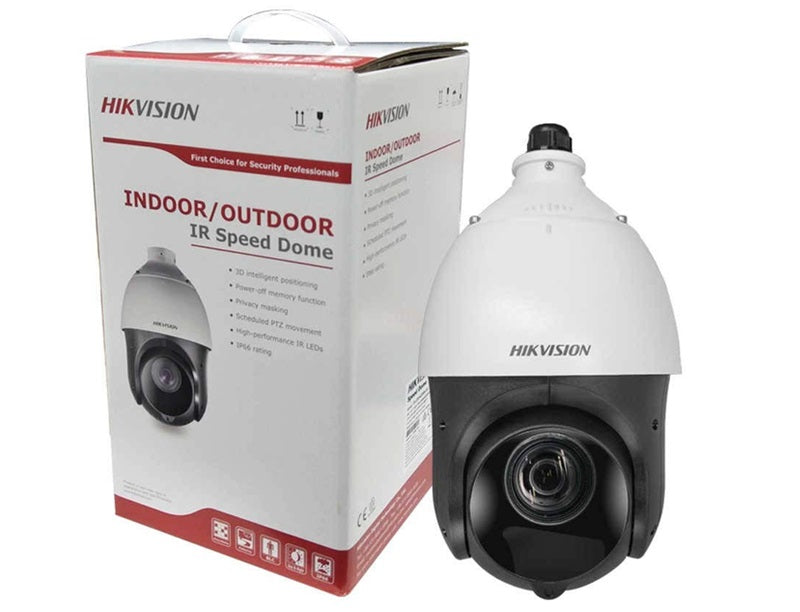

HIKVISION Ip Ptz 2Mp 25X Ir Poe 100Mtr

2 MP 25X Powered by DarkFighter IR Acusense Network Speed Dome. Focuses on human and vehicle targets classification based on deep learning.

Key features

• Support face capture. Up to 5 faces captured at the same time
• Excellent low-light performance with powered-by-DarkFighter technology
• 25`d7 optical zoom and 16`d7 digital zoom provide close up views over expansive areas
• Expansive night view with up to 100 m IR distance
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed
• Day & Night
• IR cut filter
• Zoom
• Slow Shutter
• Yes
• Focal Length
• FOV
• Focus
• Auto, semi-auto, manual
• Max. F1.6
• Zoom Speed
• Approx. 3.6 s
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• PTZ
• Movement Range (Pan)
• Movement Range (Tilt)
• Pan Speed
• Pan speed: configurable from 0.1`b0 to 80`b0/s; preset speed: 80`b0/s
• Tilt Speed
• Tilt speed: configurable from 0.1`b0 to 80`b0/s, preset speed 80`b0/s
• Proportional Pan
• Presets
• Preset Freezing
• Patrol Scan
• 8 patrols, up to 32 presets for each patrol
• Pattern Scan
• Park Action
• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• Scheduled Task
• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
• Main Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (704 `d7 576, 640 `d7 480, 352 `d7 288)
• 60 Hz: 30 fps (704 `d7 480, 640 `d7 480, 352 `d7 240)
• Third Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 576, 640 `d7 480, 352 `d7 288)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 480, 640 `d7 480, 352 `d7 240)
• Baseline Profile/Main Profile/High Profile
• Main profile
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
• Protocols
• Ipv4/ipv6, http, https, 802.1x, qos, FTP, smtp, upnp, snmp, DNS, ddns, NTP, rtsp, rtcp, RTP, tcp/ip, UDP, igmp, icmp, dhcp, pppoe, bonjour
• Simultaneous Live View
• API
• Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host
• Up to 32 users, 3 user levels: administrator, operator, and user
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client
• Web Browser
• Image
• Image Parameters Switch
• Image Settings
• Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• SNR
• Defog
• Digital defog
• Image Stabilization
• No
• Image Enhancement
• Privacy Mask
• 24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional Focus
• Regional Exposure
• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 k'd9 `b1 10%;
• 1 output (line out), line level, output impedance: 600 `d9
• Alarm
• Reset
• Event
• Basic Event
• Motion detection, video tampering alarm, exception, alarm input and output
• Smart Event
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Linkage
• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
• Deep Learning Function
• Face Capture
• Detects up to 5 faces simultaneously.
• Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
• Perimeter Protection
• Line crossing, intrusion, region entrance, region exiting
• Support alarm triggering by specified target types (human and vehicle)
• 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;
• `d8 164.5 mm `d7 290 mm (`d8 6.48" `d7 11.42")
• Approx. 2 kg (4.41 lb.)

Specifications

• 25X optical zoom 16X digital (T5 model)
• Ds-2de4225iw-de(t5)
• 1/2.8" progressive scan CMOS
• High quality imaging with 2 MP resolution
• Support H.265+/H.265 video compression.
• 1920 `d7 1080
• 1 s to 1/30,000 s
• 25 `d7 optical, 16 `d7 digital
• Lens
• 4.8 mm to 120 mm
• Horizontal field of view: 57.6`b0 to 2.5`b0 (wide-tele),
• Vertical field of view: 34.4`b0 to 1.4`b0 (wide-tele),
• Diagonal field of view: 64.5`b0 to 2.9`b0 (wide-tele)
• Aperture
• IR Distance: up to 100 m
• 360`b0
• 15`b0 to 90`b0 (auto flip)
• 300
• 4 pattern scans
• 3D Positioning
• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264/MJPEG
• 32 kbps to 16384 kbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• 8 fixed regions for each stream
• G.711/g.722.1/g.726/mp2l2/pcm
• 8 kHz/16 kHz/32 kHz/48 kHz
• Up to 20 channels
• iVMS-4200, HikCentral Pro, Hik-Connect
• Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11
• 120 dB
• > 52 dB
• BLC, HLC, 3D DNR
• 1 RJ45 10M/100M self-adaptive Ethernet port
• 1 input, 1 output
• PoE (802.3at)
• Material
• ADC12
