Hikvision DS-7104NI-Q1 4-Channel 6MP NVR (No PoE) - H.265+, HDMI/VGA, Mini 1U

HIKVISION 4-Channel Mini 1U Network Video Recorder
The HIKVISION 4-Channel Mini 1U NVR is a compact network video recorder designed for small IP surveillance systems requiring reliable recording, efficient video compression and high-resolution network camera support.
Supporting up to 4 IP camera inputs with resolutions up to 6MP, the recorder provides 40Mbps incoming bandwidth and 60Mbps outgoing bandwidth. It supports H.265+, H.265, H.264+ and H.264 video compression, helping optimise network bandwidth and available storage space while maintaining high-quality surveillance recordings.
The NVR provides 4-channel synchronous playback, decoding of up to four 1080p channels, and simultaneous HDMI and VGA output. A single internal SATA interface supports a surveillance hard drive with a capacity of up to 6TB.
With its compact Mini 1U chassis measuring only 200 × 200 × 48mm, the recorder is ideal for homes, offices, retail stores and smaller commercial CCTV installations.
Important: This is the standard non-PoE version. It does not have built-in PoE camera ports.
Key Features
- 4-channel Network Video Recorder
- Up to 4 IP network camera inputs
- Supports cameras with resolution up to 6MP
- 40Mbps incoming bandwidth
- 60Mbps outgoing bandwidth
- H.265+ video compression
- H.265 / H.264+ / H.264 support
- Up to 4-channel 1080p decoding
- Up to 6MP recording resolution
- 4-channel synchronous playback
- HDMI and VGA simultaneous output
- 1 × RJ45 network interface
- Hik-Connect support
- 1 × SATA interface
- Supports HDD capacity up to 6TB
- 2 × USB 2.0 interfaces
- Up to 16 remote connections
- Compact Mini 1U design
- 12V DC power supply
- Non-PoE model
4-Channel IP Camera Support
The recorder supports up to four compatible network cameras, making it suitable for smaller IP surveillance installations.
IP Video Inputs: 4 Channels
Maximum Camera Resolution: Up to 6MP
Incoming Bandwidth: 40Mbps
Outgoing Bandwidth: 60Mbps
The 40Mbps incoming bandwidth provides the recording capacity required for compatible multi-camera configurations while the 60Mbps outgoing bandwidth supports video output and network access.
Up to 6MP Recording
The NVR supports network camera recording resolutions up to 6MP, providing flexibility when configuring a surveillance system with compatible IP cameras.
Supported Recording Resolutions
- 6MP
- 4MP
- 3MP
- 1080p
- UXGA
- 720p
- VGA
- 4CIF
- DCIF
- 2CIF
- CIF
- QCIF
Efficient Video Compression
Supported video compression formats include:
- H.265+
- H.265
- H.264+
- H.264
H.265+ compression can help reduce the amount of storage and network bandwidth required for surveillance recordings when used with compatible cameras and settings.
Decoding Capability
The NVR provides flexible decoding performance according to the resolution being displayed.
Maximum Decoding Capability:
- 4 channels @ 1080p, 30fps
- 2 channels @ 4MP, 30fps
- 1 channel @ 6MP, 30fps
Stream Type:
Video / Video & Audio
4-Channel Synchronous Playback
The recorder supports 4-channel synchronous playback, allowing recorded footage from up to four cameras to be reviewed simultaneously.
This is particularly useful when an incident has been captured from multiple camera positions and footage needs to be compared across different channels.
HDMI Output
The recorder provides 1 × HDMI output.
Supported resolutions include:
- 1920 × 1080p @ 60Hz
- 1600 × 1200 @ 60Hz
- 1280 × 1024 @ 60Hz
- 1280 × 720 @ 60Hz
VGA Output
The recorder also provides 1 × VGA output.
Supported resolutions include:
- 1920 × 1080p @ 60Hz
- 1600 × 1200 @ 60Hz
- 1280 × 1024 @ 60Hz
- 1280 × 720 @ 60Hz
Simultaneous HDMI & VGA Output
Video Output Mode:
HDMI / VGA simultaneous output
The NVR can provide HDMI and VGA video output simultaneously, allowing compatible displays to be connected according to the requirements of the installation.
Network Connectivity
Network Interface:
1 × RJ45 10/100Mbps self-adaptive Ethernet interface
Maximum Remote Connections:
16
The network connection allows the NVR to communicate with compatible IP cameras, local network equipment and supported remote surveillance services.
Supported Network Protocols
The recorder supports:
- TCP/IP
- DHCP
- Hik-Connect
- DNS
- DDNS
- NTP
- SADP
- SMTP
- UPnP™
Hik-Connect Support
The NVR supports Hik-Connect, allowing compatible remote surveillance functionality when the recorder has been correctly configured and connected to a suitable network and internet connection.
Storage
The recorder provides a single SATA interface for internal video storage.
SATA Interfaces: 1
Maximum HDD Capacity: Up to 6TB
A compatible surveillance hard drive can be installed for continuous or event-based recording.
Hard drive inclusion depends on the specific package purchased.
USB Interfaces

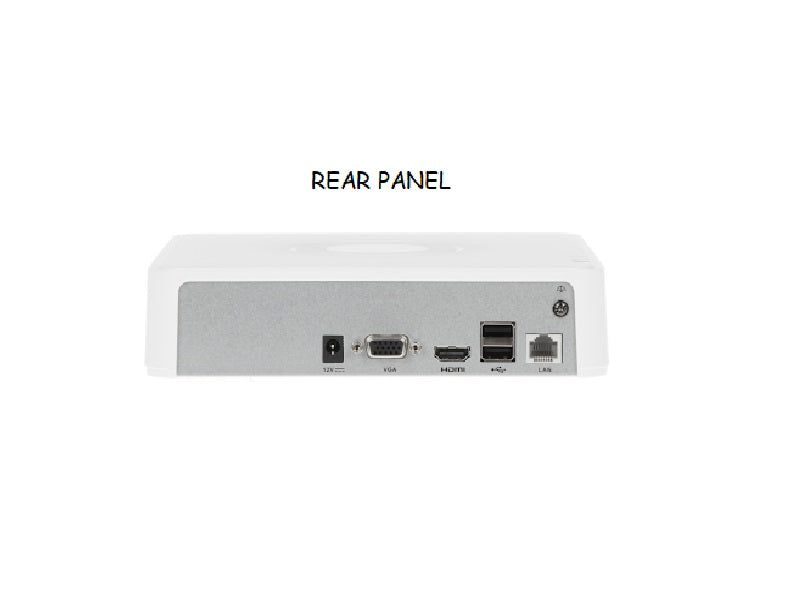

Rear Panel:
2 × USB 2.0
The USB interfaces can be used with supported accessories such as a mouse or compatible external storage device for supported backup and management functions.
Alarm Interface
Alarm Input: N/A
Alarm Output: N/A
This model does not provide dedicated alarm input or output terminals.
Power
Power Supply:
12V DC, 1.5A
Power Consumption:
≤10W
The low power consumption and compact form factor make the recorder suitable for small CCTV installations where space and power requirements need to be kept to a minimum.
Operating Conditions
Working Temperature:
-10°C to +55°C
Working Humidity:
10% to 90%
Dimensions
Dimensions (W × D × H):
200 × 200 × 48mm
The Mini 1U design provides a compact footprint for installation on desks, shelves or within suitable CCTV equipment areas.
Weight
Weight:
≤1kg
Technical Specifications
Specification Details
Brand HIKVISION
Product Type Network Video Recorder
Form Factor Mini 1U
IP Camera Inputs 4 Channels
Maximum Camera Resolution 6MP
Built-In PoE No
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 60Mbps
Compression H.265+ / H.265 / H.264+ / H.264
Maximum Recording Resolution 6MP
Decoding – 1080p 4-ch @ 30fps
Decoding – 4MP 2-ch @ 30fps
Decoding – 6MP 1-ch @ 30fps
Synchronous Playback 4 Channels
HDMI Output 1
Maximum HDMI Output 1920 × 1080 @ 60Hz
VGA Output 1
Maximum VGA Output 1920 × 1080 @ 60Hz
Video Output Mode HDMI/VGA Simultaneous
Network Interface 1 × RJ45 10/100Mbps
Remote Connections 16
SATA Interfaces 1
Maximum HDD Capacity 6TB
USB Interfaces 2 × USB 2.0
Alarm In/Out N/A
Power Supply 12V DC, 1.5A
Power Consumption ≤10W
Working Temperature -10°C to +55°C
Working Humidity 10%–90%
Dimensions 200 × 200 × 48mm
Weight ≤1kg

Non-PoE NVR
This particular model is the standard non-PoE version and does not include integrated PoE camera ports.
When using PoE network cameras, a compatible external PoE switch or other suitable PoE power source will therefore be required.
This is an important distinction from the 4-channel Mini 4-PoE NVR version, which has four integrated PoE interfaces.
Certification
CE:
- EN50130-4
- EN 61000-3-2
- EN 61000-3-3
Ideal Applications
The HIKVISION 4-Channel Mini 1U NVR is suitable for:
- Residential CCTV systems
- Small offices
- Retail stores
- Small warehouses
- Restaurants
- Takeaways
- Reception areas
- Small commercial properties
- Small IP surveillance installations
- CCTV systems using an external network or PoE switch
Why Choose This HIKVISION NVR?
The HIKVISION 4-Channel Mini 1U NVR provides the essential recording and network functionality required for a compact IP surveillance system.
It supports four network cameras with resolutions up to 6MP, efficient H.265+ compression, four-channel synchronous playback and simultaneous HDMI/VGA output.
With 40Mbps incoming bandwidth, 60Mbps outgoing bandwidth, one SATA bay supporting up to 6TB and a compact 200 × 200 × 48mm chassis, it provides a practical solution for smaller IP CCTV installations.
