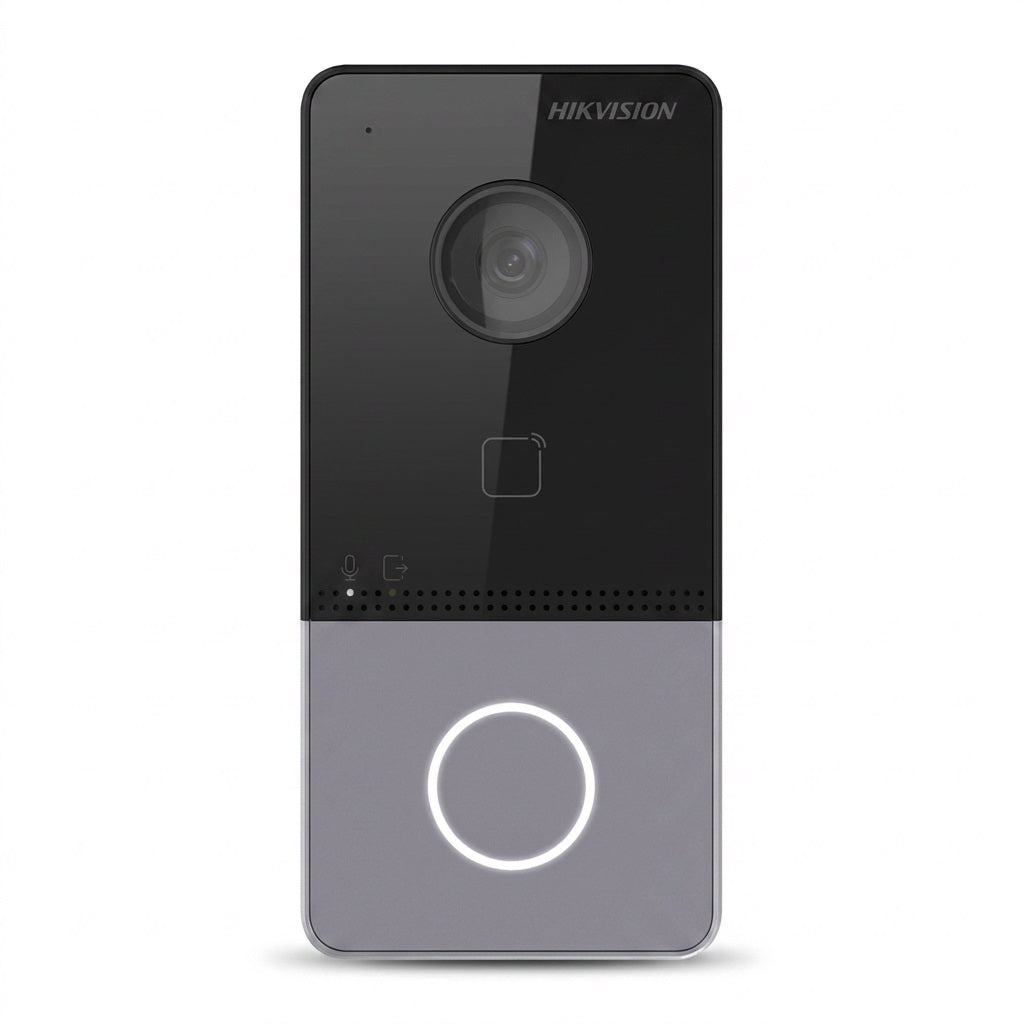

HIKVISION POE/Wifi Villa Door Station

POE/Wifi Villa Door Station
2 MP camera with IR supplement
One-touch button calling design for easier calls
Built-in card reader module
Standard PoE power supply
IP65 protection level
Convenient Hik-Connect APP Mobile Control

System parameters
Operation system
Linux
ROM
32 MB
RAM
256 MB
Processor
Embeded high performance processor
Display parameters
Screen size
/
Operation method
/
Type
/
Resolution
/
Video parameters
Lens
1
Resolution
Main stream: 1920 × 1080p, 720p

Sub stream: 640 × 480p

FOV
Horizontal: 131° Vertical: 78°
Wide dynamic range (WDR)
Support 120 dB
Supplement light
IR light, up to 3 m
Video compression standard
H.264; H.265; MJPEG
Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio compression standard
G.711 U`a1`a2G.711 A`a1`a2Opus`a1`a2AAC-LD`a1`a2AAC-LC`a1`a2G.726`a1`a2G.722.1
Audio output
1 built-in loudspeaker
Audio compression bitrate
64 Kbps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Capacity
User capacity
2000
Face capacity
/
Card capacity
10000
Network parameters
Network protocol
TCP/IP, RSTP, IPV6, ONVIF
Wi-Fi
IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth
Not supported.
3G/4G
/
Device interfaces
Alarm input
4
Network interface
1 RJ-45, 10/100 Mbps self-adaptive
TAMPER
1
Exit button
1
RS-485
1
USB
/
Wiegand
/
TF card
Reserved
Alarm output
/
Lock control
1 relay, Max. 30 VDC 2 A
Door contact input
1
General
Button
1 physical button
Installation
Surface mounting
Indicator
2
Net weight: 0.190 kg

Gross weight: 0.414 kg

Protective level
IP65
Working temperature
-40 °C to 55 °C(-40 °F to 131 °F)
Working humidity
10% to 95% (no-condensing)
Dimension (W × H × D)
138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1")
Battery
/
Application environment
Outdoor
Power consumption
`a3¼ 10 W
Language
English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
Power supply
12 VDC,Standard PoE, af
