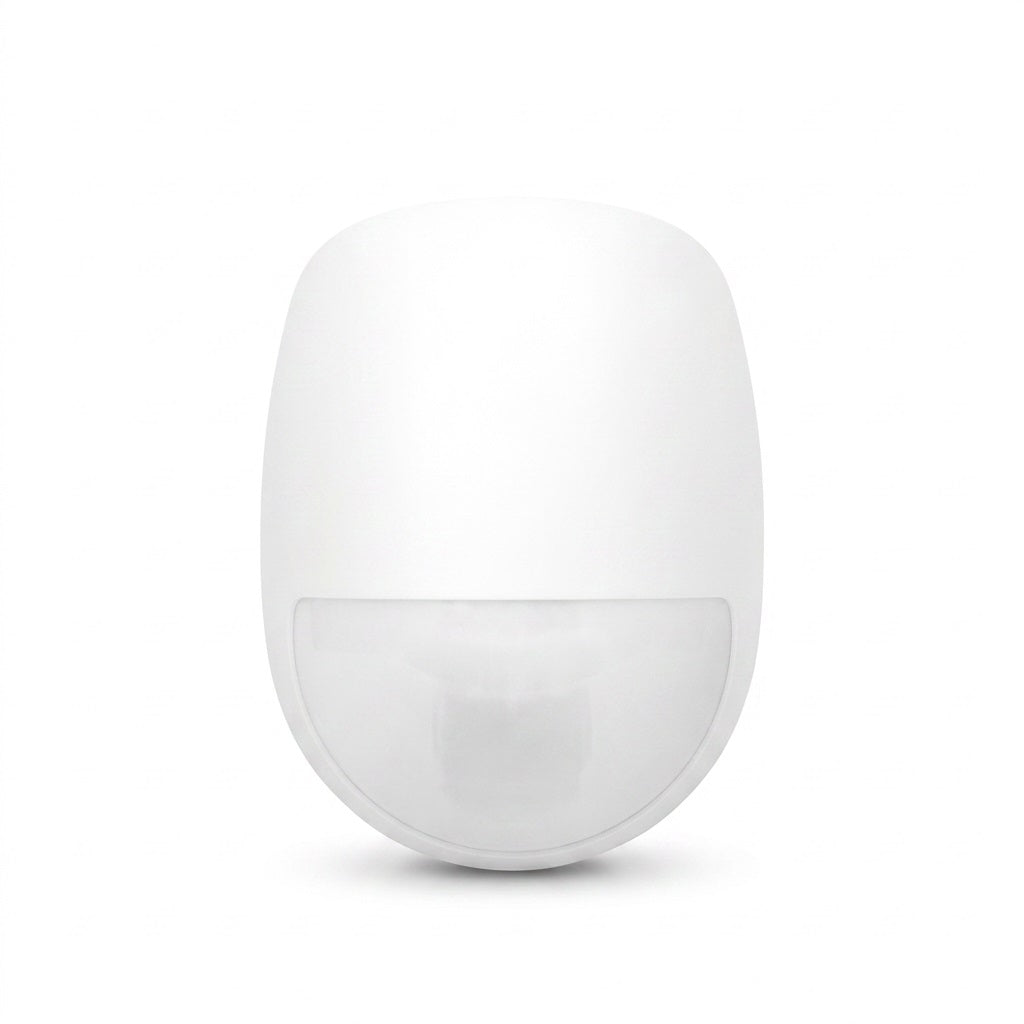

HIKVISION Wired Pir Curtain Detector

Wired PIR Curtain Detector
Up to 15m detection range
Digital temperature compensation
Selectable EOL resistors for alarm and tamper-proof wiring
Long range with narrow angle detection
Sealed optics preventing insect interference
Global certifications available (EN Grade2/CE/CB/IC/RCM)
9 to 16 V wide voltage adaptation with polarity reverse connection protection
Easy installation design
Wall/Ceiling-mounting brackets available (sold separately)

Detection Performance
Detection Method
Passive Infrared
Detection Range
15m
Detection Angle
6.3°
Detection Zones
18
Detectable Speed
0.3`a1`ab2m/s
White Light Filter
6500lux
Digital Temperature Compensation
Support
Creep Zone Protection
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front
Interface
Alarm Output
Normally Closed
LED Indicator
Blue(Alarm)
Transmission
Transmission Method
Wired
Electrical Characteristics
Power Supply
9 - 16 VDC
Typical Voltage
12 VDC
Power Consumption
Maximum current:11mA Max
General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
65.4mm x 86.8mm x 45.5mm
68 g
Mounting Height
2.4 m to 3.6 m

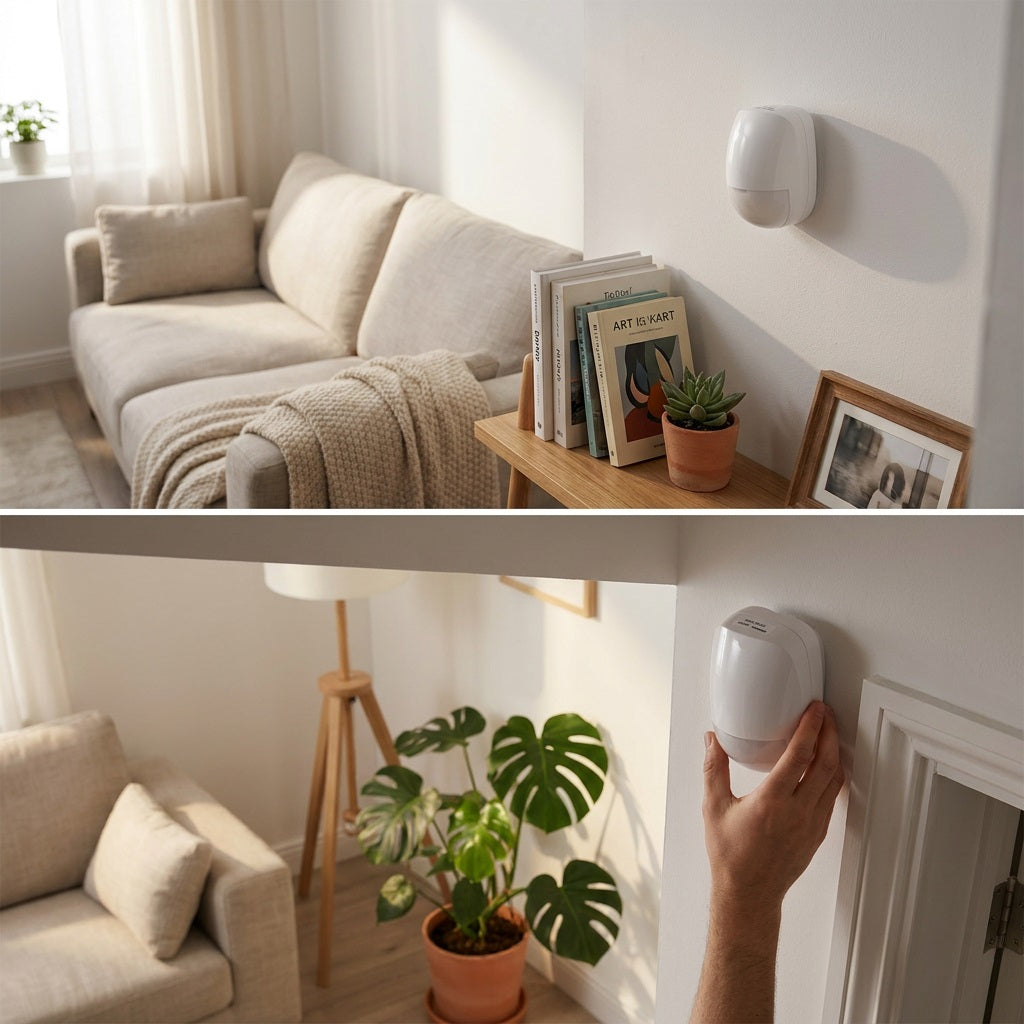

Mounting Method
Wall;Ceiling
Application Scenario
Indoor
Bracket
Optional wall & ceiling accessory
