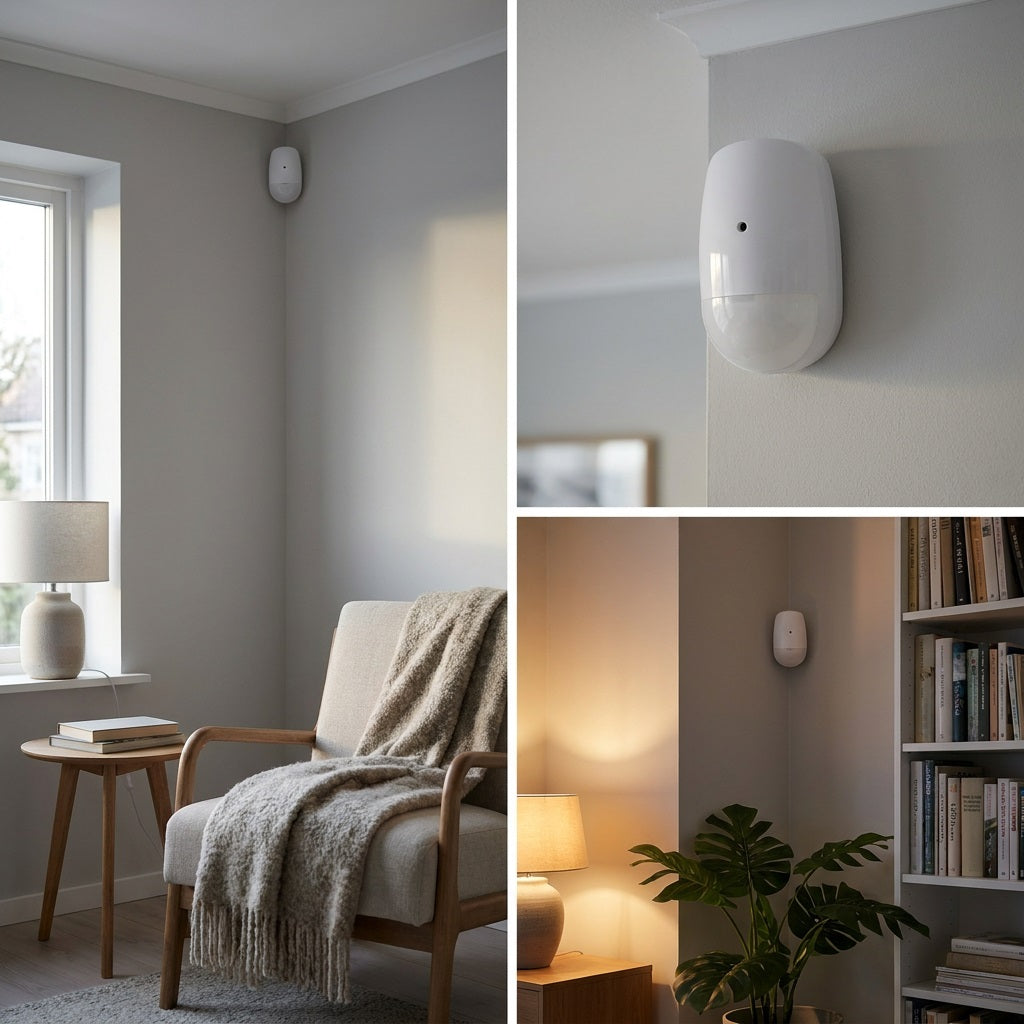

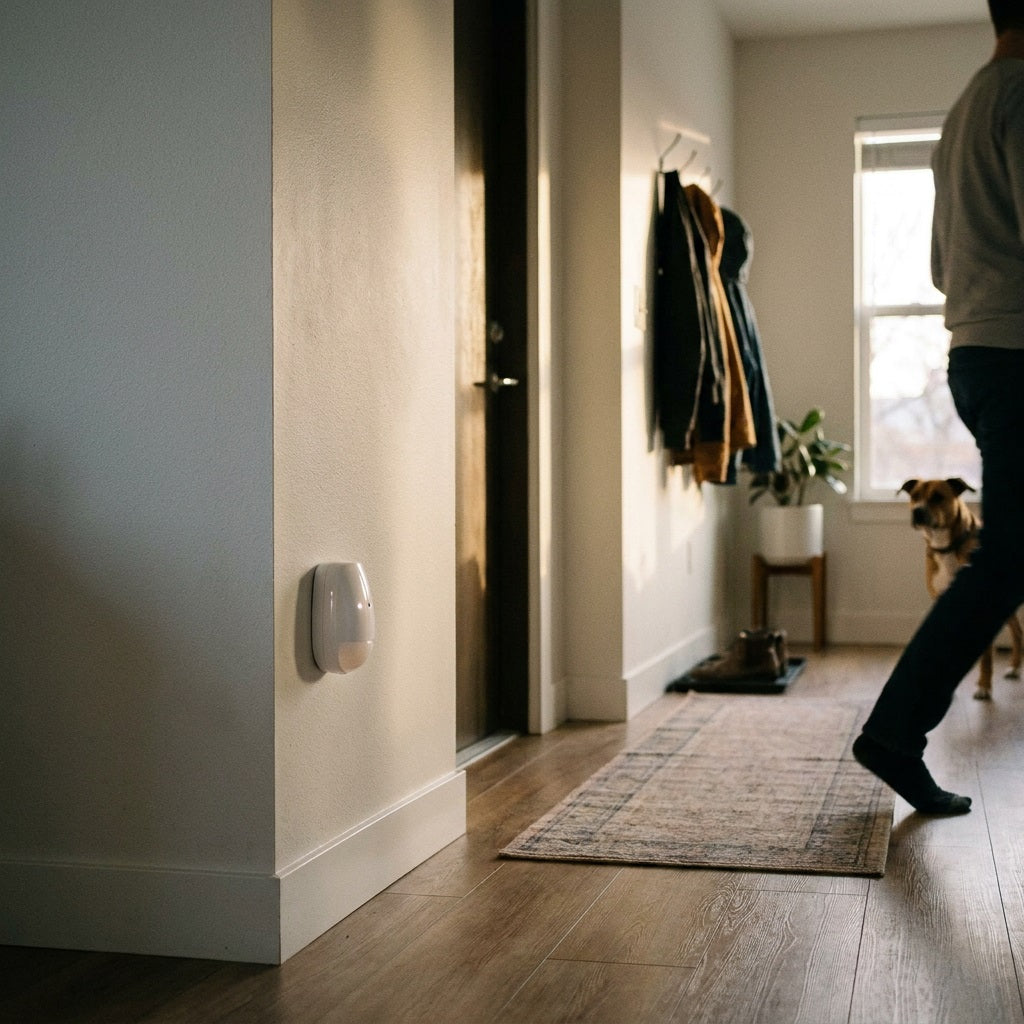

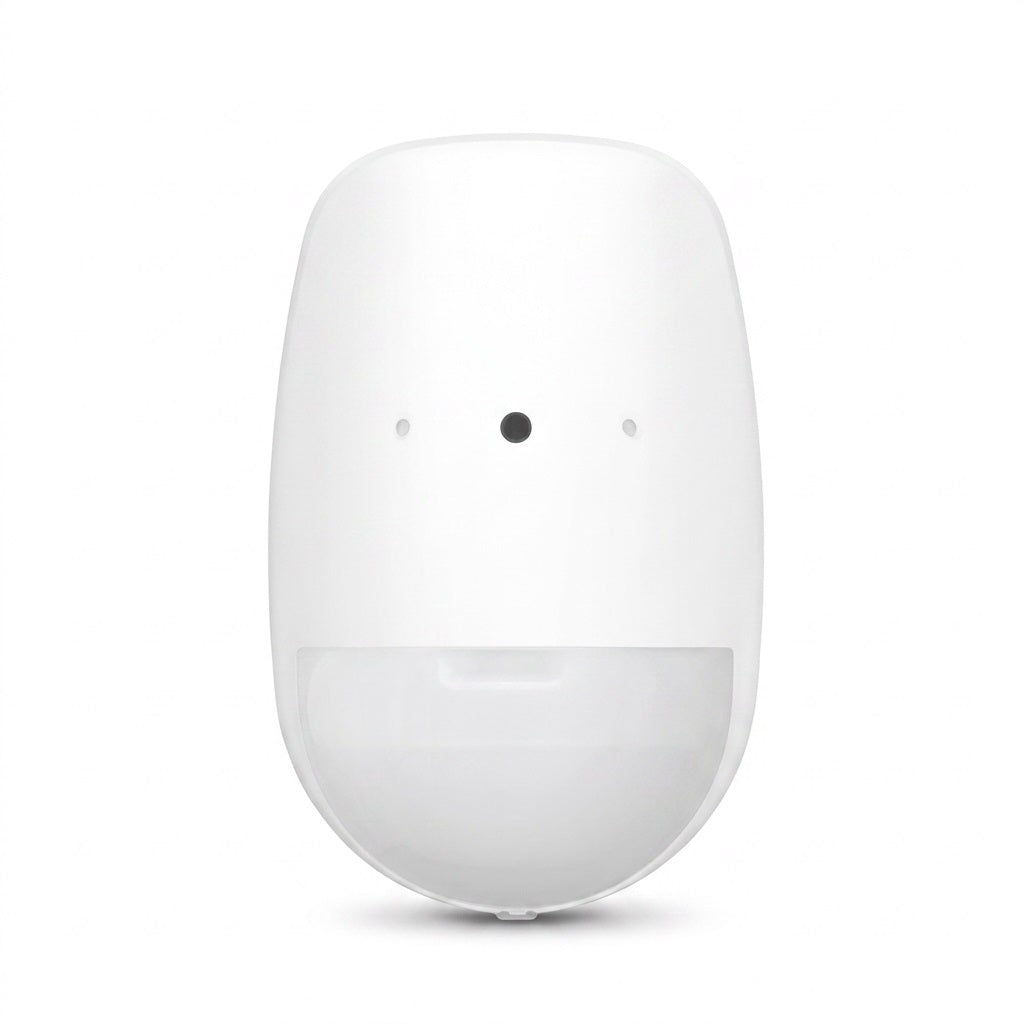

HIKVISION Wired Pir Glass Break Detector

Wired PIR-Glass Break Detector
PIR Detection Range: 12m / 85.9°
Glass Break Range: 8m / 120°
Up to 30KG pet immunity
Selectable EOL resistors
9-16 VDC wide voltage adaptation with polarity reverse connection protection

Detection Performance
Detection Method
Passive Infrared;Acoustic Sensor
Detection Range
12m
Detection Angle
85.9°
Detection Zones
52
Detectable Speed
0.3`a1`ab2m/s
Pet Immunity
30Kg
PIR Sensitivity
Auto,Pet
White Light Filter
6500lux
Glass Break Range
8m
Glass Type
Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
Glass Break Sensitivity
Potentiometer Adjustment
Glass Thickness
2.4mm to 6.4mm
Digital Temperature Compensation
Support
Glass Size
0.3m x 0.3m to 3m x 3m
Creep Zone Protection
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front
Interface
Alarm Output
Normally Closed
LED Indicator
Green(PIR),Red(BG),Blue(alarm)
Transmission
Transmission Method
Wired
Electrical Characteristics
Power Supply
9 to 16 VDC
Typical Voltage
12 VDC
Power Consumption
Maximum current`a3°26mA @12VDC

Quiescent current`a3°36mA@12VDC

General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
65.5mm×103mm×48.5mm
98.5g
Mounting Height
1.8 to 2.4m
Mounting Method
Wall
Application Scenario
Indoor
Bracket
Optional Wall & Ceiling Accessory
