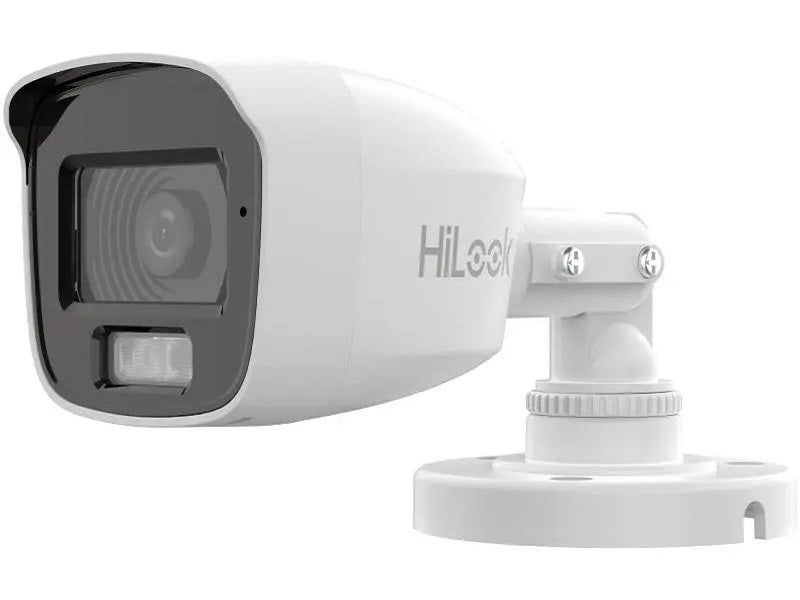

HILOOK 1080P Bullet Camera 2.8Mm

2MP Dual Light Audio Fixed Mini Bullet Camera
High quality imaging with 2 MP, 1920 × 1080 resolution
Fixed focal lens, 2.8 mm and 3.6 mm optional
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
High quality audio with audio over coaxial cable, built-in microphone

Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0 to 360°, tilt: 0 to 180°, rotate: 0 to 360°
Signal System
PAL/NTSC
Lens
Lens Type
Fixed focal lens, 2.8 mm and 3.6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 116°

3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

Lens Mount
M12
Illuminator
Supplement Light Type
White Light;IR
Supplement Light Range
IR : up to 20 m

White Light : up to 20 m

Image Settings
Brightness, Sharpness, Smart IR
Frame Rate
TVI: 1080P @30 fps, 1080P @25 fps

AHD: 1080P @30 fps, 1080P@25 fps

CVI: 1080P @30 fps, 1080P @25 fps

CVBS: PAL/NTSC

Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR/BLC/HLC/Global
White Balance
Auto/Manual
AGC
Yes
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Plastic
Dimension
161.22 mm × 57.97 mm × 61.96 mm (6.35" × 2.28" × 2.44")
Weight
Approx. 164 g (0.36 lb)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
Communication
HIKVISION-C
Language
English
Power Supply
12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption
Max. 3.2 W
Approval
Protection
IP66
