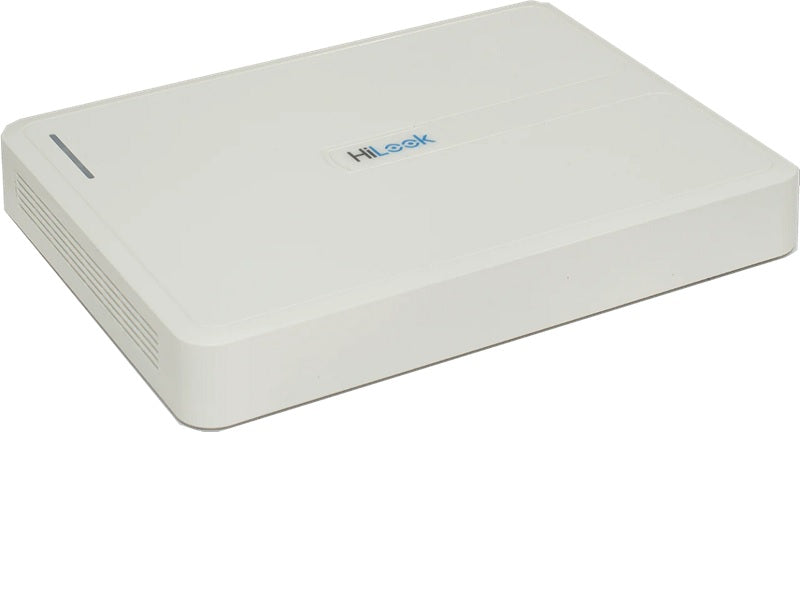

Hilook 16Ch 1080P Lite Mini 1U Dvr
Hilook 16Ch 1080P Lite Mini 1U Dvr
HILOOK
R 1,549R 1,899
Estimated delivery
2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
In stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
Deep learning based human and vehicle targets classification of Motion Detection 2.0. Up to 18-ch IP camera inputs (up to 5 MP).
Key features
- Key Feature
- Max. 1200 m for 720p HDTVI signal
- 1 SATA interface (up to 4 TB capacity)
- Smart search for efficient playback Network & Ethernet Access
- HiLook Vision & DDNS (Dynamic Domain Name System) for easy network management
- Encoding Resolution -For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate
- Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
- Dual-stream -Support
- Stream Type -Video, Video & Audio
- IP Video Input -2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input -16-ch BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
- CVBS Input -PAL/NTSC
- HDMI Output -1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
- VGA Output -1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
- Video Output Mode -HDMI/VGA simultaneous output
- Audio Input -1-ch RCA (2.0 Vp-p, 1 K'd9) 16-ch via coaxial cable
- Two-Way Audio -Reuse the first audio input
- Network Protocol -TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Remote Connection -128
- Network Interface -1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Working Temperature -10 `b0C to 55 `b0C (14 `b0F to +31 `b0F)
Specifications
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 1080p Lite@15 fps encoding capability
- Video Compression -H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Video Bitrate -32 Kbps to 4 Mbps
- Audio Compression -G.711u
- Audio Bitrate -64 Kbps
- HDTVI Input -1080p25, 1080p30, 720p25, 720p30
- AHD Input -1080p25, 1080p30, 720p25, 720p30
- HDCVI Input -1080p25, 1080p30, 720p25, 720p30
- Audio Output -1-ch, RCA (Linear, 1 K'd9)
- Synchronous playback -16-ch
- Total Bandwidth -96 Mbps
- SATA -1 SATA interface
- Capacity -Up to 10 TB capacity for each disk
- USB Interface -Rear panel: 2 `d7 USB 2.0
- Power Supply -12 VDC, 1.6 A
- Consumption ≤ 7 W (without HDD)
- Working Humidity 10% to 90%
Frequently Bought Together Frequently bought
Product Information
| Categories | HiLook / Security & Surveillance / Specials |
| Brand | Hilook |
| Channels | 16-ch analog + up to 18-ch IP |
| IP Camera Support | Up to 5 MP |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding | Up to 1080p Lite @ 15 fps |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Audio Compression | G.711u |
| HDMI Output | 1-ch, up to 1920x1080/60Hz |
| Total Bandwidth | 96 Mbps |
| Storage | 1 SATA, up to 10 TB |
| Network Interface | RJ45 10/100 Mbps |
| USB | 2 x USB 2.0 |
| Power Supply | 12 VDC, 1.6 A |
| Consumption | <= 7 W (without HDD) |
| Barcode | 6936422139742 |
