Hilook 16CH Dome Camera CCTV Kit With Zatech ready Cables, Junction Boxes

• Hilook 16CH Dome Camera CCTV Kit is a professional-grade, all-in-one surveillance solution designed for homes, businesses, and warehouses. It includes 2MP indoor fixed turret cameras delivering crisp 1080p HD video, featuring Smart IR for up to 20m night vision and 4-in-1 signal support (TVI/AHD/CVI/CVBS). The powerful 16-channel DVR supports H.265 Pro+ compression.

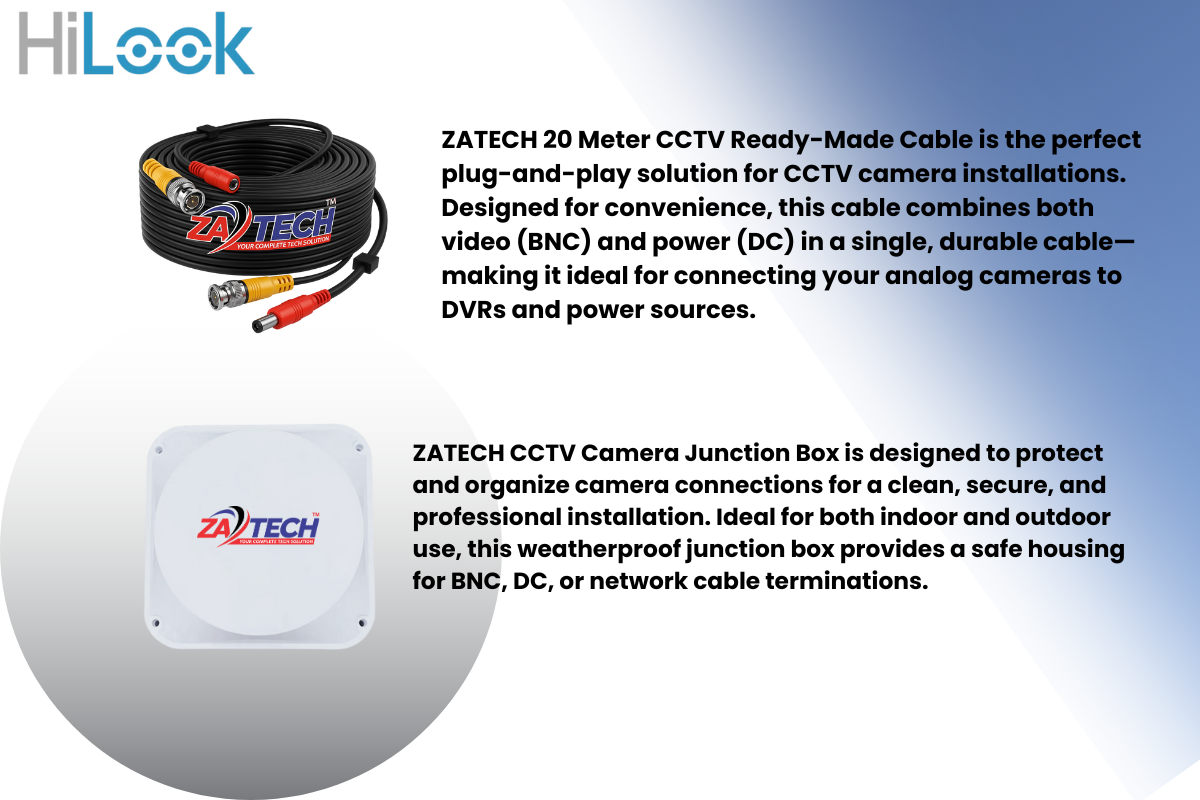

• this DVR is built for flexibility and performance. The kit includes ZATECH 20-meter ready-made cables for fast setup, 2 x DCW8P ,2 x power supplies, and ZATECH junction boxes for a secure and clean installation. Whether you're upgrading your current system or starting fresh, this CCTV kit is ready to deliver reliable 24/7 surveillance.

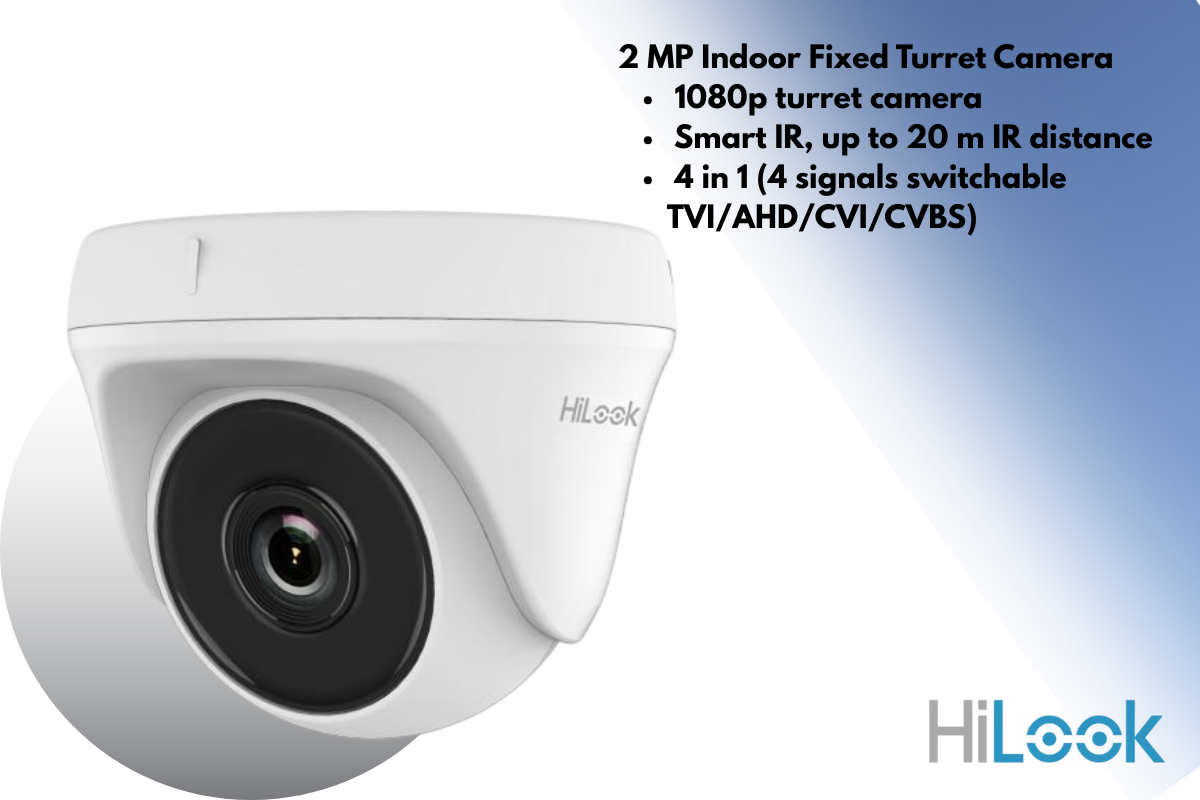

CAMERA

• Interface
• Video Output1 HD analog output
• Switch ButtonTVI/AHD/CVI/CVBS
• Menu
• Day/Night ModeIR cut filter
• DWDR (Digital Wide Dynamic Range)Support
• LanguageEnglish
• FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
• Backlight CompensationSupport
• Camera
• Image Sensor2 MP CMOS image sensor
• Signal SystemPAL/NTSC
• Frame RatePAL: 1080p@25fpsNTSC: 1080p@30fps
• Resolution1920 (H) × 1080 (V)
• Shutter Time1/25 (1/30) s to 1/50,000 s
• Min. illumination0.02 Lux@(F2.0, AGC ON), 0 Lux with IR
• Lens2.8 mm, 3.6 mm
• Horizontal Field of View2.8 mm, horizontal FOV: 96.5 , vertical FOV: 48.9 , diagonal FOV: 120.5 3.6 mm, horizontal FOV: 76.9 , vertical FOV: 40.6 , diagonal FOV: 92.0
• Lens MountM12
• Day & NightIR cut filter
• SynchronizationInternal synchronization
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 75 , Rotation: 0 to 360

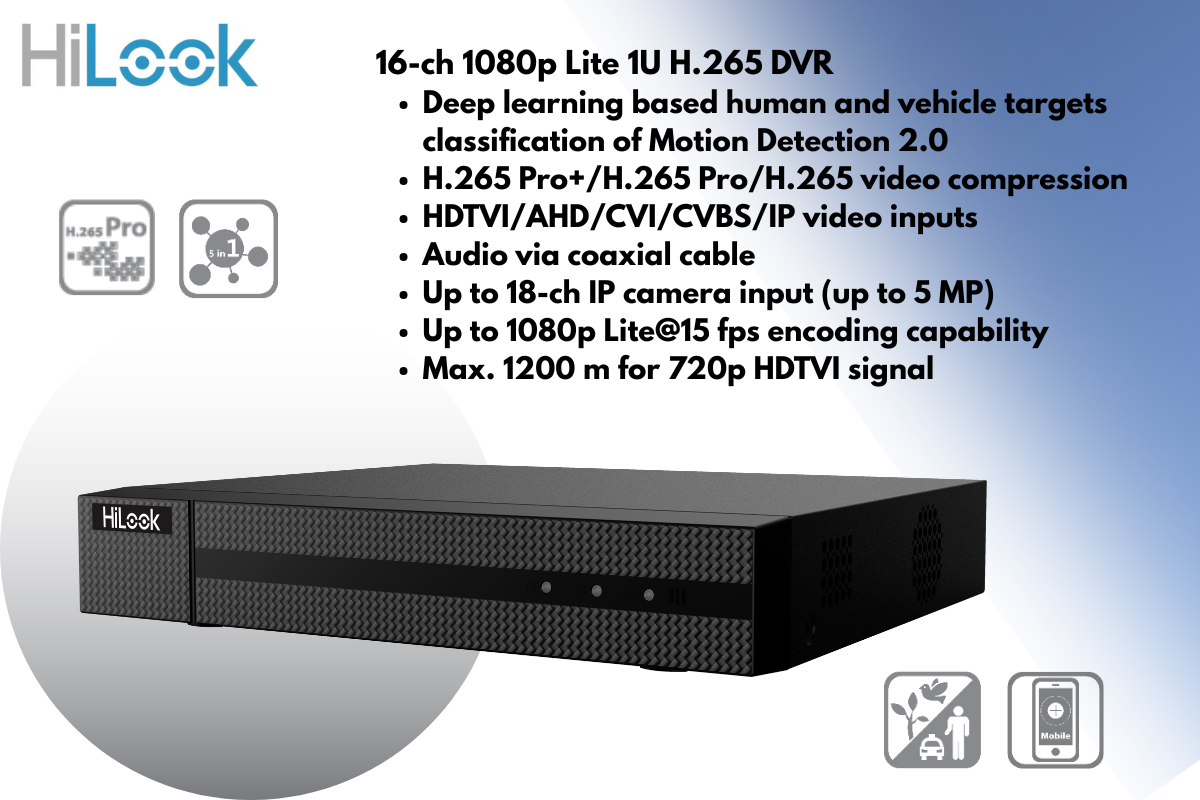

DVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported
• Video and Audio
• IP Video Input2-ch (up to 18-ch)Up to 5 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input16-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 K ), and 16-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K )
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K ) (using the first audio input)
• Synchronous Playback16-ch
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIF
• Frame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fpsFor 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fpsFor SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:For 1080p and 720p stream access CIF/QVGA@15 fpsFor SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth96 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,UPnP , HTTPS, ONVIF
• Remote Connection128
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1, SATA interface
• CapacityUp to 6 TB capacity for each disk
• USB Interface2 × USB 2.0

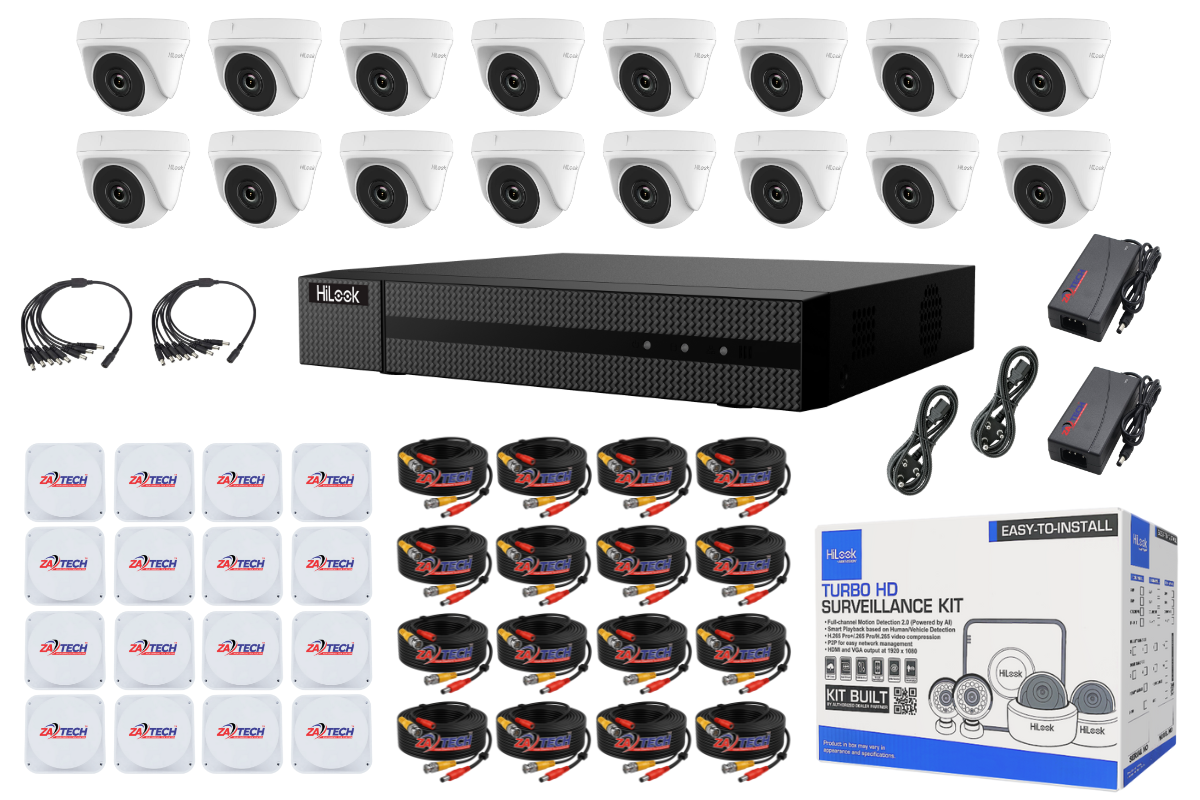

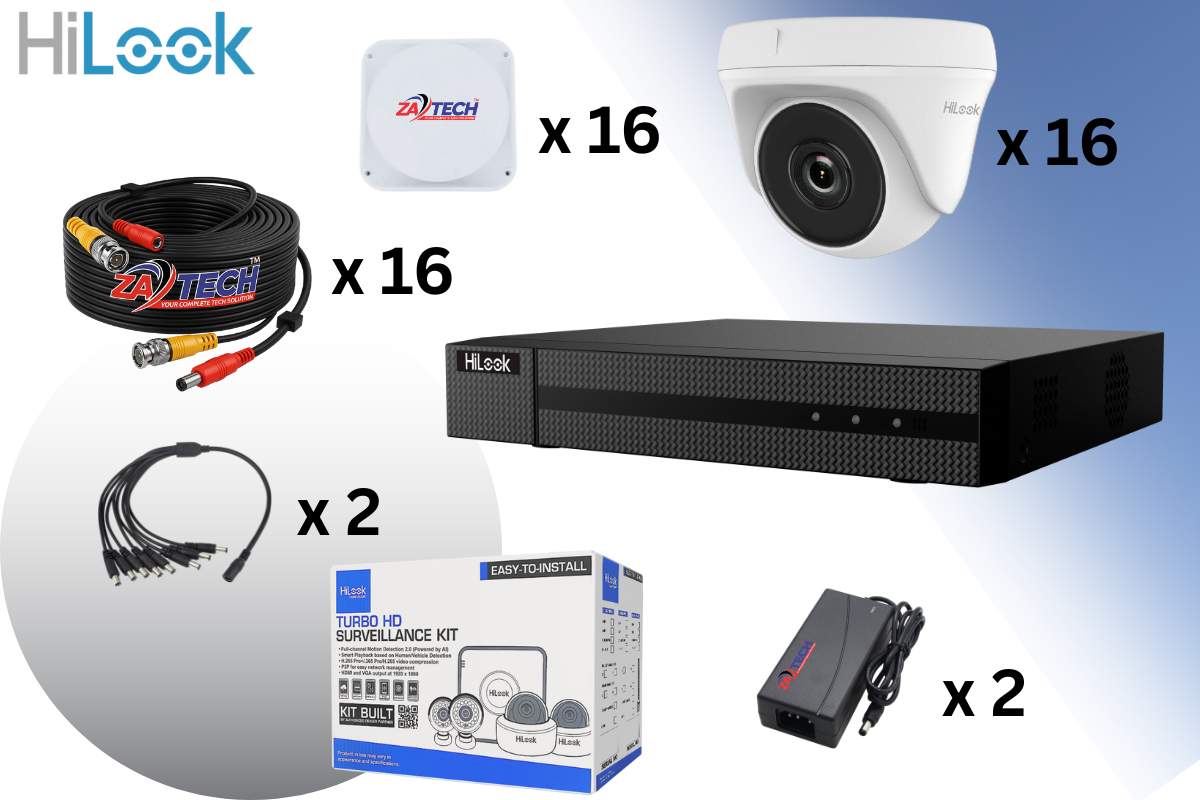

What's in the box

• 16 x 2 MP Indoor Fixed Turret Camera
• 1 x 16-ch 1080p Lite 1U H.265 DVR
• 16 x Zatech 20m ready-made cable
• 16 x Zatech Junction Boxes
• 2 x Power supply
• 2 x DCW8p
