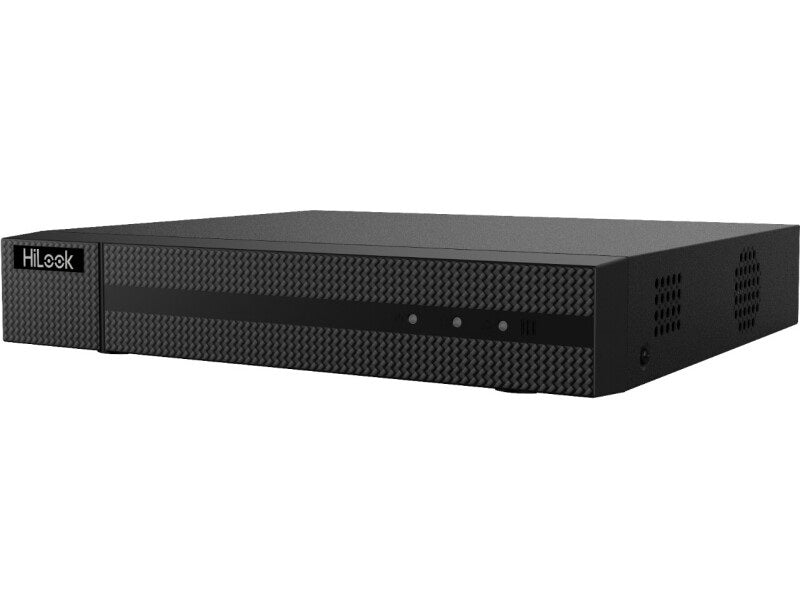

Hilook 4Ch 1080P Lite 1U Dvr 204Q

Deep learning based human and vehicle targets classification of Motion Detection 2.0. Up to 6-ch IP camera inputs (up to 6 MP).

Key features

• Human/Vehicle Analysis -
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
• Quick search by object or event type is supported;
• IP Video Input -
• 2-ch (up to 6-ch), each up to 4 Mbps
• Analog Video Input -
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• HDTVI Input - 3K(2960 x 1665)@20 fps, 5 MP(2560 `d7 1944)@20 fps, 4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input - 5 MP(2592 `d7 1944)@20 fps,4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input - 5 MP(2592 `d7 1944)@20 fps,4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS Input - Support
• HDMI Output - 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
• VGA Output - 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
• Video Output Mode - HDMI/VGA simultaneous output
• Audio Output - 1-ch, RCA (Linear, 1 K'd9)
• Two-Way Audio - 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
• Recording;
• Encoding Resolution -
• 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame Rate -
• For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• Video Bitrate - 32 Kbps to 6 Mbps
• Dual-Stream - Support
• Stream Type - Video, Video & Audio
• Network;
• Network Protocol - TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Wi-Fi - Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
• Auxiliary Interface;
• Capacity - Up to 10 TB capacity for each disk
• Alarm In/OutN/A

Specifications

• Dvr-204q-m1
• 4-ch 1080p 1U H.265 DVR - DVR-204Q-M1
• H.265 Pro+/H.265 Pro/H.265 video compression
• Up to 1080p@15 fps encoding capability
• Motion Detection 2.0;
• 1-ch (up to 5-ch)
• Up to 6 MP resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras
• 4-ch
• 1-ch, RCA (2.0 Vp-p, 1 K'd9)
• 4-ch via coaxial cable
• Synchronous Playback - 4-ch
• Video Compression - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
• For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Audio Compression - G.711u
• Audio Bitrate - 64 Kbps
• Total Bandwidth - 72 Mbps
• Remote Connection - 32

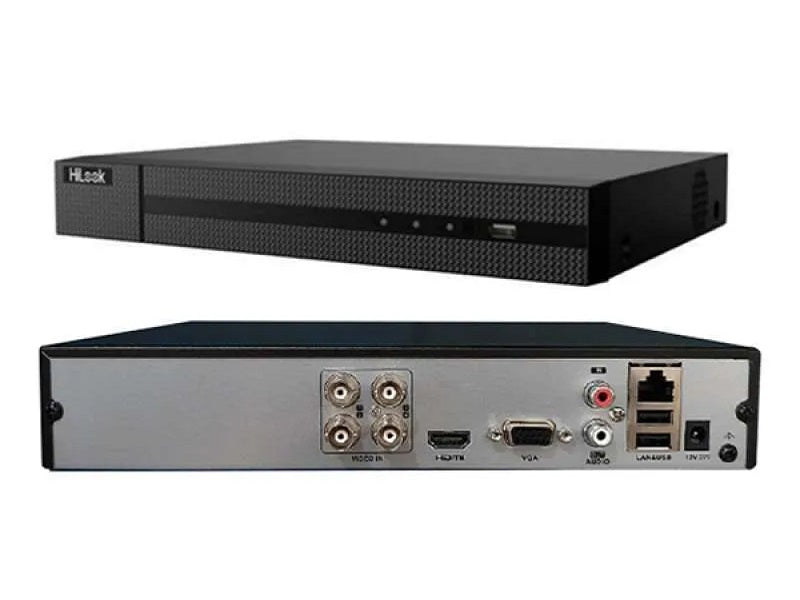

• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
• SATA - 1 SATA interface
• USB Interface - Real panel: 2 `d7 USB 2.0
• 1 x DVR
• 1 x power Supply
• 1 x mouse
• 1 x manual
• 1 x screws
• 1 x sata Cable
• 1 x sata Data Cable
