Hilook 8Ch 1080P

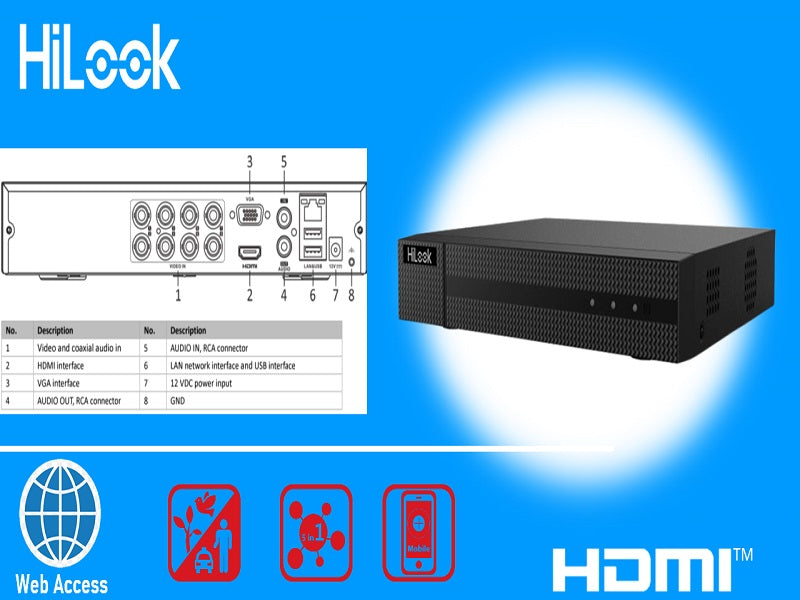

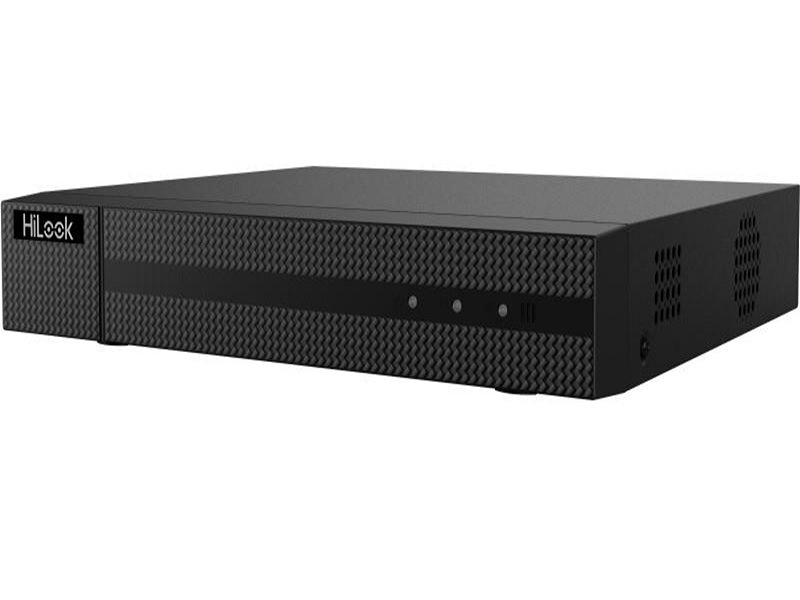

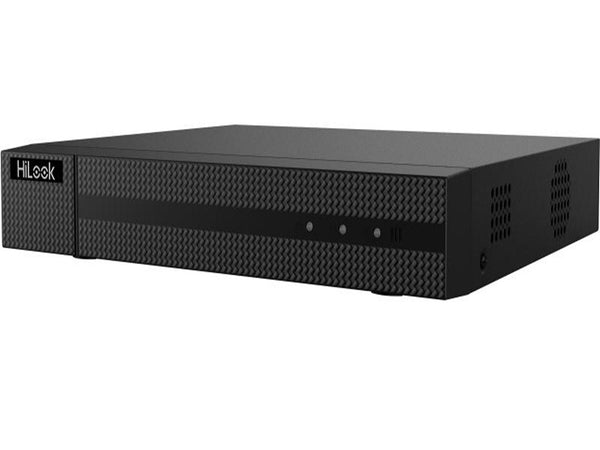

Hilook 8Ch 1080P Lite 1U Dvr 208Q
Hilook 8Ch 1080P Lite 1U Dvr 208Q
Hilook 8Ch 1080P Lite 1U Dvr 208Q
Hilook 8Ch 1080P Lite 1U Dvr 208Q

Hilook 8Ch 1080P Lite 1U Dvr 208Q

HILOOK
R 1,429
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 1,429

Description

Deep learning based human and vehicle targets classification of Motion Detection 2.0. Up to 12-ch IP camera inputs (up to 6 MP).

Key features

  • Human/Vehicle Analysis
  • Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
  • Quick search by object or event type is supported;
  • Recording
  • Encoding Resolution
  • 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Frame Rate
  • For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
  • For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  • 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
  • Dual-Stream
  • Support
  • Stream Type
  • 4-ch (up to 12-ch), each up to 4 Mbps
  • BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
  • 3K(2960 x 1665)@20 fps, 5 MP(2560 `d7 1944)@20 fps, 4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • 5 MP(2560 `d7 1944)@20 fps,4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
  • 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
  • Synchronous Playback
  • Total Bandwidth
  • Remote Connection
  • TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
  • Sata
  • Up to 10 TB capacity for each disk
  • Alarm In/Out
  • N/A
  • Consumption
  • Working Temperature
  • 10 `b0C to +55 `b0C (+14 `b0F to +131 `b0F)
  • Working Humidity
  • 265 `d7 225 `d7 48 mm (10.4 `d7 8.9 `d7 1.9 inch)

Specifications

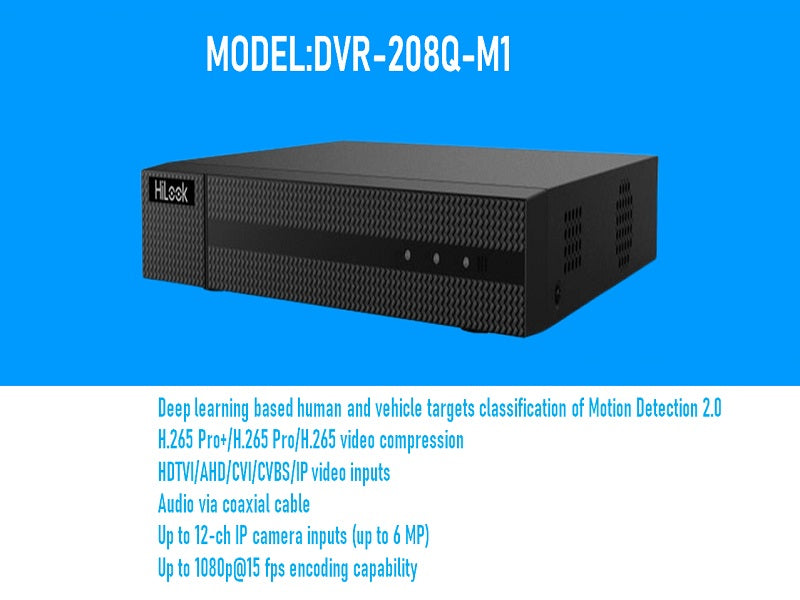

  • Dvr-208q-m1
  • 8-ch 1080p 1U H.265 DVR
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • Up to 1080p@15 fps encoding capability
  • Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
  • For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
  • For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
  • For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
  • WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • 32 Kbps to 6 Mbps
  • G.711u
  • 64 Kbps
  • 2-ch (up to 10-ch)
  • Up to 6 MP resolution
  • Support H.265+/H.265/H.264+/H.264 IP cameras
  • 8-ch
  • 1-ch, RCA (2.0 Vp-p, 1 K'd9)
  • 8-ch via coaxial cable
  • 1-ch, RCA (Linear, 1 K'd9)
  • 96 Mbps
  • 64
  • 1, RJ45 10M/100M self-adaptive Ethernet interface
  • 1 SATA interface
  • Capacity
  • Real panel: 2 `d7 USB 2.0
  • 12 VDC, 1.33 A
  • ≤ 12 W (without HDD)
  • 10% to 90%
  • Dimension (W `d7 D `d7 H)
  • ≤ 1 kg (without HDD, 2.2 lb.)

Frequently Bought Together Frequently bought

Product Information

Categories HiLook / Security & Surveillance
Brand Hilook
Model DVR-208Q-M1
Channels 8-ch analog + up to 12-ch IP
IP Camera Support Up to 6 MP
Video Compression H.265 Pro+/H.265 Pro/H.265
Encoding Up to 1080p @ 15 fps
HDTVI Input Up to 3K (2960x1665) @ 20 fps
HDMI Output 1-ch, up to 1920x1080/60Hz
Total Bandwidth 96 Mbps
Storage 1 SATA, up to 10 TB
USB 2 x USB 2.0
Power Supply 12 VDC, 1.33 A
Consumption <= 12 W (without HDD)
Dimensions 265 x 225 x 48 mm
Weight <= 1 kg
Barcode 6931847171476
