HiLook 8CH 2MP ColorVu eDVR CCTV Kit Built-in 512GB eSSD +Zatech Cable Roll

HiLook 2MP 8-Channel ColorVu eDVR CCTV Kit delivers a reliable and efficient security solution for homes, shops, and small businesses. This system includes 8 x 2MP ColorVu mini bullet cameras providing sharp 1920 × 1080 full-color video 24/7 with an F1.0 aperture and white-light night imaging up to 20 meters, ensuring clear visibility even in low-light environments. Each camera features 3D DNR for clean, sharp images, 2.8mm or 3.6mm fixed lenses, four-in-one signal support (TVI/AHD/CVI/CVBS), and a durable IP66 weather-resistant housing for indoor and outdoor use.

The included 8-channel 1080p Lite H.265 eSSD DVR comes with a built-in 512GB eSSD, offering faster, more durable, and energy-efficient storage with scene-adaptive bitrate control, low power consumption, and audio over coaxial cable. For smooth and flexible installation, the kit also includes a ZATECH 100m cable roll along with the required BNC and DC connectors, making this an ideal all-in-one package for dependable 24/7 full-color surveillance.

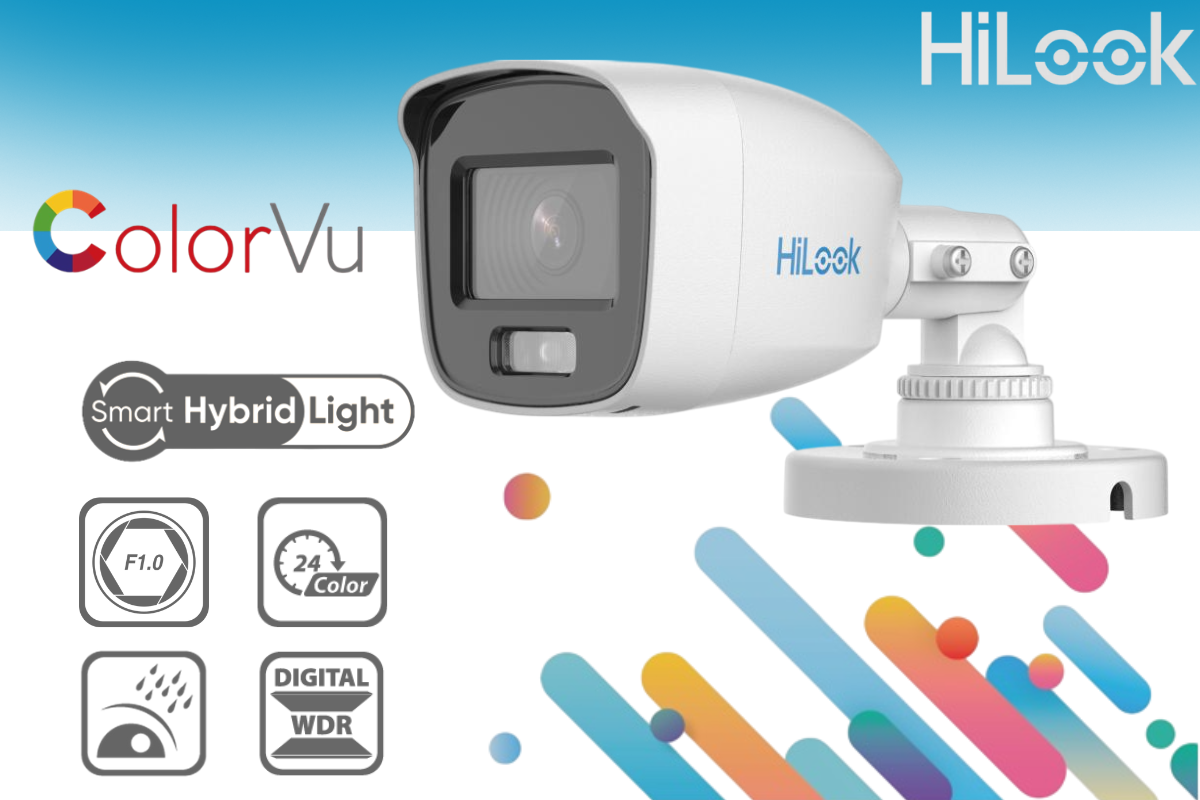

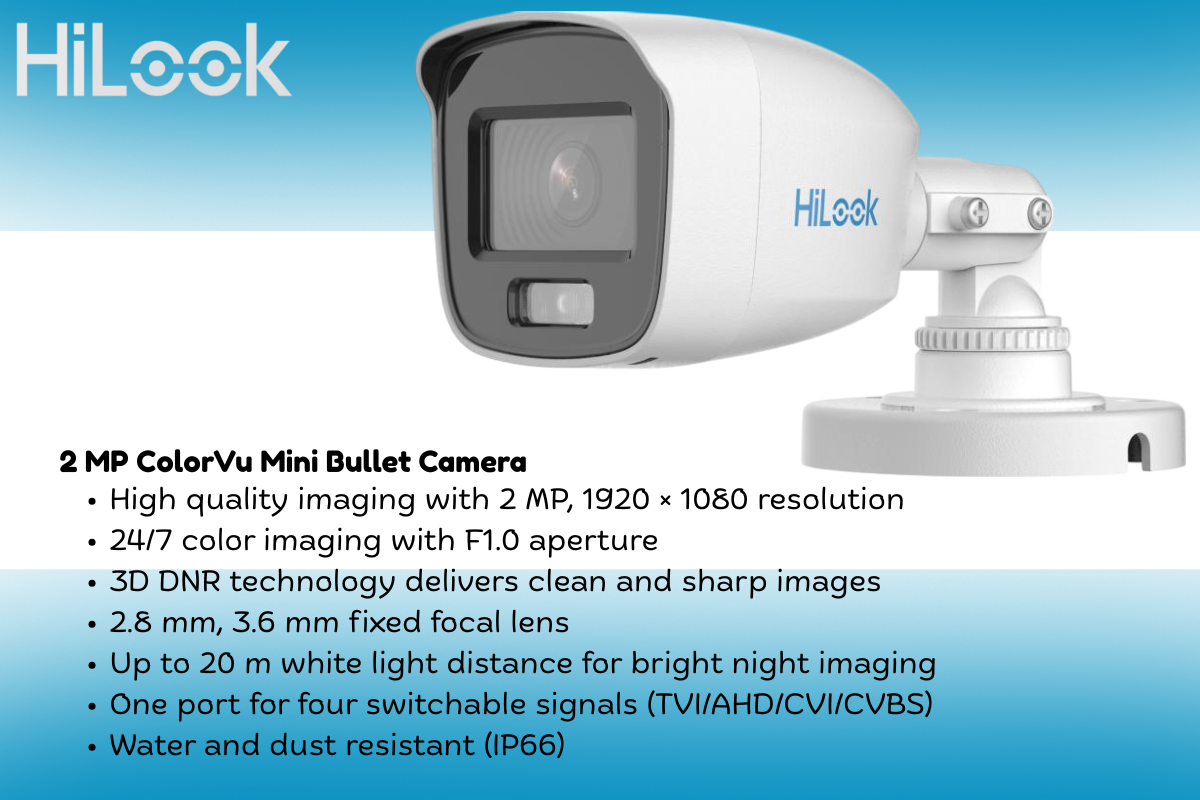

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Signal SystemPAL/NTSC
• Frame RateTVI: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsAHD:1080p@25fps/30fpsCVBS: PAL/NTSC
• Min. Illumination0.001 Lux @ (F1.0, AGC ON) 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens MountM12
• Light AlarmSolid Light Alarm (White Light)
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 180 , Rotation: 0 to 360
• Lens
• Lens Type2.8 mm/3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 102 , vertical FOV: 54 , diagonal FOV: 121 3.6 mm, horizontal FOV: 80 , vertical FOV: 43 , diagonal FOV: 95
• Illuminator
• Supplement Light TypeWhite Light
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR;BLC;HLC;Global
• White LightAuto/Off
• AGCYes
• Day/Night ModeColor
• White BalanceAuto/Manual
• Noise Reduction3D DNR/2D DNR
• LanguageEnglish
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

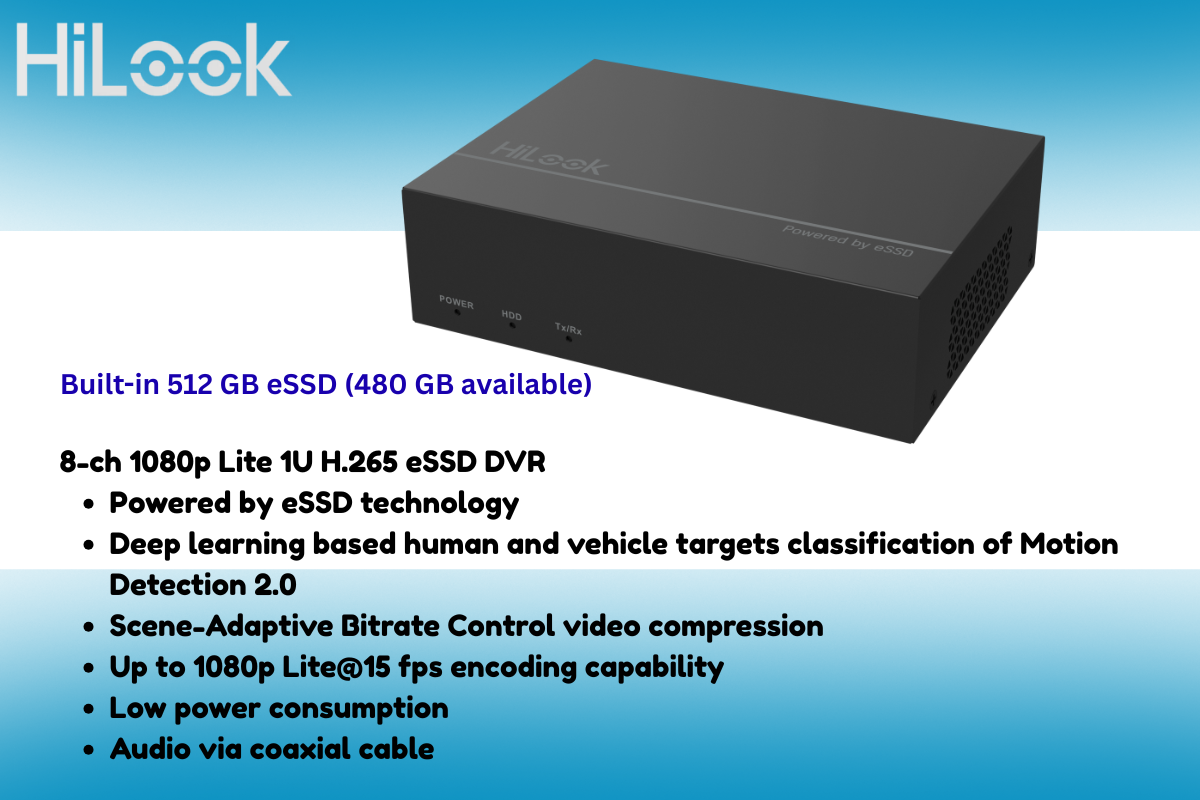

eDVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported
• Video and Audio
• IP Video Input2-chUp to 5 MP resolutionSupport H.265+/H.265 IP cameras
• Analog Video Input8-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input8-ch via coaxial cable
• Audio Output1-ch via HDMI
• Synchronous playback8-ch
• Recording
• Video CompressionH.265 Pro/H.265
• Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame RateMain stream:1080p Lite/720p/720p Lite/WD1/4CIF@15 fpsNote:1080p Lite/720p is 15 fps by defaultSub-stream:CIF/QVGA@15 fps
• Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream TypeVideo, Video & AudioNote: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth72 MbpsIncoming bandwidth: 8 Mbps
• Network ProtocolTCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP , HTTPS
• Remote Connection32
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• CapacityBuilt-in 512 GB eSSD (480 GB available)Note:The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

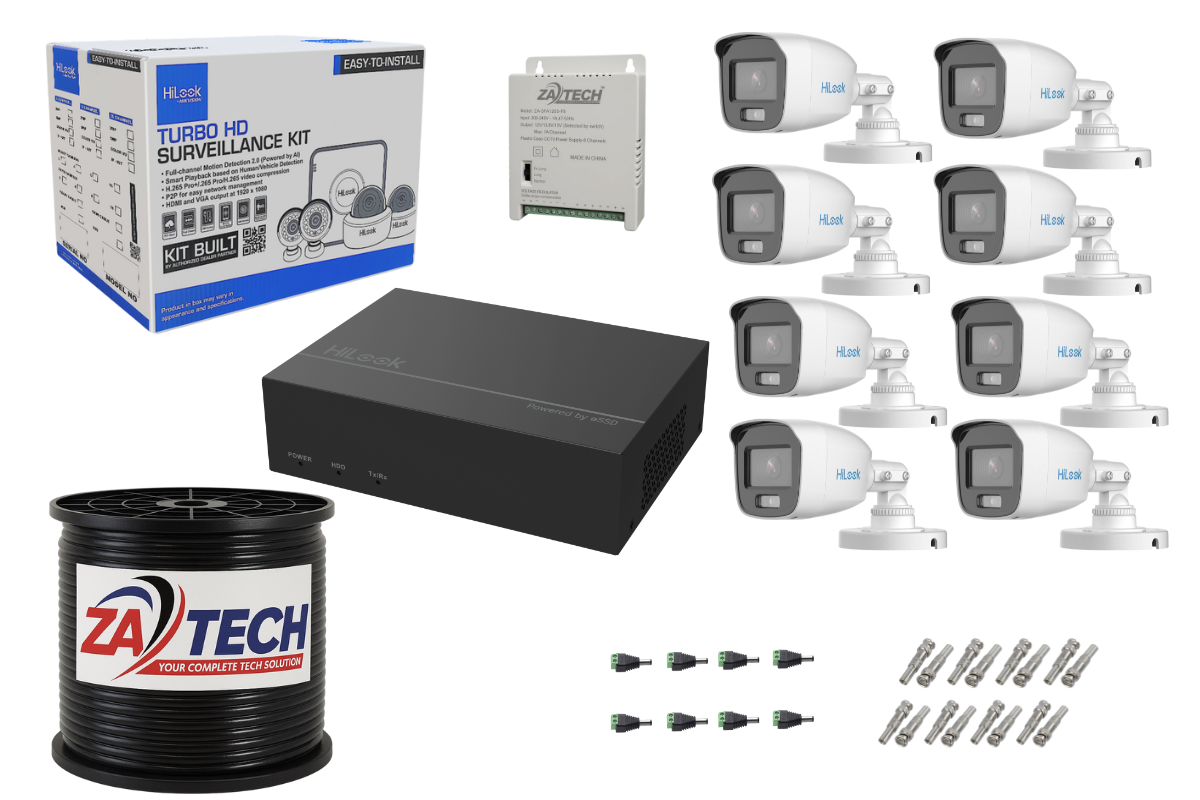

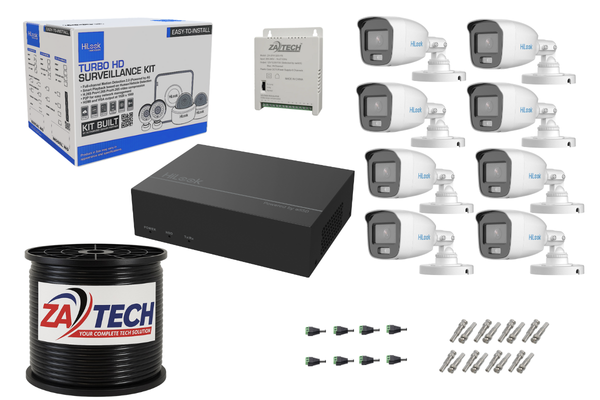

What's in the box

• 8 x Hilook Colorvu Camera
• 1 x 8Ch eDVR With Built-In 512GB SSD
• 1 x Zatech 100m RG59 cable roll

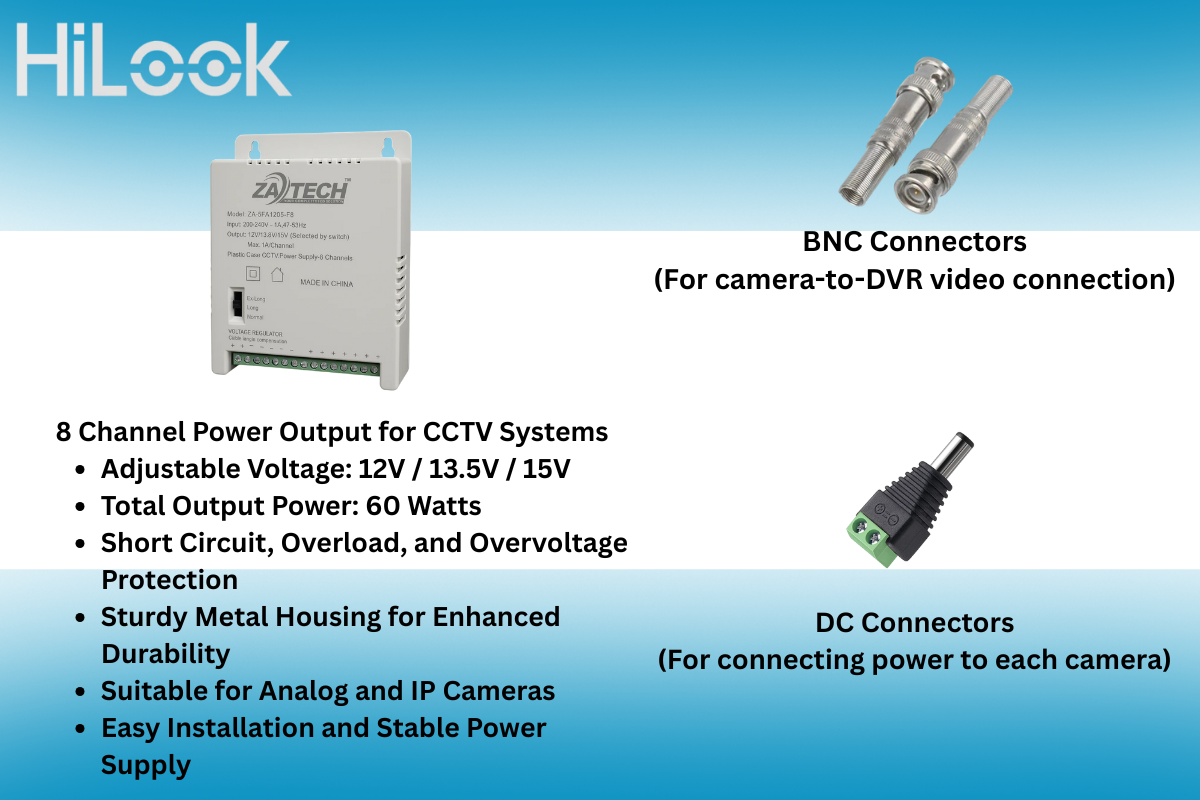

• 1 x Zatech 8ch Power Supply
• 8 x DC connector
• 16 x BNC connector
