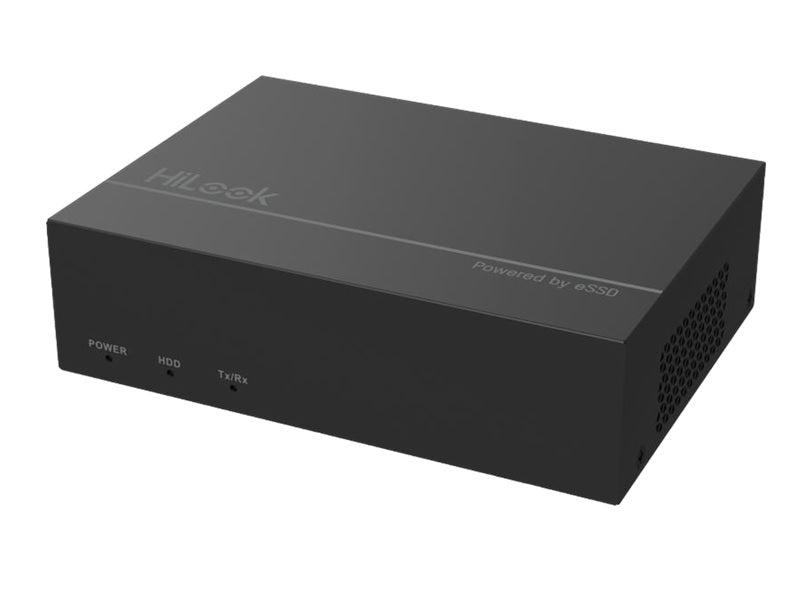

Hilook 8Ch E-Dvr Built In 1024Gb Ssd

HILOOK 8-ch 1080p Mini 1U H.265 AcuSense DVR - DVR-E08Q-B. Scene-adaptive bitrate control technology would precisely allocate videos in eSSD according to the.

Key features

• Minimalist eSSD design brings low power consumption
• Integrated storage design provides the plug-and-play device use
• Actual scene
• Full channel recording at up to 3K/5 MP Lite resolution
• Smart Function;
• Smart search for efficient playback
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
• Quick search by object or event type is supported;
• Perimeter Protection;
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• HDTVI Input - 5 MP@25 fps, 3K@25 fps, 4 MP@25 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps, 720p@50 fps, 720p@60 fps
• AHD Input - 5 MP@25 fps, 3K@25 fps, 4 MP@25 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps, 720p@50 fps, 720p@60 fps
• HDCVI Input - 5MP25, 4MP25, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
• CVBS Input - Support
• HDMI Output - 1-ch, 1920 `d7 1080/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz
• VGA Output - 1-ch, 1920 `d7 1080/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz
• Video Output Mode - HDMI/VGA simultaneous output
• Recording;
• 3K/5MPLITE @12FPS'a3`bb4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF@25 fps (P)/30 fps (N)
• 5MP/3K lite@12fps; 4 MP lite/@15 fps; 1080p lite/720p/WD1/4CIF@25 fps (P)/30
• fps (N)
• Video Bitrate - According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• Network;
• Network Protocol - TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Network Interface - 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface;
• The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.
• Alarm In/OutN/A

Specifications

• Dvr-e08q-b
• Built In 1024Gb SSD
• Deep learning-based motion detection 2.0
• Motion Detection 2.0;
• Human/Vehicle Analysis - Up to 8-ch
• 2-ch
• Up to 6 MP resolution
• Support H.265+/H.265 IP cameras
• 8-ch
• Audio Input - 8-ch via coaxial cable
• Audio Output - 1-ch via HDMI
• Synchronous Playback - 4-ch
• Video Compression - H.265 Pro/H.265
• 5MPLite/3K/4MPLite/1080p/1080pLite/720p/WD1/4CIF;
• 5MP/3KLite/4MPLite/1080p Lite/720p/WD1/4CIF;
• 1080p/720p@15 fps; WD1/4CIF@25 fps (P)/30 fps (N)
• For 720p stream access: 720p/WD1/4CIF@25 fps (P)/30 fps (N)
• Audio Compression - G.711u
• 96 Mbps
• Incoming bandwidth: 8 Mbps
• Remote Connection - 64
• Built-in 1024 GB eSSD (960 GB available)
• USB Inter - faceRear panel: 2 `d7 USB 2.0
