Description

Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance. Passive PoE Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins ).

Key features

  • AP,Station,WISP operating mode supported
  • Product Information

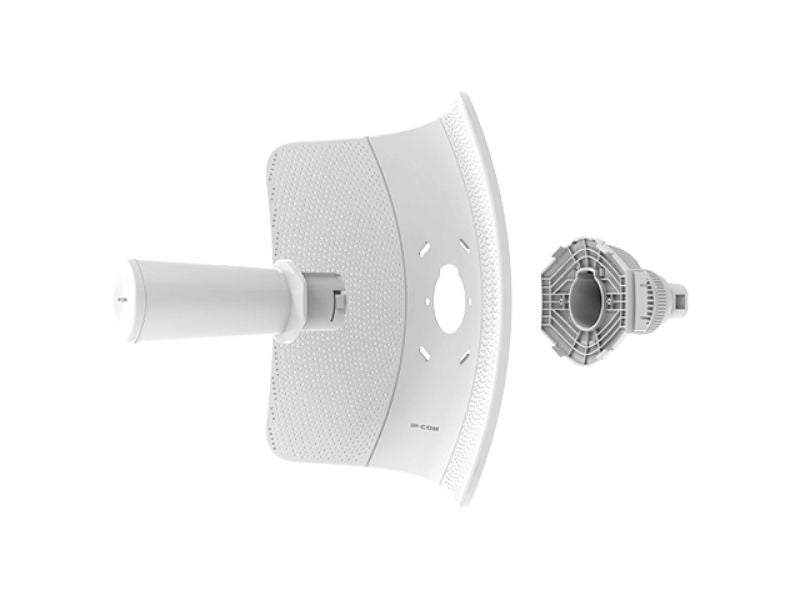

  • Deployment Pole Mount
  • Private TDMA Protocol ipMAX
  • Enable/Disable Wireless Radio Support
  • SSID Hidden Support
  • Wireless Client isolation Support
  • SSID Isolation Support
  • Client Limitation For SSID Support
  • Wireless Access Control Support
  • Weak Signal Client Limitation Support
  • WMM Capable Support
  • APSD Capable Support
  • Transparent Bridge Support
  • VLAN Tagging for SSID Support
  • DHCP Server Support
  • Remote Web access Support
  • Schedule Reboot Support
  • Page Timeout Support
  • Ping Watchdog Support
  • Dyndns noip, dyndns.org
  • Network Diagnoses Ping, Traceroute, Signal Scan
  • Time&Date Setting Support
  • Firmware upgrade Support
  • Backup/Restore Configuration Support
  • Username Managerment Support
  • Managed By Controller PC Software -- CPE Controller
  • Others
  • Package Contents 1*5GHz 23dBi ipMax AC Gigabit Outdoor CPE iLBE-5ACV1.0
  • Default Login Username admin
  • Default Login Password admin

Specifications

  • Gigabit Outdoor CPE-25+KM

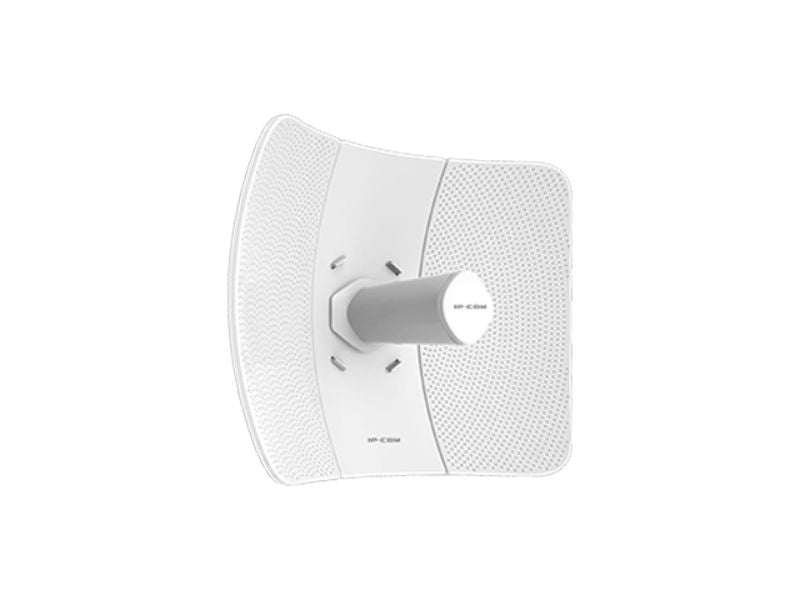

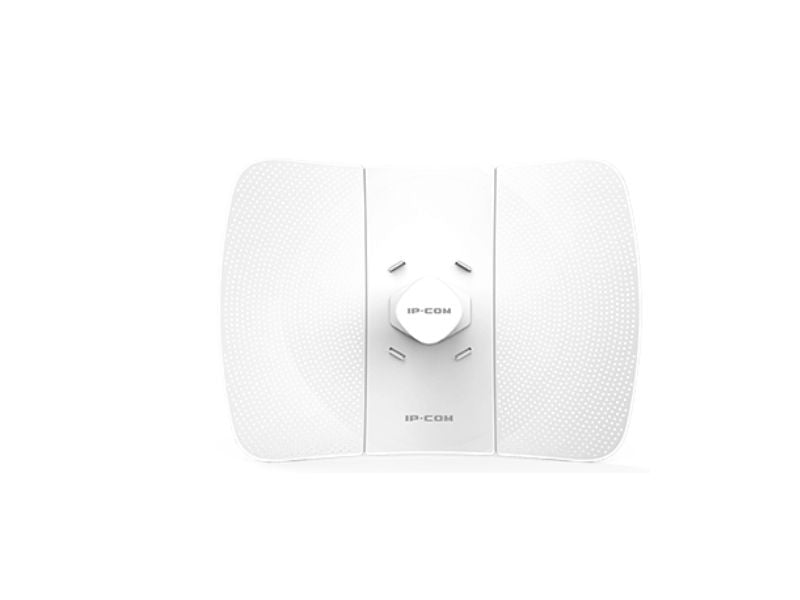

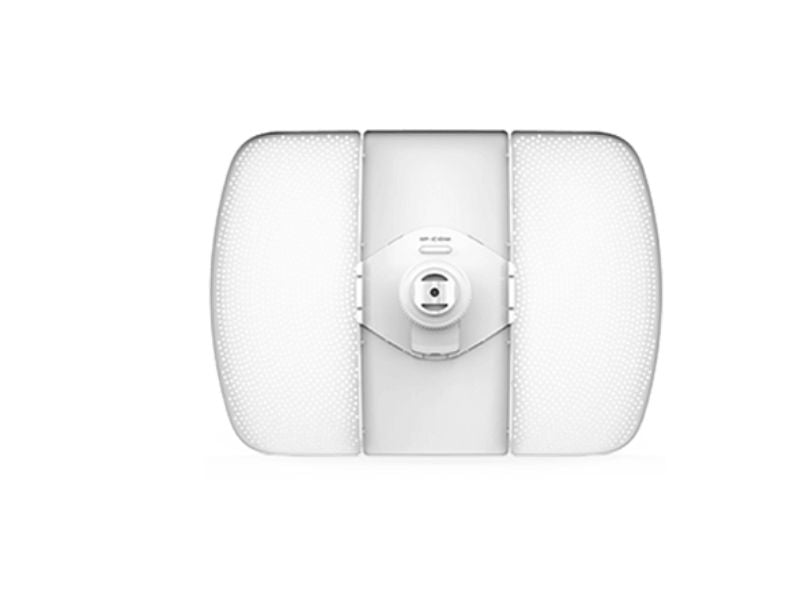

  • 5GHz 23dBi ipMax AC Gigabit Outdoor CPE
  • 5GHz 11AC 867Mbps
  • 23dbi directional antenna
  • IP65 waterproof enclosure
  • 6000V Lightning Protection
  • Model iLBE-5AC
  • Dimensions 391.5*280*223mm
  • Frequency Range 5GHz
  • Compliant Standards IEEE 802.11a/n/ac
  • Maximum Wireless Rate 867Mbps
  • Interfaces 1*10/100/1000Mbps Ethernet Port
  • Antennas Gain 23dBi
  • Antenna Beamwidth Horizontal: 10`b0 Vertical: 10`b0
  • Reset Button 1
  • Power Consumption 7.5W
  • Waterproof Level IP65
  • LED indicator PoE/LAN,LED1,LED2,LED3
  • Power Method 24V0.5A Passive PoE
  • Lightning Protection 6000V
  • Voltage range: 21-25V DC
  • Receiver sensitivity 11a 6Mbps -96dBm'b11.5dBm
  • 11n MCS7 HT20 -72dBm'b11.5dBm
  • 11ac MCS9 HT80 -65dBm'b11.5dBm
  • Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router
  • Channel Bandwidth 20/40/80MHz
  • Transmission Power Adjustable power by 1dBm
  • Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
  • VPN Pass-Through PPTP,L2TP
  • 1*PoE Power Adapter
  • 1*Quick Installation Guide
  • Operating Temperature -30℃ ~ 60℃
  • Storage Temperature -40℃ ~ 70℃
  • Operating Humidity 10%~90% non-condensing
  • Storage Humidity 10%~90% non-condensing
  • Default login IP 192.168.2.1

Frequently Bought Together Frequently bought

Product Information

Categories IP-COM / Networking
Brand IP-COM
Model iLBE-5AC
Frequency 5 GHz
Standards IEEE 802.11a/n/ac
Max Wireless Rate 867 Mbps
Antenna Gain 23 dBi directional
Antenna Beamwidth Horizontal 10, Vertical 10
Ports 1 x 10/100/1000 Mbps Ethernet
Power Method 24V 0.5A Passive PoE
Power Consumption 7.5 W
Lightning Protection 6000V
Weather Rating IP65
Dimensions 391.5 x 280 x 223 mm
Operating Temperature -30C to 60C
Operating Modes AP/Station/WISP/P2MP/WDS Repeater/Router
Certifications FCC/CE/RoHS
Barcode 6932392828259
