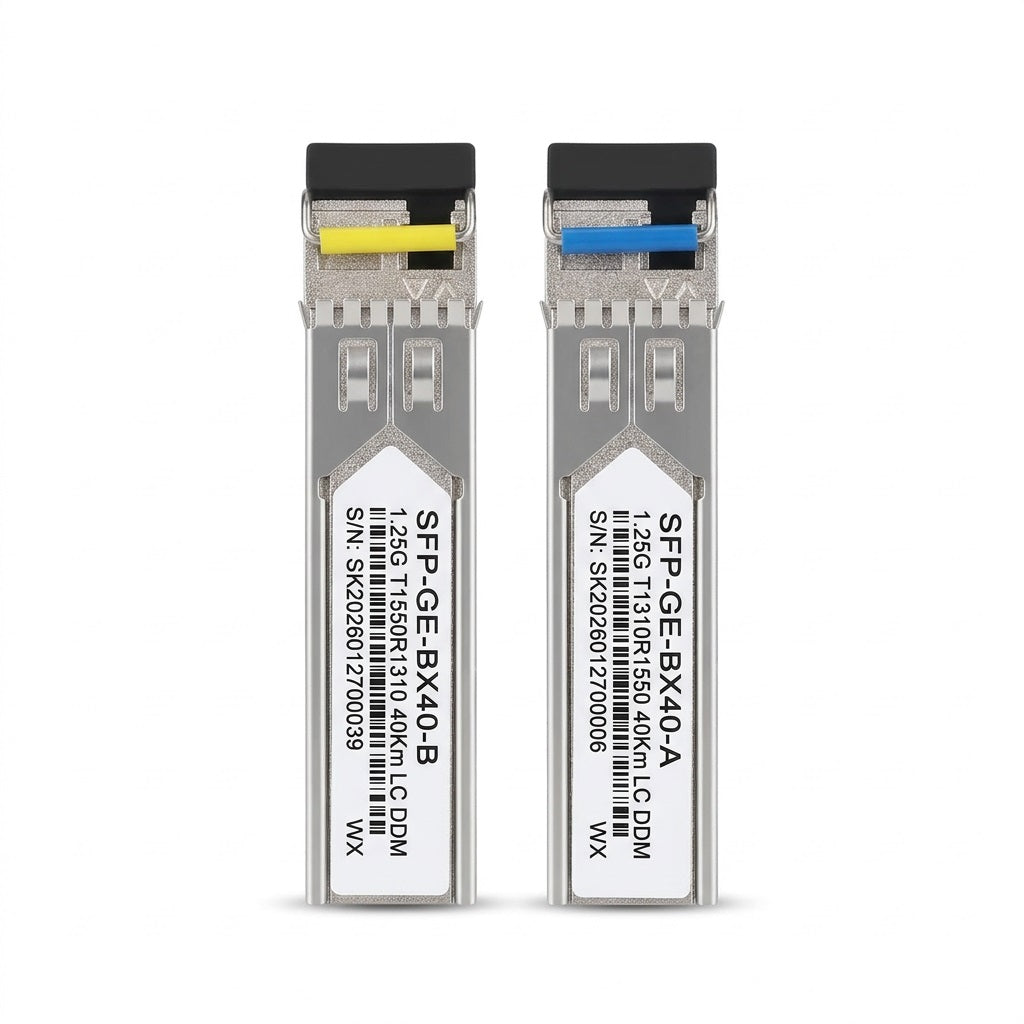

SFP 1.25G 40KM Pair T1310/R1550 LC DDM

The SFP-GE-BX40-A/B 1.25G 40KM BiDi SFP Transceiver Pair is designed for Gigabit Ethernet fibre-optic networking applications that require long-distance data transmission over a single optical fibre.

This matched pair includes two complementary optical transceivers: the A unit, which transmits at 1310nm and receives at 1550nm, and the B unit, which transmits at 1550nm and receives at 1310nm. These complementary wavelengths allow the two units to communicate over one fibre strand when installed at opposite ends of a compatible link.

With a specified transmission distance of up to 40km, these modules are suitable for compatible network infrastructure requiring extended fibre connectivity. The LC optical interface supports fibre connection, while Digital Diagnostic Monitoring (DDM) provides supported optical operating information to help administrators monitor link conditions.

The modules are intended for compatible SFP ports in network switches, routers, media converters and other fibre-optic equipment. Actual compatibility depends on the host device, optical specifications and manufacturer requirements.
Gigabit SFP transceiver pair
Model: SFP-GE-BX40-A/B
Specified transmission distance: up to 40km
Complementary 1310nm and 1550nm transmit/receive wavelengths
BiDi technology for single-strand fibre transmission
LC optical connector interface
Digital Diagnostic Monitoring (DDM) support
Designed for compatible Gigabit Ethernet fibre links
Suitable for long-distance network connectivity
Requires the complementary A and B modules at opposite ends of the link
Specification Details
Product Type BiDi SFP Optical Transceiver Pair
Model SFP-GE-BX40-A/B
Data Rate 1.25Gbps
Transmission Distance Up to 40km, as specified
Fibre Type Single-mode fibre
Fibre Configuration Single-strand BiDi
Connector Type LC
A Unit Transmit Wavelength 1310nm
A Unit Receive Wavelength 1550nm
B Unit Transmit Wavelength 1550nm
B Unit Receive Wavelength 1310nm
Monitoring DDM
Host Interface SFP
Ethernet Application Compatible Gigabit Ethernet links
Optical Transmit Power Verify with supplier
Receiver Sensitivity Verify with supplier
Optical Budget Verify with supplier
Operating Temperature Verify with supplier
Power Consumption Verify with supplier
Supported Fibre Standards Verify with supplier
Digital Diagnostic Parameters Verify supported parameters with supplier
