Description
The SFP-10G-BX40-D/U is a matched pair of 10Gbps BiDi SFP+ transceivers that carries 10 Gigabit Ethernet in both directions over a single strand of single-mode fibre, at distances of up to 40km. Ideal for long-distance 10 Gigabit uplinks between sites, campus backbones and service-provider links where only one fibre core is available.
BiDi (WDM) modules transmit and receive on different wavelengths, so one fibre core does the job of two. The D module transmits at 1330nm and receives at 1270nm, while the U module transmits at 1270nm and receives at 1330nm. Install the D module at one end of the link and the U module at the other.

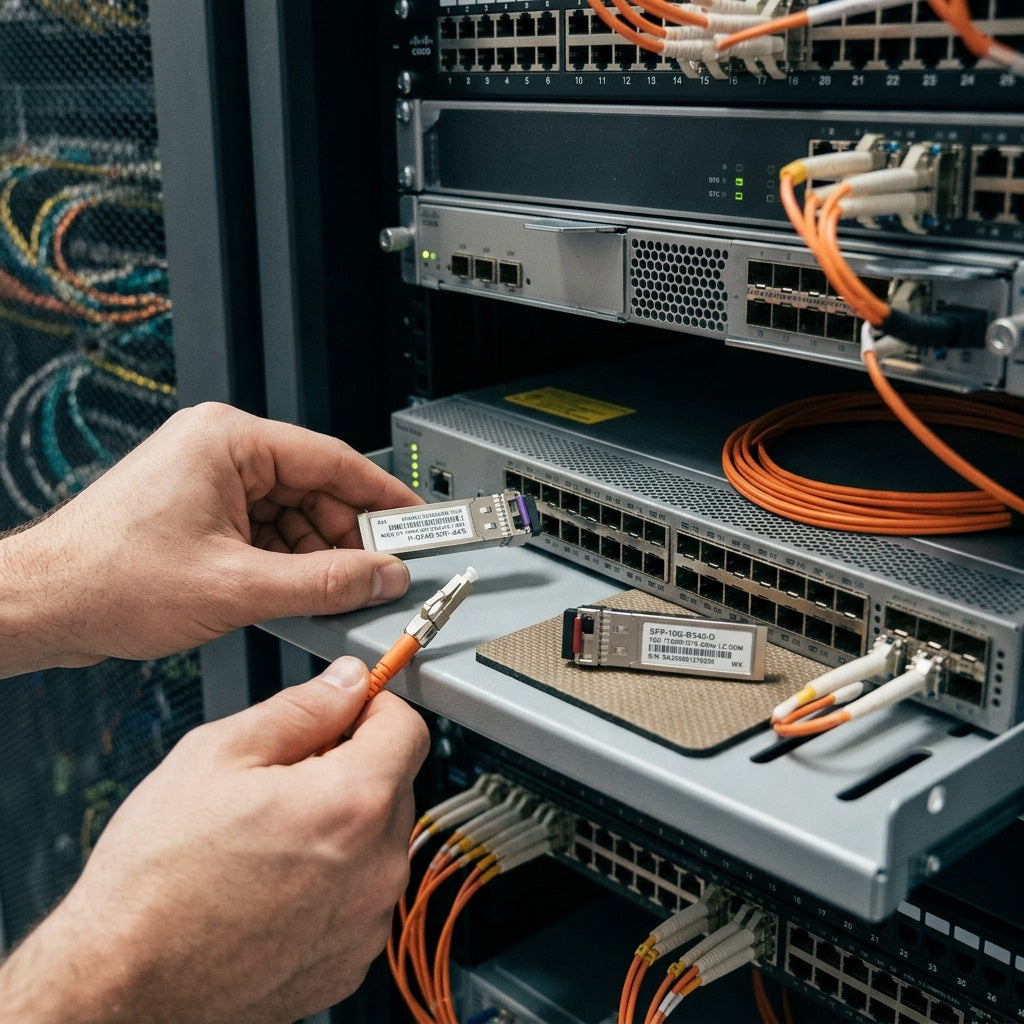

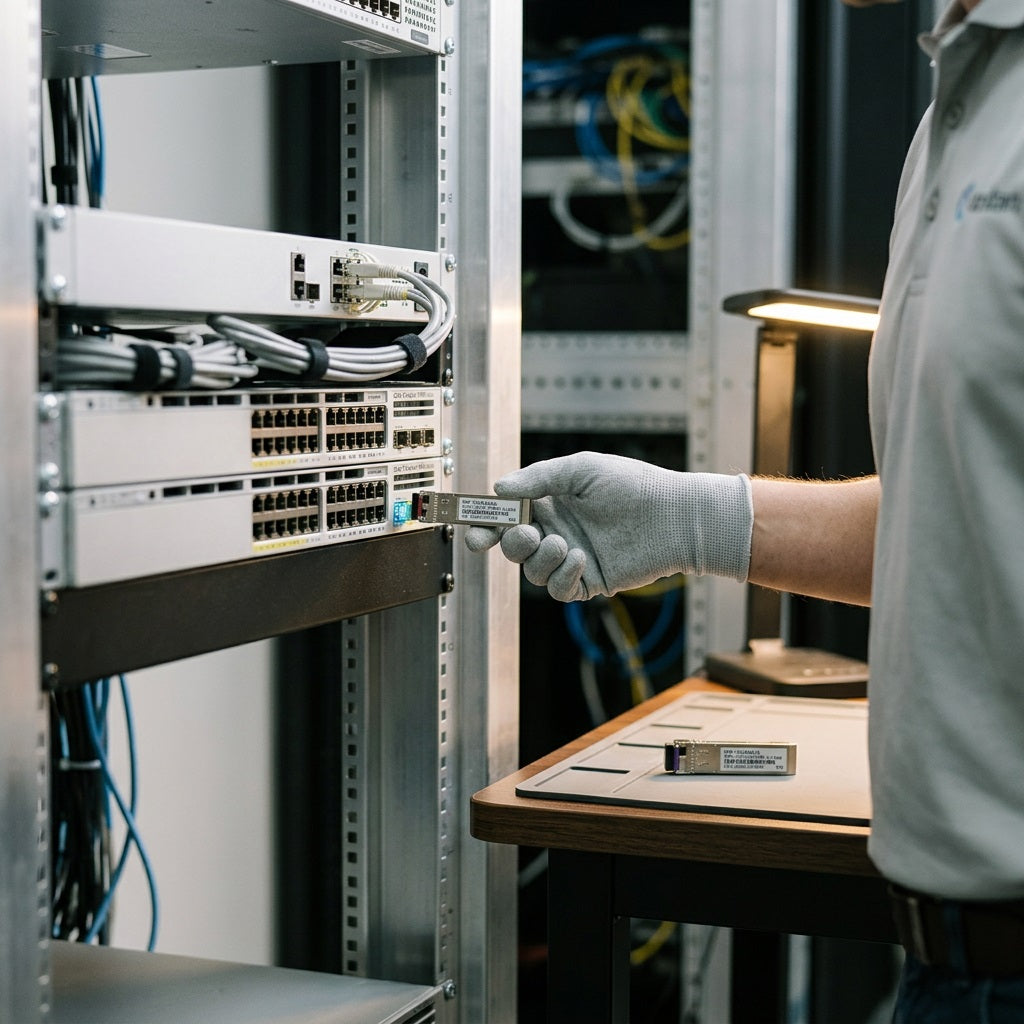

Each module has a simplex LC connector and fits any compatible SFP+ slot on switches, routers and media converters. Digital Diagnostic Monitoring (DDM) lets supported equipment report each module's temperature, voltage and optical power levels. Achievable distance depends on the total loss of the fibre route, including splices and connectors. Check that your equipment accepts generic SFP+ modules before ordering.
Key features

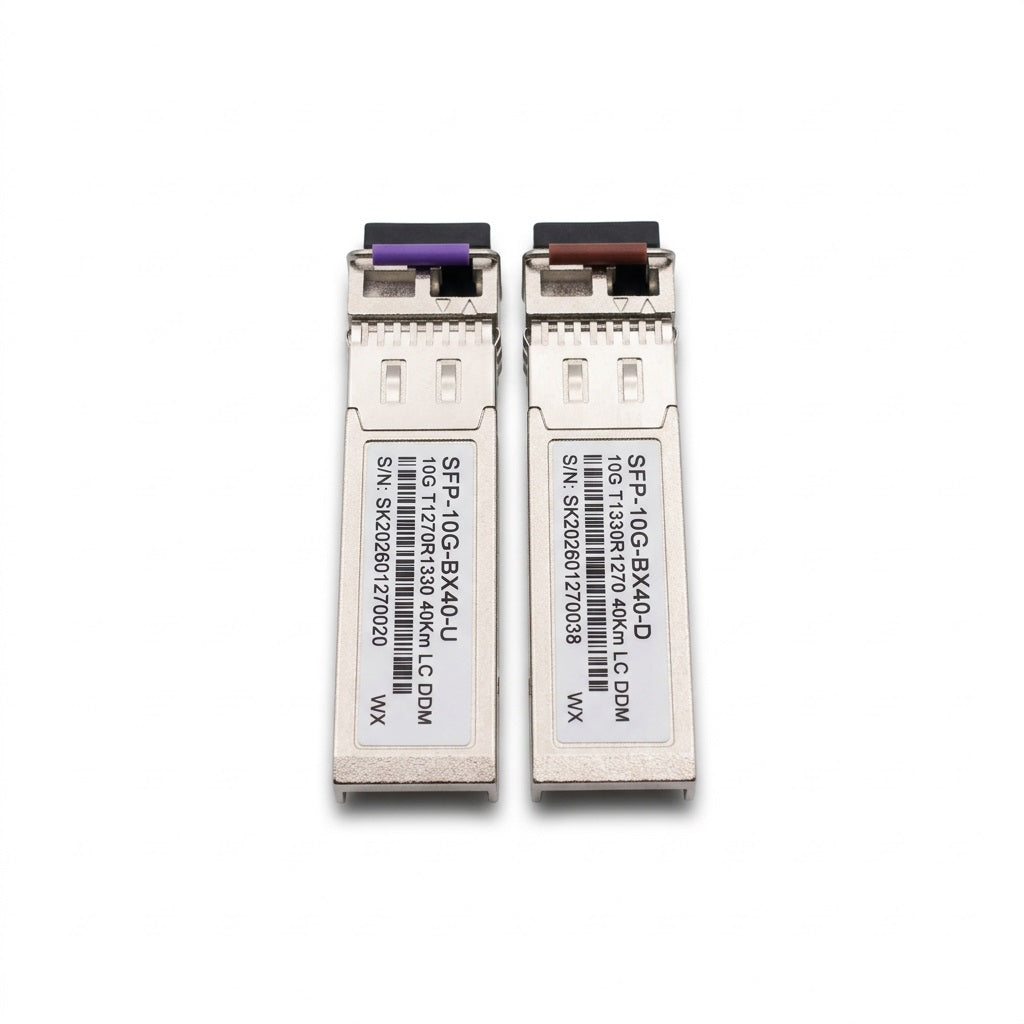

- Matched D/U pair: 2 modules, one for each end of the link
- 10Gbps data rate for 10 Gigabit Ethernet
- Up to 40km over one single-mode fibre strand
- Module D: TX 1330nm / RX 1270nm
- Module U: TX 1270nm / RX 1330nm
- Simplex LC connector
- Digital Diagnostic Monitoring (DDM / DOM)
- Standard hot-pluggable SFP+ form factor
Specifications
- Model: SFP-10G-BX40-D + SFP-10G-BX40-U
- Type: Hot-pluggable BiDi (WDM) SFP+ transceiver pair
- Quantity: 2 modules (1 × D, 1 × U)
- Data Rate: 10Gbps
- Module D Wavelength: TX 1330nm / RX 1270nm
- Module U Wavelength: TX 1270nm / RX 1330nm
- Maximum Distance: Up to 40km
- Fibre Type: Single-mode (SMF), single fibre strand
- Connector: Simplex LC
- Digital Diagnostics: DDM / DOM supported
- Application: 10 Gigabit Ethernet
What's in the box
- 1 × SFP-10G-BX40-D (TX 1330nm / RX 1270nm)
- 1 × SFP-10G-BX40-U (TX 1270nm / RX 1330nm)
Product Information
| Warranty | 12-month limited warranty |
| Categories | Fiber Optic Infrastructure / New Arrivals / Specials |
| Model | SFP-10G-BX40-D + SFP-10G-BX40-U |
| Type | Hot-pluggable BiDi (WDM) SFP+ transceiver pair |
| Quantity | 2 modules (1 × D, 1 × U) |
| Data Rate | 10Gbps |
| Module D Wavelength | TX 1330nm / RX 1270nm |
| Module U Wavelength | TX 1270nm / RX 1330nm |
| Maximum Distance | Up to 40km |
| Fibre Type | Single-mode (SMF), single fibre strand |
| Connector | Simplex LC |
| Digital Diagnostics | DDM / DOM supported |
| Application | 10 Gigabit Ethernet |
| SKU | SFP-10G-BX40-D/U |
