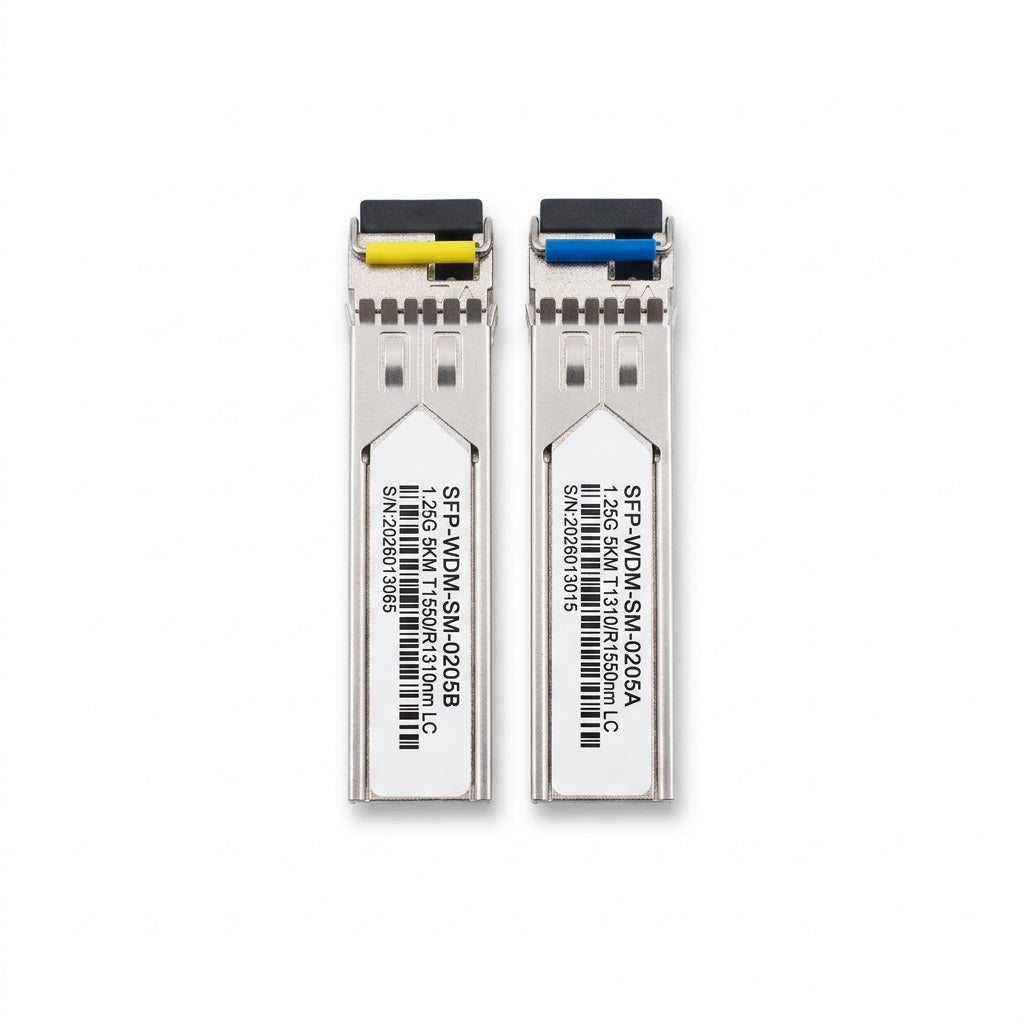

SFP 1.25G 5KM Pair T1310/R1550NM LC

The SFP-WDM-SM-0205A/B is a 1.25Gbps 5KM BiDi WDM Single Fibre SFP Pair designed to provide bidirectional Gigabit Ethernet communication over a single strand of single-mode fibre.

Unlike conventional duplex SFPs that require two fibre cores for transmit and receive, this BiDi/WDM solution uses different optical wavelengths for each direction. The A module transmits at 1310nm and receives at 1550nm, while the B module transmits at 1550nm and receives at 1310nm.

The two modules work together as a matched pair, allowing network data to travel in both directions through the same fibre core.

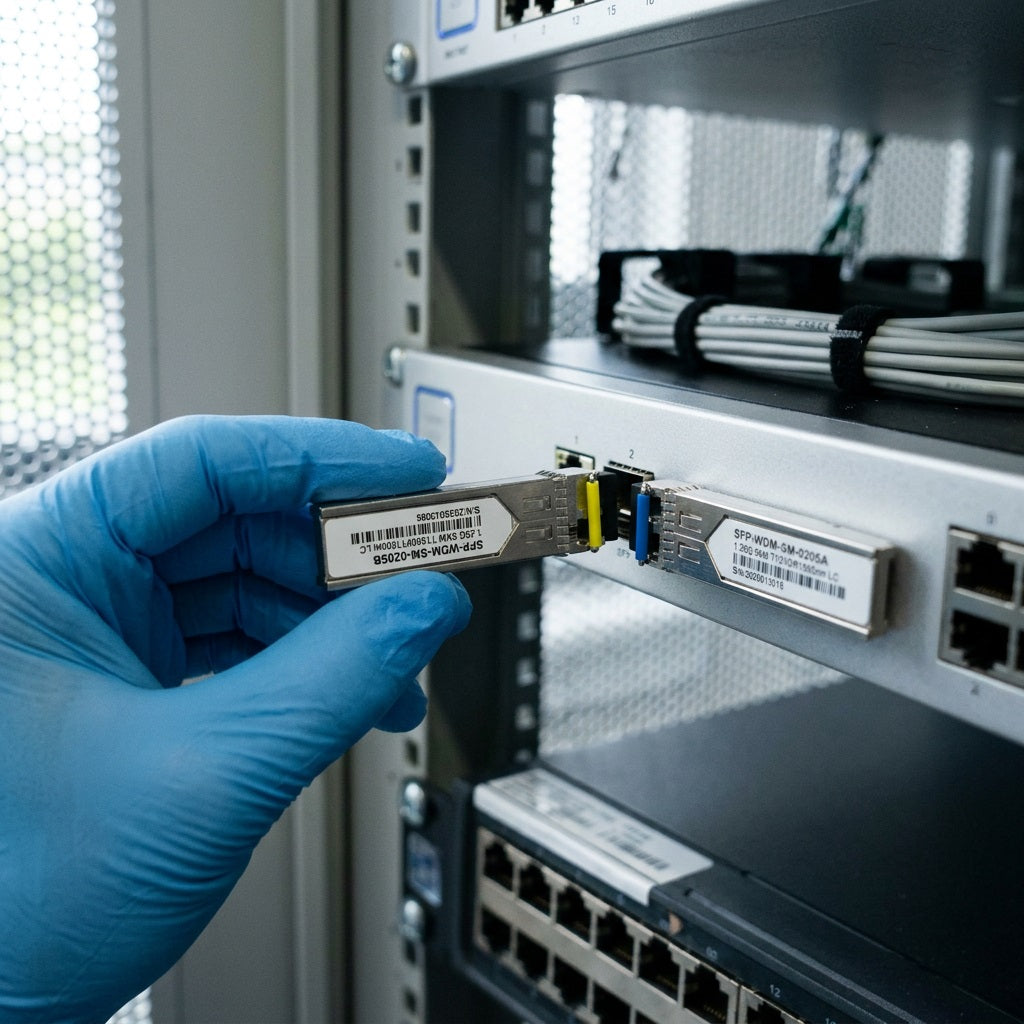

Each module uses an LC optical connector and a standard SFP form factor, making the pair suitable for compatible switches, routers, media converters and other network devices equipped with SFP ports.

With a transmission reach of up to 5KM over suitable single-mode fibre, this SFP pair is useful for connecting network equipment across buildings, campuses, CCTV sites, commercial properties and other locations where only one fibre core is available.
1.25Gbps data transmission
Up to 5KM transmission distance
BiDi / WDM single-fibre technology
Uses only one single-mode fibre core
1310nm TX / 1550nm RX module
1550nm TX / 1310nm RX module
LC optical connector
Standard SFP form factor
Designed for Gigabit Ethernet applications
Suitable for switches, routers and media converters
Ideal where only one fibre core is available
Matched A/B pair for bidirectional communication
Specification Module A Module B
Model SFP-WDM-SM-0205A SFP-WDM-SM-0205B
Data Rate 1.25Gbps 1.25Gbps
Transmission Distance Up to 5KM Up to 5KM
Fibre Type Single Mode Single Mode
Fibre Configuration Single Fibre Single Fibre
Technology BiDi / WDM BiDi / WDM
Transmit Wavelength 1310nm 1550nm
Receive Wavelength 1550nm 1310nm
Optical Connector LC LC
Form Factor SFP SFP
Application Gigabit Ethernet Gigabit Ethernet
Pairing Requires Module B Requires Module A
General Specifications
Specification Details
Product Family SFP-WDM-SM-0205A/B
Data Rate 1.25Gbps
Maximum Reach 5KM
Fibre Mode Single Mode Fibre
Number of Fibre Cores 1
Technology WDM BiDi
Connector LC
Form Factor SFP
Application Gigabit Ethernet
Pair Type A/B Matched Pair
