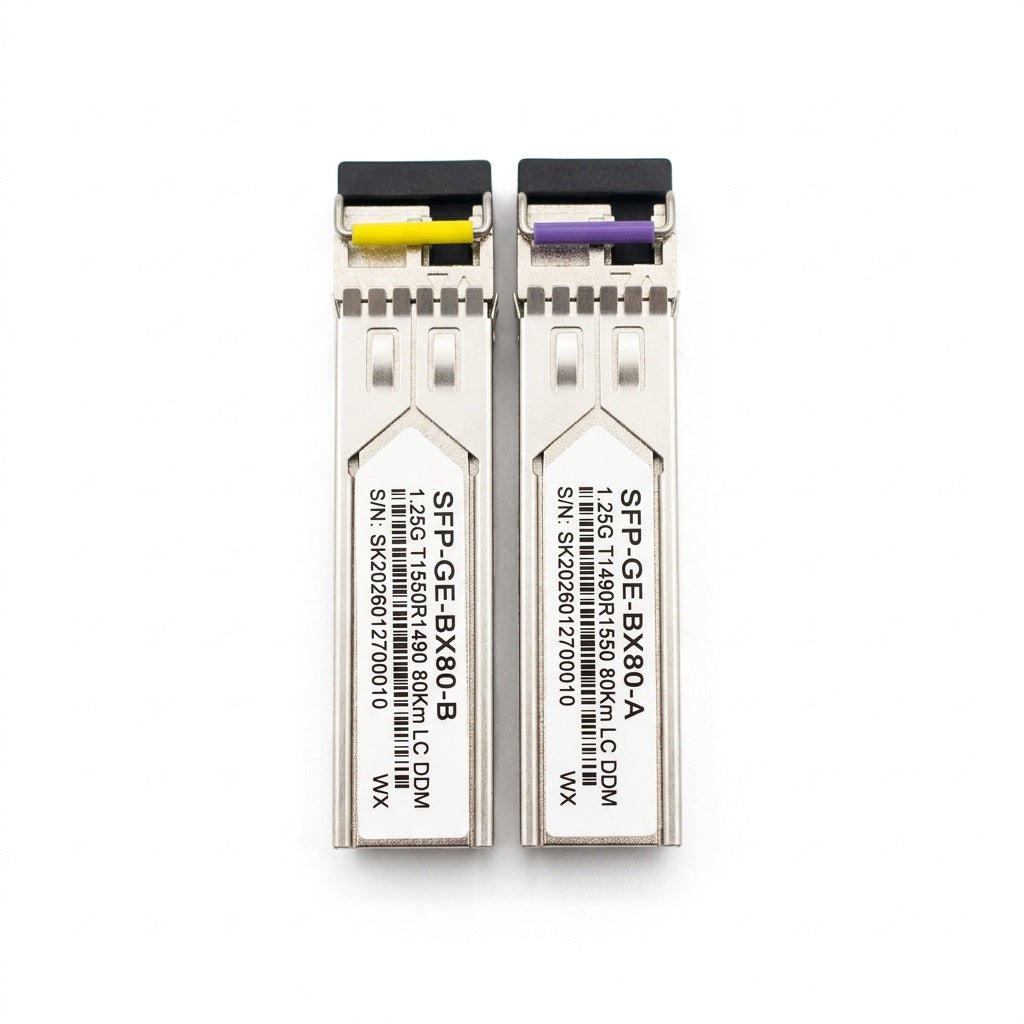

SFP 1.25G 80KM Pair T1490/R1550NM LC DDM

The SFP-GE-BX80-A/B 1.25G 80KM BiDi WDM SFP Pair is designed for long-distance Gigabit Ethernet communication over a single strand of single-mode fibre. Using Bidirectional (BiDi) and Wavelength Division Multiplexing (WDM) technology, the pair transmits and receives data at different optical wavelengths, allowing two-way communication over one fibre core.

The A and B modules use complementary wavelength configurations. Module A transmits at 1490nm and receives at 1550nm, while Module B transmits at 1550nm and receives at 1490nm. This wavelength arrangement enables both modules to communicate through the same fibre.

With a specified data rate of 1.25Gbps and a rated reach of up to 80KM, this SFP pair is designed for compatible Gigabit Ethernet switches, routers, fibre media converters and other network devices with supported SFP ports.

The modules use an LC optical interface and standard SFP form factor. Their DDM (Digital Diagnostic Monitoring) capability can help monitor module operating conditions when supported by the host device.

Actual transmission distance depends on the installed fibre, optical power budget, connector and splice losses, and compatibility between both ends of the link.
1.25Gbps data rate
Up to 80KM rated transmission distance
BiDi/WDM single-fibre technology
Designed for single-mode fibre
Module A: TX 1490nm / RX 1550nm
Module B: TX 1550nm / RX 1490nm
LC optical connector
DDM monitoring support
Standard SFP form factor
Bidirectional communication over one fibre core
Suitable for compatible Gigabit Ethernet equipment
Designed for long-distance fibre network links
Specification Module A Module B
Model SFP-GE-BX80-A SFP-GE-BX80-B
Data Rate 1.25Gbps 1.25Gbps
Rated Reach Up to 80KM Up to 80KM
Fibre Type Single Mode Single Mode
Technology BiDi / WDM BiDi / WDM
Transmit Wavelength 1490nm 1550nm
Receive Wavelength 1550nm 1490nm
Optical Connector LC LC
Fibre Configuration Single Fibre Single Fibre
DDM Supported Supported
Form Factor SFP SFP
Application Gigabit Ethernet Gigabit Ethernet
