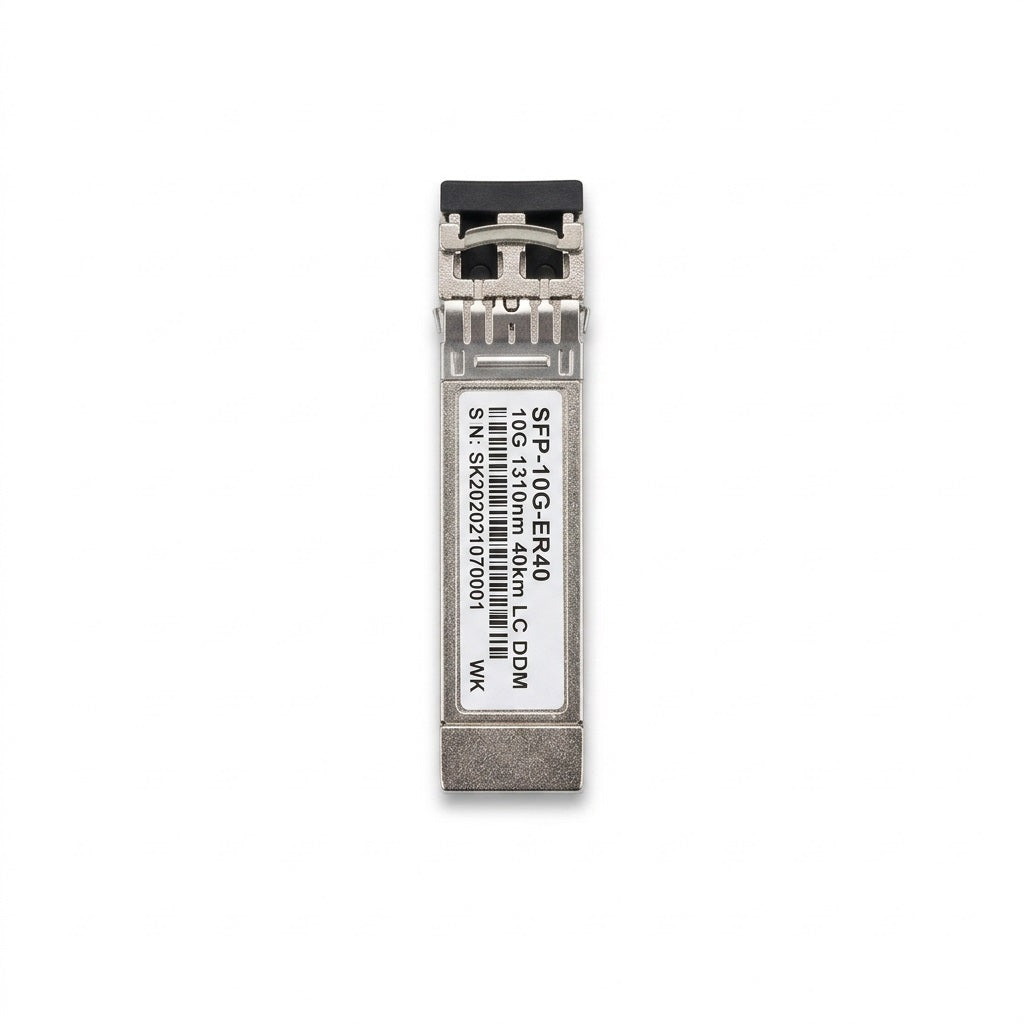

10G SFP+ Fibre Transceiver 1310nm 40km Single-Mode Duplex LC DDM (SFP-10G-ER40)

The SFP-10G-ER40 is a 10Gbps SFP+ fibre optic transceiver for 10 Gigabit Ethernet links of up to 40km over single-mode fibre. It operates at 1310nm and connects with a duplex LC patch lead, using one fibre to transmit and one to receive. It's designed for long-distance 10 Gigabit uplinks between sites, campus backbones and service-provider links.

The module fits any compatible SFP+ slot on switches, routers, servers and media converters, and is hot-pluggable, so it can be installed or replaced without powering down the host. Digital Diagnostic Monitoring (DDM) lets supported equipment report the module's temperature, voltage and optical power levels, which makes it easier to monitor the link and troubleshoot faults.

Fit a matching 1310nm 40km module at the other end of the link. Achievable distance depends on the total loss of the fibre route, including splices and connectors. Check that your switch or router accepts generic SFP+ modules before ordering.

Key features

• 10Gbps data rate for 10 Gigabit Ethernet
• 1310nm wavelength, up to 40km over single-mode fibre
• Duplex LC connector (dual fibre: TX + RX)
• Digital Diagnostic Monitoring (DDM / DOM)
• Standard hot-pluggable SFP+ form factor
• Works in compatible switches, routers, servers and media converters

Specifications

• Model: SFP-10G-ER40
• Type: SFP+ fibre optic transceiver
• Data Rate: 10Gbps
• Wavelength: 1310nm
• Maximum Distance: Up to 40km
• Fibre Type: Single-mode (SMF)
• Connector: Duplex LC (separate TX and RX fibres)
• Digital Diagnostics: DDM / DOM supported
• Form Factor: Hot-pluggable SFP+
• Application: 10 Gigabit Ethernet
• Supply Voltage: 3.3V

What's in the box

• 1 × SFP-10G-ER40 SFP+ transceiver
