TENDA 18-Port Ethernet Switch Wit 16 PoE
TENDA 18-Port Ethernet Switch Wit 16 PoE
TENDA 18-Port Ethernet Switch Wit 16 PoE
TENDA 18-Port Ethernet Switch Wit 16 PoE

TENDA 18-Port Ethernet Switch Wit 16 PoE

TENDA
R 2,799
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 2,799

Description

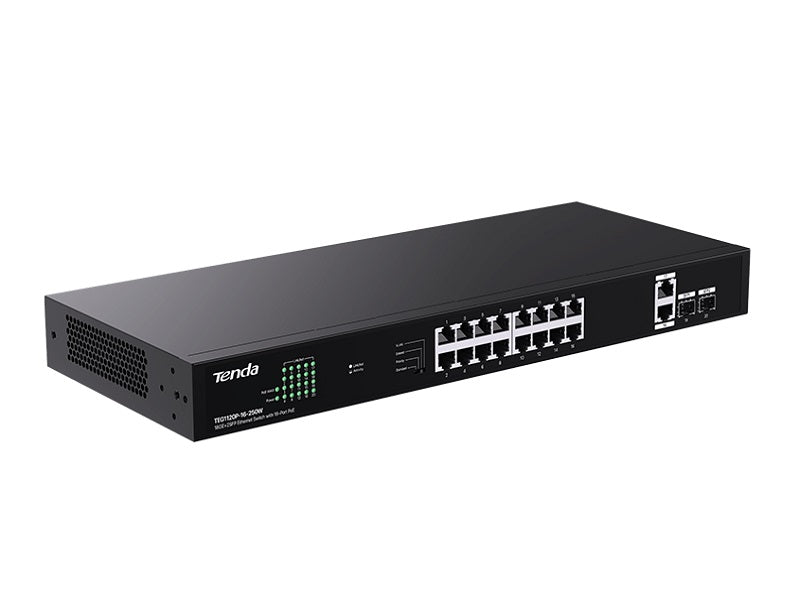

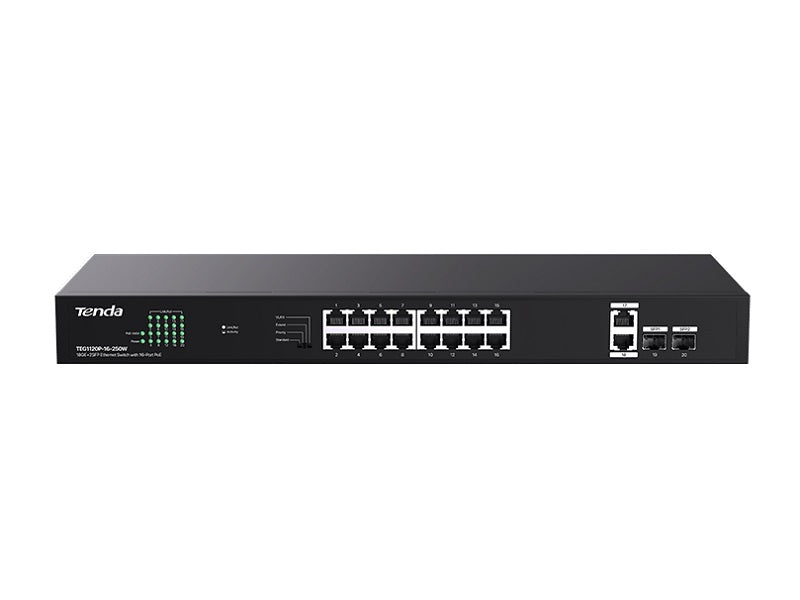

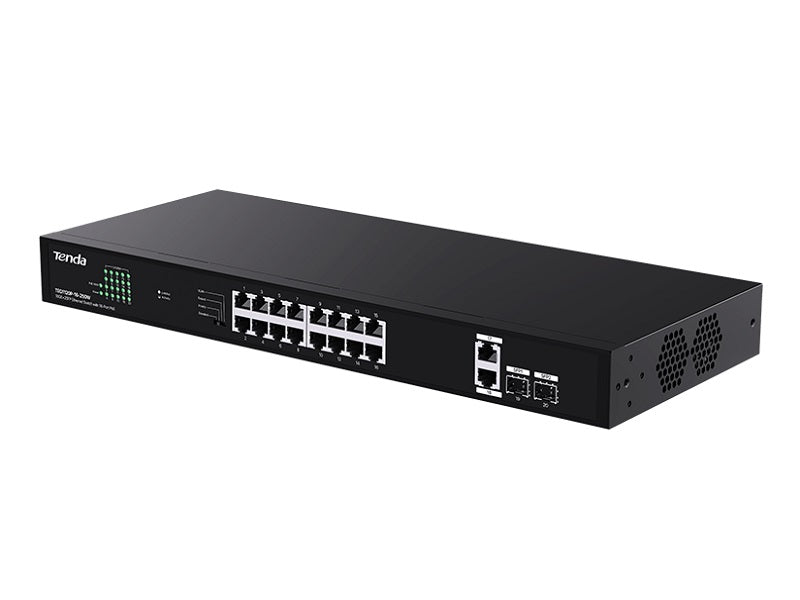

TEG1120P-16-250W is a gigabit Unmanaged Ethernet PoE switch designed by Tenda. The switch provides 16 gigabit PoE ports, 2 uplink gigabit RJ45 ports and 2 SFP ports. It supports the IEEE 802.3af/at standard and can automatically detect PDs and supply power. The maximum output power of a single port is 30W, and the power of the whole switch is 250W. It supports rack mounting, one-toggle settings, plug and play, and simple networking. It is an ideal choice for SMBs, hotels, schools, and parks with video surveillance and wireless networking requirements. 1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.

Key features

  • Link/Act
  • PoE MAX
  • Forwarding mode Store-and-forward
  • 2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
  • 3.Extend: The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
  • 4.VLAN: Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.

Specifications

  • +2SFP 250W
  • Network standards IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
  • Interfaces (18)1GE RJ45 ports
  • (2)1GE SFP ports
  • Transmission media Recommended: CAT5/5e UTP or better
  • Fan quantity 1
  • Dimension 440mm*178mm*44mm
  • Level of protection Port: 6 KV
  • Power'a3°6 KV
  • Switch capacity 40Gbps
  • Packet forwarding rate 29.8Mpps
  • Buffer 4Mb
  • MAC address table 8K
  • PoE budget Single port: AF: 15.4W, AT: 30W
  • Whole device: 230W
  • Power consumption 250W
  • Input voltage 100-240V AC'a3`ac50 / 60Hz
  • Mounting Rack mounting : support
  • Desktop mounting: support
  • Wall mounting: support
  • Environment Operating Temperature: 0℃~45℃
  • Storage Temperature: -40℃~70℃
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Frequently Bought Together Frequently bought

Product Information

Categories Networking / Tenda / Tenda Switches & PoE
Brand Tenda
Model TEG1120P-16-250W
Ports 18 x 1GE RJ45 (16 PoE) + 2 x 1GE SFP
Switch Capacity 40 Gbps
Forwarding Rate 29.8 Mpps
Buffer 4 Mb
MAC Address Table 8K
PoE Budget 230W total; 15.4W (AF) / 30W (AT) per port
Forwarding Mode Store-and-forward
Network Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
Lightning Protection Port: 6 KV; Power: 6 KV
Power Input 100-240V AC 50/60Hz
Power Consumption 250W
Dimensions 440 x 178 x 44 mm
Mounting Rack, Desktop, Wall
Certifications FCC, CE, RoHS
Barcode 6932849436556
