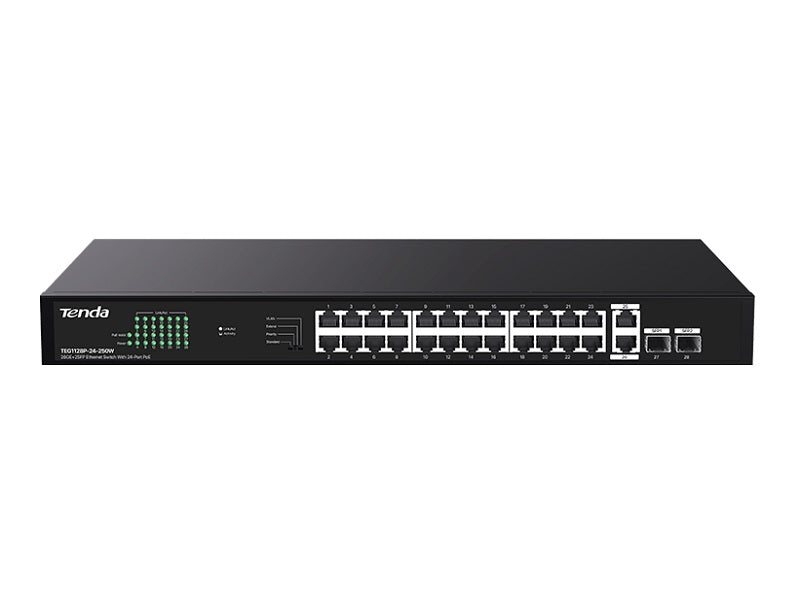

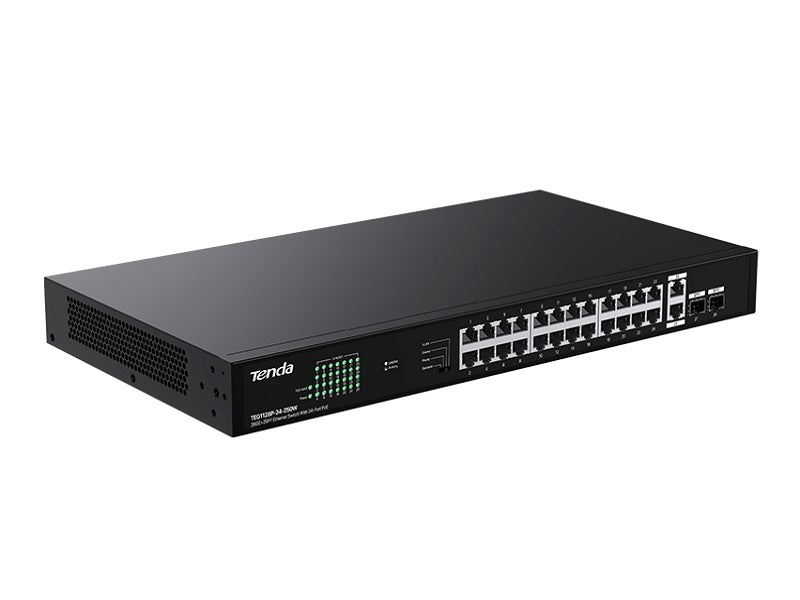

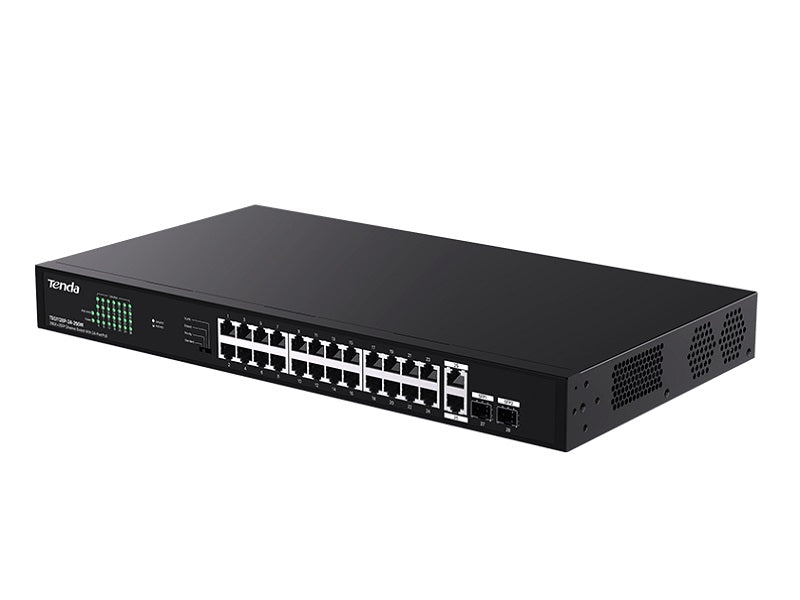

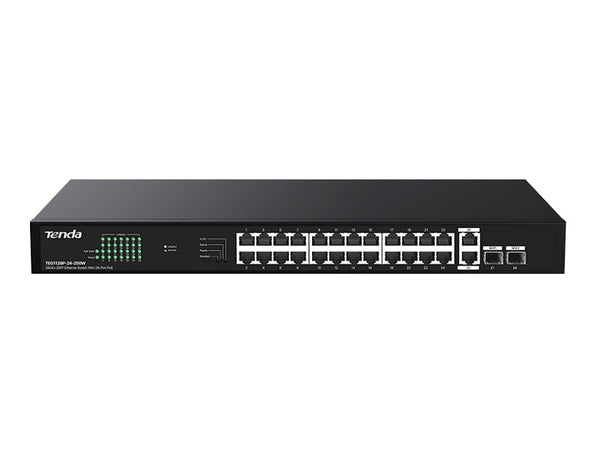

TENDA 26-Port Ethernet Switch With 24PoE

TEG1128P-24-250W is a gigabit Unmanaged Ethernet PoE switch designed by Tenda. The switch provides 24 gigabit PoE ports, 2 uplink gigabit RJ45 ports and 2 SFP ports. It supports the IEEE 802.3af/at standard and can automatically detect PDs and supply power. The maximum output power of a single port is 30W, and the power of the whole switch is 250W. It supports rack mounting, one-toggle settings, plug and play, and simple networking. It is an ideal choice for SMBs, hotels, schools, and parks with video surveillance and wireless networking requirements. Network standards IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at.

Key features

• Link/Act
• PoE MAX
• Forwarding mode Store-and-forward
• 1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.
• 2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
• 3.Extend: The maximum transmission distance of the 17-24 ports of the switch can reach 250 meters, and all ports can communicate with each other.
• 4.VLAN: Ports 1 to 24 cannot communicate with each other, but can communicate with ports 25, 26, SFP1 (27), and SFP2 (28), which can be used to isolate broadcast storms and DHCP conflicts.

Specifications

• +2SFP 250W
• Interfaces (26)1GE RJ45 ports
• (2)1GE SFP ports
• Transmission media Recommended: CAT5/5e UTP or better
• Level of protection Port: 6 KV
• Power'a3°6 KV
• Switch capacity 56Gbps
• Packet forwarding rate 41.7Mpps
• Buffer 4Mb
• MAC address table 8K
• PoE budget Single port: AF: 15.4W, AT: 30W
• Whole device: 230W
• Power consumption 250W
• Input voltage 100-240V AC'a3`ac50 / 60Hz
• Mounting Rack mounting : support
• Desktop mounting: support
• Wall mounting: support
• Environment Operating Temperature: 0℃~45℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
