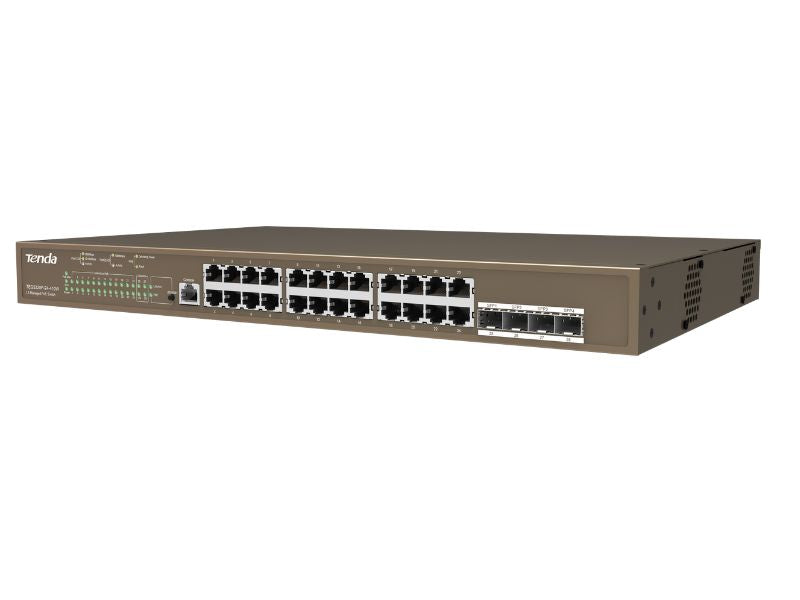

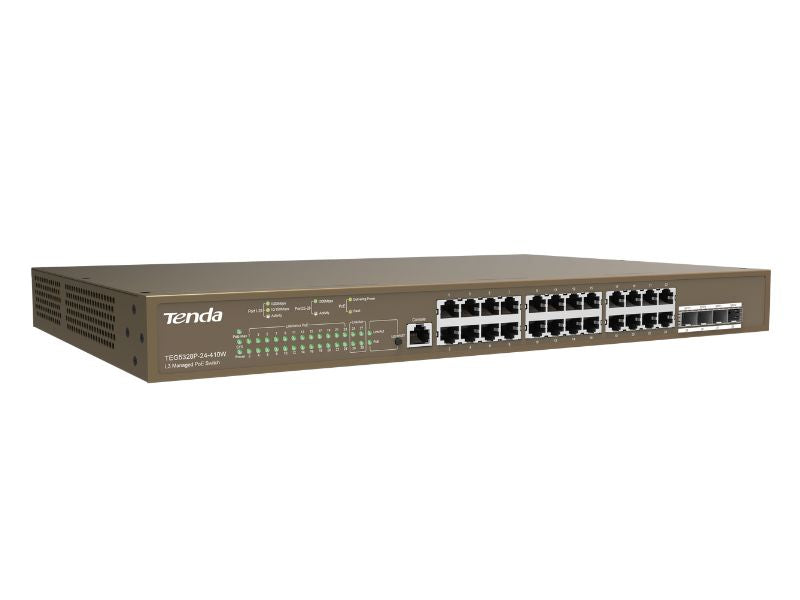

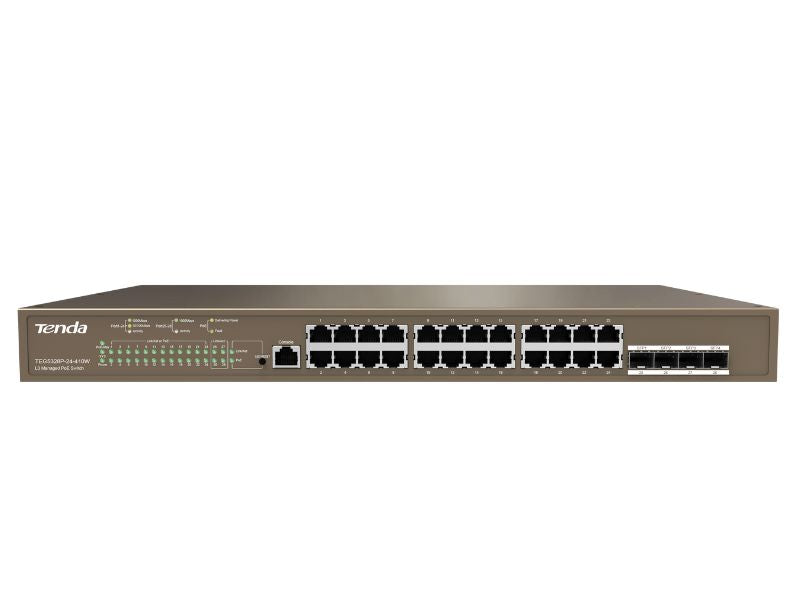

TENDA 28Port 4SFP Gigabit 24 PoE Switch

TEG5328P-24-410W is a Tenda Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W.With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.

Key features

• IEEE802.3`a1`a2 IEEE802.3u'a1`a2 IEEE802.3ab'a1`a2 IEEE802.3z'a1`a2 IEEE802.3x'a1`a2 IEEE802.3af/at'a1`a2IEEE802.1p'a1`a2IEEE802.1q'a1`a2 IEEE802.1w'a1`a2 IEEE802.1d'a1`a2 IEEE802.1s
• LED Indicator
• Transmission media
• Fan quantity
• Level of protection
• Forwarding mode
• Store-and-forward
• Switch capacity
• Packet forwarding rate
• Buffer
• MAC address table
• Jumbo frame
• PoE power supply management
• Support
• PoE budget
• Mounting
• Energy Efficient
• RH, non-condensing
• Software
• Supports VLAN-based routing
• Supports static ARP
• Supports port PoE configuration and power supply with priority
• Supports PoE over-temperature protection
• Supports PoE scheduled management
• Supports intelligent management and PoE-powered device detection
• (port status, power assignment and PoE-powered device status)
• ARP receiving limit
• Unknown MAC address discard
• DoS attack defense
• Radius security authentication
• Vlan
• DHCP Server
• DHCP Relay
• DHCP Snooping
• Static aggregation
• LACP dynamic aggregation
• Spanning tree
• Supports BPDU statistics
• Multicast
• Supports port fast leave
• Quality of Service
• SP (Strict Priority)
• SWRR (Simple Weighted Round Robin)
• WRR (Weighted Round Robin)
• Supports DSCP port trust mode
• Supports a maximum of 8-queue service quality mapping
• ACL
• Supports MAC ACL and IP ACL
• Loading and upgrade
• Supports FTP/TFTP/HTTP upgrade
• Supports configuration import and export
• Management and maintenance
• Supports Telnet, Console
• Supports WEB management and maintenance
• CPU Monitoring and memory monitoring

Specifications

• Teg5328p-24-410w
• 1*Link/Act or PoE LED indicator
• 1*Link/1*Link/Act mode converting LED indicator
• 1*PoE mode converting LED indicator
• 1*PoE Max LED indicator
• 1*Power LED indicator
• 1*SYS LED indicator
• 24*10/100/1000 Base-T Ethernet ports
• 4*1000 Base-X SFP ports
• 1*Console port
• Recommended: CAT5/5e UTP or better
• 2
• Lightning protection for ports: 6kV
• Lightning protection for power: 6kV
• Air discharge: `b110kV
• Contact discharge: `b18kV
• 56Gbps
• 41.70Mpps
• 12Mb
• 16K
• 10K
• Single port: AF: 15.4W, AT: 30W
• Whole device: 370W
• 100-240V AC 50/60Hz
• Full load: `a3`bc432W
• Empty load: `a3`bc23W
• 440.0mmx284.0mmx44.0mm
• Desktop mounting: support
• Wall mounting: support
• Rack mounting:non-support
• Operating temperature: 0`b0C - 45℃
• Storage temperature: -40`b0C - 70`b0C
• Operating humidity: (10% - 90%)
• Storage humidity: (5% - 90%)
• FCC'a1`a2CE'a1`a2RoHS
• L3 Features
• Supports IPv4/IPv6 static routing
• 802.1x security authentication
• Ieee 802.1Q vlan
• VLAN Layer-3 interfaces
• Supports three port modes: Access, Trunk and Hybrid
• Supports Option 82 policy configuration
• IEEE 802.1d STP (Spanning Tree Protocol)
• IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
• IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
• IGMP Snooping V1/V2/V3
• Supports N: 1 port mirroring
• Supports 802.1p port trust mode
• Supports SNMP V1/V2/V3
• Supports Ping/IPv6/Tracert/Connection Detection
