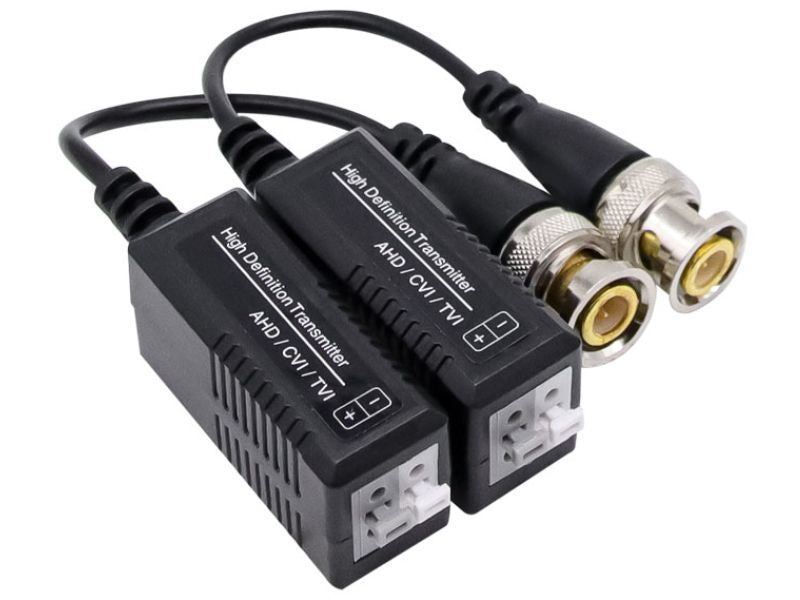

GJC12B passive video balun pair with BNC connectors and captive screw terminals

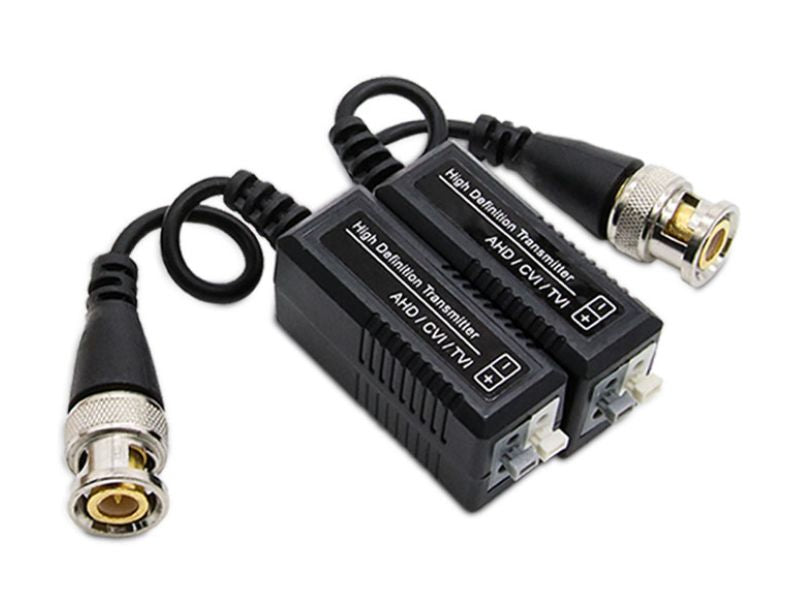

GJC12B video balun transceivers with coiled cable, labelled AHD/CVI/TVI

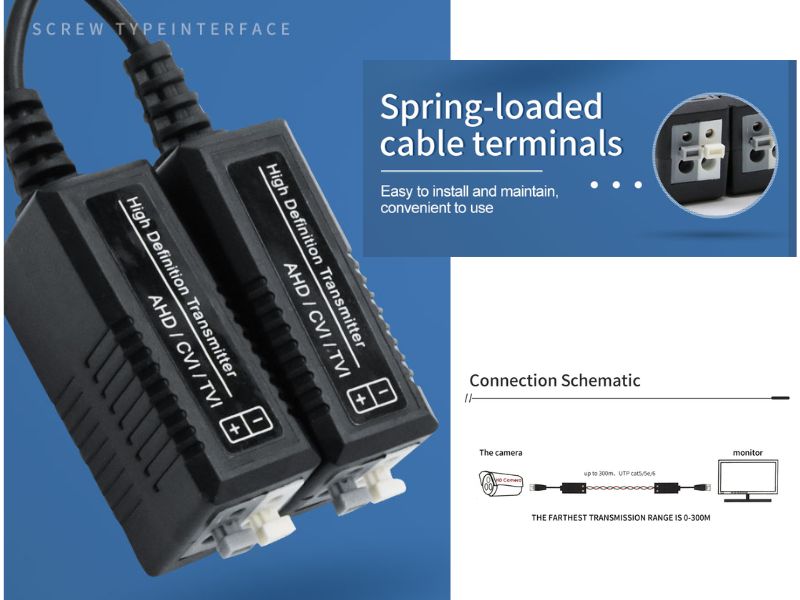

GJC12B balun feature diagram showing spring-loaded terminals and wiring schematic

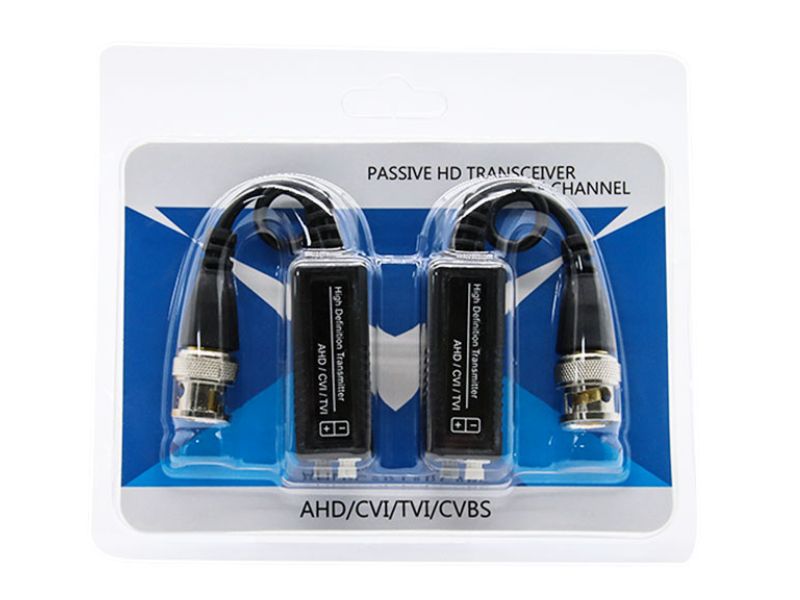

GJC12B passive video balun retail blister pack for AHD/CVI/TVI/CVBS cameras

Passive CVI/AHD/TVI Video Balun (GJC12B) - 1080p, BNC, 400m, CAT5 Twisted Pair

Alcell
R 38R 99
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 12-month limited warranty
Price: R 38

Description

Passive CVI/AHD Video Balun 400m Video Transceiver Twisted Pair Transmitter CCTV UTP Balun with BNC Male CAT5. DC Loop Resistance 52 ohms per 1000ft(18 ohms per 100m).

Key features

  • No power required
  • AHD/HDCVI/HDTVI video format compatible
  • Real time transmission
  • Exceptional interference rejection
  • Wave Filter Design,Anti-Static Design
  • Long-distance transmission and high-quality image
  • Compact size and easy installation
  • cost-effective
  • Transmission Distance
  • Compatible Format AHD/CVI/TVI
  • Common-mode/Different-mode rejection 15KHz to 5MHz 60 dB typ
  • Wire type
  • Network Wiring One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm)
  • DC Loop Resistance Different Capacitance
  • External power required No
  • Protection
  • Surge Protection Renewable solid state surge protection
  • Video input/output Male BNC / Push terminal
  • Housing ABS engineering plastic
  • Body Color Black
  • 1 Channel passive video transceiver.
  • Receiving and transmitting video signals over UTP cable without using the power supply.
  • Video transmission via UTP CAT5 cable.
  • Excellent noise interference rejection and built-in transient protection.
  • Cost-effective point-to-point transmission.
  • High quality image.
  • Twisted Pair Video Baluns, for sending video signals up to 400m (B/W) / 200m(Color)

Specifications

  • Hdcvi 720p:400m
  • AHD 960H/1080P:300m
  • Hdtvi 720p/1080p:200m
  • Resolution 720P/960H/1080P
  • Operating Frequency DC to 6MHz
  • Attenuation 1.5dB typ Max
  • Impedance Male BNC:75
  • Terminal:100
  • Category Type 5 or better
  • Impedance 100±20ohms
  • Video Input 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)
  • Video Output 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)
  • Connector
  • Operating Temperature -20-70
  • Relative Humidity 0-95%(non-condensing)
  • Storage Temperature -40-80

Frequently Bought Together Frequently bought

Product Information

Warranty 12-month limited warranty
Categories New Arrivals / Security & Surveillance
Type Passive CVI/AHD Video Balun
Compatible Format AHD/CVI/TVI
Resolution 720P/960H/1080P
Transmission Distance HDCVI 720P 400m, AHD 1080P 300m, HDTVI 200m
Cable UTP CAT5
Operating Frequency DC to 6MHz
Connector Male BNC / Push Terminal
Housing ABS Engineering Plastic
Color Black
Operating Temperature -20 to 70
Power No External Power Required
SKU GJC12B
Barcode 6988880101311
