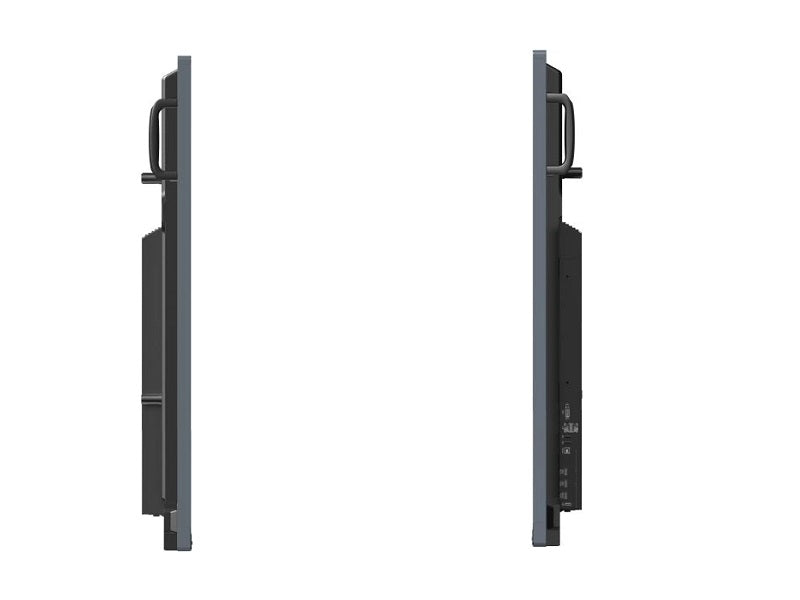

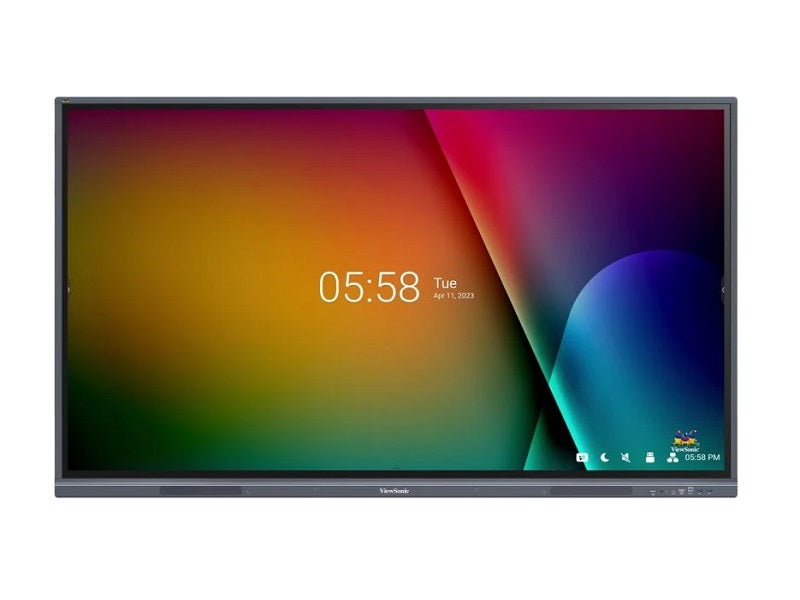

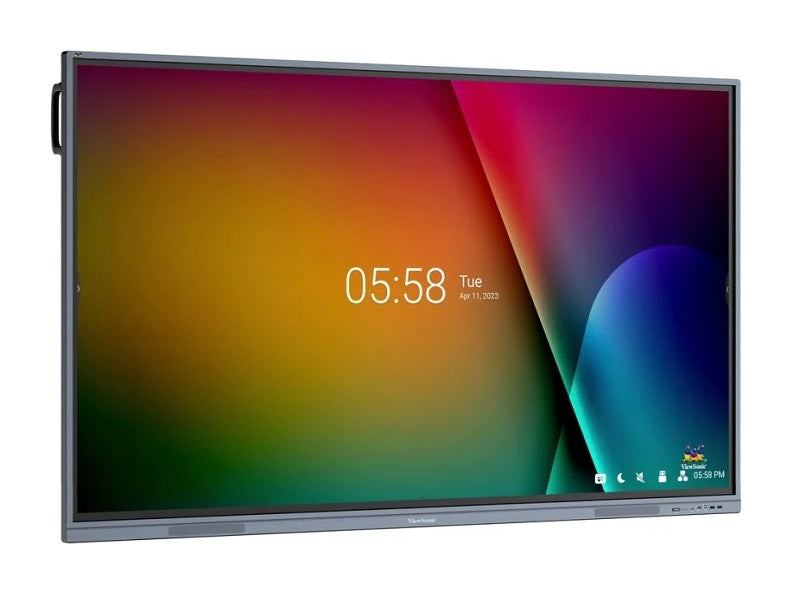

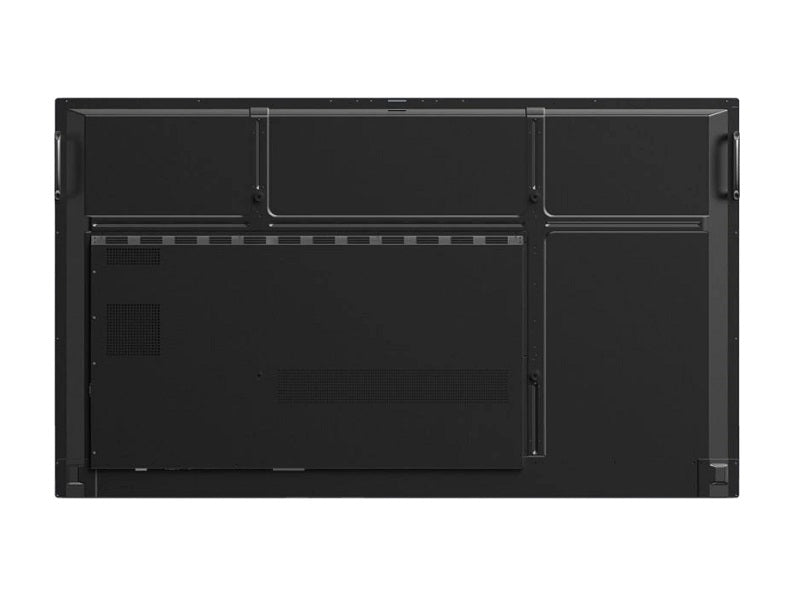

Viewsonic ViewBoard 75" 4K Interactive

The ViewBoard IFP33 Series harmonizes a touch display with versatile software to create a comprehensive classroom solution for interactive and engaging learning. This interactive flat panel delivers exceptional image quality in 4K UHD, thanks to cutting-edge bonding technology that provides clearer colors, enhanced contrast, and reduced glare. The 40-point touchscreen interface, equipped with Ultra Fine Touch Technology, empowers students and teachers to collaborate seamlessly, using either their fingers or dual-tip pens, for an intuitive pen-on-paper experience. Powerful built-in front-facing speakers and a USB-C port sort out for a complete and convenient multimedia experience. The ViewBoard IFP33 Series is preinstalled with myViewBoard to offer advanced lesson delivery options for teachers and powerful device management tools for administrators. Embrace simplicity and organization with the USB-C one-cable solution, offering 65W of Power Delivery.

Key features

• Integrated with myViewBoard software
• Multi-tasking capabilities for enhanced lesson delivery
• Intuitive user interface and fast app launch for smooth operation
• Panel Type: TFT LCD Module with DLED Backlight. IPS
• Surface Treatment: Hardness: 7H, 4mm tempered glass, Anti-Glare, Anti-Dust and Anti-Fingerprint Technologies
• GPU: Quad-core ARM Mali G52 (Support 4K UHD)
• Touch
• Touch Point: 20 for Android, 40 points touch for windows. Touch Accuracy:`b1 1 mm. Air Gap:0.9 mm
• Type C: Frontx1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)
• Top Camera Plate
• Yes
• Bundle Software
• Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
• Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
• All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
• Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
• Physical (inch / mm): 1709 x 1020 x 88 mm / 67.3 x 40.2 x 3.5 in
• Packaging (inch / mm): 1863 x 1140 x 225 mm / 73.3x 44.9 x 8.6 in
• FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, BSMI,BIS
• 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m
• Compatible Slot-in PC
• Note
• Other Apps: Live, Record, PIP, Split Screen, Screen Lock

Specifications

• Powered by Android 11
• Panel Size: 75"
• Display Area (mm): 1649.664(H) `d7 927.936(V) (74.6” diagonal)
• Aspect Ratio: 16:9
• Resolution: 4K UHD 3840x2160(Pixels)
• Colors: 1.07B colors
• Brightness: 400 nits
• Contrast Ratio: 5000:1 (Typical)
• Response Time: 6ms
• Viewing Angles: H=178, V=178
• Backlight Life: 50,000 Hours
• Orientation: Landscape
• Processor: Quad-core ARM Cortex (A55*4)
• RAM: 8GB DDR4
• Storage: 64GB/128GB
• Type/ Tech: (IR) Ultra-Fine Touch Technology
• HDMI: HDMI-IN 2.0 x 3 (3840x2160 @60Hz)
• RGB / VGA: x1
• Audio: x1
• RS232: x1
• OPS: x1 (Optional Intel Standard OPS)
• WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB050)
• Hdmi: hdmi 2.0 x1
• SPDIF: x1
• RJ45: x2 (Gigabyte Ethernet)
• Type A: USB3.0 x4 (Front x2, Rear x2)`a3`bb
• USB2.0 x1
• Type B: x2 (Front x1, Rear x1)
• 16W x 2
• Android 11 (next 3 OS version upgradable)
• Basic Annotation Software: myViewBoard Whiteboard
• Device Management: Remote Device Management: myViewBoard Manager
• Light Sensor: Yes
• Voltage: 100-240V AC
• Consumption: On:106W; Off: ≤ 0.5W
• Wall Mount (VESA® ): 800x400
• Temperature (° C): 0`b0C to 40`b0C
• Humidity: 20% ~ 80% RH non-condensing
• Dimensions (W x H x D)
• Net (lb / kg): 104.3lb/47.3kg
• Gross (lb / kg): 133.5lb/60.55kg
• VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16
