1KM SC/APC-SC/UPC Fiber Optic Extension Cable – OTDR Launch Cable Test Lead

Improve the accuracy and reliability of fiber optic testing with the 1KM SC/APC to SC/UPC Fiber Optic Extension Cable / OTDR Launch Cable Box. Designed for telecommunications technicians, fiber installers, network engineers, and field-service professionals, this professional test lead can be used as both a launch and receive cable for OTDR testing.

The 1KM fiber length helps overcome the OTDR`s initial dead zone, providing improved visibility of the near-end and far-end connections and allowing more accurate measurement of connector loss, insertion loss, and reflectivity.

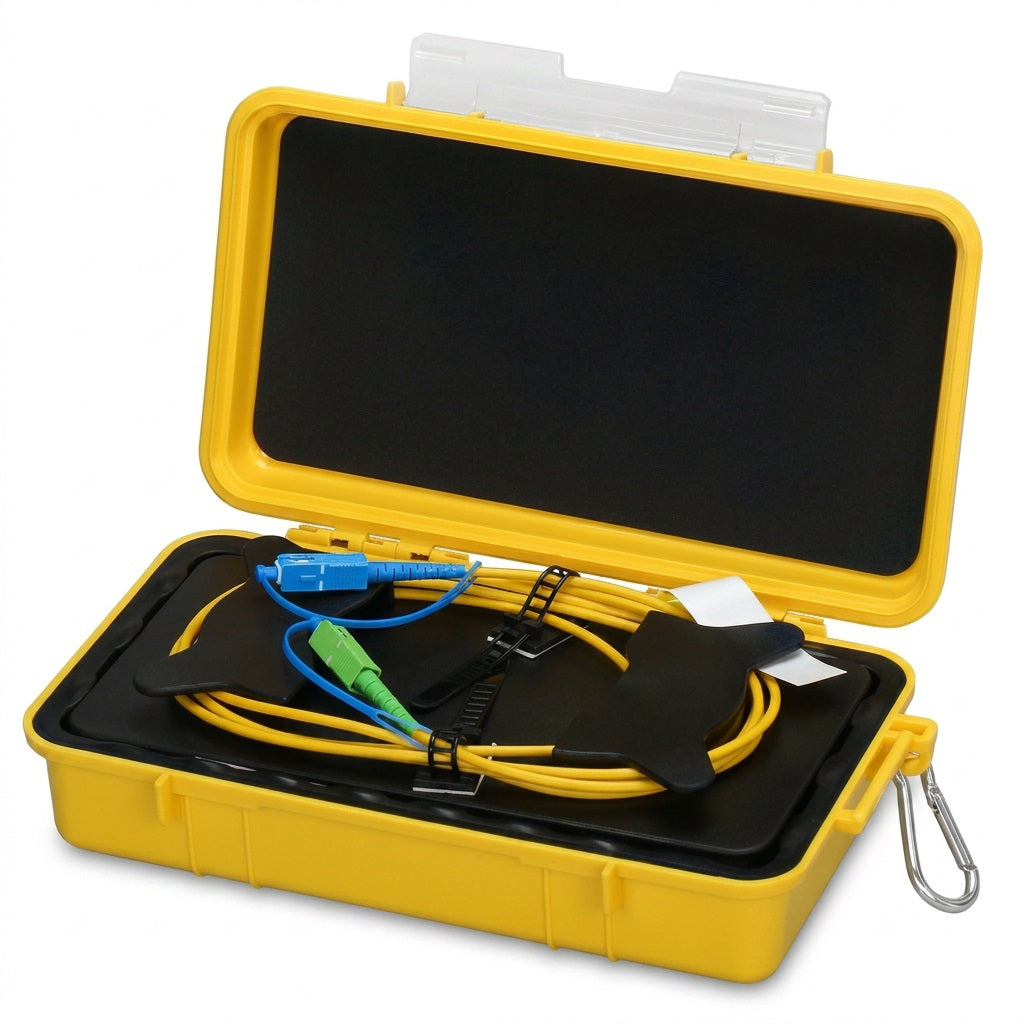

The cable is housed inside a rugged yellow hard-shell protective enclosure, keeping the fiber neatly coiled and protected during transportation and field deployment.

Key Features
1KM / 1000M Fiber Length – Provides extended fiber length for professional OTDR testing.
OTDR Launch & Receive Cable – Helps improve measurement accuracy at both the near and far ends of a fiber link.
Dead Zone Reduction – Bridges the OTDR`s initial testing blind zone to provide clearer measurement of the first connector.
Low Signal Attenuation – Approx. 0.5dB/km attenuation for reliable optical testing performance.
Hybrid SC/APC to SC/UPC Connection – Features one SC/APC connector and one SC/UPC connector, with protective dust caps.
Rugged Protective Enclosure – Durable yellow hard-shell case designed to protect the internal fiber during transportation and field use.
Field-Ready Protection – Housing provides resistance against water, dust, pressure, falls, contamination, and demanding working conditions.
Neat Cable Management – Internal cable holders and flexible binding buckles help keep the fiber securely coiled and organized.
Portable Design – Integrated metal carabiner clip makes it easy to attach the launch cable to a tool bag, belt, or other equipment.
Convenient Storage – Supplied with a soft drawstring storage bag for transportation and additional protection.
Customizable – Cable length, connector combinations, fiber type, and fiber core configurations can be customized upon request.
Technical Specifications
Parameter Specification
Product Type OTDR Optical Fiber Extension Line / Launch Cable Box
Fiber Length 1KM / 1000M
Connector Type SC/APC to SC/UPC
Attenuation / Loss Rate Approx. 0.5dB/km
Cable Function OTDR Launch / Receive Cable
Enclosure Yellow Hard-Shell Protective Case
Protection Features Waterproof, Dustproof, Pressure-Resistant, Fall-Resistant, Explosion-Proof
Cable Storage Internal Coiled Spool
Cable Management Dual Cable Holders & Binding Buckle
Portability Integrated Metal Carabiner Clip
Applications OTDR Testing, Fiber Link Diagnostics, Connector Loss Measurement
How the OTDR Launch Cable Works

The launch cable is connected between the OTDR and the fiber link under test. Its additional fiber length helps move the OTDR`s initial dead zone away from the equipment, allowing technicians to obtain a clearer measurement of the near-end connector.

When used as a receive cable, it can also help evaluate the far-end connector and provide a more complete measurement of the fiber link.

Rugged Protective Housing

The 1KM fiber is securely stored inside a compact yellow protective enclosure designed for field use. The housing helps:

Protect the fiber during transportation
Keep the cable neatly coiled
Prevent unnecessary tangling
Protect against dust and moisture
Reduce the risk of physical damage
Make the launch cable easier to transport and deploy
Ideal Applications

The 1KM SC/APC-SC/UPC OTDR Launch Cable is suitable for:

Fiber optic network installation
FTTH/FTTx deployment
Telecommunications networks
OTDR testing and certification
Fiber link troubleshooting
Connector insertion-loss testing
Near-end and far-end testing
Fiber optic maintenance
Network commissioning
Data center fiber testing
Field service and repair
Package Includes
1 × 1KM SC/APC to SC/UPC OTDR Launch Cable Box
1 × Integrated Metal Carabiner Clip
1 × Soft Drawstring Storage Bag
