1KM SC/UPC-LC/UPC Fiber Optic Extension Cable – OTDR Launch Cable Test Lead

Improve the accuracy and reliability of fiber optic testing with the 1KM SC/UPC to LC/UPC Fiber Optic Extension Cable / OTDR Launch Cable Box. Designed for telecommunications technicians, fiber installers, network engineers, and fiber optic specialists, this professional test lead can be used as both a launch and receive cable during OTDR testing.

The 1KM fiber length helps overcome the OTDR`s initial dead zone, providing improved visibility of near-end and far-end connections and enabling more accurate measurement of connector loss, insertion loss, and reflectivity.

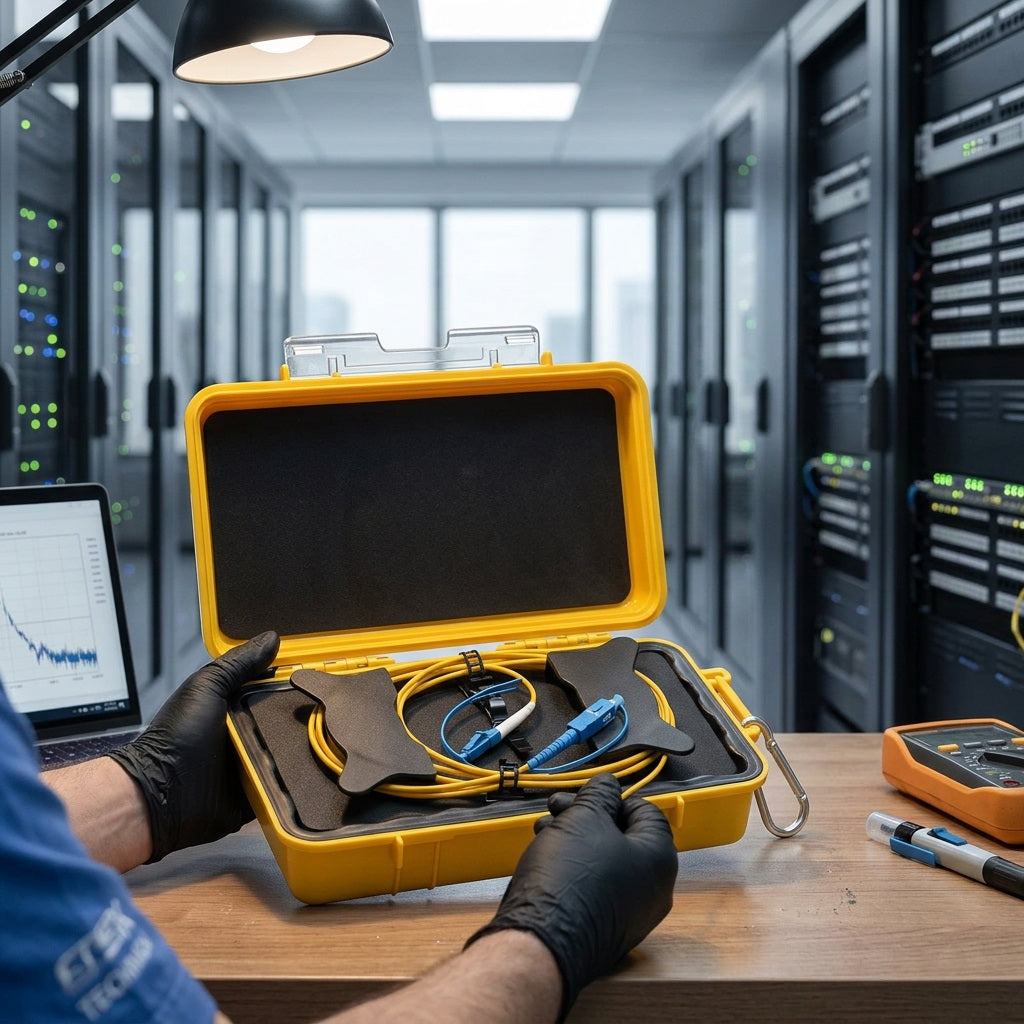

The fiber is neatly stored inside a rugged yellow hard-shell protective enclosure with sealing protection, helping keep the cable organized, clean, and protected during transportation and demanding field applications.

Key Features
1KM / 1000M Fiber Length – Provides extended fiber length for professional OTDR testing.
OTDR Launch & Receive Cable – Suitable for both launch and receive-end testing applications.
OTDR Dead Zone Reduction – Helps overcome the initial testing blind area for improved near-end connector measurement.
Low Signal Attenuation – Approx. 0.5dB/km for reliable optical signal transmission during testing.

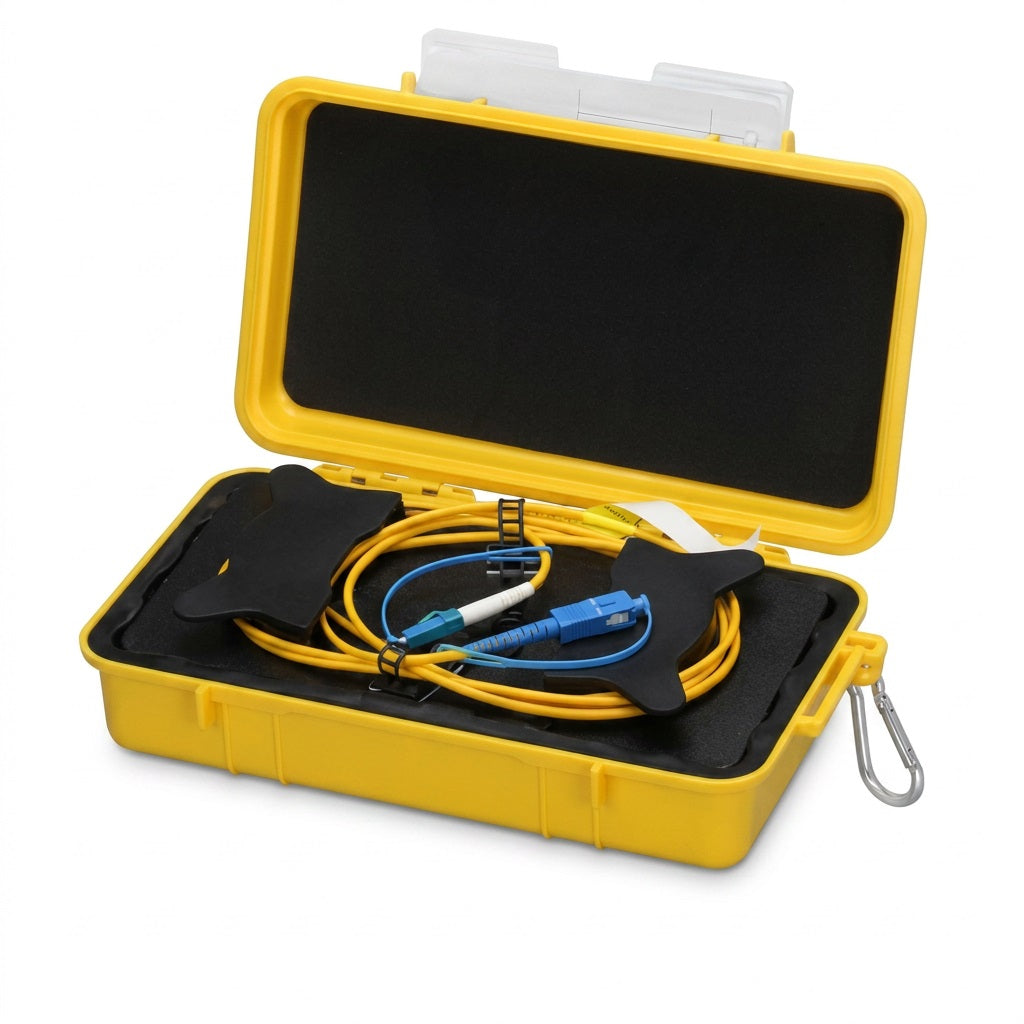

Hybrid SC/UPC to LC/UPC Connectors – Features a blue SC/UPC connector and compact blue LC/UPC connector, both supplied with protective dust caps.
Rugged Protective Enclosure – High-visibility yellow hard-shell case helps protect the internal fiber during transportation and field deployment.
Field-Ready Protection – Designed to resist water, dust, pressure, and falls.
Integrated Cable Management – Internal cable holders and adjustable binding buckles help keep the fiber securely coiled and organized.
Portable Design – Integrated metal carabiner clip allows convenient attachment to tool bags, belts, field vests, or other equipment.
Soft Carrying Pouch Included – Provides convenient storage and transportation.
Customizable Configuration – Custom cable lengths, connector combinations, fiber types, and single-mode/multimode configurations can be requested.
Technical Specifications
Parameter Specification
Product Type OTDR Optical Fiber Extension Line / Launch Cable Box
Fiber Length 1KM / 1000M
Connector Type SC/UPC to LC/UPC
SC/UPC Connector Blue
LC/UPC Connector Blue
Attenuation / Loss Rate Approx. 0.5dB/km
Cable Function OTDR Launch / Receive Cable
Case Construction Yellow Hard-Shell Protective Case
Protection Features Waterproof, Dustproof, Pressure-Resistant, Fall-Resistant
Internal Storage Coiled Fiber Spool
Cable Management Dual Retention Holders & Binding Buckle
Portability Integrated Metal Carabiner Clip
Applications OTDR Testing, Fiber Diagnostics, Near-End & Far-End Loss Measurement
How the OTDR Launch Cable Works

The launch cable is connected between the OTDR and the fiber link under test. The additional 1KM fiber length helps move the OTDR`s initial dead zone away from the testing equipment, allowing technicians to obtain a clearer measurement of the near-end connector.

When used as a receive cable at the far end, it can also assist with evaluating the far-end connector, providing a more complete assessment of the fiber link.

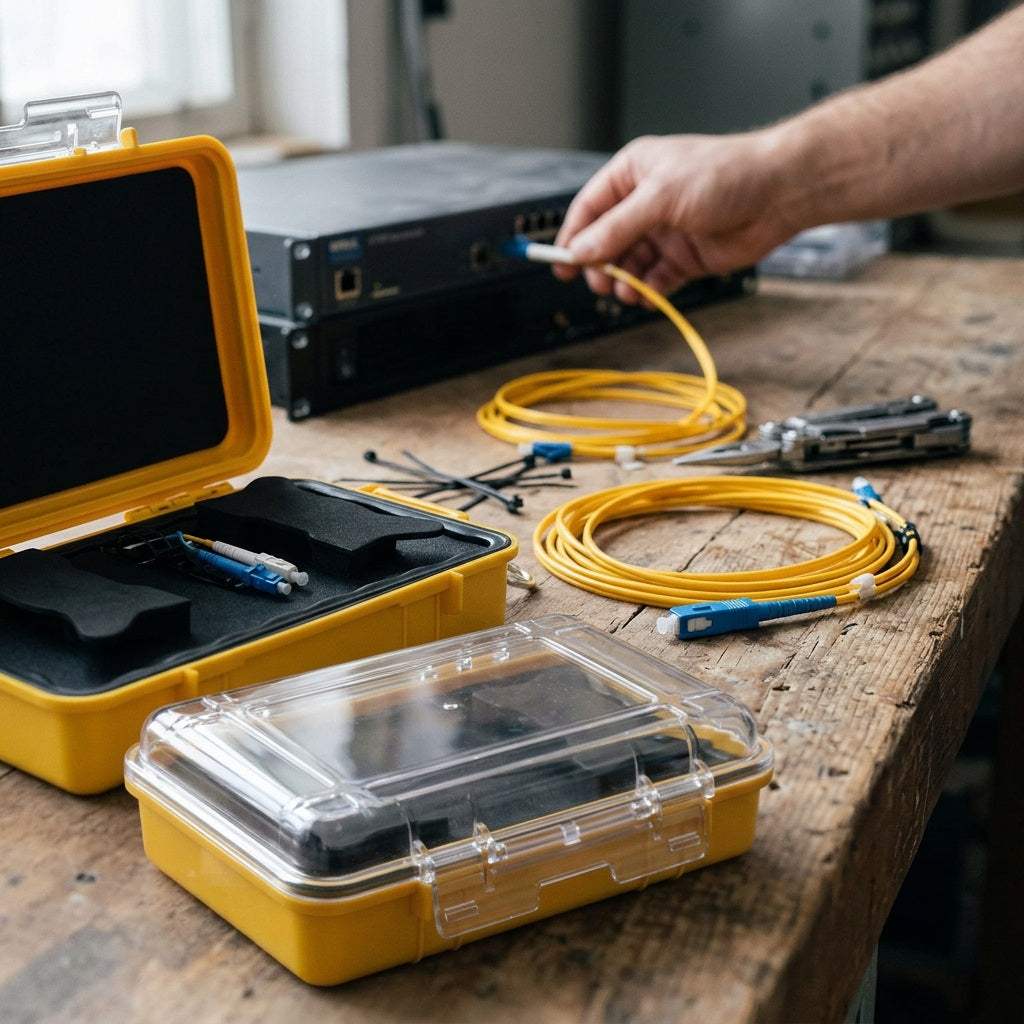

Rugged Protective Housing

The 1KM fiber is neatly coiled inside a durable yellow hard-shell enclosure designed for professional field use. The housing helps:

Keep the fiber securely organized
Reduce tangling and unnecessary bending
Protect the cable during transportation
Shield the internal spool from dust and moisture
Reduce the risk of physical damage
Make storage and deployment easier
Ideal Applications

The 1KM SC/UPC-LC/UPC OTDR Launch Cable is suitable for:

Fiber optic network installation
FTTH/FTTx deployment
Telecommunications networks
OTDR testing and certification
Fiber link troubleshooting
Connector insertion-loss testing
Near-end and far-end diagnostics
Fiber optic maintenance
Network commissioning
Data center fiber testing
Field service and repair
Package Includes
1 × 1KM SC/UPC to LC/UPC OTDR Launch Cable Box
1 × Integrated Metal Carabiner Clip
1 × Soft Drawstring Carrying Pouch
