A-88S Automatic Fibre Optic Fusion Splicer – Fibre Cable Splicing Machine for FTTH & Network Installation

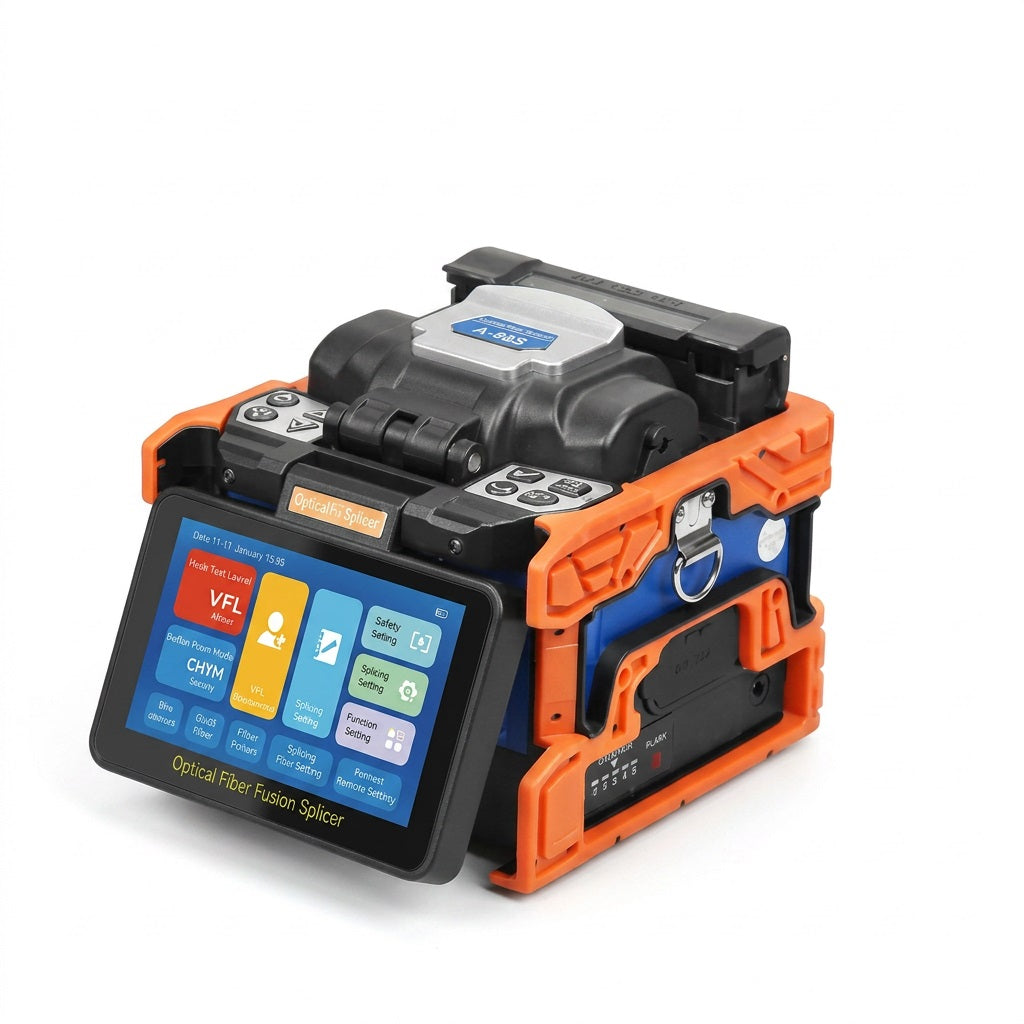

The A-88S Automatic Fibre Optic Fusion Splicer is a professional and portable fibre optic cable splicing machine designed for FTTH installations, telecommunications, network infrastructure, fibre optic maintenance and repair. With six-motor automatic focusing, multiple alignment options and automatic, semi-automatic and manual welding modes, the A-88S provides flexibility for a wide range of fibre splicing applications.

Supporting Single Mode (SM), Multi Mode (MM), DSF and NZDS fibre, the A-88S is suitable for various fibre optic network installations. Its 5-inch high-definition capacitive touchscreen and graphical user interface provide an intuitive operating experience.

Key Features
Model: A-88S
Product Type: Automatic Fibre Optic Fusion Splicer
Fibre Compatibility: SM, MM, DS and NZDS
Alignment: Fibre Core / Cladding
Focusing: Six-Motor Automatic Focusing
Welding Modes: Fully Automatic / Semi-Automatic / Manual
Typical Splicing Time: 8 seconds for SMF
Typical Heating Time: 18 seconds
Display: 5" HD Capacitive Touchscreen
Magnification: 300× X/Y Axis
Splicing Records: Up to 1,000 sets
Electrode Lifespan: Approximately 3,000 splices
Heat Shrink Sleeve: 20–60mm
Battery: 6700mAh Lithium Battery
Typical Battery Operation: Approximately 200 splicing and heating cycles
USB: Data export, system upgrades and power output
LED: Built-in lighting
Splicer Weight: 2.069kg including battery
Dimensions: 151 × 163 × 145mm
Integrated Optical Power Meter & VFL

The A-88S also includes an Optical Power Meter (OPM) with a measurement range of -70 to +10dBm and wavelength support from 850–1650nm across 10 bands.

The built-in Visual Fault Locator (VFL) provides a red-light testing range of ≥15km, helping technicians identify fibre faults and verify fibre continuity during installation and maintenance.

Low Splice Loss

The A-88S is specified with typical splice-loss values of:

SMF: 0.02dB
MMF: 0.01dB
DSF/NZDS: 0.04dB

A tensile test range of 1.96N–2.1N provides additional post-splicing testing capability.

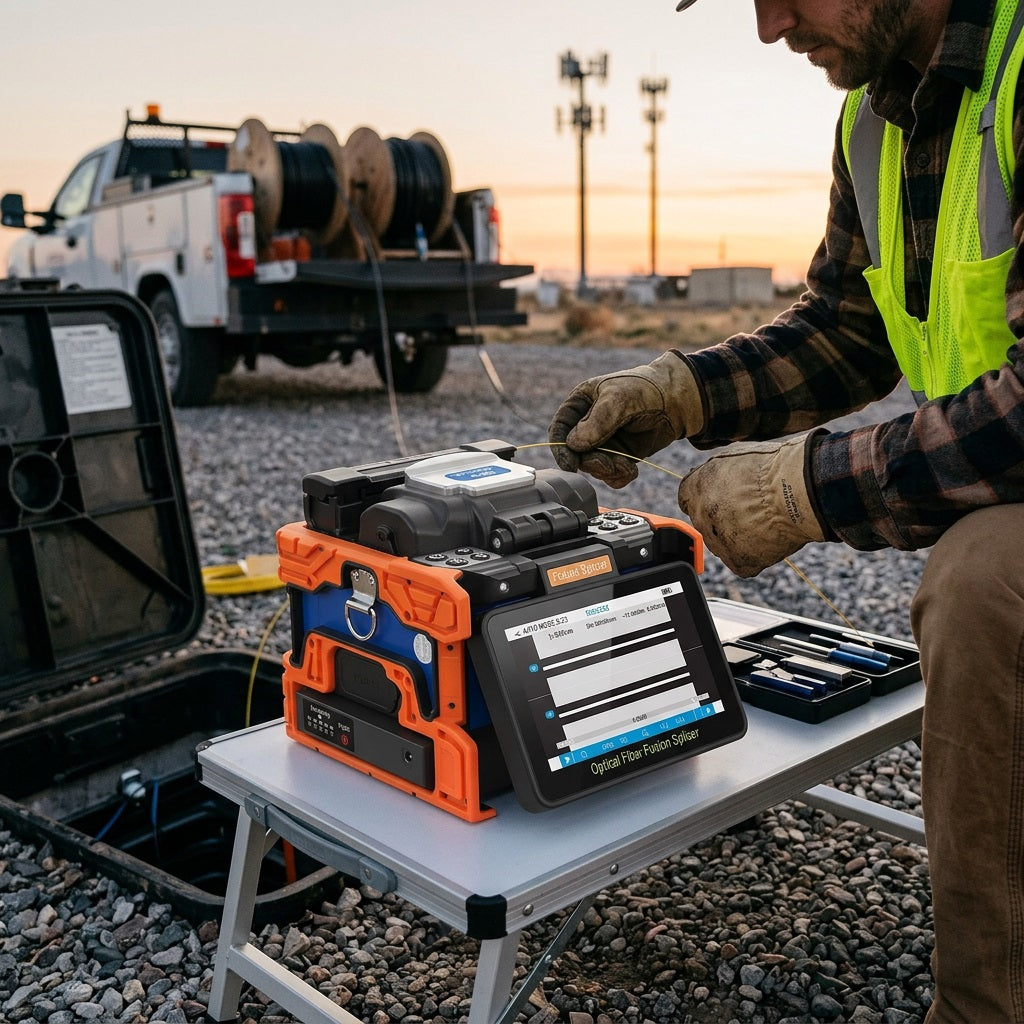

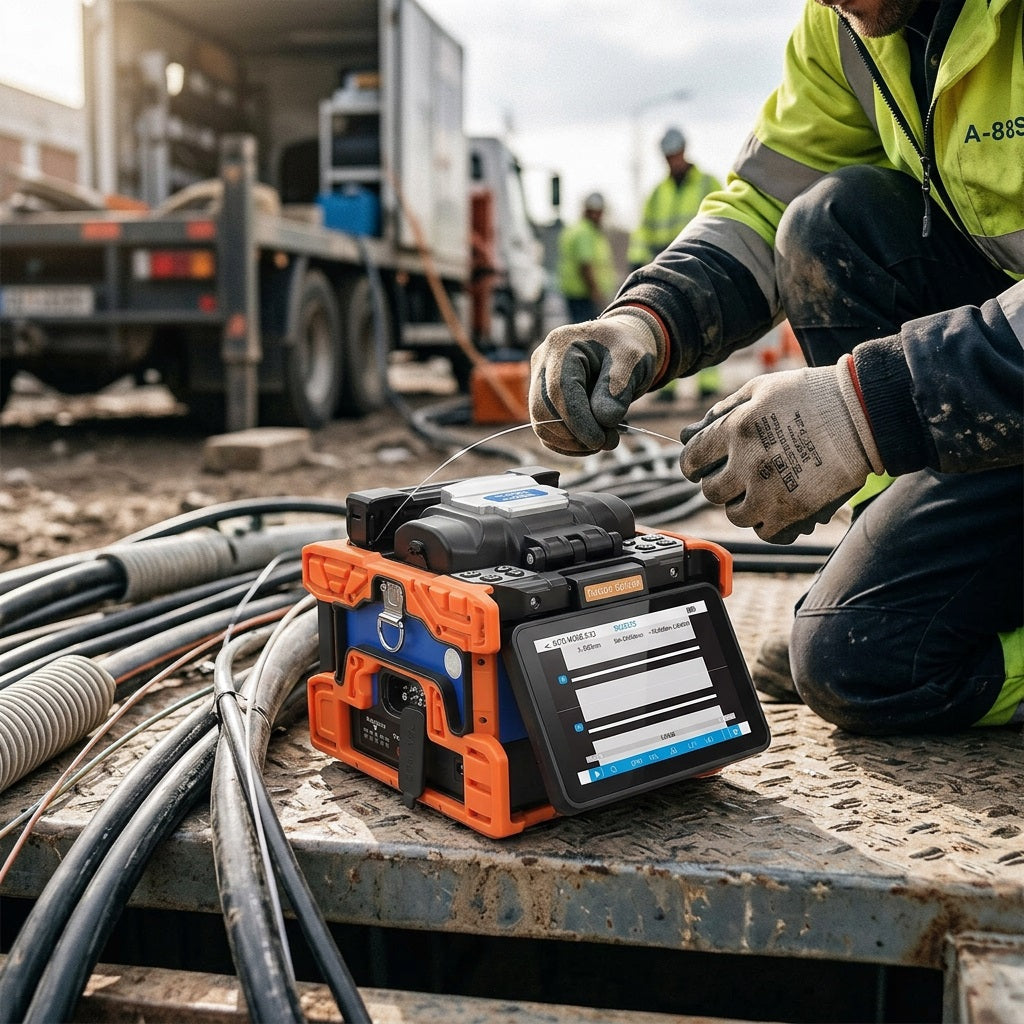

Portable Field-Ready Design

The A-88S comes with a dedicated toolbox featuring an integrated working design, allowing technicians to operate the fusion splicer without removing it from the case. The toolbox includes an integrated fibre cleaver operating area and a detachable stool with a stated load capacity of up to 150kg.

The built-in 6700mAh battery and external AC adapter make the unit suitable for both field and workshop applications.

Complete Toolkit & Accessories

The standard package includes:

1 × A-88S Fibre Optic Fusion Splicer
1 × Toolbox
1 × Fibre Cleaver
1 × 3-Port Fibre Stripping Forceps
1 × Leather Wire Stripper
1 × Pair Spare Electrode Rods
1 × Anti-Falling Bag
1 × Hand Strap / Shoulder Strap
1 × Power Cord
1 × Power Adapter
1 × Fibre Cleaver Operations Area
1 × Empty Alcohol Bottle
1 × Brush / Balloon Blowing Tool
1 × Airlaid Paper
1 × Calibrating Optical Fibre
1 × Fibre Optic Cooling Rack
100 × Heat Shrinkable Tubes
50 × Heat Shrink Tubing for Leather Wires
10 × Protection Boxes
Instruction Manual
Warranty Card
Certificate
Checklist
Toolbox Specifications
Toolbox Dimensions: 30 × 22 × 34cm
Toolbox Weight: Approximately 7.14kg including machine and accessories
Detachable Stool: Load capacity up to 150kg
Integrated Design: Fusion splicer can be operated without removing it from the toolbox
Outer Package Dimensions: 33.5 × 23.8 × 32.5cm
Total Shipping Weight: Approximately 7.74kg
Ideal For
FTTH installations
Fibre-to-the-home projects
Fibre optic network installation
Telecommunications
FTTx networks
Data communication networks
Network contractors
Fibre optic technicians
Fibre cable repairs and maintenance
Fibre optic testing and fault finding
Commercial and residential fibre installations
