AI-30 Automatic Fiber Optic Fusion Splicer – FTTH Fibre Cable Splicing Machine

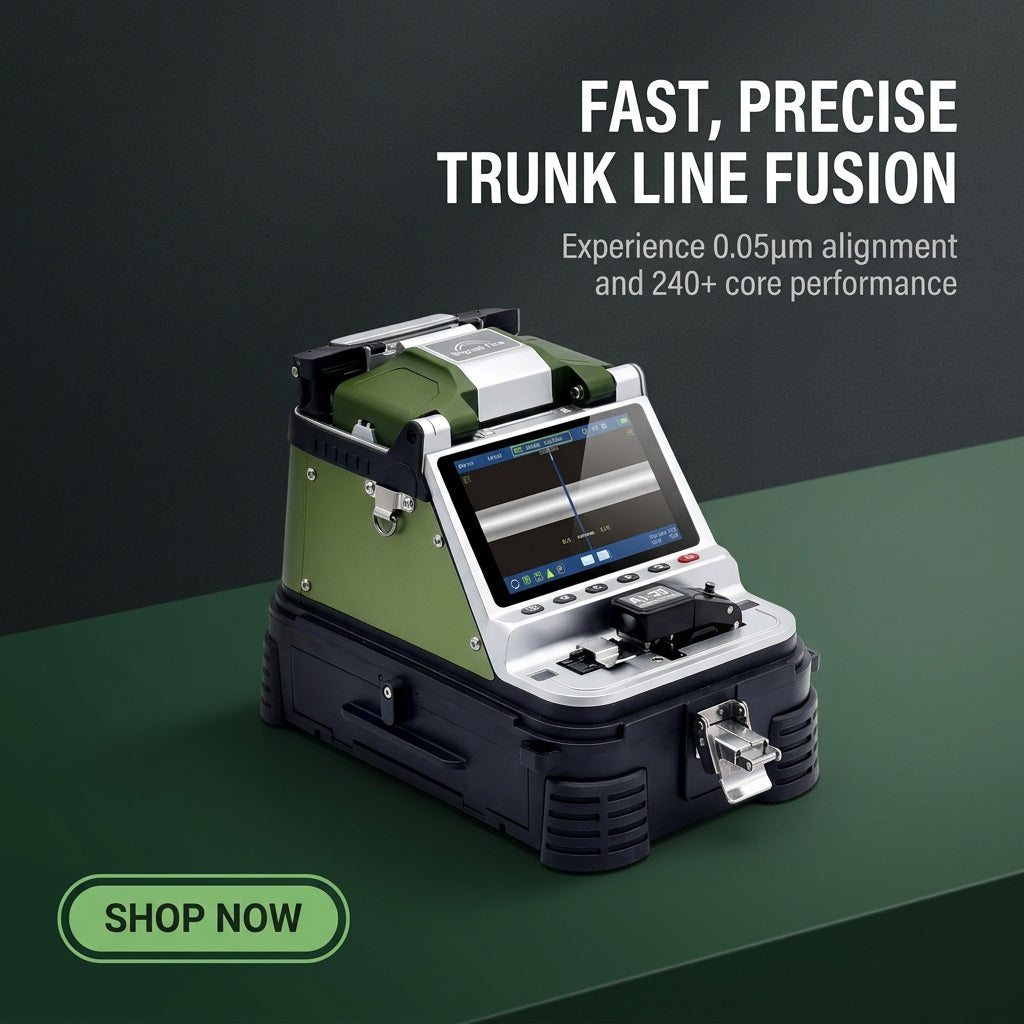

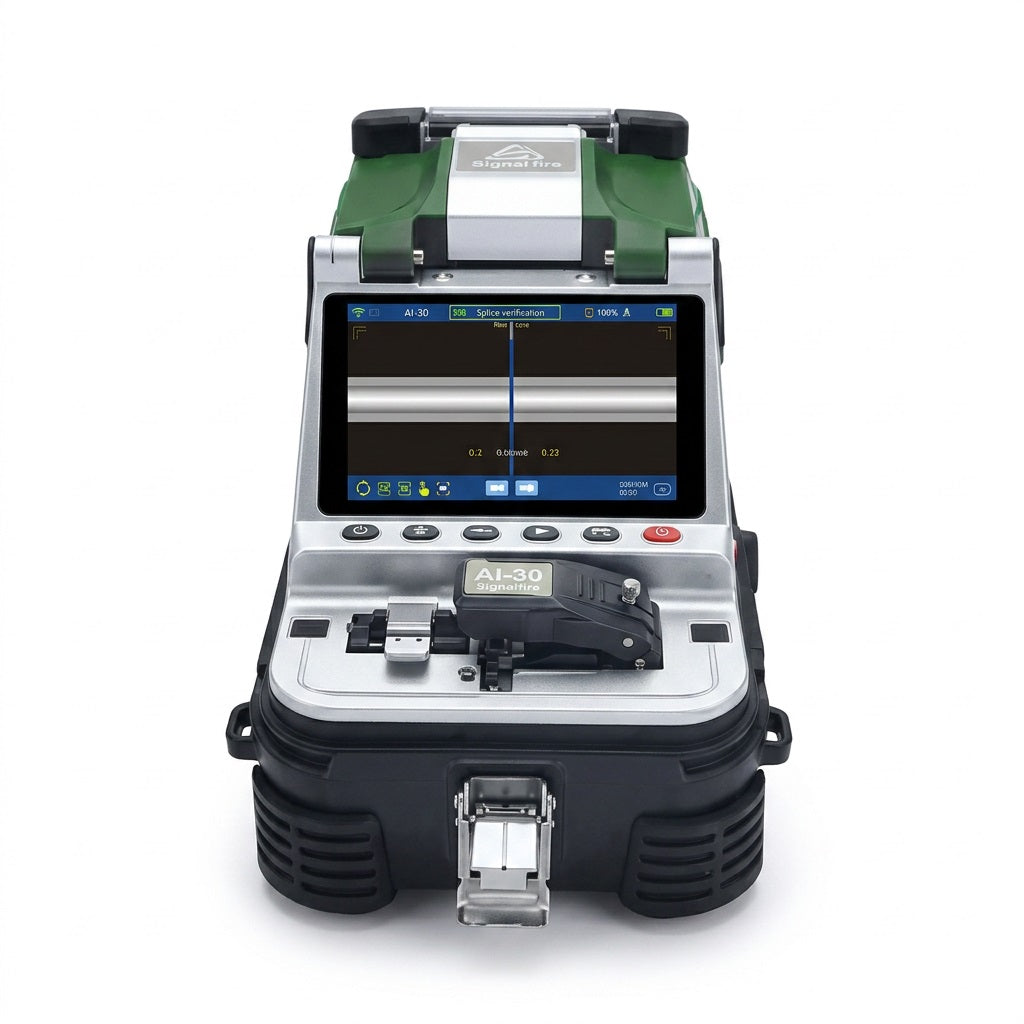

The Signal Fire AI-30 Automatic Fiber Optic Fusion Splicer is a professional fourth-generation fibre fusion splicing machine designed for FTTH installation, trunk-line fibre splicing, fibre optic network construction, repair and maintenance. Featuring a highly integrated full-link design, the AI-30 combines a 6-motor fibre core/cladding alignment system, built-in electric one-step fibre cleaver, Optical Power Meter (OPM), Visual Fault Locator (VFL), 5-inch colour touchscreen and high-capacity rechargeable battery in one compact and portable solution.

With advanced fibre recognition, high-precision alignment and intelligent splicing algorithms, the AI-30 is designed to provide efficient and stable fibre splicing performance while reducing the need for separate auxiliary testing and preparation equipment.

KEY FEATURES
4th Generation 6-Motor Fibre Alignment

The Signal Fire AI-30 features a 6-motor core and cladding alignment system with approximately 0.05 `ecm fibre alignment accuracy. The upgraded processing system, clearer optical lenses and improved fibre-core recognition help provide accurate fibre positioning and stable fusion splicing performance.

Full-Link Integrated Design

The AI-30 is designed around a highly integrated fibre installation workflow. It combines:

Automatic fibre fusion splicer
Electric one-step fibre cleaver
Optical Power Meter (OPM)
Visual Fault Locator (VFL)
9-in-1 Signal Fire fibre stripper
Integrated fibre preparation accessories
Portable workbench/worktable design

This integrated design helps technicians reduce the number of separate tools required during fibre installation and maintenance.

Built-In High-Precision Electric Fibre Cleaver

The AI-30 incorporates a high-precision delayed-return electric one-step fibre cleaver. Once the fibre is positioned and the cover is closed, the cleaver can automatically perform the cutting operation.

Key cleaver functions include:

Automatic and manual blade-surface changing
Blade surface automatically changes after more than 1,000 cuts or repeated unsuccessful cuts
Adjustable delayed return time from 0.2 to 2 seconds
Factory delay setting of approximately 0.5 seconds
Built-in LED auxiliary lighting
LED brightness adjustable through the SignalFire APP

The delayed-return design helps reduce the possibility of scratching the fibre end face during cutting.

Built-In Optical Power Meter

The integrated Optical Power Meter (OPM) allows technicians to perform fibre optical power and link-loss related measurements without carrying a separate OPM.

OPM specifications:

Measurement range: -50 to +30 dBm
10 selectable wavelengths
850nm
980nm
1270nm
1300nm
1310nm
1490nm
1550nm
1577nm
1625nm
1650nm
Built-In Visual Fault Locator

The integrated 15mW Visual Fault Locator (VFL) provides visible red laser light for fibre identification, continuity checking, breakpoint detection and light-leakage troubleshooting.

Output power: 15mW
Constant-light mode
2Hz flashing mode
Detection distance up to approximately 10km
Real-Time Luminous Flux Assisted Alignment

The AI-30 incorporates Signal Fire`s real-time luminous flux assisted alignment technology. When used in an environment with a stable optical signal link, the system can intelligently analyse the fibre alignment position and identify the point with the lowest splicing loss before completing the splice.

Fast Fibre Splicing & Heating

The AI-30 provides fast operating performance with approximately:

6-second fibre splicing
15-second heating
Automatic heating
Automatic lid closing
Expandable and closable cooling rack
Automatic pre-heating functionality

Heating parameters can be adjusted according to the operating environment.

3-in-1 Universal Fibre Holder

The universal fibre fixture supports a wide range of fibre and cable configurations, making the AI-30 suitable for various fibre installation applications.

Compatible applications include:

Bare optical fibre
Single-mode fibre
Multi-mode fibre
Pigtails
FTTH drop cables
Patch cords
Invisible fibre
SC fibre connectors with dedicated SC support
5-Inch Colour Touchscreen

The AI-30 features a 5-inch colour touchscreen for convenient operation and clear fibre viewing.

Magnification:

Up to 320× for X or Y single-axis viewing
Up to 200× for simultaneous X/Y viewing

Clear physical control buttons are also provided for essential functions.

High-Capacity 7800mAh Battery

The removable 7800mAh lithium battery provides approximately 240 continuous splice-and-heat cycles, making the AI-30 suitable for field installations where access to mains power may be limited.

Battery capacity: 7800mAh
Approx. 240 splice/heat cycles
Charging time: ≤3.5 hours
Removable battery
AC 100–240V input
DC 13.5V / 4.8A output
Bluetooth SignalFire2 APP Connectivity

The AI-30 supports Bluetooth 4.2 connectivity and can connect to the SignalFire2 mobile application for convenient device management and configuration.

The APP supports functions such as:

System parameter configuration
Fibre cleaver settings
Device management
Firmware updates
Data management
Cloud data export
Device tracking
Multi-device authority binding

Bluetooth operates at 2.4GHz with a transmission range of up to approximately 60 metres.

TECHNICAL SPECIFICATIONS
Specification Details
Model Signal Fire AI-30
Type Automatic Fiber Optic Fusion Splicer
Generation 4th Generation
Alignment Method Core / Cladding Alignment
Motors 6 Motors
Alignment Accuracy 0.05 `ecm
Splicing Time Approx. 6 seconds
Heating Time Approx. 15 seconds
SM Fibre Splicing Loss 0.02 dB
MM Fibre Splicing Loss 0.01 dB
DS / NZDS Splicing Loss 0.04 dB
Return Loss >60 dB
Compatible Fibre Standards G.652, G.651, G.653, G.654, G.655, G.657
Compatible Fibre Types Bare fibre, pigtails, drop cables, patch cords, invisible fibre
Cladding Diameter 80–150 `ecm
Coating Diameter 100–1000 `ecm
Cutting Length 8–16mm for coating <250`ecm; 16mm for 250–1000`ecm
OPM Range -50 to +30 dBm
OPM Wavelengths 850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650nm
OPM Accuracy Absolute error <0.3 dB
VFL Output 15mW
VFL Modes Constant / 2Hz Flash
VFL Range Up to 10km
Fibre Holder 3-in-1 Universal Fixture
Heat Shrink Sizes 60mm / 50mm / 40mm / 25mm
Display 5-inch Colour Touchscreen
Magnification 320× X/Y single display; 200× X/Y dual display
Boot Time Approx. 1 second
Data Storage 1,000 local groups + cloud server export
Battery 7800mAh Removable Lithium Battery
Battery Capacity Approx. 240 splice/heat cycles
Charging Time ≤3.5 hours
Power Input AC 100–240V
Power Output DC 13.5V / 4.8A
Bluetooth Bluetooth 4.2
Bluetooth Frequency 2.4GHz
Bluetooth Range Up to 60m
Languages 11 Languages
Operating Temperature -15°C to +50°C
Operating Humidity <95% RH
Operating Altitude 0–5000m
Protection Waterproof, dustproof and fall-proof design
Machine Dimensions 185 × 165 × 230mm
Machine Weight Approx. 3.09kg
Toolbox Dimensions 255 × 165 × 230mm
Complete Toolbox Weight Approx. 4.50kg
Total Package Dimensions 340 × 255 × 325mm
Total Package Weight Approx. 5.50kg
COMPLETE PACKAGE CONTENTS

The Signal Fire AI-30 is supplied as a comprehensive professional fibre optic splicing and installation kit.

Package includes:

Signal Fire AI-30 Automatic Fiber Optic Fusion Splicer
Professional Toolcase / Carrying Case
Integrated Stool / Workbench
Spare Electrodes
Signal Fire 9-in-1 Fibre Stripper
Kevlar Fibre Scissors
3-Port Miller Fibre Stripper
5G FTTH Drop Cable Stripper
Regular FTTH Drop Cable Stripper
Steel Wire Pliers
Rotary Ruler
Cleaning Cotton
Alcohol Push Bottle
Cleaver Cleaning Cotton Swab Set
Allen Wrench Set
Cleaning Brush
Climbing Combination Hanging Chain
Toolbox Shoulder Strap
Waist Belt
Power Adapter
Power Cord
User Manual
Quality Certificate
Warranty Card
Fibre for ARC
IDEAL APPLICATIONS

The Signal Fire AI-30 Automatic Fiber Optic Fusion Splicer is ideal for:

FTTH fibre optic installation
Fibre-to-the-home deployment
Telecom network construction
Trunk-line fibre splicing
Fibre optic cable repair
ISP installations
Data communication networks
Fibre optic maintenance
FTTx projects
Outdoor fibre installations
Fibre network testing and troubleshooting
Professional fibre optic technicians
Field fibre splicing applications
PROFESSIONAL FIBRE SPLICING SOLUTION

The Signal Fire AI-30 provides an all-in-one solution for professional fibre optic technicians. By integrating 6-motor fibre alignment, automatic fusion splicing, electric fibre cleaving, OPM testing, VFL testing and fibre preparation tools, it helps streamline the complete fibre installation process.

Its 7800mAh battery, compact design, integrated workbench, Bluetooth APP connectivity and rugged field-ready construction make the AI-30 suitable for FTTH contractors, telecommunications technicians, network installers and fibre optic maintenance professionals.
