COMPTYCO AUA-180U OTDR Fiber Optic Tester – 1310/1550nm Dual-Wavelength Fibre Network Analyzer
Short Description (Key Features)
8-in-1 Multifunctional Fibre Network Tester: Combines OTDR, EventMap, Optical Power Meter (OPM), Visual Fault Locator (VFL), Optical Light Source (OLS), Optical Loss Testing, LED Lighting, and File Management in one compact handheld device.
1310/1550nm Dual-Wavelength OTDR: Designed for G.652D and G.657A1 single-mode fibre, with a dynamic range of 22/20dB and selectable testing distances up to 80km.
High-Precision Fault Detection: Features a 2m event dead zone (EDZ) and 8m attenuation dead zone (ADZ) for accurate identification of fibre events, faults and attenuation points.
One-Key Automatic OTDR Analysis: Automatically analyses fibre links and generates graphical EventMap results, helping identify reflection events, attenuation, splitters, bending losses and fibre ends.
10-Wavelength Optical Power Meter: Supports 10 calibrated wavelengths from 850nm to 1650nm, with measurement ranges of -70 to +10dBm and -50 to +26dBm.
Universal 2.5mm Optical Interface: Supports standard FC, SC and ST connectors, with an optional LC adapter available for additional connector compatibility.
650nm Visual Fault Locator: Integrated red laser VFL with a stated range of ≥10km for locating fibre breaks, macro-bends, damaged sections and faulty connections.
Stabilized Optical Light Source: Provides 1310nm/1550nm FP/DFB laser output at -5dBm ±3dB for optical loss testing and fibre link verification.
Ultra-Portable Design: Weighing only 220g and measuring 13.5 × 7.8 × 3.5cm, the AUA-180U is easy to carry and operate during field installations and maintenance.
2000mAh Battery & Type-C Charging: Built-in 2000mAh / 3.7V rechargeable lithium battery with Type-C USB charging for convenient mobile operation.
Long Product Description

The COMPTYCO AUA-180U OTDR Fiber Optic Tester is an ultra-portable, multifunctional fibre network testing instrument designed for FTTH installation, fibre optic maintenance, network commissioning and troubleshooting. Combining OTDR analysis, optical power measurement, visual fault locating, optical light source and other essential field-testing functions into a single handheld unit, it provides technicians with a practical solution for everyday fibre diagnostics.

Operating at 1310nm and 1550nm dual wavelengths, the AUA-180U supports G.652D and G.657A1 single-mode fibre and provides a dynamic range of 22/20dB. With selectable measurement ranges from 100m to 80km, it can be used for both short-distance fibre installations and longer network links.

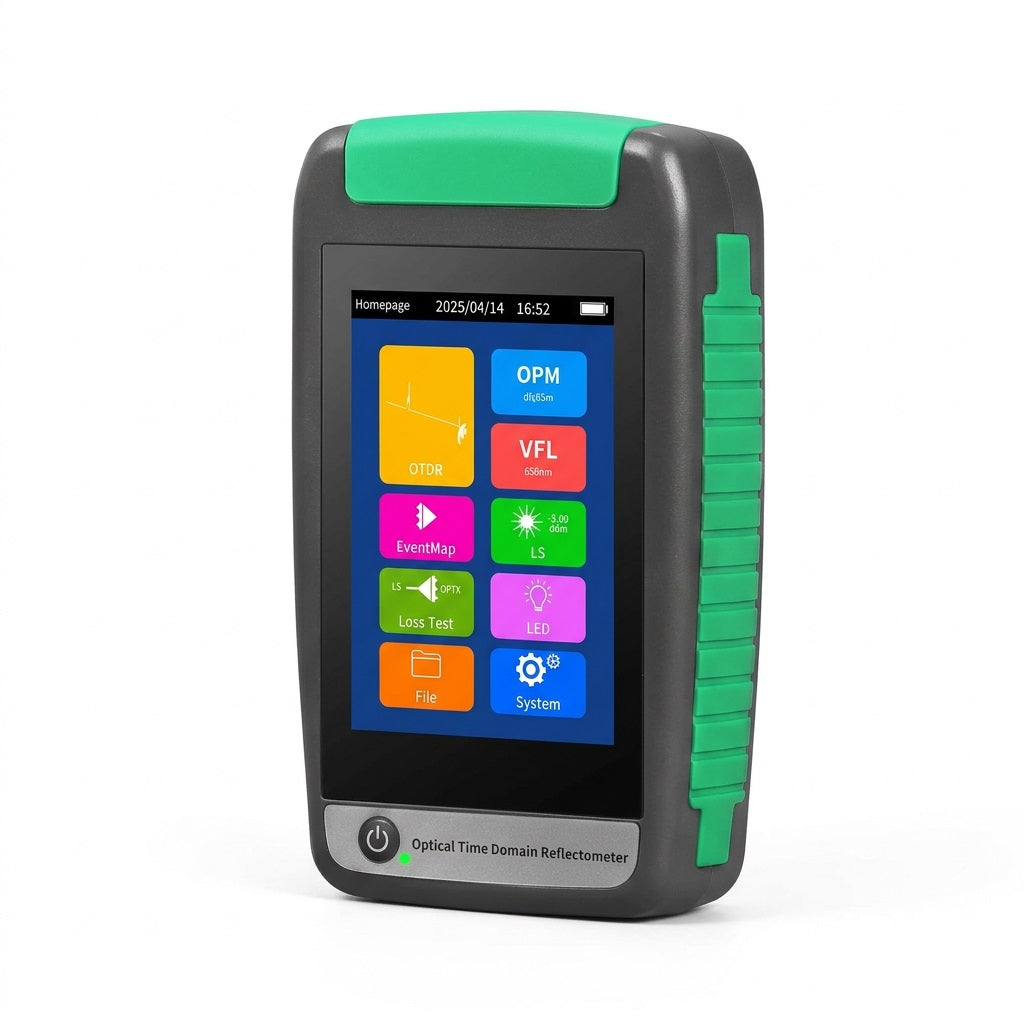

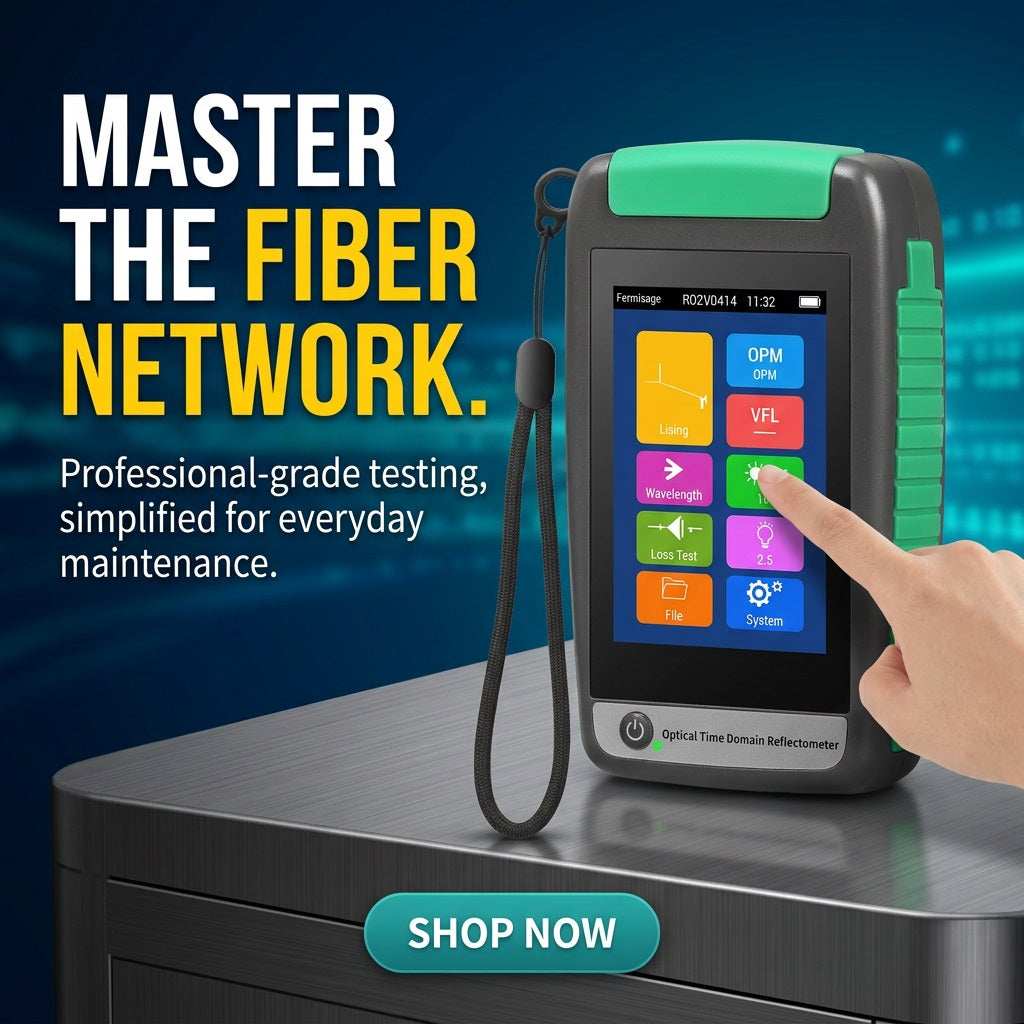

The built-in high-definition touchscreen provides intuitive access to the tester`s functions and measurement results. Its one-key automated OTDR analysis simplifies testing by automatically evaluating the fibre trace and generating an EventMap showing important events along the fibre link.

Integrated Test Modules

1. Optical Time Domain Reflectometer (OTDR) & EventMap

The OTDR module provides dual-wavelength testing at 1310nm and 1550nm, allowing technicians to measure fibre distance, attenuation and identify faults along the optical link.

With a 2m event dead zone and 8m attenuation dead zone, the tester is designed to identify fibre events with high positional accuracy. Measurement ranges can be selected from 100m, 500m, 1km, 2km, 5km, 10km, 20km, 40km, 60km and 80km.

The EventMap function presents test results graphically, helping technicians identify reflection events, attenuation events, splitters and the end of the fibre.

2. Optical Power Meter (OPM)

The integrated Optical Power Meter supports 10 calibrated wavelengths:

850nm
1270nm
1300nm
1310nm
1490nm
1550nm
1577nm
1610nm
1625nm
1650nm

It provides two selectable measurement ranges: -70 to +10dBm and -50 to +26dBm. The universal 2.5mm interface supports FC, SC and ST optical connectors, while an optional adapter can be used for LC connections.

3. Visual Fault Locator (VFL)

The integrated 650nm red laser VFL provides a stated range of ≥10km, allowing technicians to visually trace fibre faults. It can assist in locating fibre breaks, macro-bends, damaged sections, poor splices and problematic connectors.

4. Stabilized Optical Light Source (OLS)

The built-in optical light source uses 1310nm and 1550nm FP/DFB laser technology and provides an output level of -5dBm ±3dB. It can be used with the OPM function to perform optical link loss testing and verify fibre components.

The OPM also supports 270Hz, 330Hz, 1kHz and 2kHz frequency detection for compatible optical test signals.

5. Trace Storage & Data Management

The AUA-180U can store ≥400 OTDR traces internally and provides an SD card slot for external storage expansion. This allows technicians to retain measurement results for documentation, comparison and future maintenance.

6. Integrated LED Work Light

A built-in LED flashlight provides additional illumination when working in dark telecommunications cabinets, equipment rooms, outdoor installations or other low-light environments.

7. Portable Power System

The tester incorporates a 2000mAh / 3.7V rechargeable lithium battery and Type-C USB charging interface. Its lightweight 220g construction makes it particularly suitable for technicians who need to carry their testing equipment throughout the working day.

Key Applications
FTTH fibre optic installation
Single-mode fibre testing
Fibre network commissioning
Fibre link maintenance
Fibre fault and breakpoint detection
Fibre length measurement
Attenuation and optical loss testing
Splice and connector troubleshooting
Splitter and fibre-end identification
ISP and telecommunications maintenance
Broadband network troubleshooting
Optical component verification
Field service and technical diagnostics
Technical Specifications
Parameter / Feature Specification
Brand COMPTYCO
Model AUA-180U
Product Type Mini Multifunctional OTDR Fibre Optic Tester
OTDR Wavelengths 1310nm / 1550nm ±20nm
Dynamic Range 22dB / 20dB
Applicable Fibre Type G.652D / G.657A1 Single-Mode Fibre
Event Dead Zone (EDZ) 2m
Attenuation Dead Zone (ADZ) 8m
Measuring Ranges 100m / 500m / 1km / 2km / 5km / 10km / 20km / 40km / 60km / 80km
Pulse Widths 5ns / 10ns / 20ns / 50ns / 100ns / 275ns / 500ns / 1`ecs / 2`ecs / 5`ecs / 10`ecs
OPM Wavelengths 850 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1610 / 1625 / 1650nm
OPM Measurement Range A -70 to +10dBm
OPM Measurement Range B -50 to +26dBm
OPM Frequency Support 270Hz / 330Hz / 1kHz / 2kHz
OPM Interface Universal 2.5mm FC / SC / ST
LC Compatibility Optional LC adapter
Optical Light Source 1310 / 1550nm FP/DFB Laser
OLS Output Power -5dBm ±3dB
VFL Wavelength 650nm Red Laser
VFL Range ≥10km
Trace Storage Internal ≥400 traces
External Storage SD Card Slot
Battery 2000mAh / 3.7V Rechargeable Lithium Battery
Charging Interface Type-C USB
Display High-Definition Touch Screen
LED Light Integrated
Dimensions 13.5 × 7.8 × 3.5cm
Weight Approx. 220g
Hardware & Interface Highlights
High-definition touch-screen display
1310/1550nm OTDR testing interface
Universal 2.5mm OPM interface
FC / SC / ST connector compatibility
Optional LC adapter support
Integrated 650nm VFL
1310/1550nm FP/DFB optical light source
Type-C USB charging interface
SD card expansion slot
Integrated LED flashlight
Built-in rechargeable lithium battery
Compact 220g handheld construction
Anti-fall protective carrying case
What’s in the Box
1 × COMPTYCO AUA-180U OTDR Fibre Optic Tester
1 × Anti-Fall Protective Storage Bag
1 × Outer Packaging Box
1 × User Manual
1 × Type-C Charging Cable
1 × Pack of Cleaning Cotton Swabs
1 × Lanyard / Wrist Strap

Package Dimensions: Approx. 10.8 × 17.3 × 6.5cm
Total Package Weight: Approx. 410g
