COMPTYCO AUA-400X Fiber Optic Inspection

COMPTYCO AUA-400X Fiber Optic Inspection Microscope – 400X Fibre Connector End-Face Tester
Short Description
400X High Magnification: Provides clear 400X optical magnification for detailed inspection of fiber optic connector end-faces, helping identify scratches, pits, dust, oil, and other contamination.
1.25 mm & 2.5 mm Universal Adapters: Includes interchangeable 1.25 mm adapter for LC connectors and 2.5 mm adapter for SC, FC, and ST connectors, providing compatibility with commonly used fiber optic interfaces.
Built-In Eye Protection: Equipped with an integrated infrared attenuation filter designed to help protect the user`s eyes during fiber connector inspection.
Durable Field-Ready Construction: Designed with seismic and pressure-resistant construction for dependable use in professional fiber optic installation and maintenance environments.
Waterproof & Dustproof Housing: Protective housing helps shield the internal optical components from dust and moisture, making the microscope suitable for demanding field applications.
Easy Plug-and-Play Operation: Ergonomic handheld design with a smooth focusing handwheel allows quick and convenient inspection with minimal setup.
Long-Life LED Illumination: Built-in LED light source provides reliable illumination with a rated service life of approximately 10,000 hours.
Long Product Description

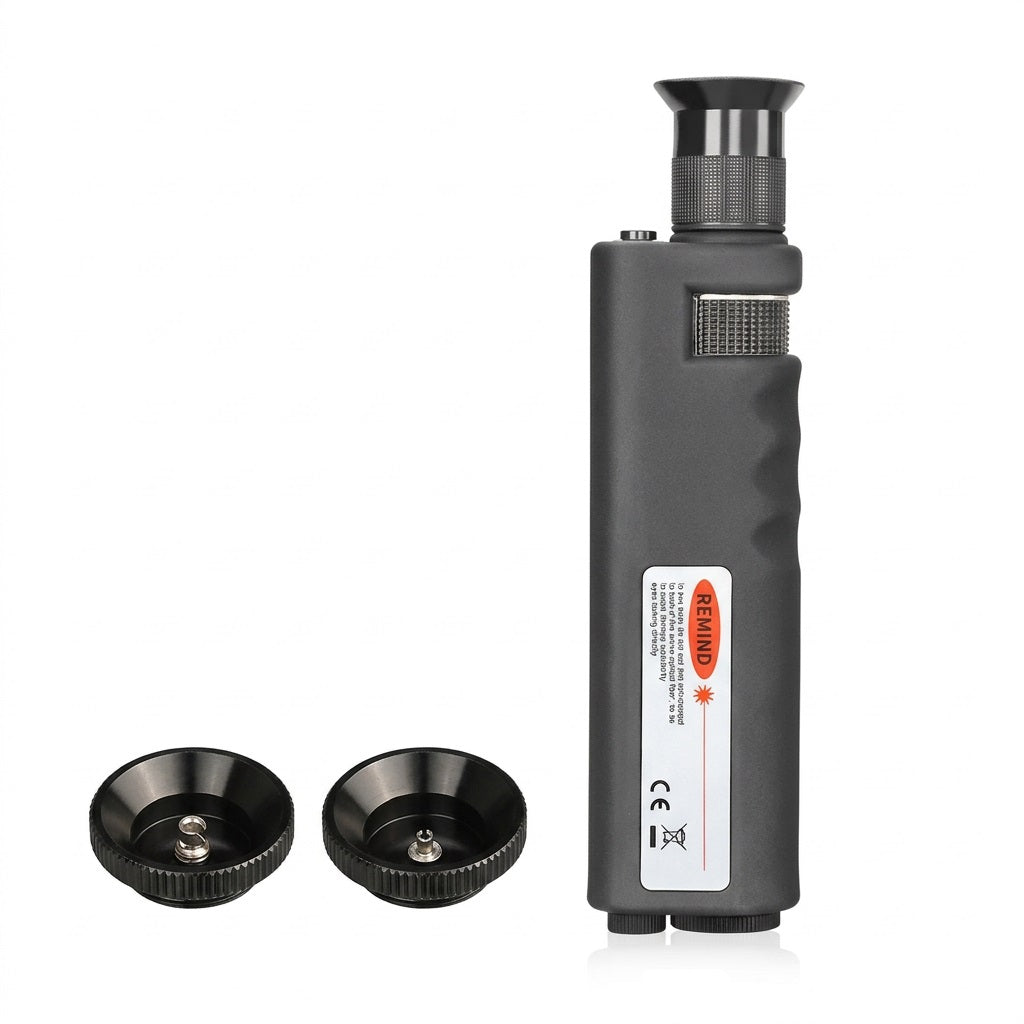

The COMPTYCO AUA-400X Fiber Optic Inspection Microscope is a professional handheld inspection tool designed for detailed examination of fiber optic connector end-faces. With 400X optical magnification, it enables technicians to clearly inspect connector surfaces for common defects and contamination such as dust, scratches, pits, oil, and other particles that may affect fiber optic signal performance.

The AUA-400X is supplied with two interchangeable universal adapter interfaces for broad connector compatibility. The 2.5 mm adapter is suitable for commonly used SC, FC, and ST connectors, while the 1.25 mm adapter is designed for LC connectors. This makes the microscope a versatile inspection solution for telecommunications, data networking, FTTH installations, and fiber optic maintenance.

For enhanced user safety, the microscope incorporates a built-in infrared attenuation filter to help reduce exposure to potentially harmful optical radiation during inspection. The integrated LED illumination system provides consistent lighting of the connector end-face, while the long-life LED is rated for approximately 10,000 hours of operation.

Designed for professional field use, the COMPTYCO AUA-400X features a rugged, waterproof, and dustproof housing with seismic and pressure-resistant construction. This helps protect the optical components when the tool is used in challenging installation and maintenance environments.

The ergonomic handheld design provides comfortable operation, while the smooth focusing handwheel allows technicians to quickly adjust the image for clear and detailed viewing. Its plug-and-play operation makes the microscope practical for both experienced fiber technicians and users who require a straightforward connector inspection solution.

Powered by three AAA 1.5 V batteries, the COMPTYCO AUA-400X is portable and convenient for field inspections where access to mains power may not be available.

Whether used for fiber optic installation, connector maintenance, troubleshooting, network commissioning, or pre-connection inspection, the COMPTYCO AUA-400X provides a practical way to identify connector end-face contamination and physical defects before they cause connectivity or signal-quality problems.

Key Applications
Fiber optic connector end-face inspection
FTTH installation and maintenance
Fiber optic network commissioning
Telecommunications infrastructure
Data center fiber inspection
Fiber patch cord inspection
Connector contamination detection
Fiber optic troubleshooting and maintenance
Pre-connection connector inspection
Technical Specifications
Specification / Parameter Detail / Value
Brand COMPTYCO
Model AUA-400X
Product Type Handheld Fiber Optic Connector Inspection Microscope
Magnification 400X
Adapter Interfaces 1.25 mm & 2.5 mm
1.25 mm Adapter Compatibility LC Connectors
2.5 mm Adapter Compatibility SC, FC & ST Connectors
Light Source LED
LED Service Life Approx. 10,000 Hours
Safety Filter Built-In Infrared Attenuation Filter
Power Supply 3 × AAA 1.5 V Batteries
Product Dimensions Approx. 225 × 58 mm (L × W)
Net Weight Approx. 450 g
Package Weight Approx. 500 g
Environmental Protection Waterproof & Dustproof
Durability Seismic & Pressure Resistant
Operation Handheld, Plug-and-Play
Focusing Manual Focusing Handwheel
What`s in the Box
1 × COMPTYCO AUA-400X Fiber Optic Inspection Microscope
1 × 2.5 mm Universal Adapter – For SC / FC / ST Connectors
1 × 1.25 mm Universal Adapter – For LC Connectors
1 × Carrying Bag
1 × Instruction Manual
1 × Packaging Box
