COMPTYCO AUA-600 Fiber Optic End-Face

COMPTYCO AUA-600 Fiber Optic End-Face Inspection Microscope – 200X/400X HD Touch Screen – 6 Connector Adapters – Orange
Product Overview

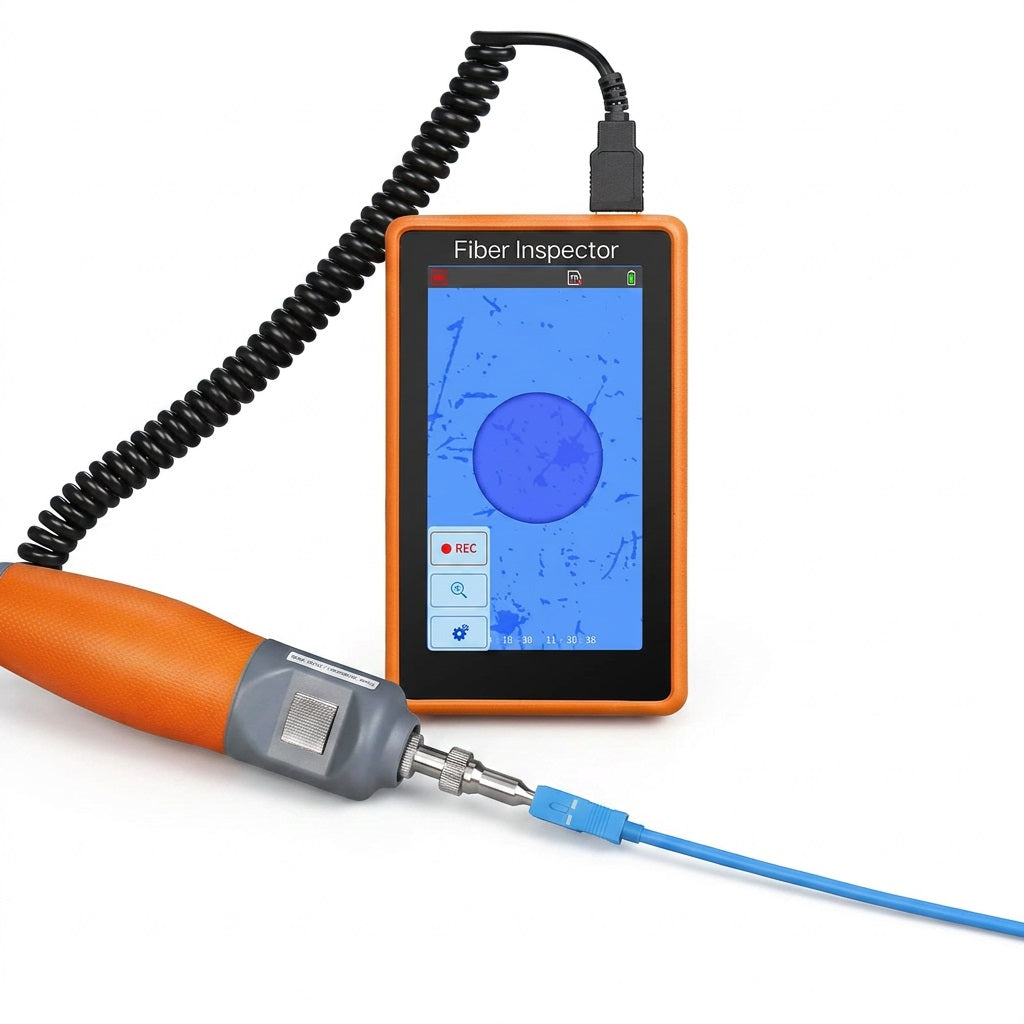

The COMPTYCO AUA-600 Fiber Optic End-Face Inspection Microscope is a professional handheld fiber inspection tool designed for technicians, fiber installers, splicing specialists, and network maintenance teams. It provides a clear, magnified view of fiber optic connector end-faces, making it easier to identify dust, contamination, scratches, and visible defects before connecting, splicing, or testing fiber links.

Featuring a 5-inch HD LCD touchscreen, 200X/400X magnification, 854 × 480 image resolution, real-time recording, and PC connectivity, the AUA-600 combines inspection, recording, and data management in a compact portable unit.

The included 6-piece adapter head kit provides compatibility with common SC, FC, ST, and LC UPC connectors, with optional SC/APC adapters for additional inspection requirements.

Key Features & Benefits
???? 200X / 400X High-Precision Magnification
Dual magnification levels of 200X and 400X.
200X is the default magnification.
Helps technicians inspect fiber connector end-faces in greater detail.
854 × 480 pixel image resolution provides a clear inspection view.
Visual range of 0.316 × 0.285 `ecm.
????️ 5-Inch HD Touchscreen Display
Large 5-inch HD LCD touchscreen.
Display resolution: 960 × 240.
Enhanced brightness and clear image viewing.
Touch controls provide convenient operation in the field.
???? Real-Time Video & Inspection Recording

The AUA-600 supports recording and storage of inspection results for later review.

Real-time video recording.
25 FPS video frame rate.
AVI video output.
NTSC/PAL format support.
Includes an 8GB TF memory card.
FAT32 storage format.
Card reader included for convenient data transfer.
???? PC Connectivity & Live View

Connect the inspection microscope to a computer using USB for additional functionality.

USB 1.1 / 2.0 interface.
Transfer recorded inspection data.
View the fiber inspection image in real time on a computer.
Useful for larger-screen inspection and data management.
???? 6-Piece Fiber Connector Adapter Kit

The supplied adapter heads support a wide range of commonly used fiber connector interfaces.

Includes:

SC Female
LC Female
SC/FC/ST UPC Universal Male
LC UPC Male
SC APC Male
SC APC Female

This makes the AUA-600 suitable for inspection work across different fiber connector configurations.

???? 4000mAh Rechargeable Battery
Built-in 4000mAh rechargeable lithium battery.
Provides ≥7 hours of operating time.
Type-C USB charging.
Charging specification: 5V / 2A.
Suitable for extended field inspection work without frequent recharging.
???? Portable Field Inspection Design

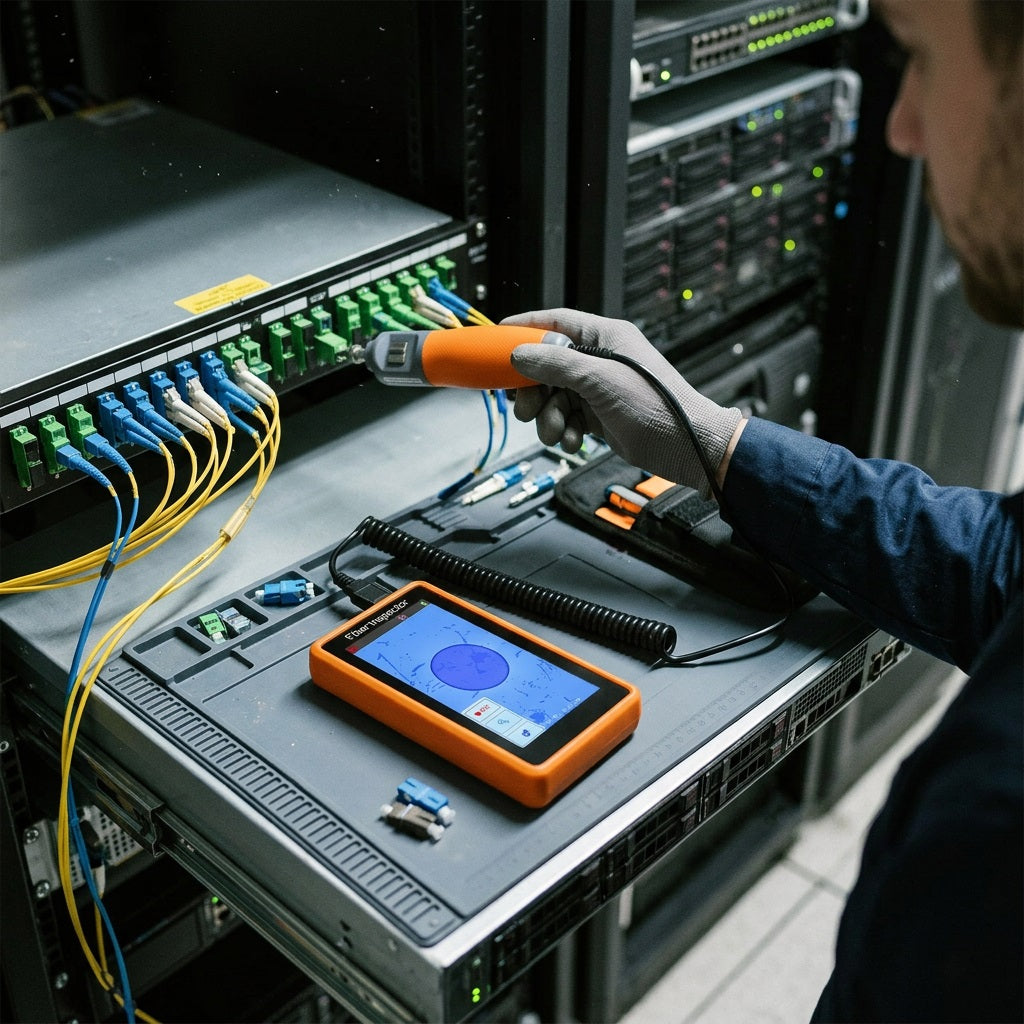

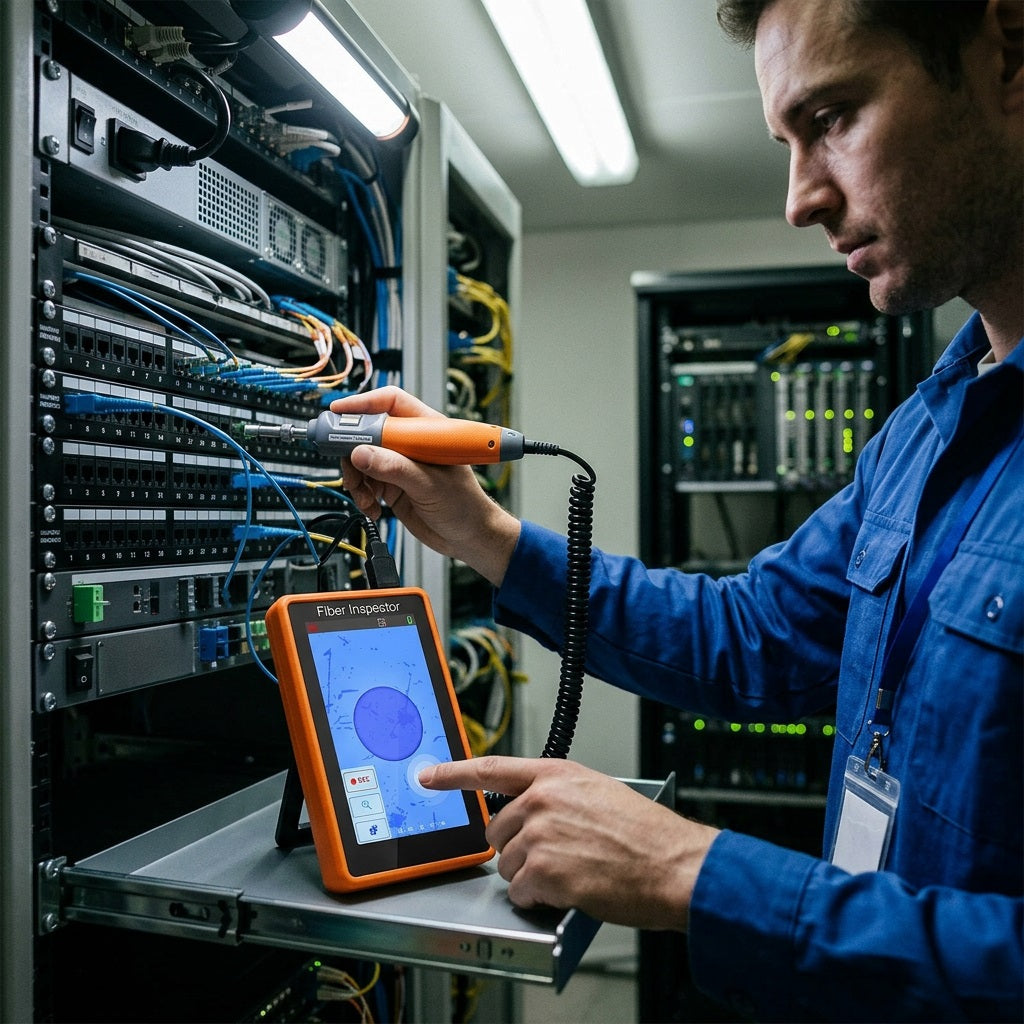

The compact probe and display unit make the AUA-600 convenient for technicians working on-site.

Handheld inspection probe.
Lightweight 185g probe.
Protective carrying toolkit case.
Lanyard strap included.
Dedicated accessory storage box.
Technical Specifications
Specification Details
Brand COMPTYCO
Model AUA-600
Product Type Fiber Optic End-Face Inspection Microscope / Detector
Colour Industrial Orange / Slate Gray
Display 5-Inch HD LCD Touchscreen
Display Resolution 960 × 240
Magnification 200X / 400X
Default Magnification 200X
Image Resolution 854 × 480 pixels
Visual Range 0.316 × 0.285 `ecm
Video Frame Rate 25 FPS
Video Format AVI
Video System NTSC / PAL
Storage 8GB TF Card Included
Memory Format FAT32
PC Interface USB 1.1 / 2.0
Battery Rechargeable Lithium Battery
Battery Capacity 4000mAh
Operating Time ≥7 Hours
Charging Type-C USB
Charging Input 5V / 2A
Probe Dimensions 160 × 38 × 38mm
Probe Weight 185g
Display Unit Dimensions 14.5 × 8.8 × 2.2cm
Overall Package Weight Approx. 780g
Package Dimensions Approx. 26.5 × 15.2 × 8.6cm
Fiber Connector Compatibility

The AUA-600 includes a versatile adapter set for inspecting multiple connector types:

UPC Connectors:

SC
FC
ST
LC

APC Support:

SC/APC Male
SC/APC Female

This broad adapter compatibility makes the microscope suitable for FTTH, telecom, fiber network installation, maintenance, and troubleshooting environments.

Ideal Applications

The COMPTYCO AUA-600 Fiber Optic Inspection Microscope is suitable for:

Fiber optic connector inspection
FTTH installation and maintenance
Fiber optic network troubleshooting
Fusion splicing preparation
Patch cord inspection
Fiber termination inspection
Telecom network maintenance
Data centre fiber infrastructure
Fiber optic cable installation
Connector contamination and scratch detection
Field fiber inspection and documentation
Fiber technician testing and maintenance
What`s Included
1 × COMPTYCO AUA-600 Main Display Host
1 × Handheld Fiber Inspection Probe
1 × 6-Piece Adapter Head Kit:
SC Female Head
LC Female Head
SC/FC/ST UPC Universal Male Head
LC UPC Male Head
SC/APC Male Head
SC/APC Female Head
1 × Accessory Storage Box
1 × 8GB TF Memory Card
1 × TF Card Reader
1 × USB Charging/Data Cable
1 × Protective Carrying Toolkit Case
1 × Lanyard Strap
1 × User Instruction Manual
1 × Certificate of Conformity
Why Choose the COMPTYCO AUA-600?

The COMPTYCO AUA-600 provides a practical all-in-one solution for fiber optic end-face inspection, magnified viewing, recording, and field documentation. With its 200X/400X magnification, 5-inch touchscreen, multiple connector adapters, 8GB storage, USB PC connectivity, and 4000mAh rechargeable battery, it is designed to give fiber technicians a convenient inspection solution for both field and workshop environments.
