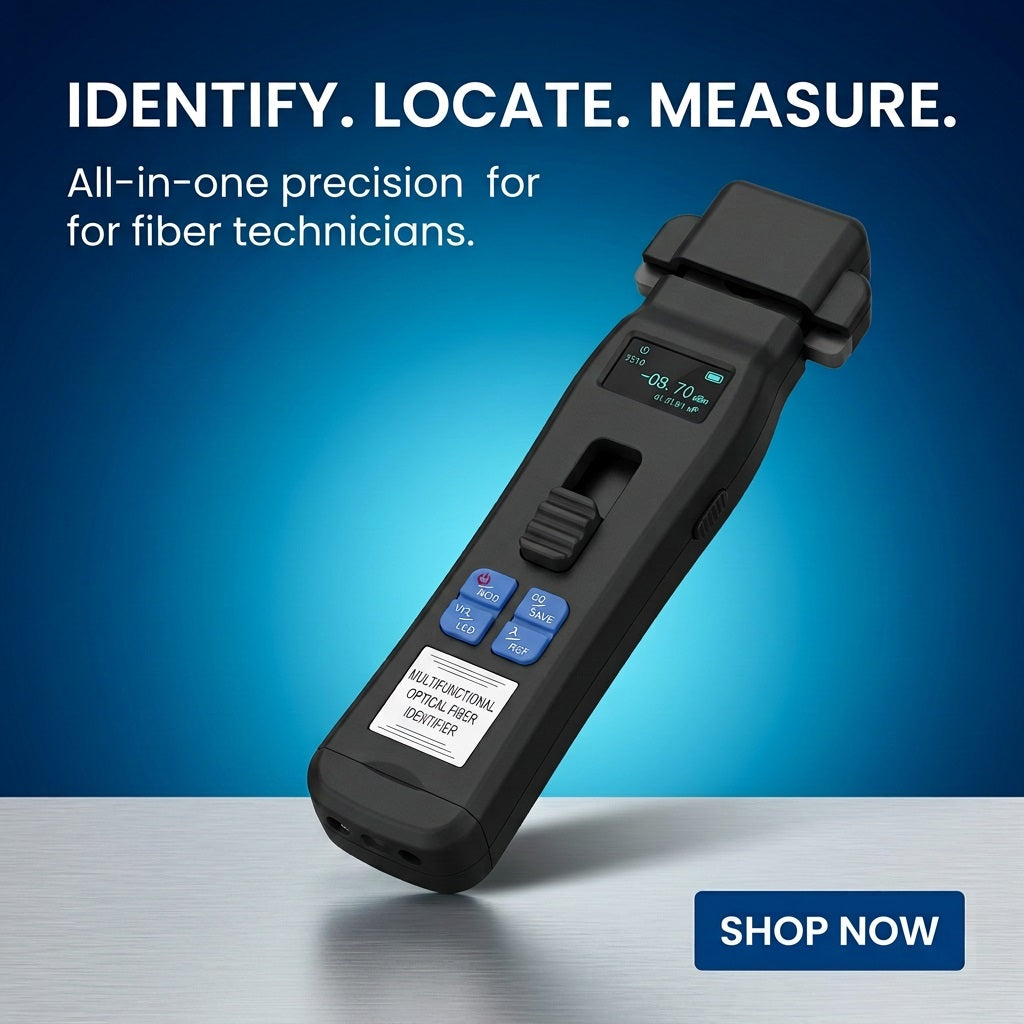

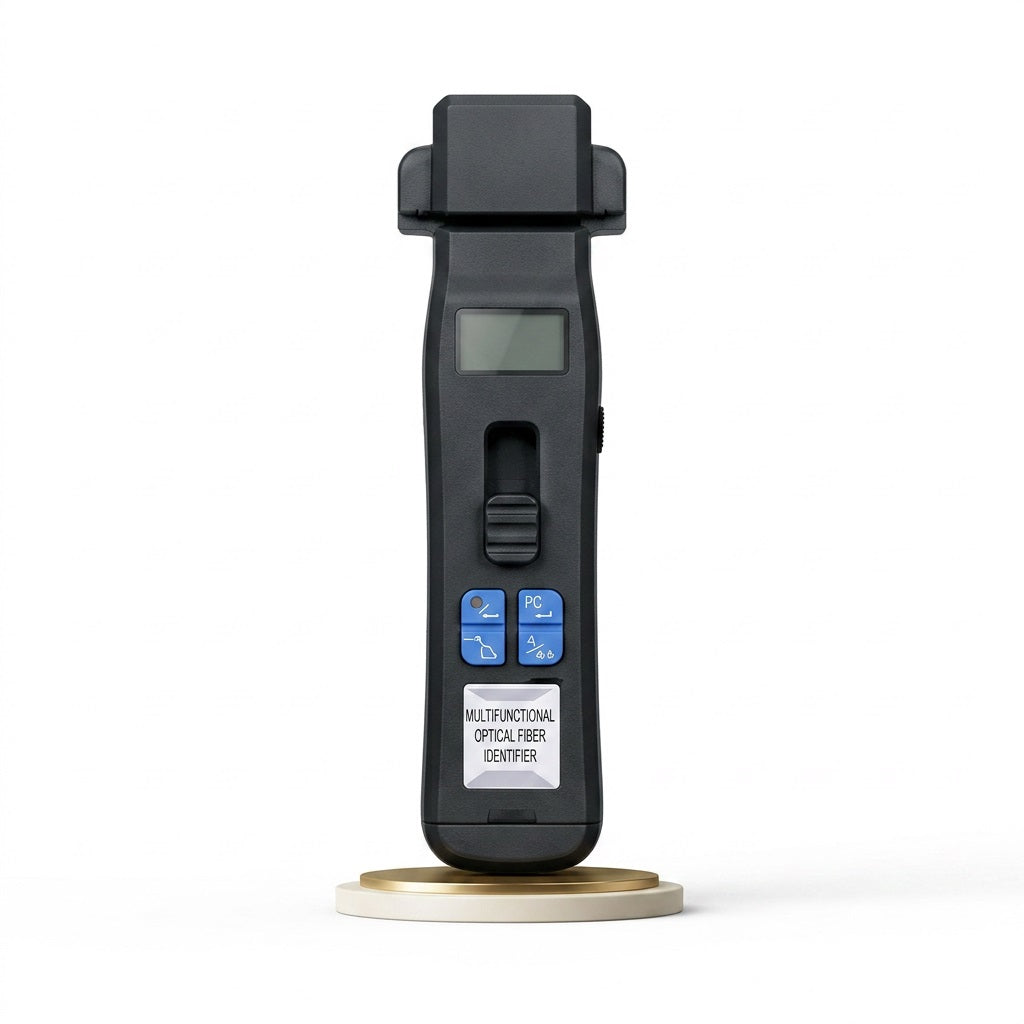

COMPTYCO AUA-C607 Fiber Optic Identifier

COMPTYCO AUA-C607 Fiber Optic Identifier – Live Fibre Signal Detector & Optical Cable Tester (Black)Short Description (Bullet Points)All-in-One Multifunctional Tester: Combines a live optical fiber identifier, high-precision Optical Power Meter (OPM), Visual Fault Locator (VFL), and LED lighting into a single mini handheld tool.Rechargeable Lithium Battery: Powered by an integrated $3.7\text{ V } 400\text{ mAh}$ rechargeable lithium battery featuring a modern Type-C charging port for convenient job-site power.4-in-1 Universal Fixture: Accommodates $0.25\text{ mm}$ bare fibers, $0.9\text{ mm}$ buffer fibers, and $2.0/3.0\text{ mm}$ tail fiber jumpers without replacing fixtures.Non-Destructive Micro-Bending Test: Uses micro-bending technology to identify live signals and measure optical power online without damaging lines or disrupting service.3-Frequency Signal Recognition: Identifies CW, $270\text{ Hz}$, $1\text{ kHz}$, and $2\text{ kHz}$ signal frequencies for both single-mode and multi-mode fibers.High-Precision OPM: Integrated power meter with a $2.5\text{ mm}$ universal interface compatible with SC, FC, ST, and optional LC connectors.Concealed $10\text{--}30\text{ mW}$ VFL & LED: Concealed red light source ($650\text{ nm}$) with $10\text{--}30\text{ km}$ test distance paired with an LED flashlight for dark work spaces.Long Product DescriptionThe COMPTYCO AUA-C607 Fiber Optic Identifier is a versatile tool designed for optical communication construction, fiber network maintenance, and FTTH troubleshooting. Featuring an upgraded Type-C rechargeable lithium battery ($3.7\text{ V } 400\text{ mAh}$), this mini handheld tester eliminates the hassle of constant dry battery replacements.Equipped with a 4-in-1 universal fixture, the device seamlessly handles $0.25\text{ mm}$ bare fibers, $0.9\text{ mm}$ tight-buffered fibers, and $2.0\text{ mm} / 3.0\text{ mm}$ patch cords without needing adapter swapping. Its non-destructive micro-bending detection system reads live signals, direction indicators, and optical power without disrupting live network traffic.Additionally, the AUA-C607 integrates a high-precision Optical Power Meter (OPM) supporting standard wavelengths ($850\text{ nm}$ to $1650\text{ nm}$) with a $2.5\text{ mm}$ universal connector interface. A concealed $10\text{--}30\text{ mW}$ Visual Fault Locator (VFL) enables fast visual fault locating up to $30\text{ km}$, while the built-in LED flashlight provides illumination in dark cabinets and environments.Technical Specifications TableFeature / ParameterSpecification / DetailBrand & ModelCOMPTYCO AUA-C607Device TypeMultifunctional Optical Fiber Identifier & OPM / VFLPower Supply$3.7\text{ V } 400\text{ mAh}$ Rechargeable Lithium Battery (Type-C)Wavelength Recognition Range$800\text{ nm} \sim 1700\text{ nm}$Signal Recognition TypesCW, $270\text{ Hz} \pm 5\%$, $1\text{ kHz} \pm 5\%$, $2\text{ kHz} \pm 5\%$Detector / Probe Type$\Phi 1\text{ mm}$ InGaAs (2 pcs)Adapted Fiber Types$\Phi 0.25\text{ mm}$, $\Phi 0.9\text{ mm}$ (bare fiber) / $\Phi 2.0\text{ mm}$, $\Phi 3.0\text{ mm}$ (tail fiber)Signal Direction DisplayOn-screen left and right directional arrow indicatorsOPM Wavelength Range$850\text{ nm} \sim 1650\text{ nm}$OPM Standard Wavelengths$850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650\text{ nm}$OPM Measurement Range$-70 \sim +10\text{ dBm} / -50 \sim +26\text{ dBm}$OPM Display ResolutionLinear: $0.1\%$, Logarithmic: $0.01\text{ dBm}$OPM Connector Interface$2.5\text{ mm}$ Universal (SC/FC/ST/LC optional)VFL Output Wavelength$650\text{ nm}$VFL Output Power$\ge 10\text{--}30\text{ mW}$ (Test distance: $10\text{--}30\text{ km}$)Automatic Shutdown Time$10\text{ minutes}$Operating / Storage TempOperating: $-10 \sim +60^\circ\text{C}$ / Storage: $-25 \sim +70^\circ\text{C}$Overall Dimensions$240 \times 47 \times 30\text{ mm}$ ($24 \times 4.7 \times 3.0\text{ cm}$)Package Size & Total Weight$21.5 \times 7.5 \times 4\text{ cm}$ / Approx. $190\text{ g}$Package Inventory / What`s in the Box$1 \times$ COMPTYCO AUA-C607 Optical Fiber Identifier Unit$1 \times$ Type-C Charging Cable$1 \times$ Zippered Carrying Case$1 \times$ Lanyard / Wrist Strap$1 \times$ Qualification Certificate / User Manual$1 \times$ Product Packaging Box
