COMPTYCO AUA-M9 Fiber Optic Thermal

COMPTYCO AUA-M9 Fiber Optic Thermal Stripper – Heated Fibre Stripping Tool for Fusion Splicing & FTTH

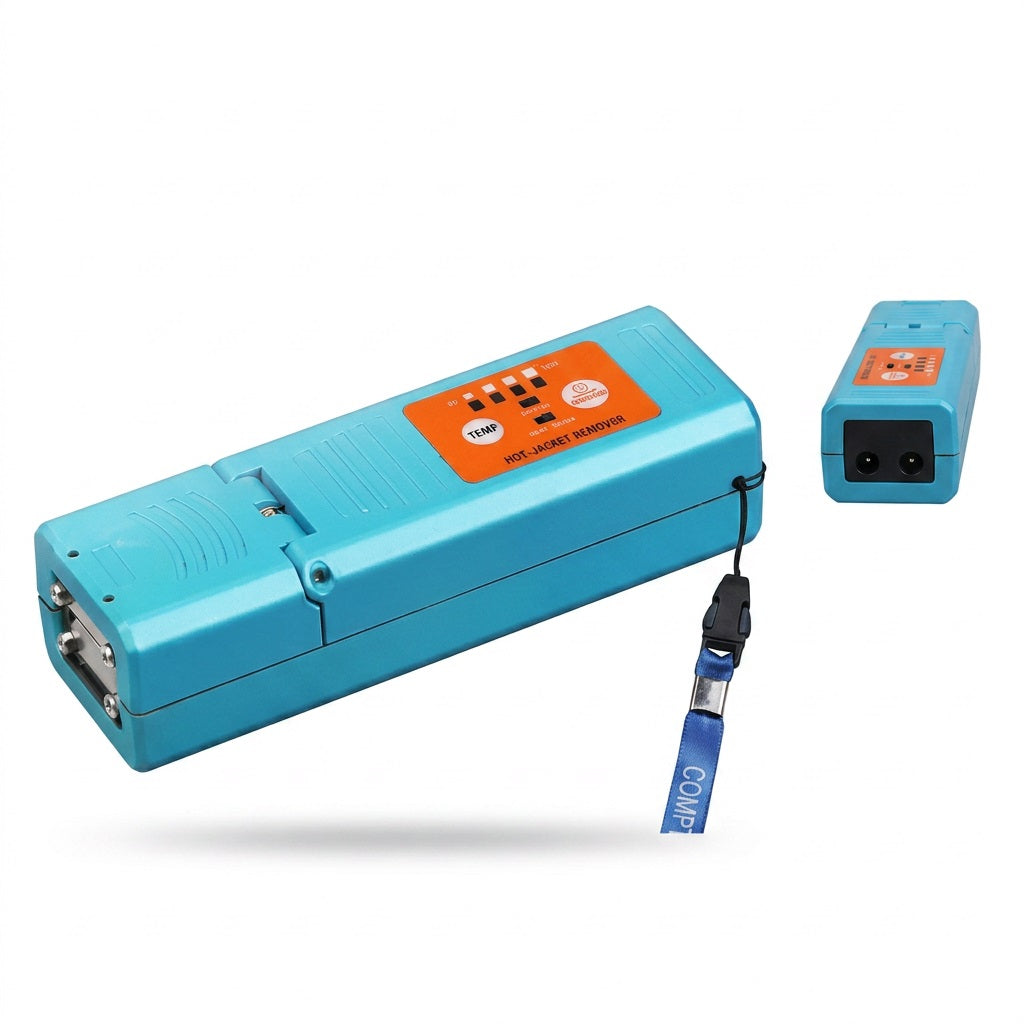

The COMPTYCO AUA-M9 Fiber Optic Thermal Stripper in Metallic Cyan Blue is a professional heated fibre stripping tool designed for fiber optic fusion splicing, FTTH installation, fibre preparation and telecom network maintenance. Using controlled thermal heating to soften fibre coatings, the AUA-M9 helps provide clean and efficient coating removal before fusion splicing.

With support for bare fibre, bundled fibre, ribbon fibre and invisible fibre, the AUA-M9 combines 8 temperature settings, dual heating modes, a precision 20mm limit blade, automatic heating and a rechargeable 3500mAh lithium battery in a compact and portable design.

KEY FEATURES & BENEFITS
???? Heated Fibre Stripping Technology

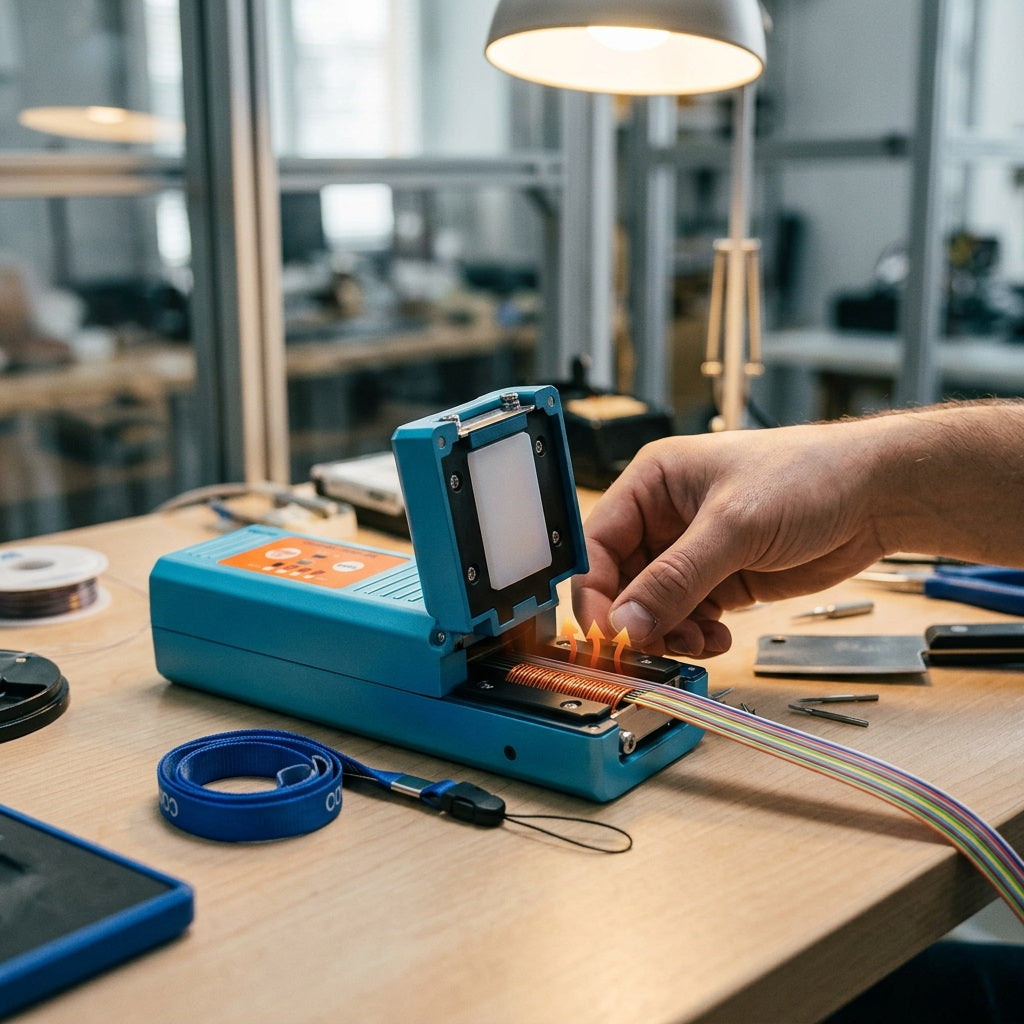

The AUA-M9 uses controlled heat to soften optical fibre coatings before stripping, providing an efficient alternative to traditional manual stripping tools for fibre preparation and fusion splicing.

Its automatic heating system provides intelligent constant-temperature control during operation.

???? Multi-Fibre Stripping Capability

The AUA-M9 supports a wide range of fibre configurations:

Bare Fibre: 1–48 cores
Bundled Fibre: 1–15 cores
Ribbon Fibre: 2–24 cores
Invisible Fibre: 1–12 cores

This makes it suitable for different fibre optic installation and splicing applications.

????️ 8 Temperature Settings

The AUA-M9 features two heating modes with 8 selectable temperature levels.

HEATER Mode:

120°C
130°C
145°C
160°C

SAVE MODE:

110°C
120°C
130°C
145°C

The selectable temperatures allow the tool to be adjusted for different fibre coating materials and operating conditions.

???? Precision 20mm Limit Blade

The AUA-M9 features a 20mm widened limit blade edge for controlled fibre stripping and accurate blade-gap positioning.

The tool supports a stripping coating length of ≤32mm, helping provide consistent fibre preparation for fusion splicing.

⚡ Automatic Instant Heating

Automatic heating starts when the tool is activated, while intelligent constant-temperature control helps maintain the selected heating temperature during stripping.

???? 3500mAh Rechargeable Lithium Battery

The integrated 3500mAh lithium battery provides approximately 4 hours of operating time or around 400 stripping cycles on a full charge.

Charging is performed through the convenient USB Type-C port.

???? Compact & Portable Design

With a lightweight 230g body and compact dimensions of 13.5 × 4.3 × 3.2cm, the AUA-M9 is easy to carry and suitable for field fibre splicing and FTTH installation work.

TECHNICAL SPECIFICATIONS
Specification Details
Brand COMPTYCO
Model AUA-M9
Product Type Optical Fiber Hot Stripping Forceps / Thermal Stripper
Colour Metallic Cyan Blue
Applicable Fibre Types Bundled Fibre / Bare Fibre / Ribbon Fibre / Invisible Fibre
Bare Fibre Capacity 1–48 Cores
Bundled Fibre Capacity 1–15 Cores
Ribbon Fibre Capacity 2–24 Cores
Invisible Fibre Capacity 1–12 Cores
Applicable Cladding Diameter 25 `ecm
Stripping Coating Length ≤32mm
Limit Blade Edge Width 20mm
Heating Modes HEATER / SAVE MODE
HEATER Mode 120°C / 130°C / 145°C / 160°C
SAVE MODE 110°C / 120°C / 130°C / 145°C
Maximum Heating Temperature ≤160°C
Battery Type Built-in Lithium Battery
Battery Capacity 3500mAh
Battery Runtime Approx. 4 Hours
Stripping Capacity Approx. 400 Cycles
Charging Interface USB Type-C
Host Dimensions 13.5 × 4.3 × 3.2cm
Host Weight Approx. 230g
Package Dimensions 17.1 × 8 × 5cm
Package Weight Approx. 350g
IDEAL APPLICATIONS

The COMPTYCO AUA-M9 Fiber Optic Thermal Stripper is suitable for:

Fiber optic fusion splicing
FTTH fibre installation
Fibre optic cable preparation
Telecom network installation
Fibre optic maintenance
Ribbon fibre preparation
Multi-core fibre stripping
Fibre optic repair
Fibre network construction
Professional fibre technicians
Field splicing applications
PACKAGE CONTENTS

The COMPTYCO AUA-M9 package includes:

1 × COMPTYCO AUA-M9 Thermal Stripper Host – Blue
1 × USB Type-C Charging Cable
2 × Adjusting Wrenches
1 × Pair of Tweezers
1 × Cleaning Brush
1 × Zipper Carrying Bag
1 × Lanyard Strap
1 × Certificate of Conformity
1 × User Instruction Manual
1 × Packaging Box
PROFESSIONAL FIBRE STRIPPING TOOL

The COMPTYCO AUA-M9 Fiber Optic Thermal Stripper provides a compact and efficient solution for fibre coating removal before fusion splicing. With 8 temperature settings, HEATER and SAVE modes, multi-fibre compatibility, a precision 20mm limit blade, automatic heating and a 3500mAh rechargeable battery, it is well suited for professional FTTH, telecom and fibre optic installation applications.
