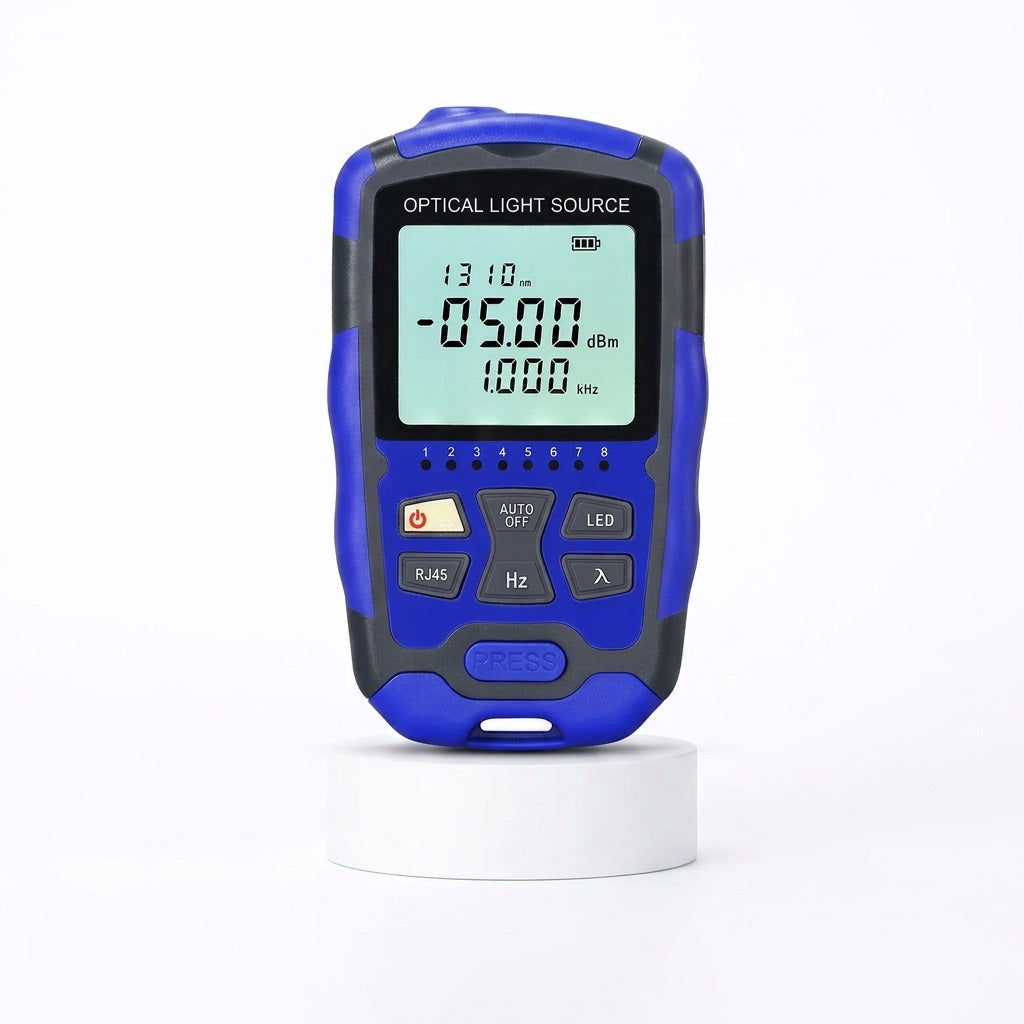

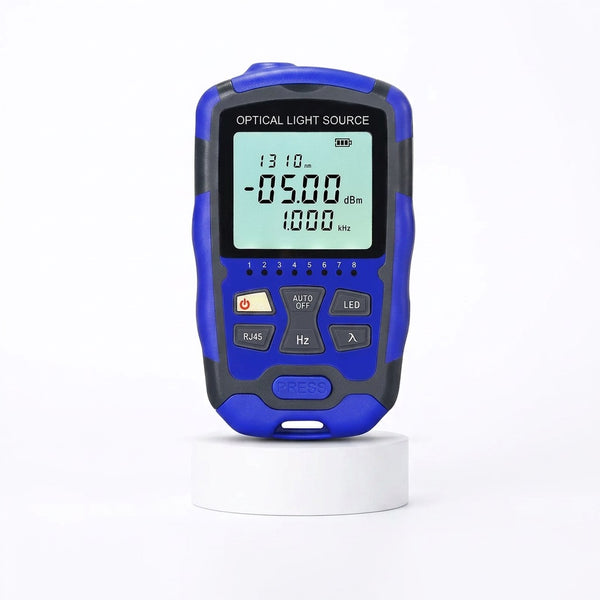

COMPTYCO AUA-MC1315 Fiber Optic Stabiliz

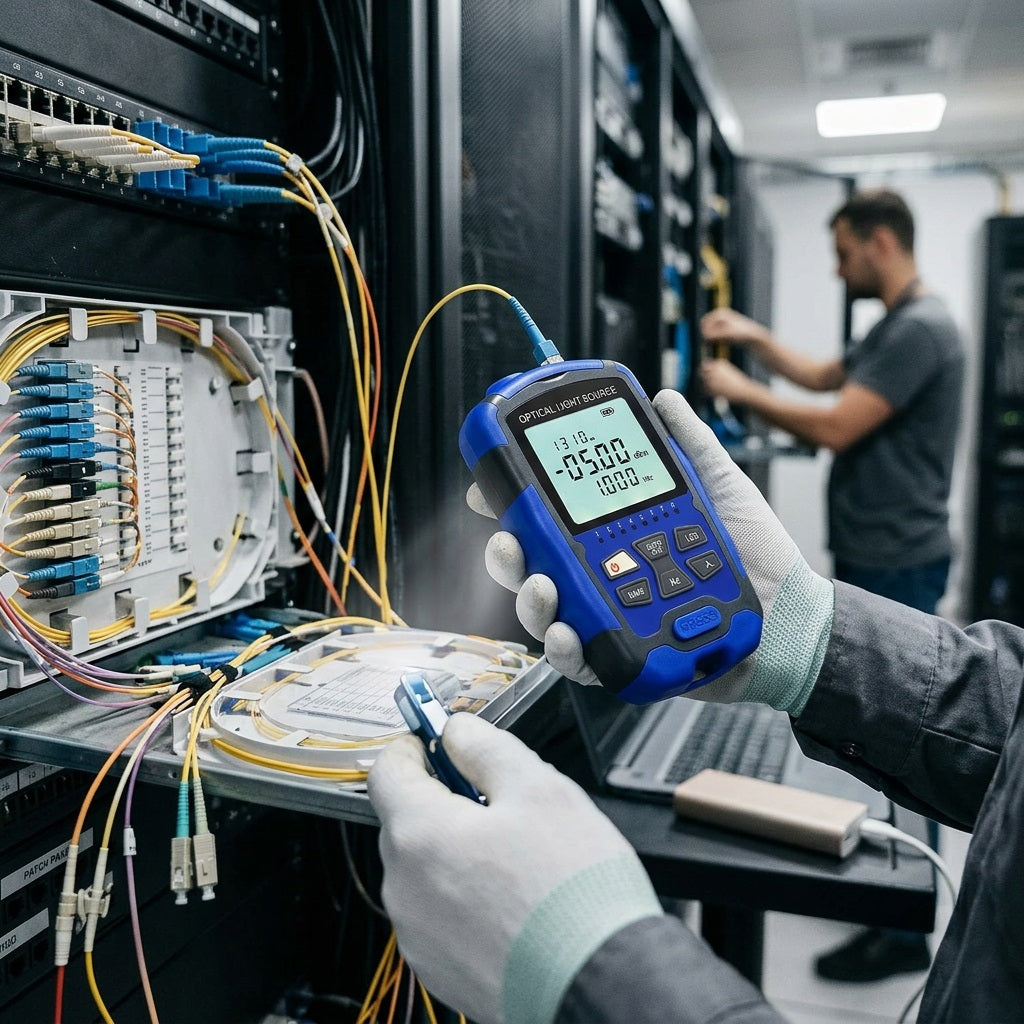

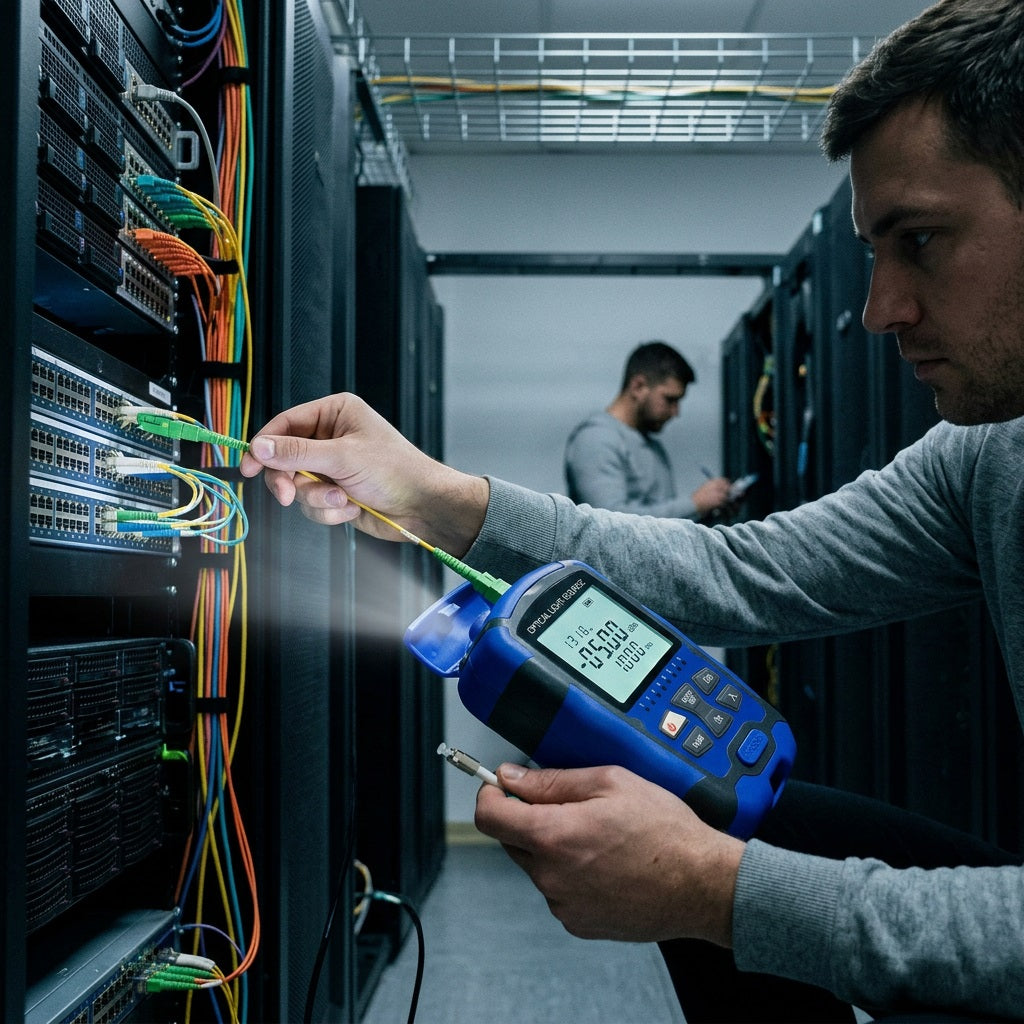

COMPTYCO AUA-MC1315 Fiber Optic Stabilized Light Source – Optical Fibre Testing & FTTH Network TesterShort Description (Bullet Points)Dual-Wavelength Single-Mode Output: Delivers stabilized light output at $1310\text{ nm}$ and $1550\text{ nm}$ wavelengths for precise single-mode optical fiber testing.High Output Stability & Power: Features a calibrated output power of $-5\text{ dBm}$ with exceptional output stability ($\pm 0.05\text{ dB} / 15\text{ mins}$; $\pm 0.1\text{ dB} / 8\text{ hours}$).Modulated Carrier Signal Frequencies: Supports Continuous Wave (CW) and carrier frequency output modulation at $270\text{ Hz}$, $1000\text{ Hz}$ ($1\text{ kHz}$), and $2000\text{ Hz}$ ($2\text{ kHz}$).Universal Interface & Interchangeable Adapters: Includes standard $2.5\text{ mm}$ universal interface supporting SC and FC replaceable adapters (ST and $1.25\text{ mm}$ LC optional).Hidden Detachable RJ45 Line Tester: Built-in detachable RJ45 remote unit allows quick proofreading of network cable pin sequences and network line testing.USB Rechargeable Li-Ion Battery: Equipped with an internal $3.7\text{ V } 650\text{ mAh}$ rechargeable lithium-ion battery ($2.405\text{ Wh}$) with USB fast charging.Backlit LCD & Integrated LED Flashlight: Clear backlit display panel paired with an LED light ensures effortless operation in low-light environments.Long Product DescriptionThe COMPTYCO AUA-MC1315 Handheld Optical Light Source is a compact, high-precision fiber optic testing instrument designed for telecommunication engineers, FTTH installers, and network maintenance professionals. Delivering dual-wavelength single-mode laser output at $1310\text{ nm}$ and $1550\text{ nm}$, this device provides stable laser power at $-5\text{ dBm}$ to evaluate insertion loss and optical link attenuation accurately.Designed for versatile field deployment, the tester supports 4 carrier modulation frequencies—Continuous Wave (CW), $270\text{ Hz}$, $1\text{ kHz}$, and $2\text{ kHz}$—allowing smooth signal identification when paired with optical power meters or fiber identifiers. It features a $2.5\text{ mm}$ universal optical connector that readily accepts SC and FC interchangeable adapters, while offering compatibility with ST and LC connectors.Beyond fiber testing, the AUA-MC1315 features an integrated hidden detachable RJ45 network cable tester. By pressing the bottom release tab, the remote tester unclips to perform quick pin-to-pin sequence proofreading for copper Ethernet lines. Powered by an internal rechargeable Li-Ion battery ($3.7\text{ V } 650\text{ mAh}$) with USB charging, a illuminated LCD display, and a front LED flashlight, this $120\text{ g}$ ultra-portable device simplifies network maintenance day or night.Technical Specifications TableFeature / ParameterSpecification / DetailBrand & ModelCOMPTYCO AUA-MC1315Device TypeHandheld Optical Light Source & RJ45 Network TesterWorking Wavelengths$1310\text{ nm}$ / $1550\text{ nm}$ (Single Mode Dual Wavelength)Output Optical Power$-5\text{ dBm}$Output Stability$\pm 0.05\text{ dB} / 15\text{ mins}$; $\pm 0.1\text{ dB} / 8\text{ hours}$Modulation FrequenciesCW, $270\text{ Hz}$, $1000\text{ Hz}$ ($1\text{ kHz}$), $2000\text{ Hz}$ ($2\text{ kHz}$)Optical Connection / Interface$2.5\text{ mm}$ Universal Interface (SC / FC included; ST / $1.25\text{ mm}$ LC optional)Network Testing FunctionHidden Detachable RJ45 Line Sequence TesterPower SupplyBuilt-in $3.7\text{ V } 650\text{ mAh}$ ($2.405\text{ Wh}$) Li-Ion Rechargeable BatteryCharging MethodUSB Fast ChargingDisplay & LightingLCD Screen with Backlight + Front LED FlashlightAuto Shutdown FunctionalitySupported (Selectable AUTO OFF button)Dimensions & Weight$11.5 \times 6.8 \times 2.7\text{ cm}$ ($115 \times 68 \times 27\text{ mm}$) / Approx. $120\text{ g}$Button Functions & Keypad Layout GuidePower Button ($\mathbf{\text{Red}}$): Long press to turn the device ON or OFF.AUTO OFF Key: Short press to enable or disable the automatic shutdown power-saving function.LED Key: Short press to toggle the front illumination LED flashlight ON or OFF.RJ45 Key: Short press to turn ON or OFF the RJ45 network line finding / testing function.Hz Key: Short press to switch between output carrier frequencies ($\text{No frequency/CW} \rightarrow 270\text{ Hz} \rightarrow 1000\text{ Hz} \rightarrow 2000\text{ Hz}$ cycle).$\boldsymbol{\lambda}$ Wavelength Key: Short press to select the operating optical wavelength (toggles between $1310\text{ nm}$ and $1550\text{ nm}$).PRESS Bottom Tab: Hold down to release and detach the bottom RJ45 remote test module.
