COMPTYCO KP600 APC OTDR Fiber Optic Test

COMPTYCO KP600 APC OTDR Fiber Optic Tester – 1310/1550nm Dual-Wavelength Fibre Network Analyzer
Short Description
9-in-1 Multi-Function Fiber Tester: Combines OTDR, Event Map, Optical Power Meter (OPM), Visual Fault Locator (VFL), Optical Light Source (OLS), Optical Loss Testing, Network Testing, LED Flashlight, and RJ45 Wire Tracking in one compact professional device.
1310/1550nm Dual-Wavelength OTDR: Provides accurate fiber length measurement, attenuation analysis, event detection, and fault location at 1310 nm and 1550 nm, with selectable testing ranges from 100 m up to 100 km.
3.5-Inch HD Touchscreen: Features a responsive multi-touch colour LCD screen for clear viewing of fiber traces, event maps, measurement results, and system settings.
One-Click Automatic Testing: Performs automated fiber measurements and event analysis with minimal configuration, helping technicians quickly locate fiber faults and events.
High-Precision Fiber Testing: Features a 2.5 m event blind area, 8 m attenuation blind zone, and dynamic range of 24/22 dB for accurate fiber measurement and fault location.
Wide-Range Optical Power Meter: Supports 9 calibration wavelengths from 850 nm to 1650 nm with a measurement range of -50 to +26 dBm and optical power self-calibration.
VFL & Optical Light Source: Includes a ≥10 mW Visual Fault Locator with a specified detection distance exceeding 10 km, together with a stable optical light source supporting multiple modulation modes.
RJ45 Cable Testing & Wire Tracking: Supports Ethernet cable sequence testing, cable length measurement, and wire tracking using the supplied RJ45 remote module and receiver probe.
Compact Palm-Sized Design: Measuring approximately 173 × 80 × 38 mm and weighing only 360 g including the battery, the KP600 is easy to carry and convenient for field technicians.
4000mAh Battery & Type-C Charging: Built-in 4000mAh / 3.7V lithium battery provides portable operation and convenient charging through the Type-C interface.
Long Product Description

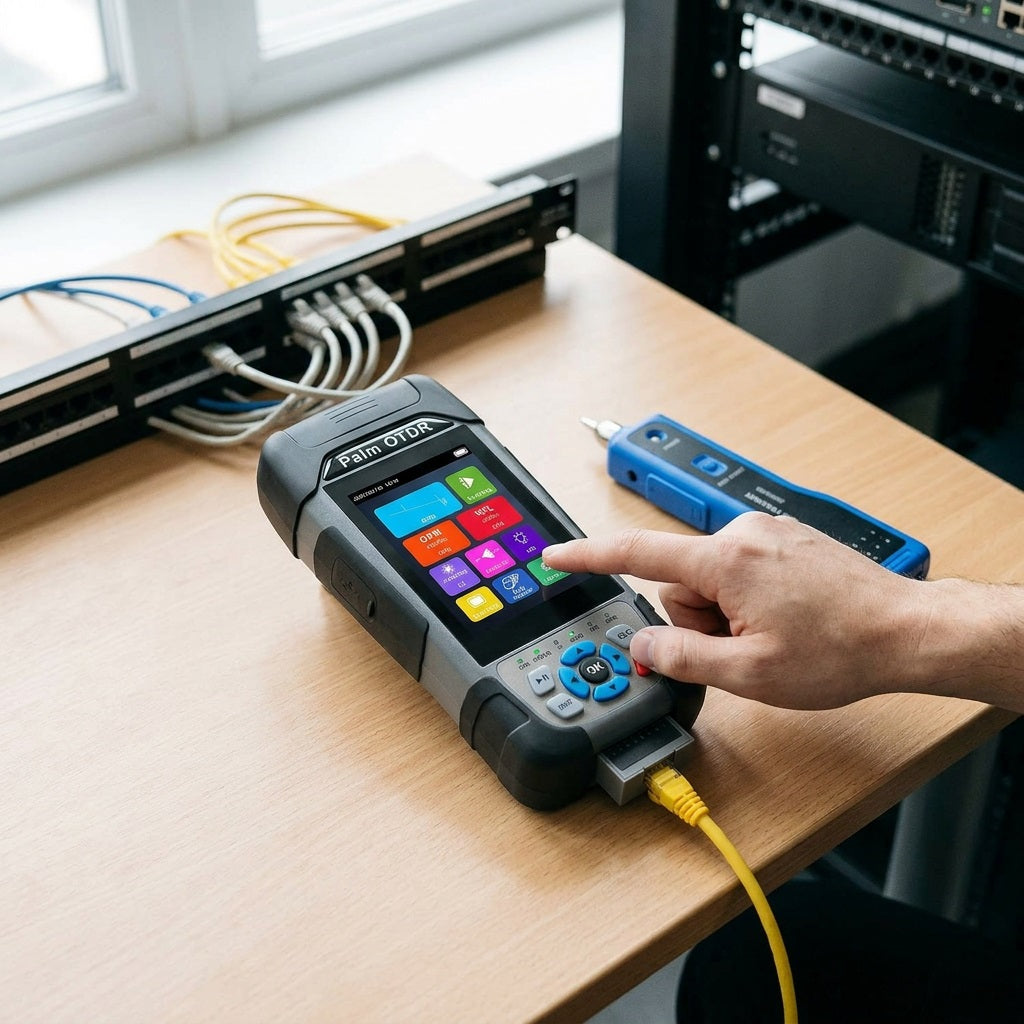

The COMPTYCO KP600 APC Mini Palm OTDR Fiber Optic Tester is a compact, professional all-in-one fiber optic and network testing instrument designed for FTTH installation, telecommunications, fiber optic maintenance, troubleshooting, and field network testing. By combining multiple optical and copper cable testing functions into one portable device, the KP600 helps technicians perform a wide range of testing and diagnostic tasks without carrying several separate instruments.

At the heart of the KP600 is a 1310/1550nm dual-wavelength OTDR designed for testing G.652D single-mode fiber. With a dynamic range of 24/22 dB and selectable measurement ranges from 100 m to 100 km, the tester is suitable for both short-distance FTTH access networks and longer fiber optic links.

The KP600 provides an event blind area of approximately 2.5 m and an attenuation blind zone of approximately 8 m, allowing technicians to identify and analyze fiber events such as connectors, splices, bends, breaks, and other points of signal loss. With support for up to 20,000 sampling points and multiple selectable pulse widths from 5 ns to 10 `ecs, the tester provides flexible testing options for different fiber link conditions.

The one-click automatic measurement and analysis function simplifies OTDR operation by automatically performing measurements and analyzing detected events. The integrated event map provides a straightforward visual representation of events along the fiber, helping technicians quickly understand the condition and location of faults.

Integrated Optical Testing Functions

1. OTDR & Event Map
The OTDR measures fiber distance, attenuation, and events while helping locate faults such as breaks, bends, connectors, and splices. Test results can be stored in the standard .SOR file format for documentation and further analysis.

2. Optical Power Meter (OPM)
The integrated OPM supports nine calibration wavelengths: 850, 1270, 1300, 1310, 1490, 1550, 1577, 1625, and 1650 nm. With a measurement range of -50 to +26 dBm, it can be used to measure optical signal levels across a wide range of fiber optic network applications.

3. Visual Fault Locator (VFL)
The built-in VFL provides an output power of ≥10 mW and is specified for fault detection over distances exceeding 10 km. Its visible red laser can assist technicians in identifying suitable fiber breaks, bends, and other visible faults.

4. Optical Light Source (OLS)
The integrated optical light source supports CW, 270 Hz, 330 Hz, 1 kHz, and 2 kHz modulation modes. When used together with the OPM, this function can assist with optical loss testing and fiber link verification.

5. RJ45 Network Testing & Wire Tracking
The KP600 also provides copper network testing functions, including Ethernet cable sequence testing, cable length measurement, and wire tracking. The included receiver probe and RJ45 remote module make it easier to identify and trace network cables during installation and maintenance.

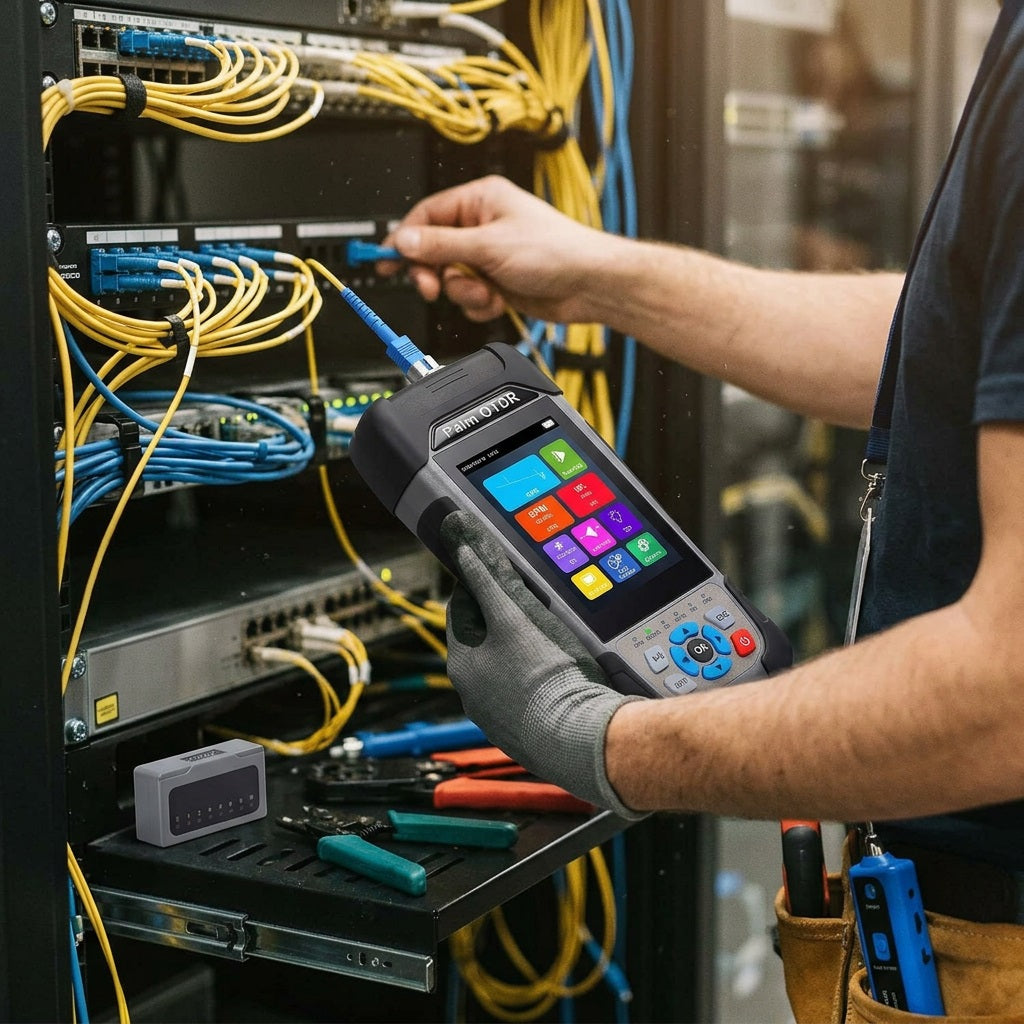

The 3.5-inch HD colour touchscreen provides a clear interface for viewing fiber traces, event maps, measurement results, and system settings. The compact palm-sized design makes the tester particularly convenient for technicians working in equipment cabinets, distribution boxes, termination points, and other restricted areas.

The KP600 is powered by a built-in 4000mAh / 3.7V lithium battery and supports Type-C charging, allowing convenient operation in the field without requiring a direct mains power connection. An integrated LED flashlight also provides useful illumination when working in dark cabinets, panels, or low-light environments.

Test results can be stored internally, with capacity for at least 1,000 files, while external SD/TF card expansion provides additional storage. The tester supports standard .SOR files, making it suitable for storing and transferring OTDR measurement records.

The device features interchangeable optical connector interfaces, with universal support for FC, SC, and ST connection types and supplied SC and FC converter heads. This provides greater flexibility when testing different fiber optic patch cords and network connections.

With its combination of dual-wavelength OTDR, event mapping, OPM, VFL, optical light source, loss testing, RJ45 cable testing, wire tracking, and LED illumination, the COMPTYCO KP600 APC provides a versatile and portable testing solution for professional fiber optic and network technicians.

Key Applications
FTTH fibre optic installation and maintenance
Fiber optic fault location
Fiber link length measurement
Optical attenuation and loss testing
Fiber splice and connector testing
Fiber break and bend detection
Optical power measurement
VFL fault identification
Telecom network maintenance
Data communication network installation
RJ45 cable sequence testing
Network cable length measurement
Network cable tracking
Fiber optic commissioning
Field troubleshooting and maintenance
Technical Specifications
Specification / Parameter Detail / Value
Brand COMPTYCO
Model KP600 APC
Product Type Mini Palm Multi-Function OTDR Fiber Optic Tester
OTDR Wavelengths 1310 / 1550 nm ±20 nm
OTDR Type Dual-Wavelength
Dynamic Range 24 / 22 dB
Compatible Fiber G.652D Single-Mode Fiber
Event Blind Area 2.5 m
Attenuation Blind Zone 8 m
Measurement Ranges 100 m / 500 m / 1 km / 2 km / 5 km / 10 km / 20 km / 40 km / 60 km / 100 km
Pulse Widths 5 ns / 10 ns / 20 ns / 50 ns / 100 ns / 275 ns / 500 ns / 1 `ecs / 2 `ecs / 5 `ecs / 10 `ecs
Maximum Sampling Points 20,000
Sampling Resolution 25 cm – 8 m
Loss Resolution 0.001 dB
Range Resolution 0.001 m
Internal Storage ≥1,000 Files
External Storage SD / TF Card Support
File Format Standard .SOR
OPM Calibration Wavelengths 850 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650 nm
OPM Measurement Range -50 to +26 dBm
VFL Output Power ≥10 mW
VFL Detection Distance >10 km
Optical Light Source Modes CW / 270 Hz / 330 Hz / 1 kHz / 2 kHz
Optical Connector Types Universal FC / SC / ST
Included Adapter Heads SC & FC Interchangeable Heads
RJ45 Cable Testing Line Sequence / Cable Length / Wire Tracking
Display 3.5-Inch HD Colour Touchscreen
Battery 4000 mAh / 3.7 V Lithium Battery
Charging Interface Type-C USB
Operating Temperature -10°C to +50°C
Operating Humidity 0–90% RH, Non-Condensing
Main Unit Dimensions Approx. 173 × 80 × 38 mm
Main Unit Weight Approx. 360 g (Including Battery)
Package Dimensions Approx. 241 × 106 × 77 mm
Package Weight Approx. 730 g
Hardware & Interface Highlights
Top Panel Interfaces

The KP600 provides convenient access to the main testing and connectivity interfaces, including:

RJ45 Network Test Port
USB / Type-C Interface
TF / SD Memory Card Slot
Charging Indicator
Built-In LED Flashlight
Optical Power Meter (OPM) Port
OTDR / Light Source (LS) Port
Visual Fault Locator (VFL) Port
Rear Accessory Compartment

A convenient push-to-eject compartment on the rear of the KP600 provides storage for the RJ45 remote testing module, keeping the accessory readily accessible while helping prevent it from being misplaced during field work.

Front Panel Controls

The front control panel provides dedicated controls for operating and navigating the tester, including:

Directional Navigation Keys
OK Button
M / Menu Button
A / Analysis Button
SETUP Button
ESC Button
Power Button
What`s in the Box

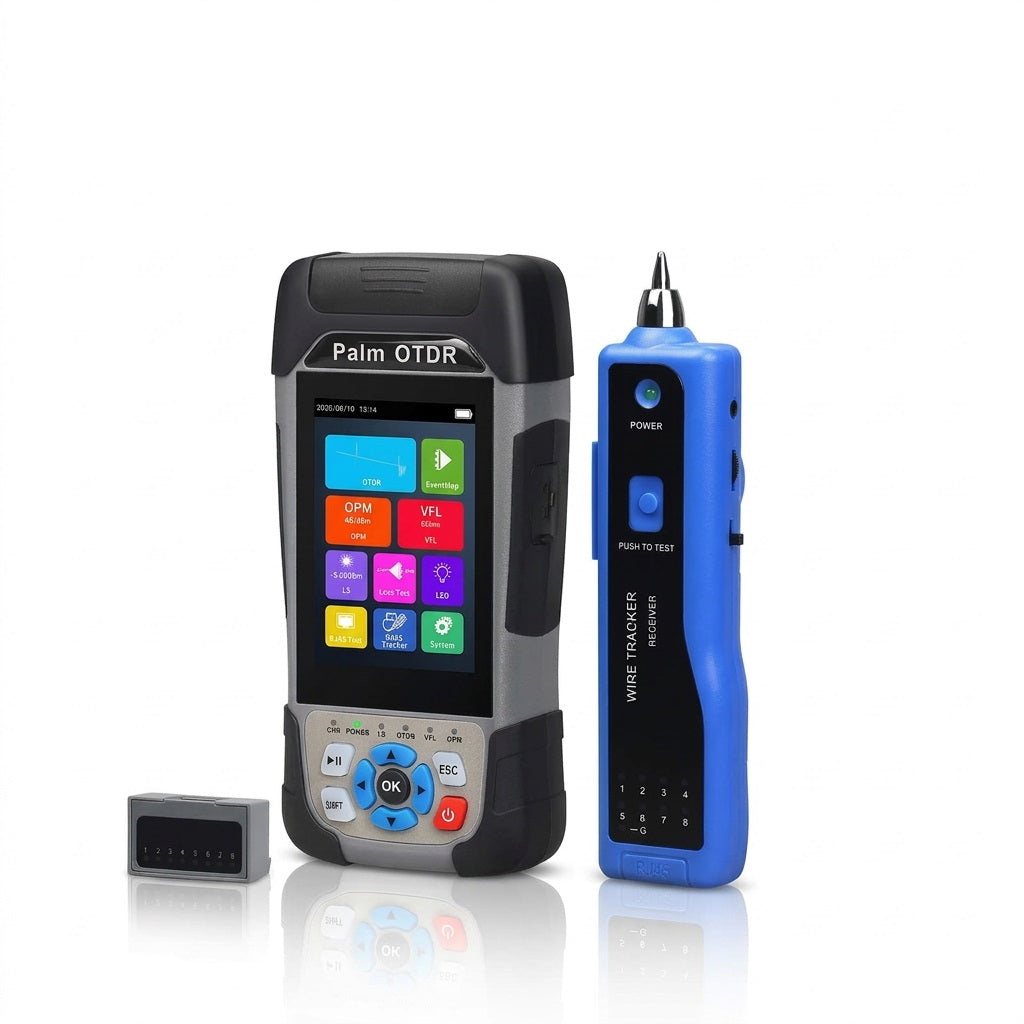

1 × COMPTYCO KP600 APC OTDR Fiber Optic Tester
1 × Factory Testing Report
1 × User Manual / Guide
1 × Power Charging Adapter
1 × Type-C USB Data / Charging Cable
1 × SC Converter Head
1 × FC Converter Head – Installed on the Main Unit
1 × RJ45 Wire Tracker Receiver Probe
1 × RJ45 Remote Module Adapter – Installed in Rear Compartment
1 × Portable Carrying Bag
1 × Protective Packaging Box

Package Size: Approx. 241 × 106 × 77 mm
Package Weight: Approx. 730 g
