COMPTYCO KP800 APC OTDR Fiber Optic Test

COMPTYCO KP800 OTDR Fiber Optic Tester – 1310/1550nm Dual-Wavelength Network Analyzer
Short Description
9-in-1 Multi-Function Fiber Tester: Combines OTDR, Event Map, Optical Power Meter (OPM), Visual Fault Locator (VFL), Optical Light Source (OLS), Loss Testing, Network Testing, LED Flashlight, and RJ45 Wire Tracking in one professional handheld unit.
4.3-Inch HD Touchscreen: Features a responsive 4.3-inch HD colour touchscreen for clear viewing of test results, event information, fiber traces, and network testing data.
1310/1550nm Dual-Wavelength OTDR: Provides dual-wavelength OTDR testing with a dynamic range of 24/22 dB and measurement distances from 100 m up to 100 km.
Accurate Fault & Event Detection: Offers an event blind zone of 1.5 m and attenuation blind zone of 7 m, helping technicians locate fiber breaks, splices, bends, and other events with high precision.
Wide-Range Optical Power Meter: Integrated OPM supports 9 calibration wavelengths from 850 nm to 1650 nm with a measurement range of -50 to +26 dBm.
VFL & Stable Light Source: Includes a ≥10 mW Visual Fault Locator and stable optical light source with CW, 270 Hz, 330 Hz, 1000 Hz, and 2000 Hz output modes.
RJ45 Cable Testing & Tracking: Supports cable sequence and length testing together with the included wire tracker receiver and RJ45 remote module.
5200mAh Battery with Type-C Charging: Built-in 5200mAh / 3.7V lithium battery provides convenient portable operation and can be recharged using the Type-C interface.
Professional Portable Test Kit: Supplied with adapter heads, wire tracker, RJ45 remote, charging accessories, carrying strap, manual, test report, and protective carrying bag.
Long Product Description

The COMPTYCO KP800 OTDR Fiber Optic Tester is a professional multi-functional fiber optic and network testing instrument designed for telecom engineers, FTTH technicians, fiber installers, network maintenance teams, and field service professionals. By combining multiple optical and copper cable testing functions into a single handheld device, the KP800 provides a convenient solution for fiber fault diagnosis, optical power measurement, loss testing, cable tracking, and network installation.

At the centre of the KP800 is a 1310/1550nm dual-wavelength OTDR designed for testing G.652D single-mode fiber. With a dynamic range of 24/22 dB and selectable measurement ranges from 100 m to 100 km, the tester can be used for both short-distance access networks and longer fiber links.

The OTDR provides an event blind zone of approximately 1.5 m and an attenuation blind zone of approximately 7 m, allowing technicians to identify and analyze fiber events such as connectors, splices, bends, breaks, and other points of signal loss. The device also supports up to 20,000 sampling points, while the automatic measurement and analysis function simplifies testing for users who do not require complex manual configuration.

The KP800 is more than an OTDR. Its integrated Optical Power Meter (OPM) supports nine calibration wavelengths: 850, 1270, 1300, 1310, 1490, 1550, 1577, 1625, and 1650 nm, with an optical power measurement range of -50 to +26 dBm. This makes it suitable for checking optical signal levels across a variety of fiber network applications.

For visual fault identification, the built-in Visual Fault Locator (VFL) provides an output of ≥10 mW, helping technicians identify breaks, bends, poor connections, and other visible faults in suitable fiber links. The integrated Optical Light Source (OLS) uses an FP-LD laser and supports multiple modulation modes, including CW, 270 Hz, 330 Hz, 1000 Hz, and 2000 Hz, for optical loss testing when used with an appropriate power meter.

For copper network infrastructure, the KP800 also supports RJ45 cable sequence testing, cable length testing, and wire tracking. The included wire tracker receiver and RJ45 remote module allow technicians to trace and identify network cables during installation and maintenance.

A 4.3-inch HD colour touchscreen provides an intuitive interface for viewing fiber traces, measurement results, event maps, and testing information. The one-click automatic testing function helps streamline field measurements and makes the tester easier to operate.

Powered by a built-in 5200mAh / 3.7V lithium battery and rechargeable through Type-C, the KP800 is designed for portable field operation. Its compact handheld form factor and supplied carrying bag make it convenient to transport between installation and maintenance locations.

With its combination of OTDR, OPM, VFL, OLS, loss testing, event mapping, and RJ45 network testing, the COMPTYCO KP800 is a versatile all-in-one testing solution for modern fiber optic and network technicians.

Key Applications
FTTH fibre optic installation and maintenance
Fiber optic fault location
Fiber link testing and troubleshooting
Optical power measurement
Optical loss testing
Fiber connector and splice testing
Fiber break and bend detection
Telecom network maintenance
Data and communication network installation
RJ45 cable sequence and length testing
Network cable tracking
Field fiber optic commissioning
Technical Specifications
Specification / Parameter Detail / Value
Brand COMPTYCO
Model KP800
Product Type Multi-Function OTDR Fiber Optic Tester
Display 4.3-Inch HD Colour Touchscreen
OTDR Wavelengths 1310 / 1550 nm ±20 nm
OTDR Type Dual-Wavelength
Dynamic Range 24 / 22 dB
Compatible Fiber G.652D Single-Mode Fiber
Event Blind Zone 1.5 m
Attenuation Blind Zone 7 m
Measurement Range 100 m / 500 m / 1 km / 2 km / 5 km / 10 km / 20 km / 40 km / 60 km / 100 km
Pulse Width 5 ns – 10 `ecs
Maximum Sampling Points 20,000
Sampling Resolution 20 cm – 8 m
Loss Resolution 0.001 dB
Range Resolution 0.001 m
Internal Data Storage ≥1,000 Files
External Storage SD Card Support
File Format Standard SOR
OPM Wavelengths 850 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650 nm
OPM Measurement Range -50 to +26 dBm
VFL Output Power ≥10 mW
Optical Light Source FP-LD Laser
OLS Output Power -5 dBm ±2 dB
OLS Modes CW / 270 / 330 / 1000 / 2000 Hz
RJ45 Testing Cable Sequence, Cable Length & Wire Tracking
Battery 5200 mAh / 3.7 V Lithium Battery
Charging Interface Type-C USB
Operating Temperature -10°C to +50°C
Storage Temperature -40°C to +70°C
Main Unit Dimensions Approx. 183 × 107 × 45 mm
Main Unit Weight Approx. 480 g
Package Dimensions Approx. 19.6 × 12.8 × 10.2 cm
Package Weight Approx. 940 g
What`s in the Box

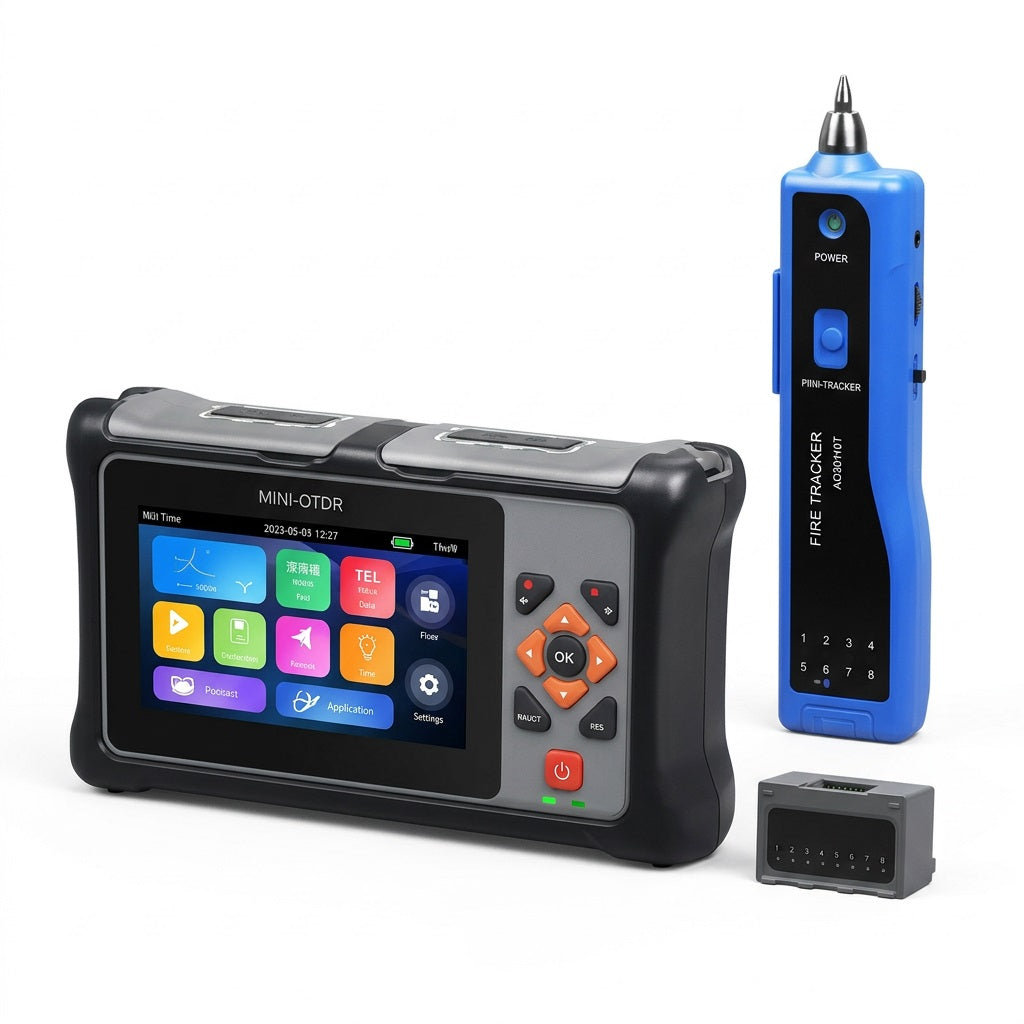

1 × COMPTYCO KP800 OTDR Fiber Optic Tester
1 × Wire Tracker Receiver Probe
1 × RJ45 Remote Adapter Module
1 × SC Adapter Head – Installed on the Main Unit
1 × FC Adapter Head – Installed on the Main Unit
1 × Type-C USB Charging Cable
1 × Power Charging Adapter / Plug
1 × Lanyard / Carrying Strap
1 × User Manual
1 × Test Report
1 × Portable Zippered Carrying Bag
1 × Packaging Box
