COMPTYCO KP800 UPC OTDR Fiber Optic Test

COMPTYCO KP800 UPC OTDR Fiber Optic Tester – 1310/1550nm Dual-Wavelength Network Analyzer
Short Description
9-in-1 Multi-Function Fiber Tester: Combines OTDR, Event Map, Optical Power Meter (OPM), Visual Fault Locator (VFL), Stable Light Source (LS), Optical Loss Testing, Network Testing, LED Flashlight, and RJ45 Wire Tracking in one professional handheld device.
1310/1550nm Dual-Wavelength OTDR: Provides accurate fiber length measurement, attenuation analysis, event detection, and fault location at 1310 nm and 1550 nm, with testing ranges from 100 m up to 100 km.
4.3-Inch HD Touchscreen: Features a responsive, high-definition colour touchscreen for convenient navigation, trace viewing, event analysis, and measurement results.
One-Click Automatic Testing: Performs automated fiber measurements and event analysis with minimal setup, making it suitable for both experienced technicians and routine field testing.
Precise Fault Detection: Offers a short 1.5 m event blind area and 7 m attenuation blind zone for accurate identification of connectors, splices, bends, breaks, and other fiber events.
Wide-Range Optical Power Meter: Supports 9 calibration wavelengths from 850 nm to 1650 nm and measures optical power from -50 to +26 dBm.
Powerful VFL & Stable Light Source: Includes a ≥10 mW Visual Fault Locator with a claimed detection distance of over 10 km, plus a stable optical light source supporting CW and multiple modulation frequencies.

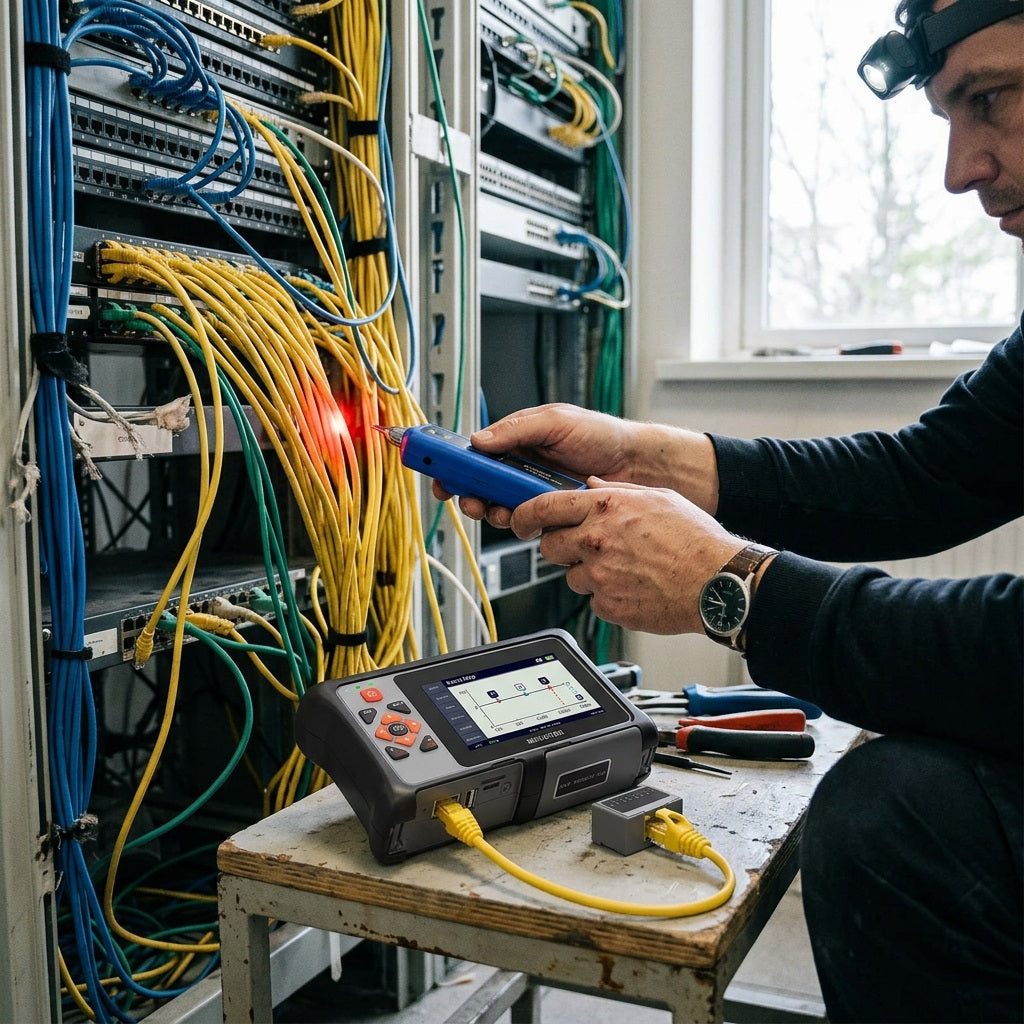

RJ45 Network Testing & Cable Tracking: Supports cable sequence testing, cable length measurement, and wire tracking using the included RJ45 remote module and wire tracker receiver.
5200mAh Battery & Type-C Charging: Built-in 5200mAh / 3.7V lithium battery provides convenient portable operation and recharges through the Type-C USB port.
Replaceable Optical Interfaces: Supports universal FC/SC/ST connections and includes replaceable SC and FC adapter heads for flexible fiber testing.
Long Product Description

The COMPTYCO KP800 UPC OTDR Fiber Optic Tester is a professional multi-functional fiber optic and network analyzer designed for FTTH installation, telecommunications, fiber network maintenance, troubleshooting, and field service applications. By combining multiple optical and copper cable testing functions into one compact handheld device, the KP800 helps technicians perform a wide range of testing and diagnostic tasks without carrying several separate instruments.

At the core of the KP800 is a 1310/1550nm dual-wavelength OTDR, designed for testing G.652D single-mode fiber. It supports selectable measurement ranges from 100 m to 100 km, making it suitable for both short-access fiber links and longer telecommunications networks. With a dynamic range of 24/22 dB, the tester can provide useful information about fiber length, attenuation, connection points, splices, bends, and potential breaks.

The KP800 features an event blind area of approximately 1.5 m and an attenuation blind zone of approximately 7 m, allowing technicians to identify fiber events with greater precision. The device supports up to 20,000 sampling points and multiple selectable pulse widths ranging from 5 ns to 10 `ecs, allowing testing parameters to be adjusted according to the fiber link and measurement requirements.

A convenient one-click automatic measurement and analysis function simplifies OTDR operation by automatically performing measurements and analyzing detected events. The resulting event information can be viewed directly on the device and saved for later reference.

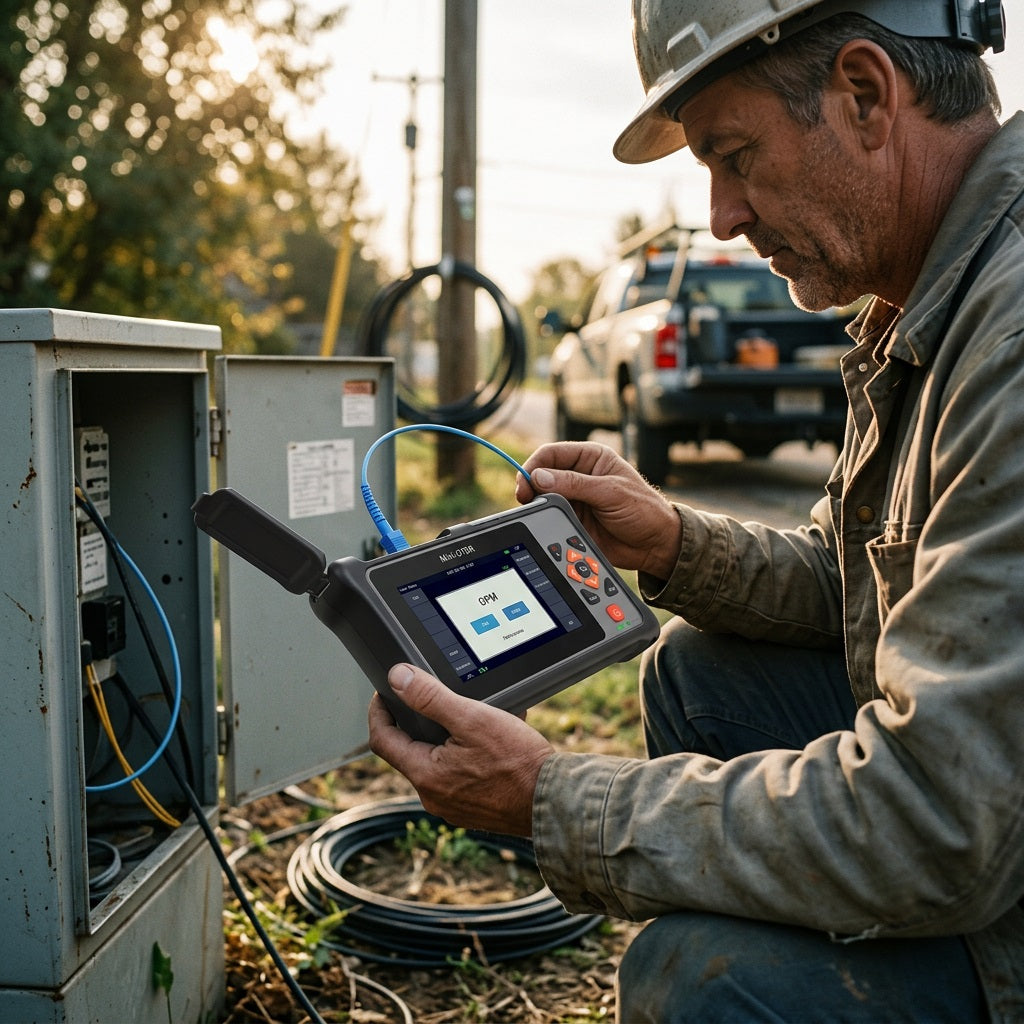

The KP800 also incorporates a wide-range Optical Power Meter (OPM) supporting nine calibration wavelengths: 850, 1270, 1300, 1310, 1490, 1550, 1577, 1625, and 1650 nm. With a measurement range of -50 to +26 dBm, it can be used for checking optical signal levels across various fiber optic network applications.

For visual fault identification, the integrated Visual Fault Locator (VFL) provides an output power of ≥10 mW and is specified for detecting suitable fiber faults over distances exceeding 10 km. The visible red laser can assist technicians in locating fiber breaks, macrobends, poor connections, and other faults where visible laser identification is possible.

The built-in Stable Light Source (LS) uses an FP-LD laser with an output of -5 dBm ±2 dB and supports CW, 270 Hz, 330 Hz, 1 kHz, and 2 kHz modulation modes. Combined with an optical power meter, this function can be used for optical loss testing and fiber link performance verification.

For copper network installations, the KP800 includes RJ45 network testing and wire tracking functions. The system supports cable sequence testing, cable length measurement, and cable tracing using the supplied RJ45 remote testing module and handheld wire tracker receiver.

The tester is operated through a 4.3-inch HD colour touchscreen, providing clear visibility of fiber traces, event maps, test results, and system settings. Its compact housing includes protective rubber corners to provide additional protection during field use.

Test results can be stored internally, with capacity for at least 1,000 files, and exported using the supported TF/SD memory card interface. OTDR measurements can be saved in the standard .SOR file format, making it convenient to transfer and analyze test records.

The KP800 is powered by a built-in 5200mAh / 3.7V lithium battery and supports convenient Type-C USB charging. With its portable design, comprehensive testing functions, interchangeable optical adapters, and included cable-tracking accessories, the COMPTYCO KP800 UPC OTDR Fiber Optic Tester provides an all-in-one solution for professional fiber optic and network installation and maintenance.

Key Applications
FTTH fibre optic installation and maintenance
Fiber optic fault location
Fiber link length measurement
Optical attenuation and loss testing
Fiber splice and connector testing
Fiber break and bend detection
Optical power measurement
VFL fault identification
Telecom network maintenance
Data communication network testing
RJ45 cable sequence testing
Network cable length measurement
Network cable tracking
Fiber optic commissioning and troubleshooting
Technical Specifications
Specification / Parameter Detail / Value
Brand COMPTYCO
Model KP800 UPC
Product Type Multi-Function OTDR Fiber Optic Tester
OTDR Wavelengths 1310 / 1550 nm ±20 nm
OTDR Type Dual-Wavelength
Dynamic Range 24 / 22 dB
Compatible Fiber G.652D Single-Mode Fiber
Event Blind Area 1.5 m
Attenuation Blind Zone 7 m
Measurement Ranges 100 m / 500 m / 1 km / 2 km / 5 km / 10 km / 20 km / 40 km / 60 km / 100 km
Pulse Widths 5 ns / 10 ns / 20 ns / 50 ns / 100 ns / 275 ns / 500 ns / 1 `ecs / 2 `ecs / 5 `ecs / 10 `ecs
Maximum Sampling Points 20,000
Sampling Resolution 20 cm – 8 m
Loss Resolution 0.001 dB
Range Resolution 0.001 m
Internal Storage ≥1,000 Files
External Storage TF / SD Card Support
File Format Standard .SOR
OPM Wavelengths 850 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650 nm
OPM Measurement Range -50 to +26 dBm
VFL Output Power ≥10 mW
VFL Detection Distance >10 km
Stable Light Source FP-LD Laser
LS Output Power -5 dBm ±2 dB
LS Modes CW / 270 Hz / 330 Hz / 1 kHz / 2 kHz
Optical Connector Interfaces Universal FC / SC / ST
Included Optical Adapters Replaceable SC & FC Adapter Heads
RJ45 Testing Cable Sequence / Cable Length / Wire Tracking
Display 4.3-Inch HD Colour Touchscreen
Battery 5200 mAh / 3.7 V Lithium Battery
Charging Interface Type-C USB
Operating Temperature -10°C to +50°C
Storage Temperature -40°C to +70°C
Main Unit Dimensions Approx. 183 × 107 × 45 mm
Main Unit Weight Approx. 520 g
Hardware & Interface Highlights
Top Panel Interfaces

The upper section of the KP800 provides convenient access to the main testing and connectivity interfaces, including:

RJ45 Network Test Port
USB Interface
TF Memory Card Slot
Charging LED Indicator
Built-In LED Flashlight
Optical Power Meter (OPM) Port
OTDR / Light Source (LS) Port
Visual Fault Locator (VFL) Port
Front Panel Controls

The front control panel includes dedicated buttons for convenient operation and navigation:

Directional Navigation Keys
OK Button
M / Menu Button
A / Analysis Button
SETUP Button
ESC Button
Power Button
What`s in the Box

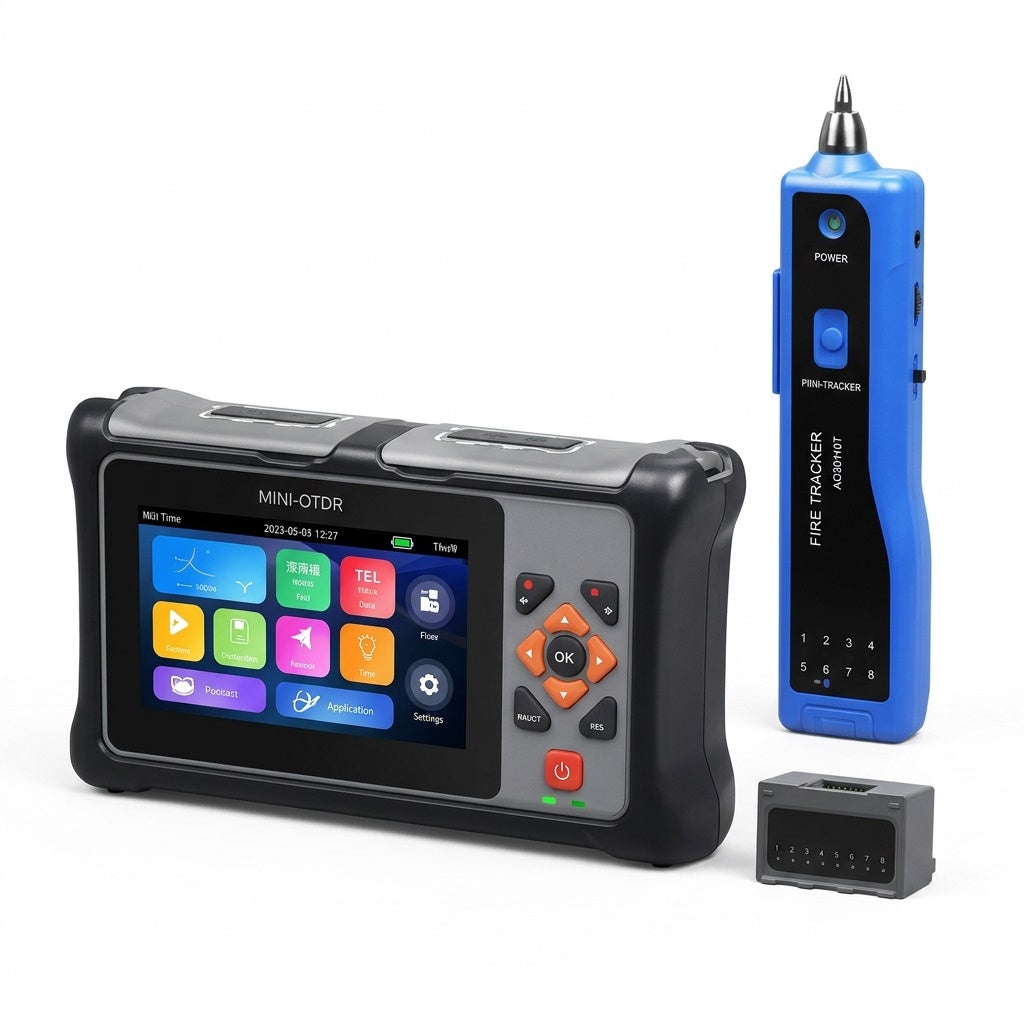

1 × COMPTYCO KP800 UPC OTDR Fiber Optic Tester
1 × Handheld Wire Tracker Receiver
1 × RJ45 Remote Cable Testing Module
1 × SC Adapter Head – Installed on the Main Unit
1 × FC Adapter Head – Installed on the Main Unit
1 × Type-C USB Charging Cable
1 × Power Charging Adapter / Plug
1 × Lanyard / Carrying Strap
1 × User Manual
1 × Test Report
1 × Portable Carrying Bag
1 × Packaging Box
