FO-CK-400X Professional Fiber Optic Clea

COMPTYCO FO-CK-400X Professional Fiber Optic Cleaning Kit – 400X Microscope, One-Click Cleaners & FTTH Maintenance Set

Short Description (Key Features)
Complete Fiber Optic Cleaning Kit: Comprehensive maintenance solution for inspecting and cleaning fibre optic connector end-faces.
400X Handheld Inspection Microscope: Includes 1.25mm and 2.5mm adapters for inspecting LC, SC, FC and ST connector end-faces.
Dual One-Click Cleaning Pens: Includes 1.25mm and 2.5mm cleaning pens, each offering more than 800 cleaning cycles.
Cassette Connector Cleaner: Heavy-duty cleaning cassette provides more than 550 cleaning cycles and features a replaceable cleaning core.
Dry & Wet Cleaning: A-Y1 cleaning platform with 250 lint-free non-woven wipes for dry or wet cleaning applications.
Precision Cleaning Accessories: Includes 1.25mm and 2.5mm cotton swabs, air blower, cleaning brush and refillable alcohol bottle.
Effective Contaminant Removal: Cleaning tools are designed to remove dust, stains, oil and other common fibre end-face contaminants.
Portable Field Kit: Supplied in a durable, waterproof and abrasion-resistant carrying bag for convenient transportation.
Professional FTTH Maintenance: Ideal for fibre technicians, FTTH installers, telecom engineers and network maintenance teams.
Long Product Description

The COMPTYCO FO-CK-400X Professional Fiber Optic Cleaning Kit is a comprehensive solution for the inspection, cleaning and maintenance of fibre optic connector end-faces. Designed for FTTH installers, fibre technicians, telecommunications engineers and network maintenance professionals, this kit combines inspection equipment with multiple dry and wet cleaning tools in one portable set.

Clean fibre connector end-faces are essential for maintaining reliable optical performance and minimising issues caused by dust, oil, debris and other contaminants. The included 400X handheld fibre inspection microscope allows technicians to inspect connector surfaces before and after cleaning, helping identify contamination and verify cleaning results.

400X Fibre Optic Inspection Microscope

The included handheld microscope provides 400X magnification for detailed inspection of fibre optic connector end-faces. The kit includes 1.25mm and 2.5mm adapters, supporting inspection of common connector types including LC, SC, FC and ST.

This makes it easier for technicians to identify dust, oil, stains and debris on connector ferrules before connecting or testing fibre links.

Dual One-Click Cleaning Pens

The kit includes two dedicated one-click fibre cleaning pens:

2.5mm Cleaning Pen: Suitable for SC, FC, ST and E2000 connectors.
1.25mm Cleaning Pen: Suitable for LC and MU connectors.

Each cleaning pen provides more than 800 cleaning cycles, offering a convenient solution for repeated connector maintenance in the field.

Cassette Connector Cleaner

The included optical connector cleaning cassette provides more than 550 cleaning cycles and is designed for cleaning common LC, SC, FC and ST connectors. The cleaning core can be replaced when required, helping extend the useful life of the cleaning system.

Dry & Wet Cleaning Accessories

For more comprehensive maintenance, the A-Y1 cleaning platform is supplied with 250 lint-free, dust-free non-woven wipes. These wipes can be used for dry cleaning or combined with cleaning alcohol for wet-cleaning applications.

Additional precision accessories include:

100 × 1.25mm cotton swabs
100 × 2.5mm cotton swabs
Air blower
Cleaning brush
Empty refillable alcohol pump bottle

These accessories help technicians clean connector ferrules, adapters, bulkheads and other hard-to-reach areas.

Built for Field Fibre Technicians

All components are stored inside a waterproof, wear-resistant and abrasion-resistant carrying bag, helping protect the equipment during transportation and field work. The woven shoulder strap provides convenient carrying between installation and maintenance locations.

With a total packed weight of approximately 1.26 kg and a bag size of approximately 26 × 18 × 15 cm, the FO-CK-400X provides a portable and organised solution for professional fibre optic maintenance.

Key Applications
FTTH installation and maintenance
Fibre optic connector cleaning
Fibre end-face inspection
Telecommunications network maintenance
Data centre fibre maintenance
Optical network troubleshooting
SC, FC, ST and LC connector maintenance
Fibre optic installation testing preparation
Field technician maintenance work
Technical Specifications
Specification Details
Product Type Professional Fibre Optic Cleaning Kit
Model FO-CK-400X
Inspection Microscope 400X Handheld Fibre Microscope
Microscope Adapters 1.25mm / 2.5mm
Supported Connector Types LC / SC / FC / ST
2.5mm Cleaning Pen >800 Cleaning Cycles
1.25mm Cleaning Pen >800 Cleaning Cycles
Cassette Cleaner >550 Cleaning Cycles
Cleaning Core Replaceable
Cleaning Wipes 250 × Lint-Free Non-Woven Wipes
1.25mm Cotton Swabs 100 Pieces
2.5mm Cotton Swabs 100 Pieces
Air Blower Included
Cleaning Brush Included
Alcohol Bottle Empty Refillable Pump Bottle
Carrying Bag Waterproof / Wear-Resistant / Abrasion-Resistant
Approx. Total Weight 1.26 kg
Bag Dimensions Approx. 26 × 18 × 15 cm
Hardware & Design Highlights
400X handheld fibre inspection capability
Dual-size connector cleaning pens
High-cycle cassette cleaning system
Replaceable cassette cleaning core
250 lint-free cleaning wipes
Precision cotton swabs in two sizes
Air blower and cleaning brush
Refillable alcohol pump bottle
Protective storage pouch
Durable portable carrying case
Suitable for professional field and laboratory environments

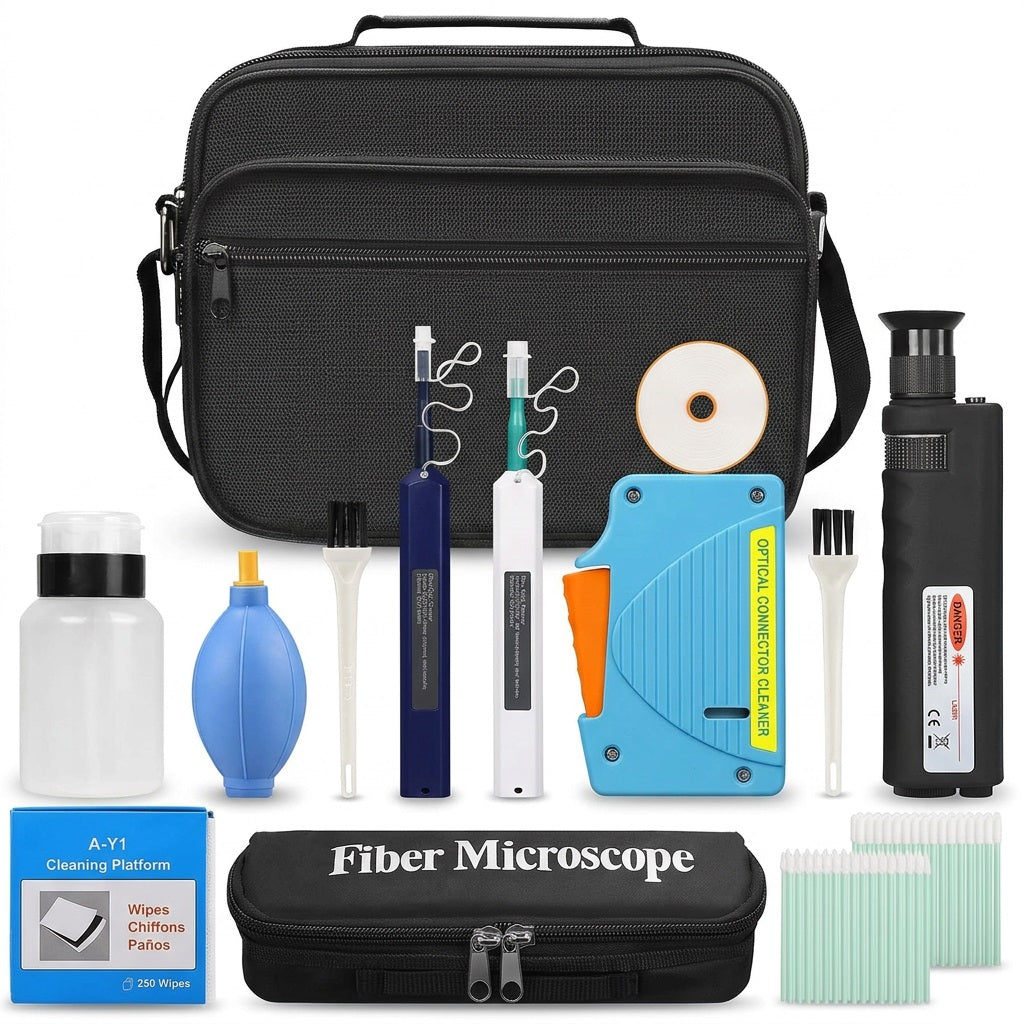

What`s in the Box
1 × 400X Handheld Fibre Inspection Microscope
1 × 1.25mm One-Click Cleaning Pen
1 × 2.5mm One-Click Cleaning Pen
1 × Optical Connector Cleaning Cassette
1 × A-Y1 Cleaning Platform
250 × Lint-Free Cleaning Wipes
100 × 1.25mm Cotton Swabs
100 × 2.5mm Cotton Swabs
1 × Air Blower
1 × Cleaning Brush
1 × Empty Alcohol Pump Bottle
1 × Protective Magnifier Storage Pouch
1 × Carrying Bag
