FO-TK-SC01 Professional Fiber Optic Tool Kit - FTTH Splicing, Cutting & Installation Set

FO-TK-SC01 Professional Fiber Optic Tool Kit – FTTH Splicing, Cutting & Installation Set

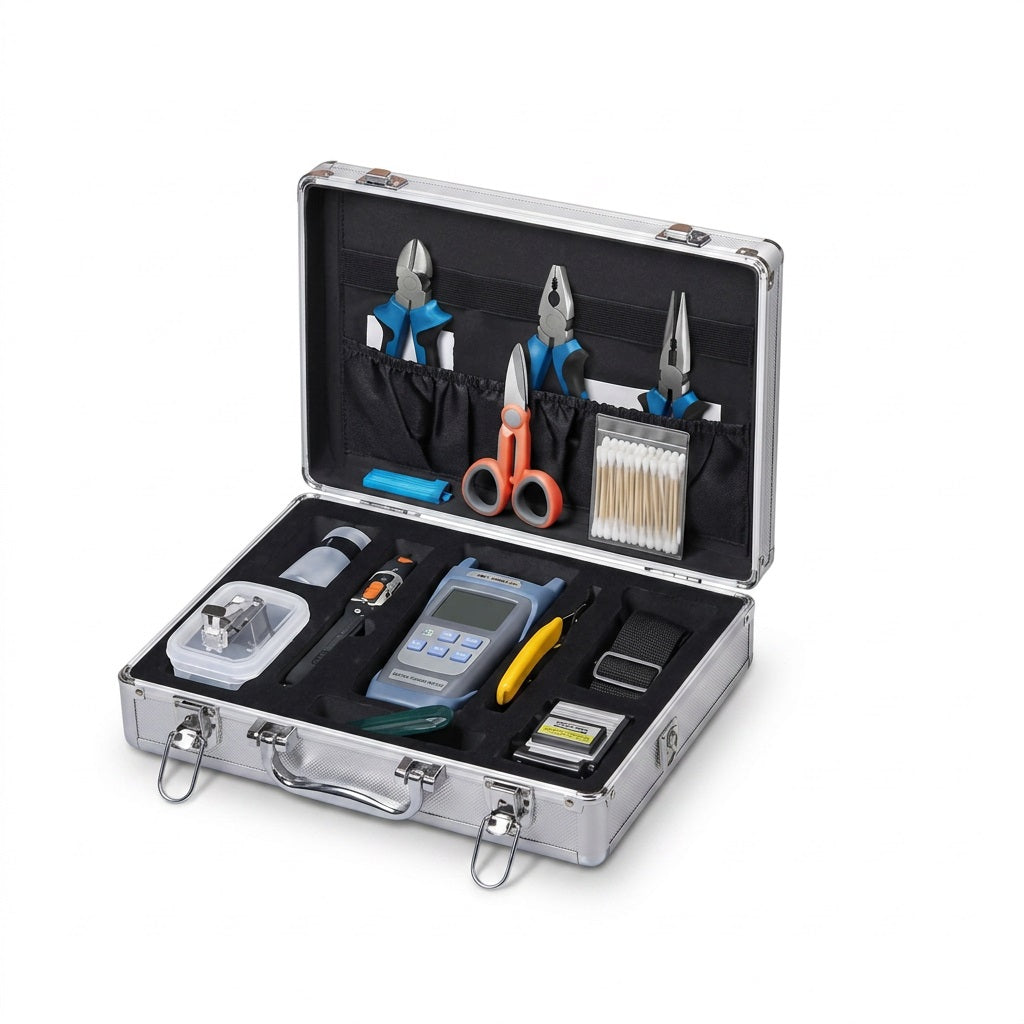

The FO-TK-SC01 Professional Fiber Optic Tool Kit is a comprehensive all-in-one solution for FTTH installation, fiber preparation, cold connection, splicing, testing, and network maintenance. Designed for telecommunications technicians, fiber installers, network engineers, and field-service professionals, this kit combines essential fiber optic tools into one convenient and organized package.

All tools are stored inside a rugged silver aluminum carrying case with dedicated compartments, protective foam, key locks, and a shoulder strap, making the kit easy to transport while keeping equipment securely organized.

Key Features & Benefits
Complete FTTH Tool Kit – Provides essential tools for fiber preparation, cutting, stripping, cleaning, testing, and cold connection work.
AUA-G710A Optical Power Meter – Measures optical power from -70dBm to +10dBm and supports 10 selectable wavelengths.
10mW Visual Fault Locator – Helps identify fiber breaks, bends, poor connections, and other visible optical faults.
FC-6S Precision Fiber Cleaver – Features an automatic rebound mechanism and 3-in-1 fiber fixture for efficient fiber preparation.
Professional Fiber Stripping Tools – Includes CFS-3 three-port stripper and a metal leather/drop cable stripper.
Kevlar / Aramid Scissors – Serrated scissors designed for cutting aramid strength members during fiber cable preparation.
Heavy-Duty Pliers Set – Includes diagonal pliers, vice, and needle-nose pliers for general installation and cable preparation tasks.
Fiber Length Setter – Helps achieve consistent fiber lengths during installation and preparation.
Cleaning Accessories – Includes dust-free wipes, cotton swabs, and an empty alcohol push-down bottle for connector and fiber maintenance.
Optical Adapters Included – SC and FC adapters provide convenient testing and connection options.
Rugged Aluminum Case – Durable silver case with key locks, protective storage compartments, non-slip feet, and adjustable shoulder strap.
Portable Field Kit – All essential tools are organized in one compact case for convenient transportation between installation sites.
Optical Power Meter – AUA-G710A

The included AUA-G710A Optical Power Meter provides a practical solution for testing and troubleshooting fiber optic links.

Features:

Measurement range: -70dBm to +10dBm
10 selectable wavelengths
Backlit display
LED illumination
Wavelength memory
2.5mm universal SC/FC/ST interface
Dry-cell powered design
Visual Fault Locator – 10mW

The included 10mW Visual Fault Locator (VFL) provides visible red laser light for identifying common fiber faults.

Suitable for locating:

Fiber breaks
Excessive bends
Poor connections
Cable faults
Incorrect fiber routing
Connection problems

The VFL features a 2.5mm universal SC/FC/ST interface and compact metal construction suitable for field use.

FC-6S Fiber Cleaver

The FC-6S Fiber Cleaver provides precise fiber cutting during fiber preparation and cold-connection applications.

Automatic rebound mechanism
Smooth fiber cutting operation
3-in-1 fixture
Suitable for professional fiber preparation
Protective storage bag included
Fiber Stripping & Preparation Tools

The FO-TK-SC01 includes multiple tools for preparing different types of fiber optic cables:

CFS-3 Three-Port Fiber Stripper

Designed for stripping different fiber layers:

2–3mm outer cable layer
900`ecm–250`ecm buffer
250`ecm–125`ecm coating
Metal Leather Wire Stripper

Suitable for 1-core and 2-core indoor/outdoor FTTH drop cables.

Aramid / Kevlar Scissors

Serrated scissors designed for cutting Kevlar/aramid strength members during fiber cable preparation.

Technical Specifications
Parameter Specification
Model FO-TK-SC01
Kit Type Professional Fiber Optic / FTTH Tool Kit
Optical Power Meter AUA-G710A
OPM Range -70dBm to +10dBm
OPM Wavelengths 10 Selectable Wavelengths
OPM Interface 2.5mm Universal SC/FC/ST
Visual Fault Locator 10mW
VFL Interface 2.5mm Universal SC/FC/ST
Fiber Cleaver FC-6S
Cleaver Features Automatic Rebound & 3-in-1 Fixture
Fiber Stripper CFS-3 Three-Port Stripper
Outer Layer Stripping 2–3mm
Buffer Stripping 900`ecm–250`ecm
Coating Stripping 250`ecm–125`ecm
Cable Stripper Metal Leather Wire Stripper
Additional Tools Diagonal Pliers, Vice, Needle-Nose Pliers
Toolbox Material Aluminium
Toolbox Colour Silver
Toolbox Dimensions 34.9 × 28 × 9.7cm
Total Set Weight Approx. 2.83kg
Rugged Aluminium Carrying Case

The entire toolkit is supplied in a silver aluminium carrying case designed for professional field use. The organized interior keeps individual tools securely positioned and makes it easier to locate equipment when working on-site.

The case features:

Aluminium construction
Key-locking system
Dedicated tool compartments
Protective internal storage
Non-slip bottom pads
Adjustable shoulder strap
Compact portable design
Ideal Applications

The FO-TK-SC01 Professional Fiber Optic Tool Kit is ideal for:

FTTH installation
Fiber optic cold connections
Fiber cable preparation
Fiber stripping and cleaving
Optical power testing
Visual fault identification
Fiber network maintenance
Telecommunications installation
Fiber link troubleshooting
Network commissioning
Field-service technicians
Fiber optic training and technical work
Package Contents
1 × Aluminium Frame Toolbox with key locks and shoulder strap
1 × AUA-G710A Optical Power Meter
1 × 10mW Visual Fault Locator with lanyard/pen pouch
1 × FC-6S Fiber Cleaver with protective storage bag
1 × CFS-3 Three-Port Fiber Stripper
1 × Metal Leather Wire Stripper
1 × Aramid / Kevlar Serrated Scissors
1 × Heavy-Duty Pliers Set – Diagonal Pliers, Vice & Needle-Nose Pliers
1 × Fiber Length Setter / Fixed Length Device
SC / FC Optical Adapters
1 × Empty Alcohol Push-Down Bottle
Cleaning & Maintenance Accessories – Dust-Free Paper Wipes, Cotton Swabs & Hex Wrenches
1 × Small Component Storage Box
User Manual & Instruction Sheet
