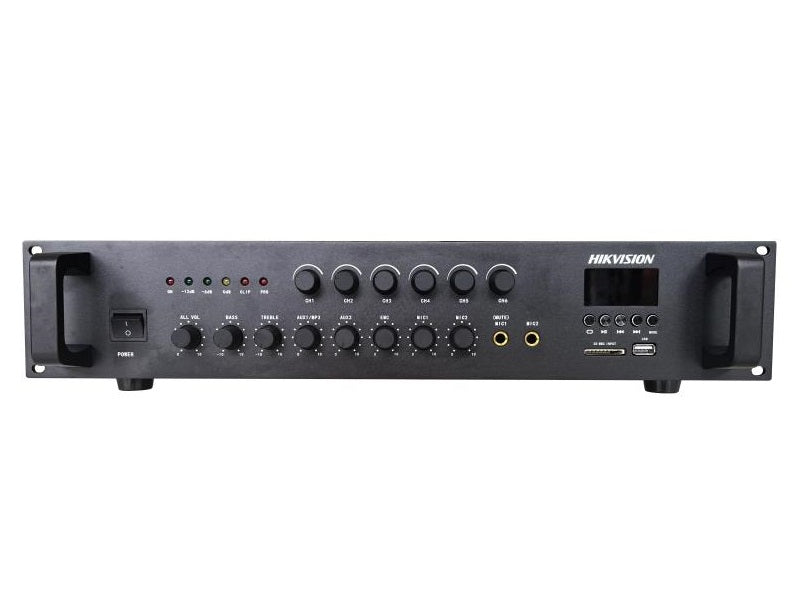

Hikvision DS-QAE0A120G1-VB6 6-zone amplifier, front panel with volume knobs and display

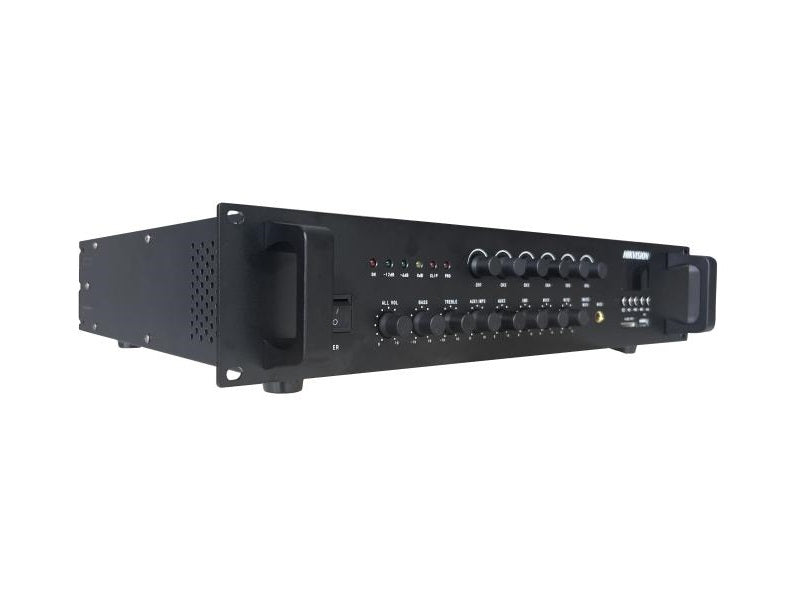

Hikvision 120W 6-zone amplifier shown at an angle, revealing rack handles and controls

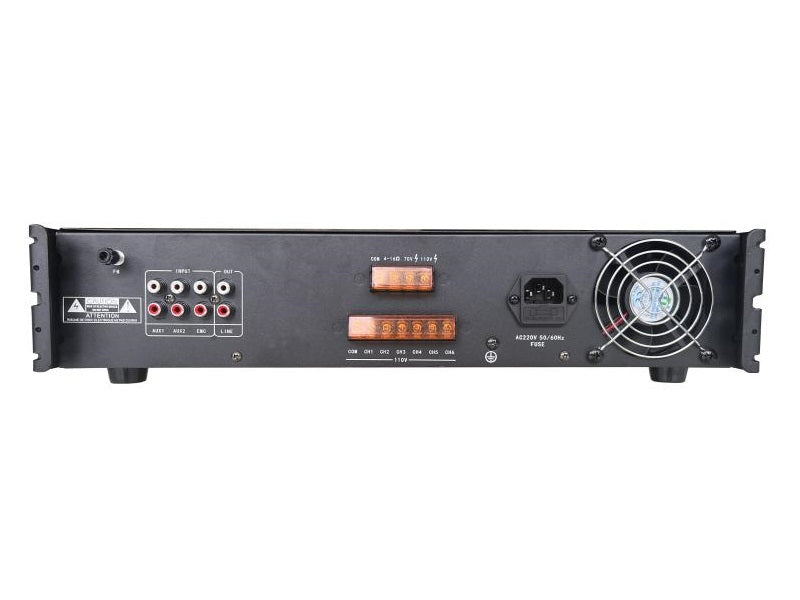

Rear panel of Hikvision 6-zone amplifier showing RCA inputs, terminals, and cooling fan

Hikvision DS-QAE0A120G1-VB6 120W 6-Zone Analog Amplifier - Bluetooth, USB, MIC/AUX

DS-QAE0A120G1-VB6

HIKVISION
R 3,883
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 12-month limited warranty
Flexible payments from only R 647.16 over 2–6 instalments
Price: R 3,883

Description

The device has 2 auxiliary (AUX) line inputs, 1 emergency (EMC) input, and 2 microphone inputs; 1 auxiliary output, capable of cascading to the next power amplifier. Microphone 1/2, emergency line input, and line 1/2 can be independently adjusted, and it also has total volume control.

Key features

  • Built in Bluetooth/MP3 function module for content playback on the phone.
  • Equipped with six independent volume adjustment output functions.
  • Mic 1 and emergency line EMC inputs have the highest priority level, while Mic 1 and EMC have mixed outputs that can strongly cut other audio input signals.
  • Mic 2, Line 1, Line 2, and MP3 (Bluetooth/SD/USB) have mixed output.
  • Equipped with high and low frequency adjustment function.
  • Equipped with advanced short-circuit, overheating, and overload protection functions.
  • The circuit is equipped with amplitude limiting function to prevent excessive output of the amplifier and protect the speaker.
  • Supports multiple indicator light displays (power, signal).
  • By adopting a forced cooling structure with a fan, the machine can operate for a long time.
  • THD and SNR
  • Bluetooth,
  • SD card
  • Volume Knob
  • Iron
  • Approx. 9.2 kg (20.28 lb.)
  • Approx. 9.5 Kg(20.94 lb.)
  • Black
  • Packing List
  • One machine and one power cord
  • Installation
  • Cabinet installation

Specifications

  • Ds-qae0a120g1-vb6
  • 120W 6-Zone Analog Amplifier
  • 120W
  • Sensitivity
  • Line: -10dB
  • EMC: -10dB
  • MIC: -40dB
  • line'a3°0dB
  • Frequency Response
  • 80Hz-18KHz (±3dB)
  • THD≤0.5%
  • SNR≥83dB
  • EMC IN × 1,
  • 6.5 mm Microphone × 2,
  • AUX IN × 2,
  • USB2.0,
  • Constant Voltage Output × 1, 110 V COM,
  • Constant Voltage Output × 1, 70 V COM,
  • Constant Impedance Output × 1, 4~16Ω COM,
  • Partition Output × 6, 110 V COM,
  • line out × 1,
  • MIC Volume Knob × 2,
  • Partition 1 Volume Knob × 6,
  • All Volume Knob × 1,
  • Bass Volume Knob × 1,
  • Treble Volume Knob ×1,
  • AUX1/MP3 Volume Knob ×1,
  • AUX2 Volume Knob ×1,
  • EMC Volume Knob ×1
  • USB2.0
  • 200V-230V ~ , 50/60Hz 5A
  • Material
  • 484 × 88 × 360mm
  • 484 × 88 × 395mm
  • Color
  • 10~+ 40°C , (±2)
  • 20%~80% relative humidity

Frequently Bought Together Frequently bought

Product Information

Warranty 12-month limited warranty
Categories Hikvision / Musical Instruments / New Arrivals / Specials
Brand Hikvision
Model DS-QAE0A120G1-VB6
Type 120W 6-Zone Analog Amplifier
Rated Power 120W
Frequency Response 80 Hz to 18 kHz (±3 dB)
THD ≤0.5%
SNR ≥83 dB
Audio Inputs EMC, 2x MIC, 2x AUX, Bluetooth, USB 2.0, SD
Audio Outputs 110V/70V constant voltage, 4-16Ω, 6 zones, line out
Power 200-230V, 50/60Hz, 5A
Material Iron
Dimensions 484 x 88 x 360 mm
Weight Approx. 9.2 kg
Color Black
Operating Temperature -10°C to +40°C
SKU DS-QAE0A120G1-VB6
